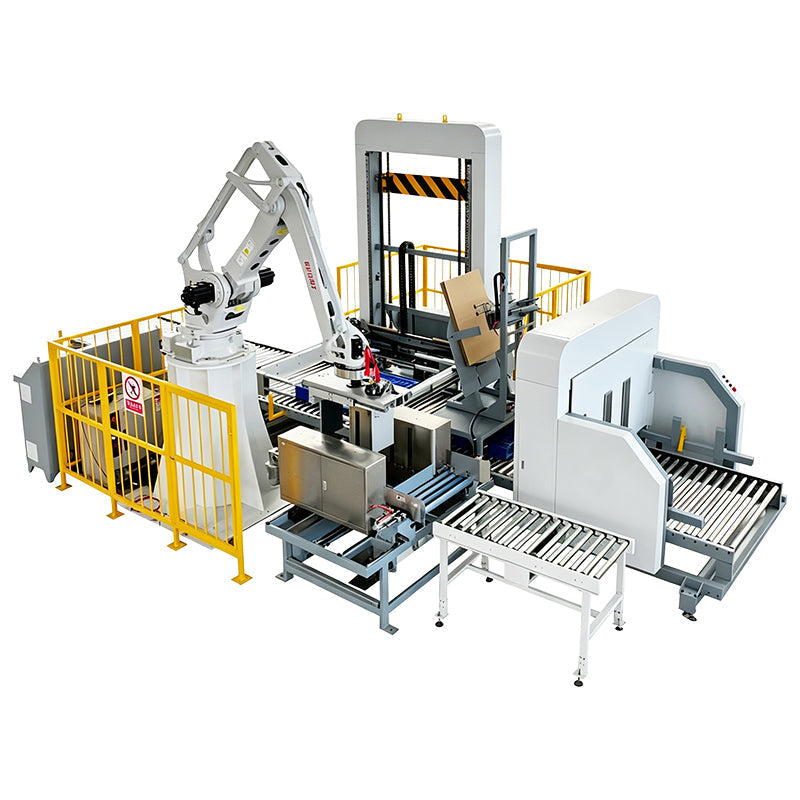

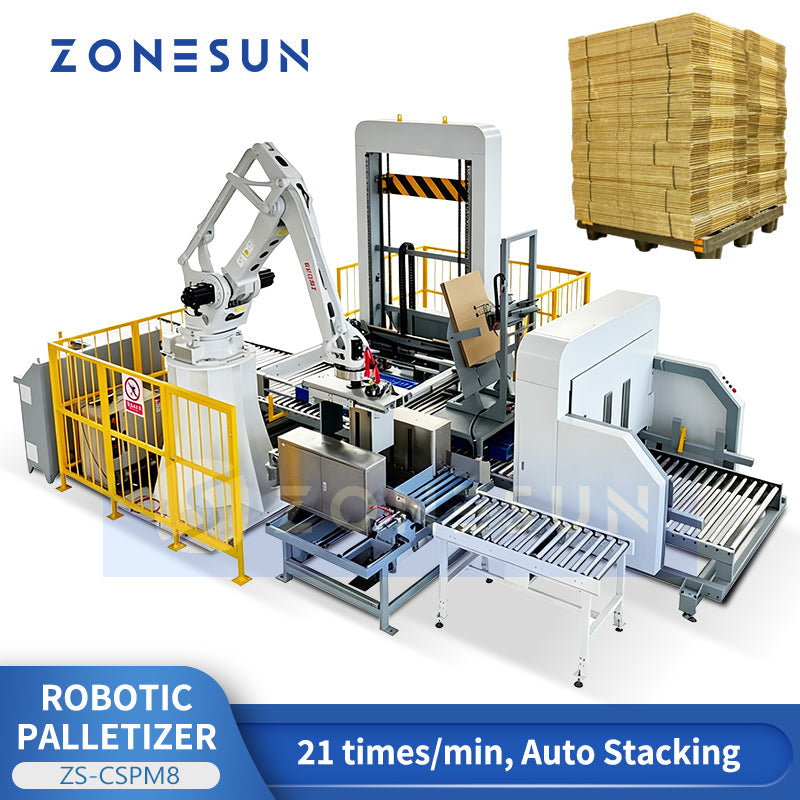

ZONESUN ZS-CSPM8 Automatic Corrugated Case Robotic Palletizer Sheet Placing | End-of-Line

Description

The ZONESUN ZS-CSPM8 is a high-performance corrugated carton robotic palletizer designed for automated stacking, sheet placing, and pallet handling at the end of production lines. With a palletizing speed of up to 21 cycles per minute, it integrates a clamping-type carton gripper, heavy-duty precise palletizing, high-efficiency stacking, automatic sheet placing, and flexible pallet adaptation into a single intelligent system.

Ideal for handling corrugated carton bundles, layer pads, and pallets across logistics, e-commerce, food, manufacturing, and packaging industries that require stable, accurate, and continuous palletizing performance.

Technical Specifications

• Model: ZS-CSPM8
• Max. Palletizing Speed: 21 cycles/min (±1)
• Max. Gripping Weight: 30+ kg
• Max. Gripping Height: 350mm
• Min. Gripping Height: 60mm
• Max. Paper Size: 1,450 × 1,200mm
• Min. Paper Size: 350 × 290mm
• Max. Pad Size: 1,200 × 1,000mm
• Max. Stack Height: 2,200mm
• Max. Pallet Size: 1,500 × 1,500mm
• Min. Pallet Size: 1,000 × 1,200mm
• Conveyor Line Speed: 0–30 m/min

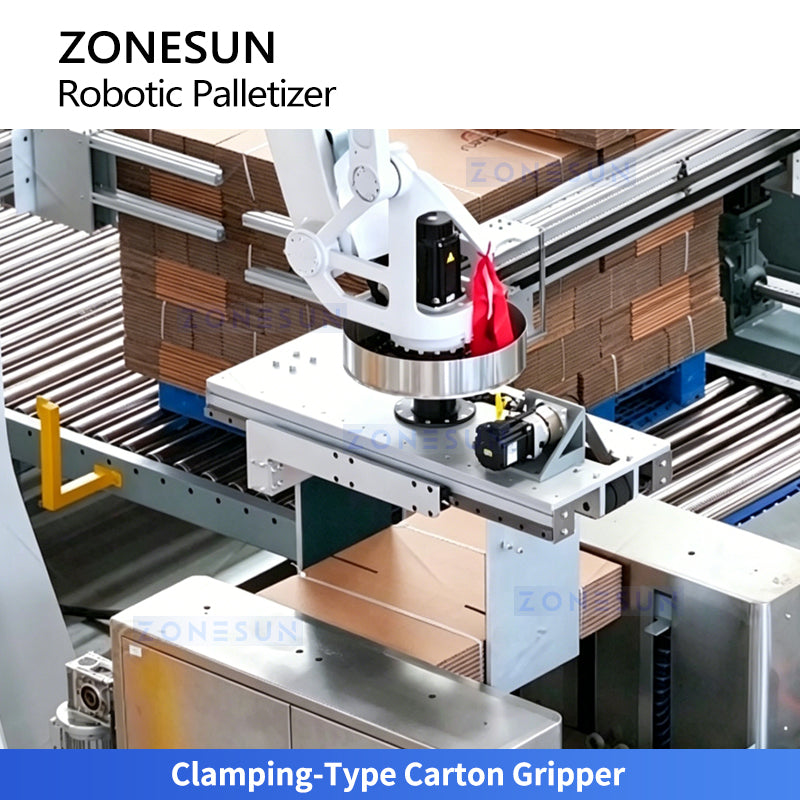

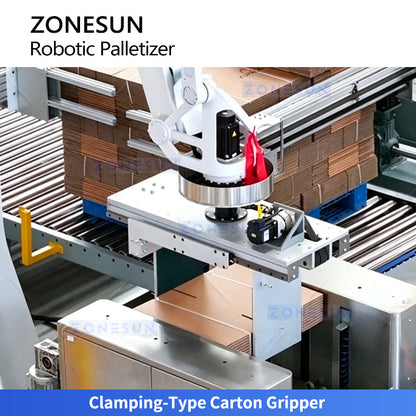

Clamping-Type Carton Gripper

Uses opposing clamping arms to securely grip cartons from the sides, enabling stable lifting, precise placement, and reliable palletizing without relying on suction.

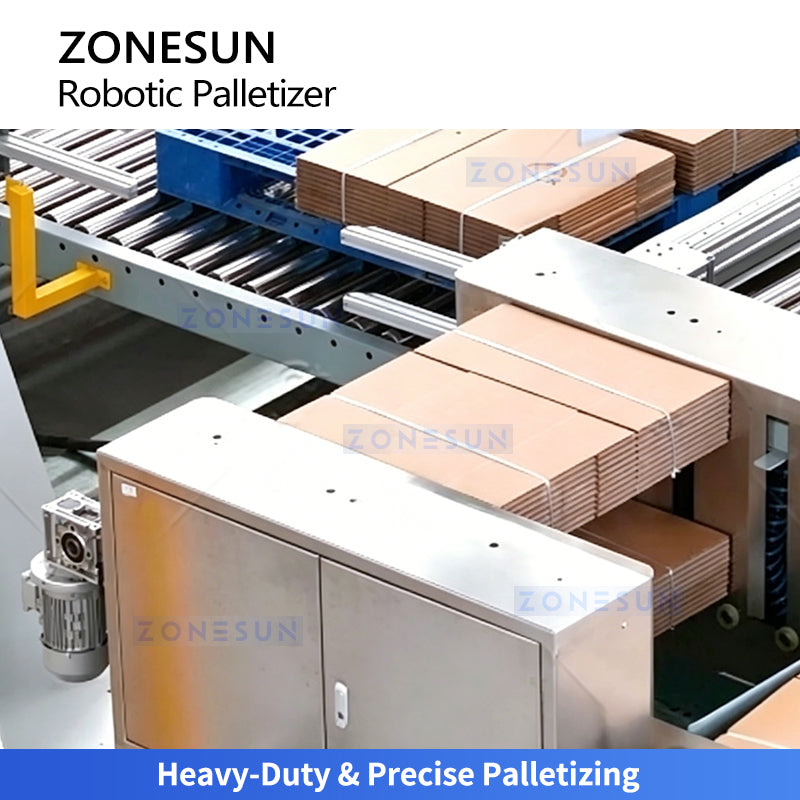

Heavy-Duty & Precise Palletizing

Handles bundles up to 30 kg with adjustable gripping height, ensuring heavy cartons are palletized with high precision, stability, and consistent placement accuracy.

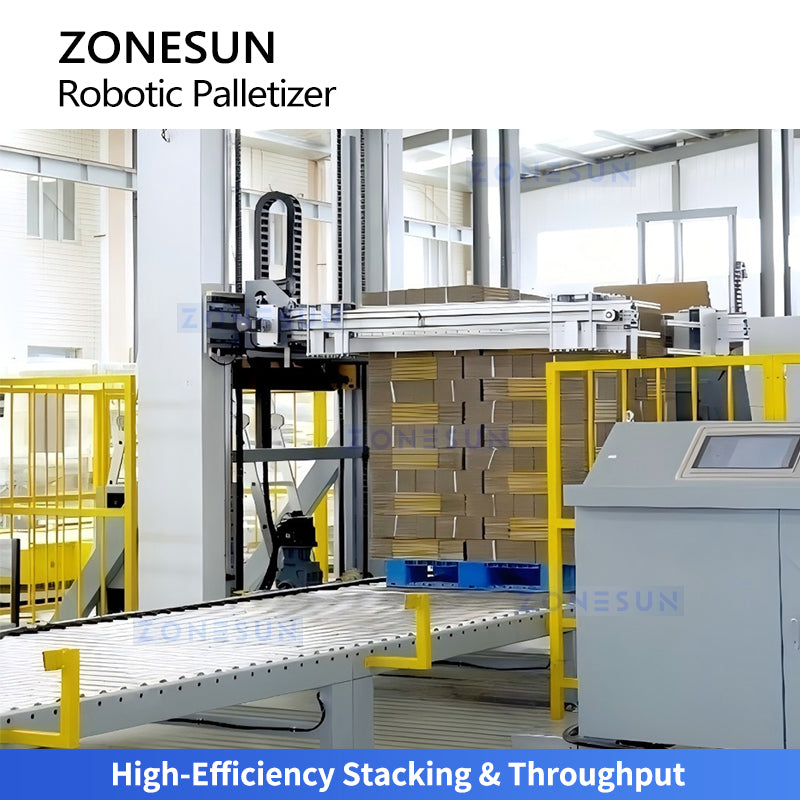

High-Efficiency Stacking & Throughput

Achieves a palletizing speed of up to 21 cycles/min and supports an automated stack height of 2,200mm, seamlessly integrated with a flexible 30 m/min conveyor line.

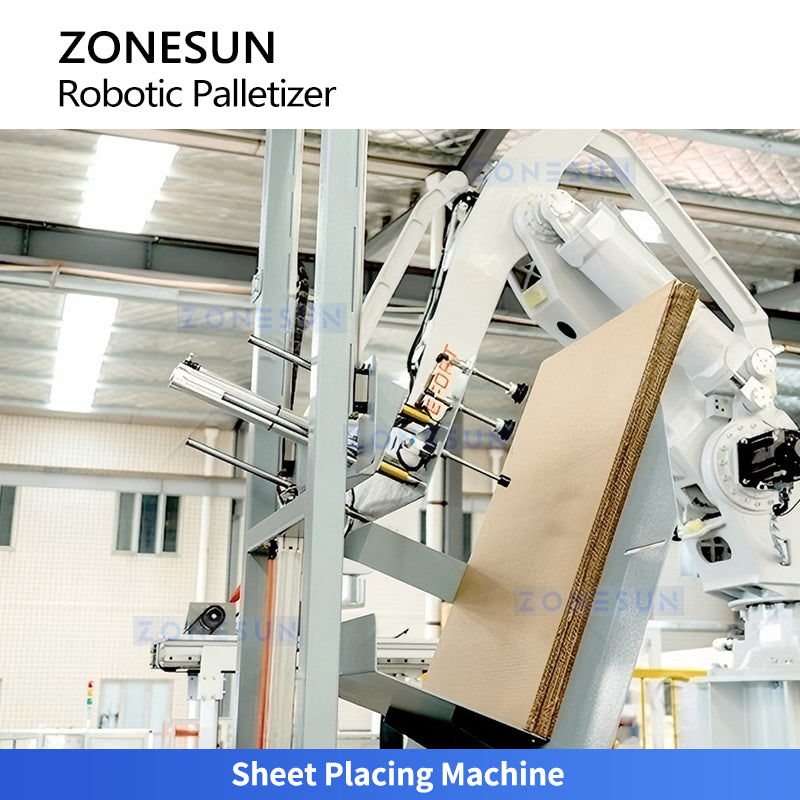

Sheet Placing Machine

Automatically places slip sheets or layer pads onto products or pallets, ensuring consistent protection while removing the need for manual insertion.

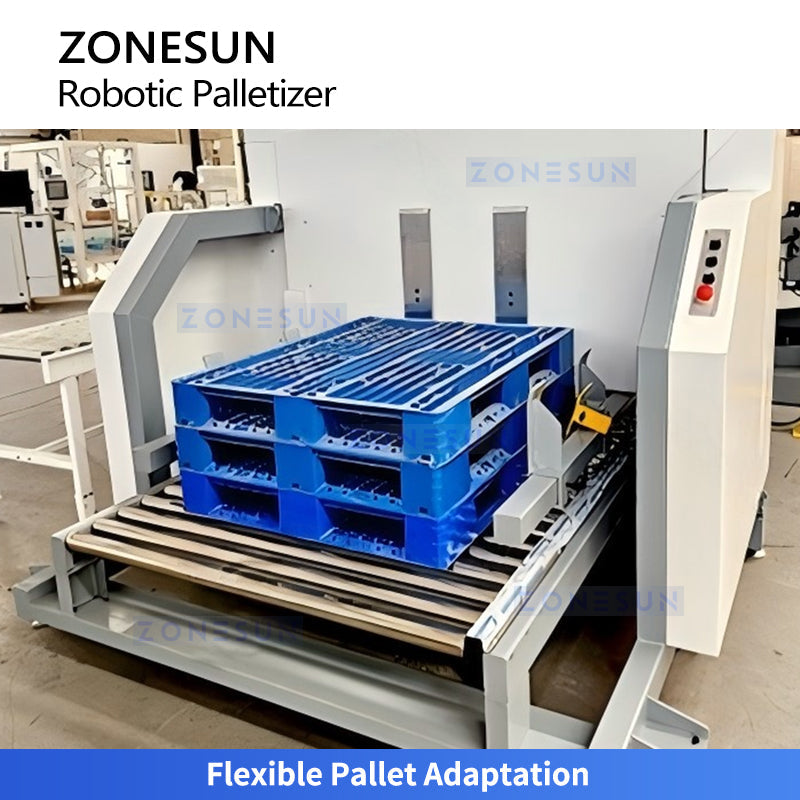

Flexible Pallet Adaptation

Supports multiple pallet sizes (1,000–1,500mm) and integrates automatic pad placement, ensuring standardized palletizing quality and improved transport safety.

Pallet Conveyor

Moves loaded pallets smoothly through the palletizing flow, ensuring stable positioning and seamless transfer between stacking and outbound handling.

Why Choose the ZS-CSPM8?

• ✅ High Speed: Up to 21 cycles/min (±1) for continuous, high-throughput end-of-line palletizing
• ✅ Clamping-Type Gripper: Side-clamping arms for secure, suction-free carton handling up to 30 kg
• ✅ Tall Stack Capability: Up to 2,200mm automated stack height for maximum pallet density
• ✅ Automatic Sheet Placing: Slip sheets and layer pads placed automatically — no manual insertion needed
• ✅ Flexible Pallet Sizes: Compatible with 1,000×1,200mm to 1,500×1,500mm pallets
• ✅ High-Speed Conveyor: 0–30 m/min adjustable conveyor line for seamless upstream integration
• ✅ Wide Carton Compatibility: Paper sizes from 350×290mm to 1,450×1,200mm
• ✅ Fully Customizable: Configurable to your production layout and carton specifications

Ideal Applications

• 📦 Logistics & Warehousing: High-speed corrugated carton palletizing for distribution centers
• 🛍️ E-commerce: Automated end-of-line pallet building for fulfillment centers
• 🍺 Food & Beverage: Carton palletizing for bottled drinks, canned goods, packaged food
• 🏭 Manufacturing: End-of-line palletizing for industrial goods and consumer products
• 💊 Pharmaceutical: Precise, stable palletizing for medicine cartons and healthcare products
