Description

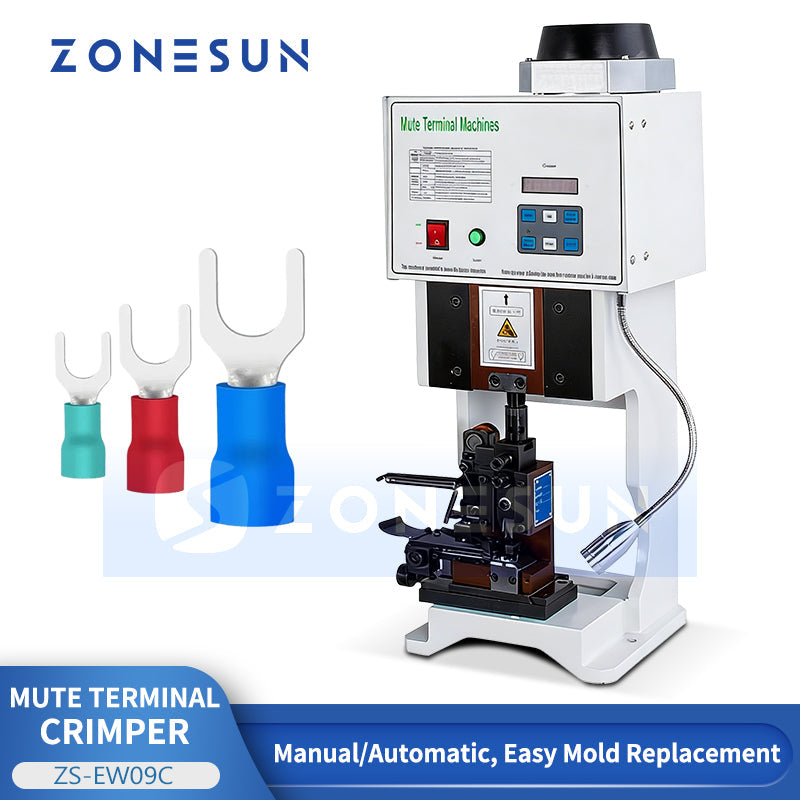

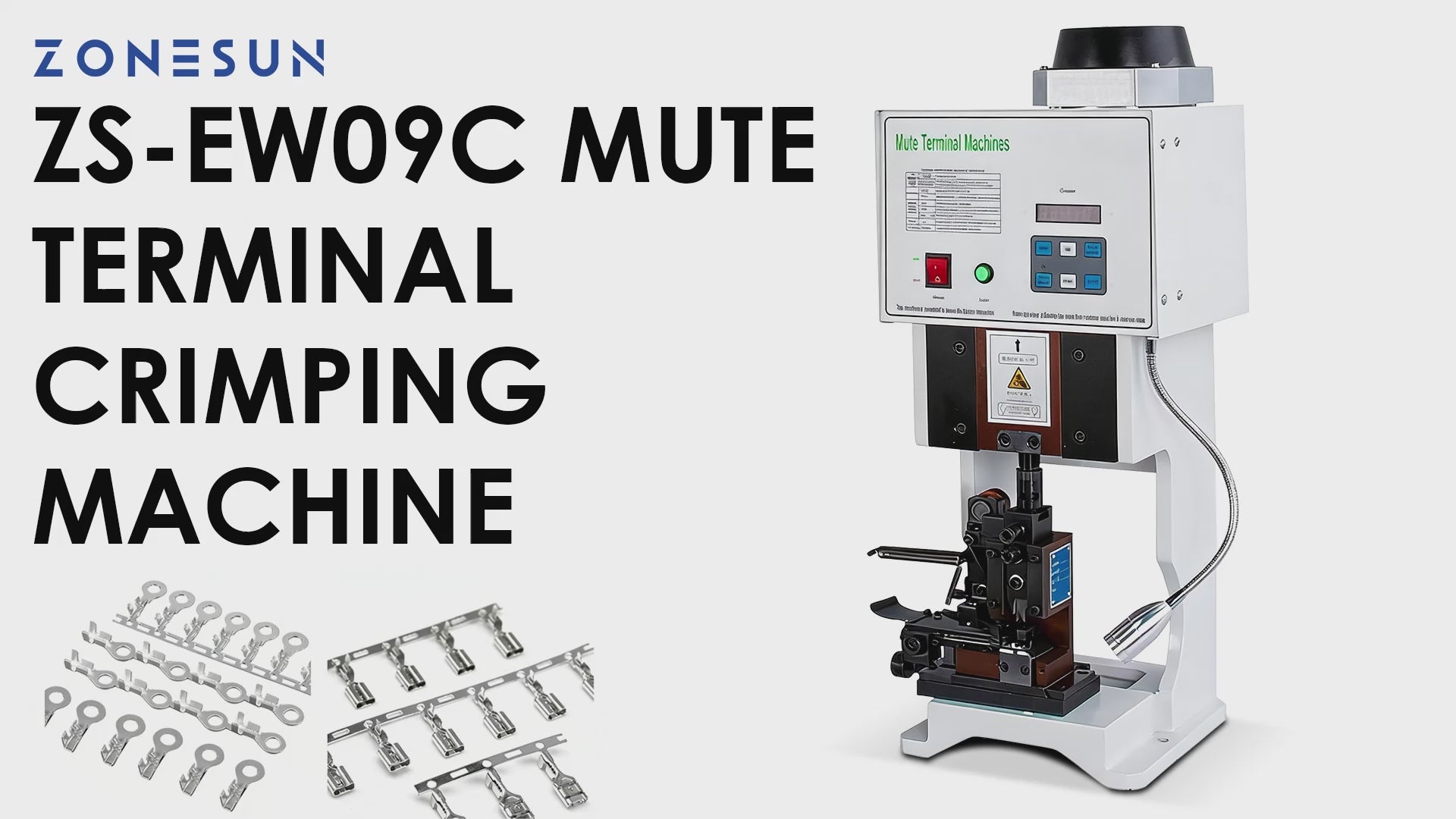

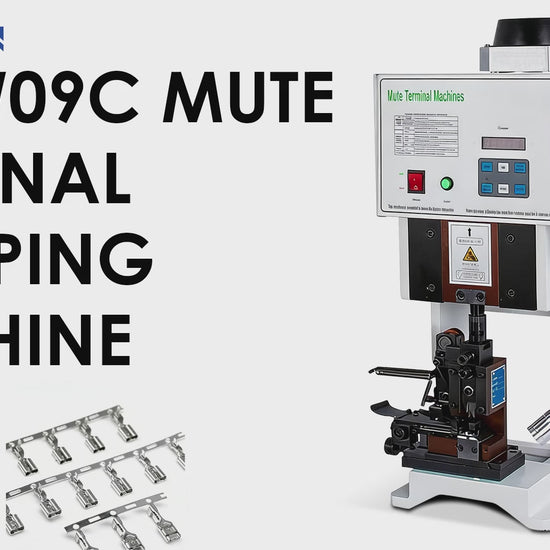

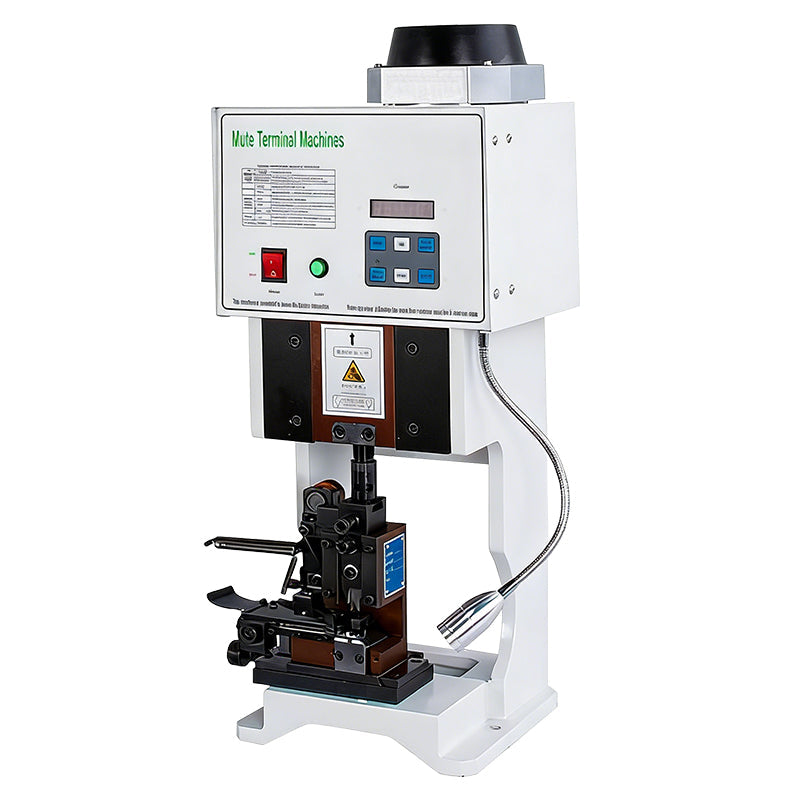

The ZONESUN ZS-EW09C is a semi-automatic mute terminal crimping machine designed for efficient wire harness processing. Its ultra-quiet frequency-conversion system activates the motor only during crimping — significantly reducing noise and energy consumption compared with traditional clutch-type machines.
With 2T crimping force, stable voltage, fast speed, and high precision, it ensures firm and consistent terminal connections. The quick-change mold system supports OTP transverse, straight/reverse, single-grain, and U-shaped dies, making it compatible with DC, AC, computer, single-grain, and continuous terminals. Compact, easy to operate, and available in manual or automatic modes, it delivers reliable performance for industrial production.
Technical Specifications
- Model: ZS-EW09C
- Voltage: 110V / 220V, 50–60Hz

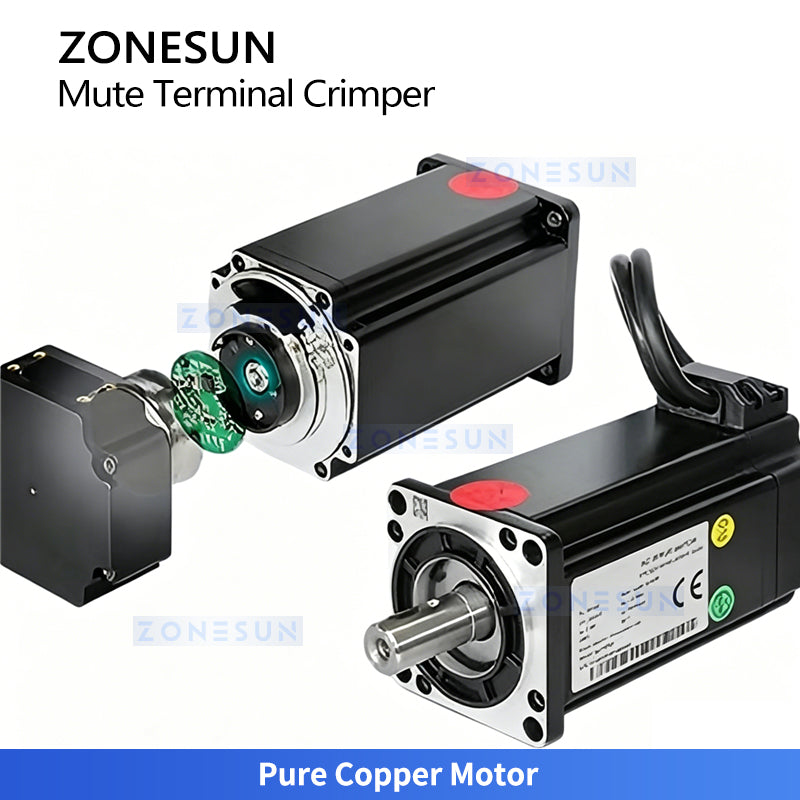

- Motor Power: 0.55 kW
- Crimping Force: 2 T
- Stroke: 30mm (optional 40mm)
- Machine Dimensions (L×W×H): 220 × 240 × 640mm
- Machine Weight: 48 kg
- Compatible Dies: OTP transverse / Straight / Reverse / Single-grain / U-shaped
- Compatible Terminals: DC / AC / Computer / Single-grain / Continuous
- Operation Modes: Manual / Automatic
Why Choose the ZS-EW09C?
- ✅ Ultra-Quiet Operation: Frequency-conversion system activates motor only during crimping — significantly lower noise than clutch-type machines

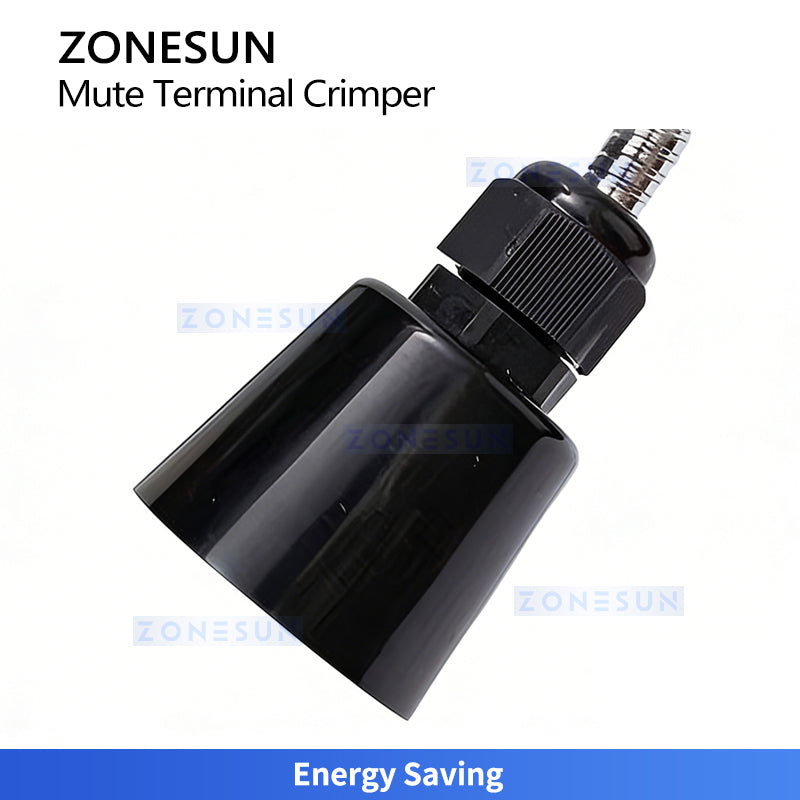

- ✅ Energy Saving: Motor idles silently between cycles, reducing power consumption
- ✅ 2T Crimping Force: Firm, consistent terminal connections for reliable wire harness quality

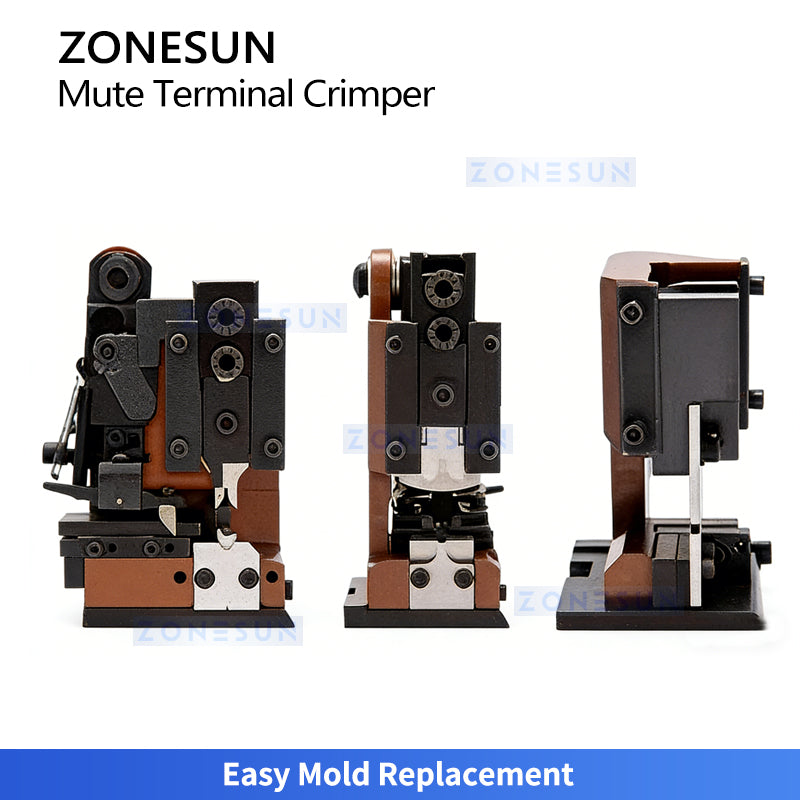

- ✅ Quick-Change Die System: Supports OTP transverse, straight/reverse, single-grain, and U-shaped dies for fast tooling changeover

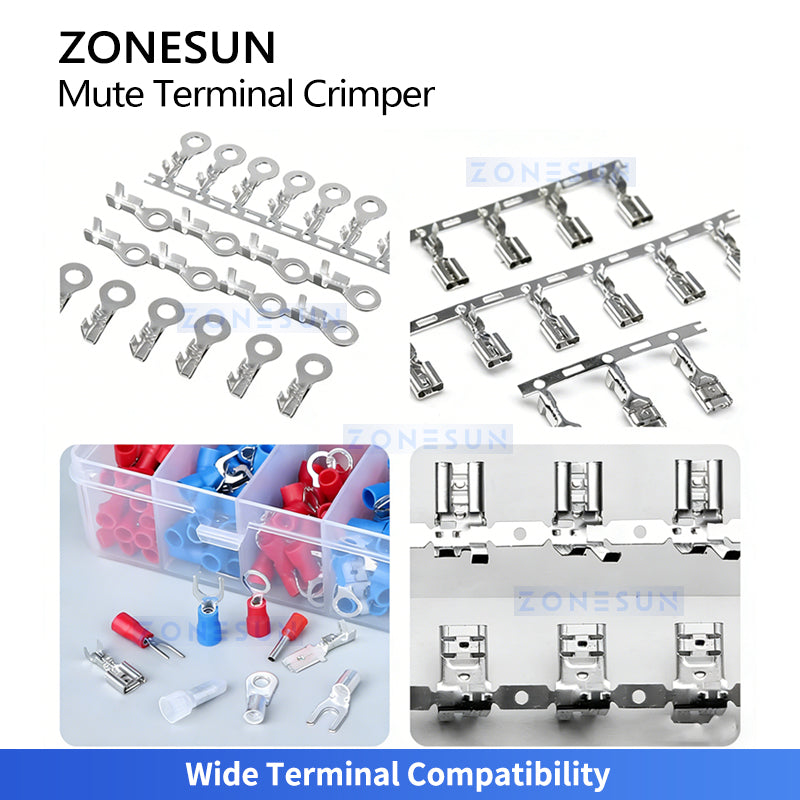

- ✅ Wide Terminal Compatibility: DC, AC, computer, single-grain, and continuous terminals
- ✅ Dual Operation Modes: Manual and automatic modes for flexible production requirements
- ✅ Compact & Lightweight: 48 kg, 220×240×640mm — easy to position on any workbench
- ✅ Worldwide Voltage: 110V / 220V, 50–60Hz compatible
Ideal Applications
- 🔌 Wire Harness Manufacturing: Automotive wiring, electrical harness assembly, connector crimping
- 💻 Electronics: Computer cables, PCB connectors, consumer electronics wiring
- 🏭 Industrial Production: Control panel wiring, machine cable assembly, industrial connectors
- ⚡ Electrical Engineering: AC/DC terminal crimping for switchgear, distribution boards
- 🚗 Automotive: Vehicle wiring harness production, connector assembly lines
About ZONESUN
ZONESUN is a leading manufacturer of packaging and processing machinery serving global industries. Every machine is built to strict quality standards, backed by professional technical support and after-sales service. Order with confidence — we’re here to support your production success.
