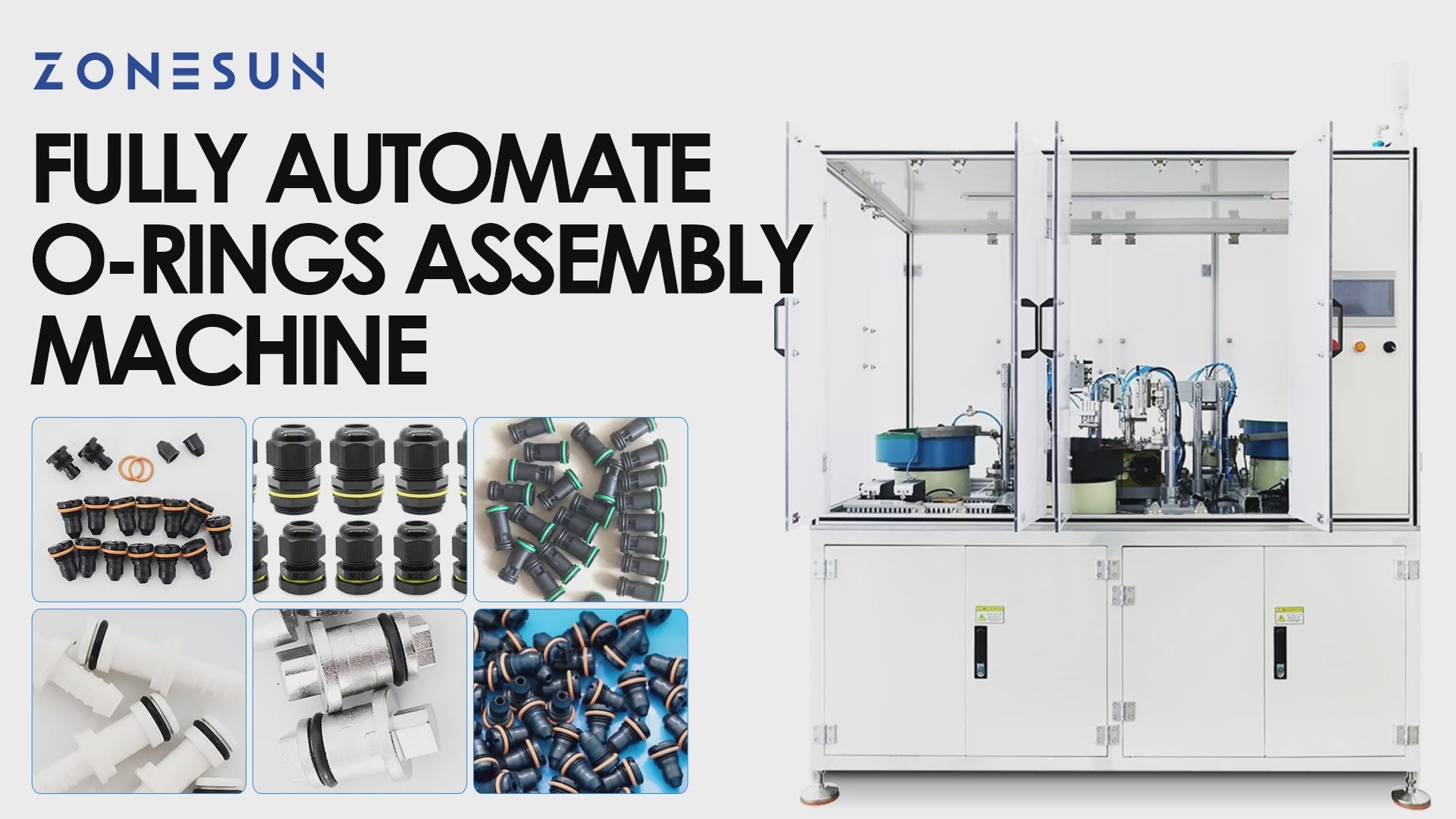

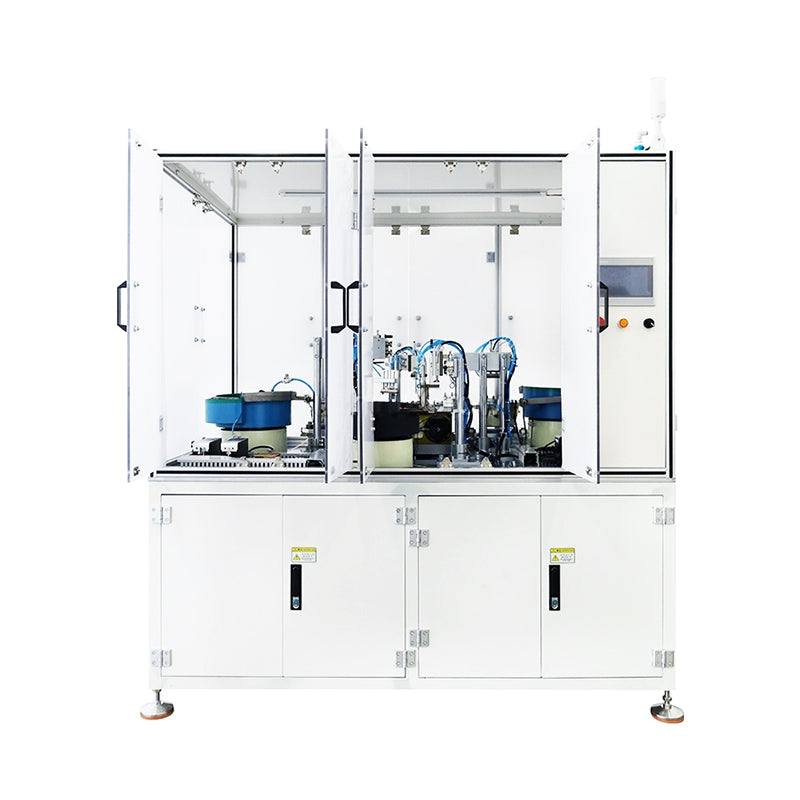

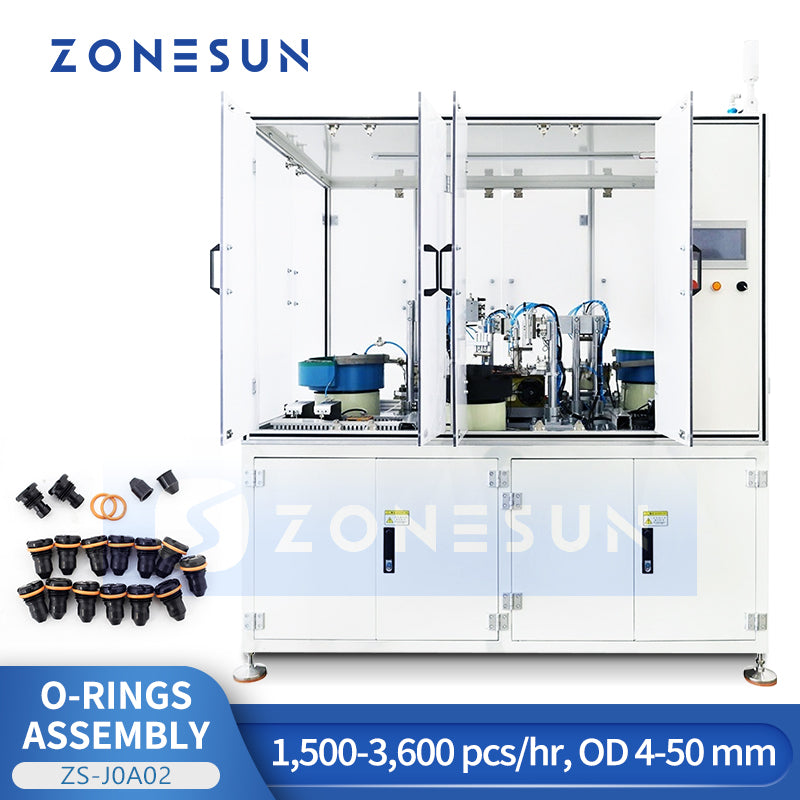

ZONESUN ZS-J0A02 Fully Automatic O-Ring Assembly Machine

Description

The ZONESUN ZS-J0A02 is a fully automated O-ring assembly machine designed for precision sealing applications. It efficiently installs O-ring seals onto components such as valves, connectors, and pump bodies. With a production capacity of 1,500-3,600 pcs/hr and supporting O-rings from OD 4-50 mm, it integrates PLC control, vibratory feeding, and automated placement systems. The machine achieves >98% yield, consistent sealing quality, and minimal labor intervention. Its flexible design allows interchangeable tooling for different O-ring sizes and materials. Equipped with transparent protective enclosures and emergency stop buttons, it ensures operator safety while maintaining efficient, reliable production.

Parameter

• Model: ZS‑J0A02
• Production Capacity: 1,500–3,600 pcs/hr
• Yield Rate: >98%
• Power Supply: AC 220 V ±15%, 50/60 Hz
• Rated Power: 0.5–1.5 kW
• Air Pressure: 0.4–0.8 MPa
• O Ring Range: OD 4–50 mm
• Control System: PLC + HMI touch screen

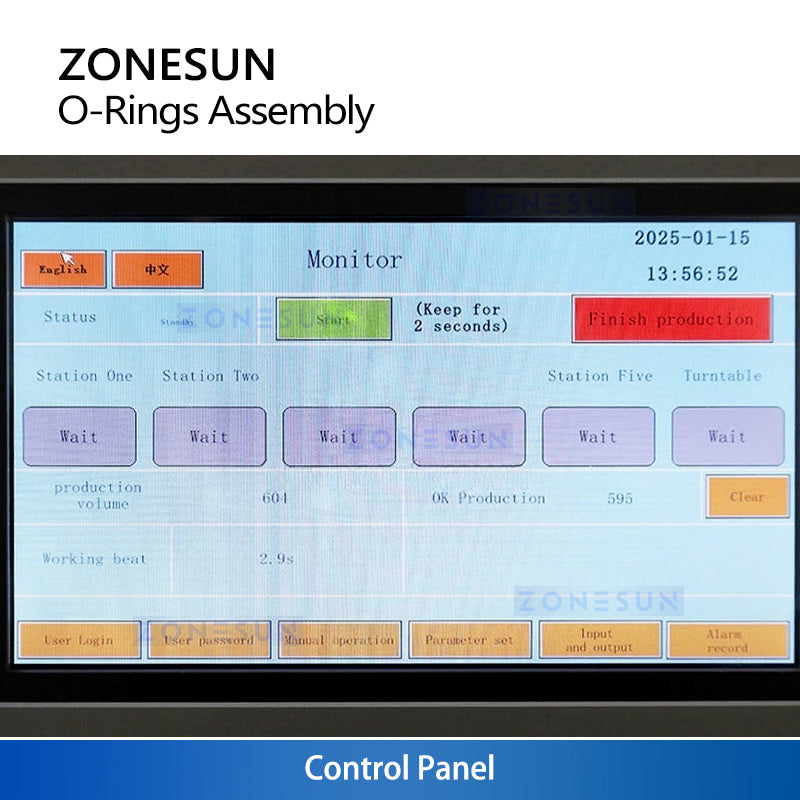

Control Panel

With advanced sensors and PLC control, the machine ensures each O-ring is accurately installed, preventing missing or misaligned rings and guaranteeing consistent sealing quality.

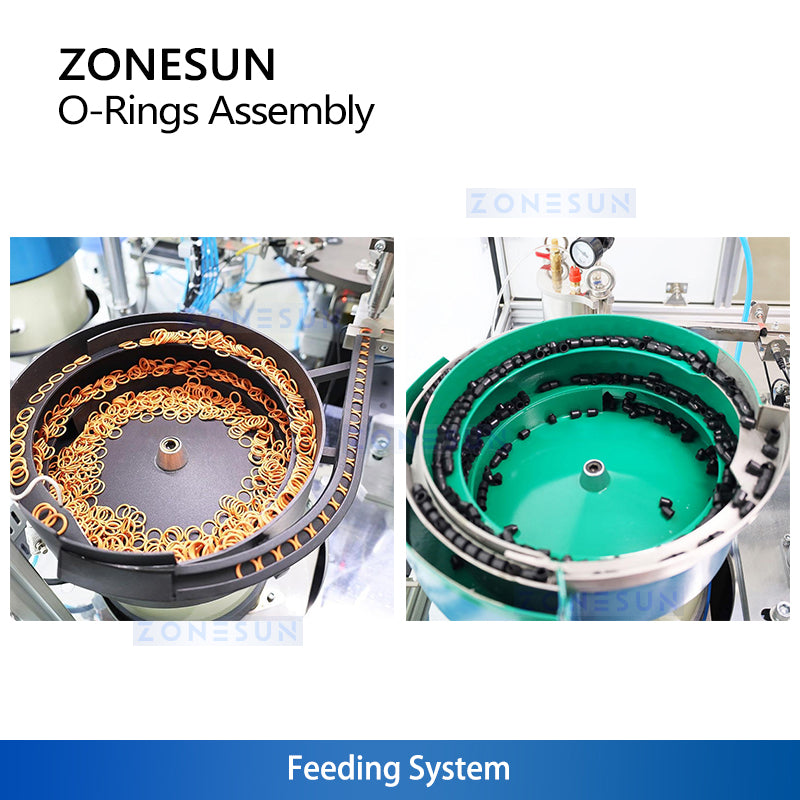

Feeding System

Automatically arranges and conveys bulk O-rings and lids in uniform orientation, ensuring precise delivery into the assembly station for efficient automated production.

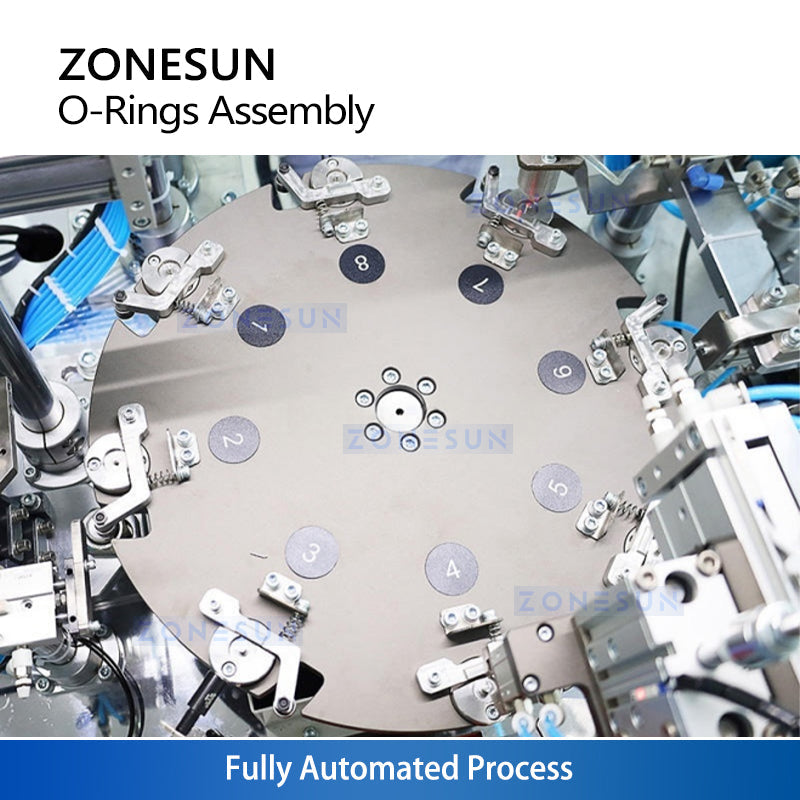

Fully Automated Process

The entire process-from feeding and positioning to final product unloading-requires zero manual intervention, significantly reducing labor costs.

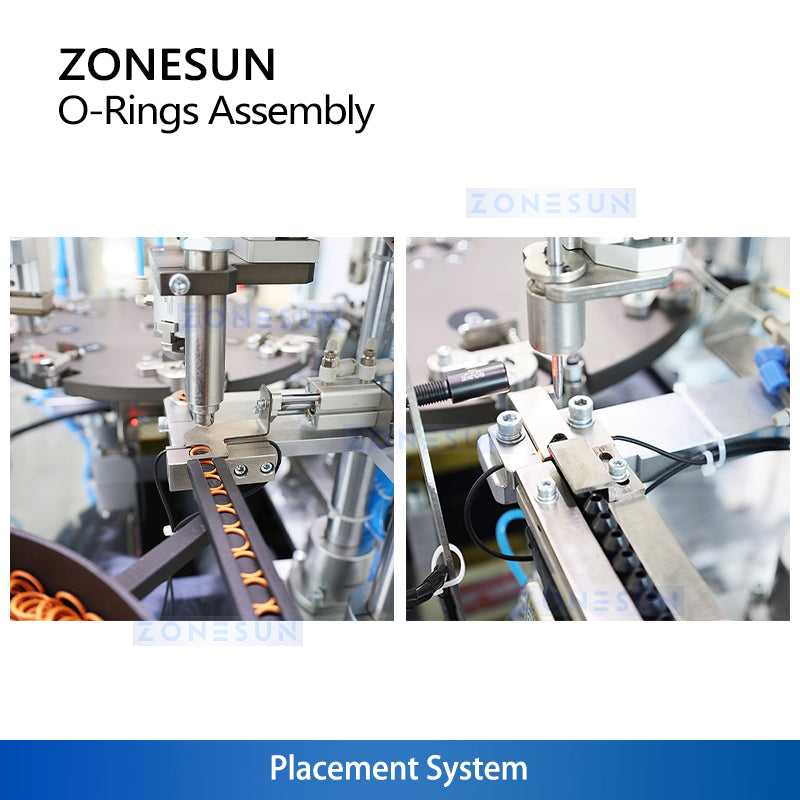

Placement System

Delivers O-rings and lids to the part and installs them accurately onto the component, ensuring precise positioning and reliable automated assembly.

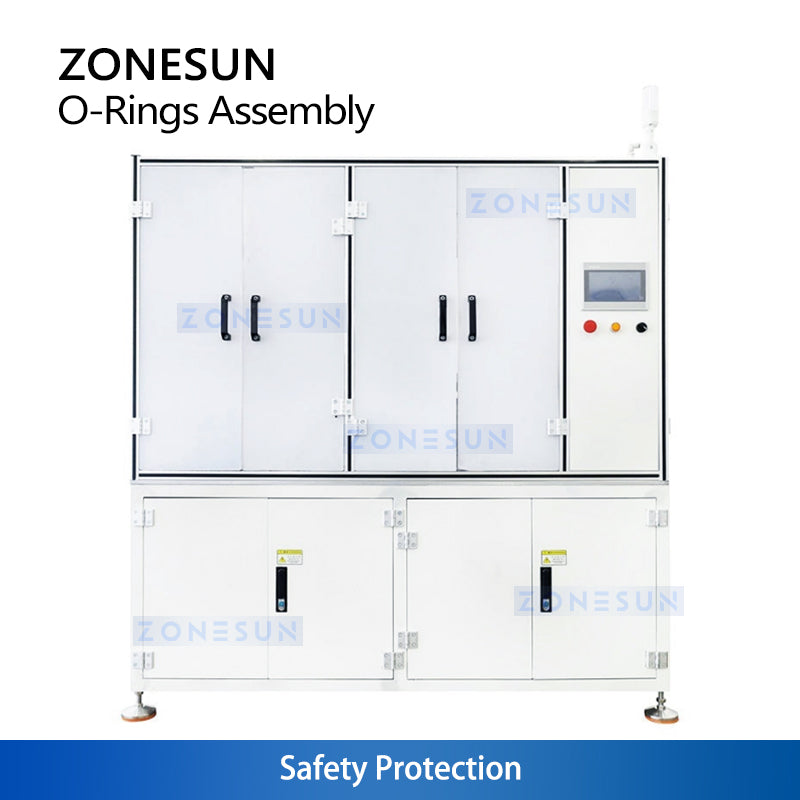

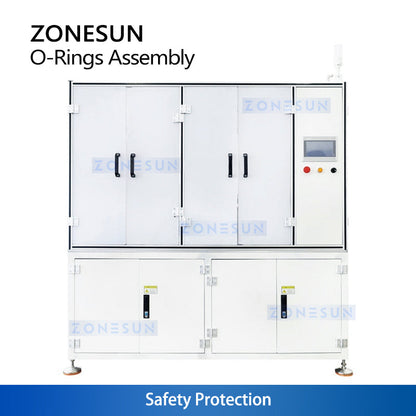

Safety Protection

Equipped with transparent protective enclosures and emergency stop buttons, the system ensures maximum operator safety during automated operation.
