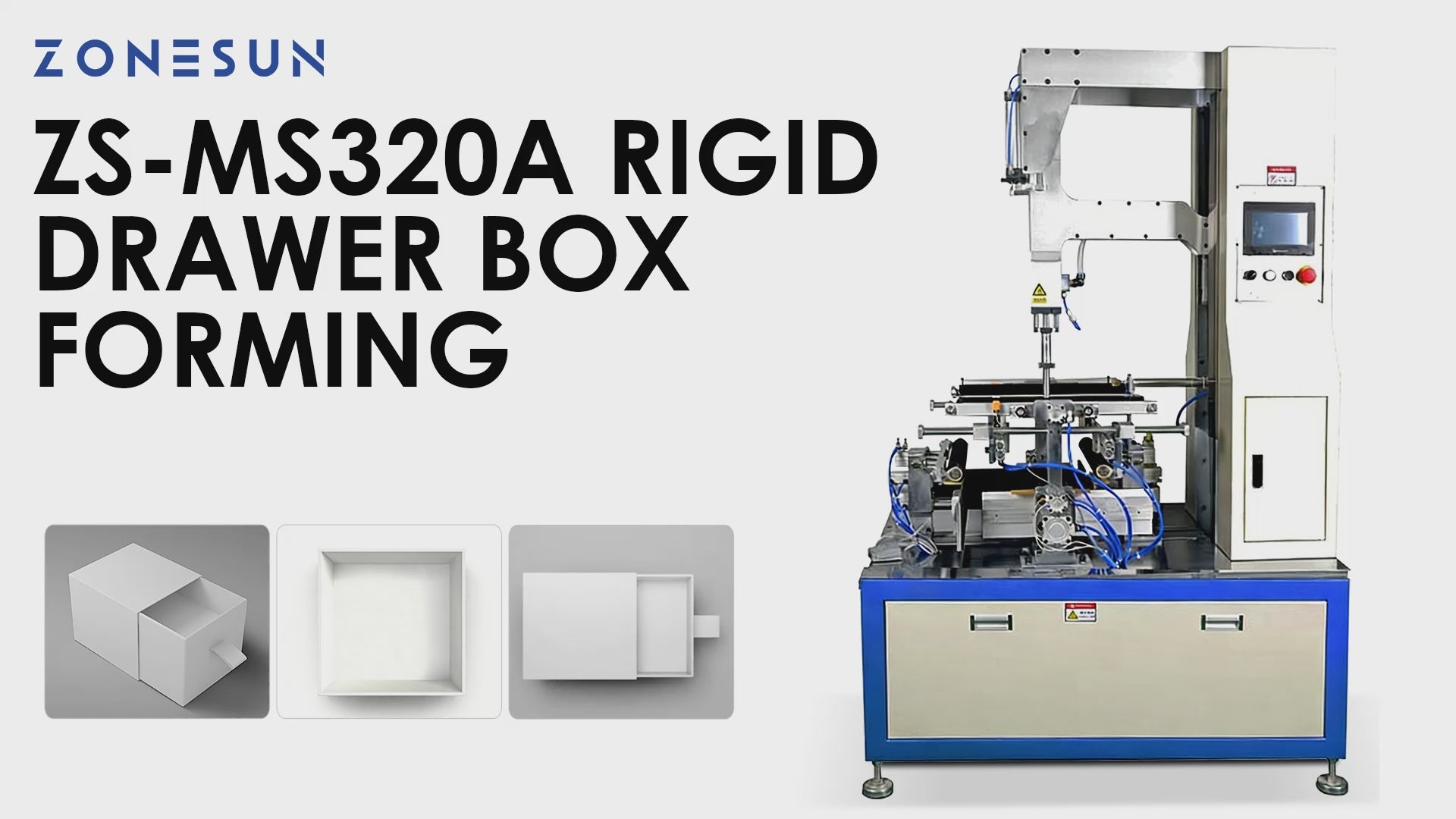

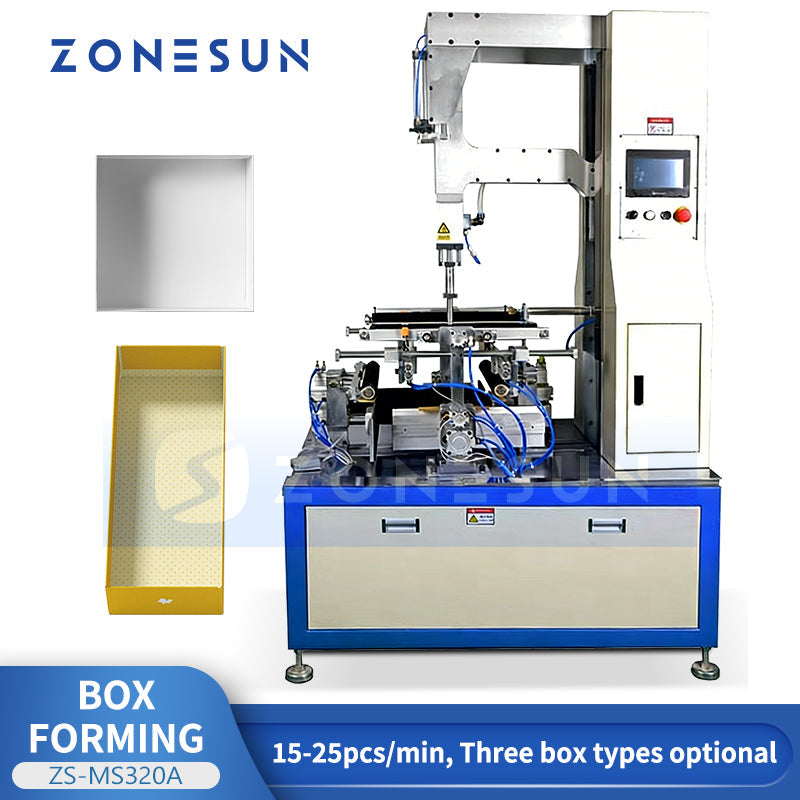

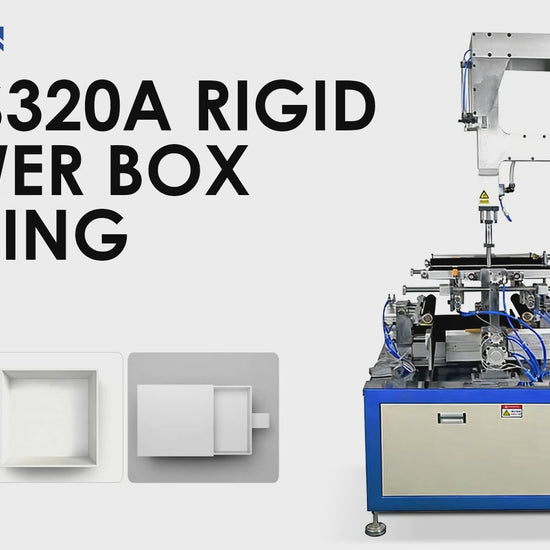

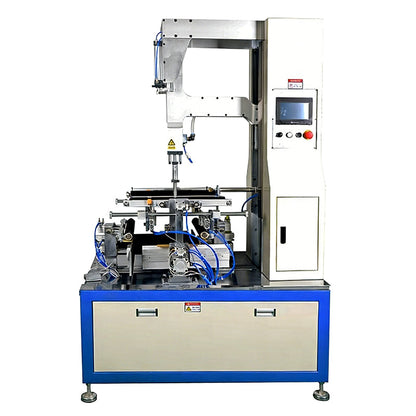

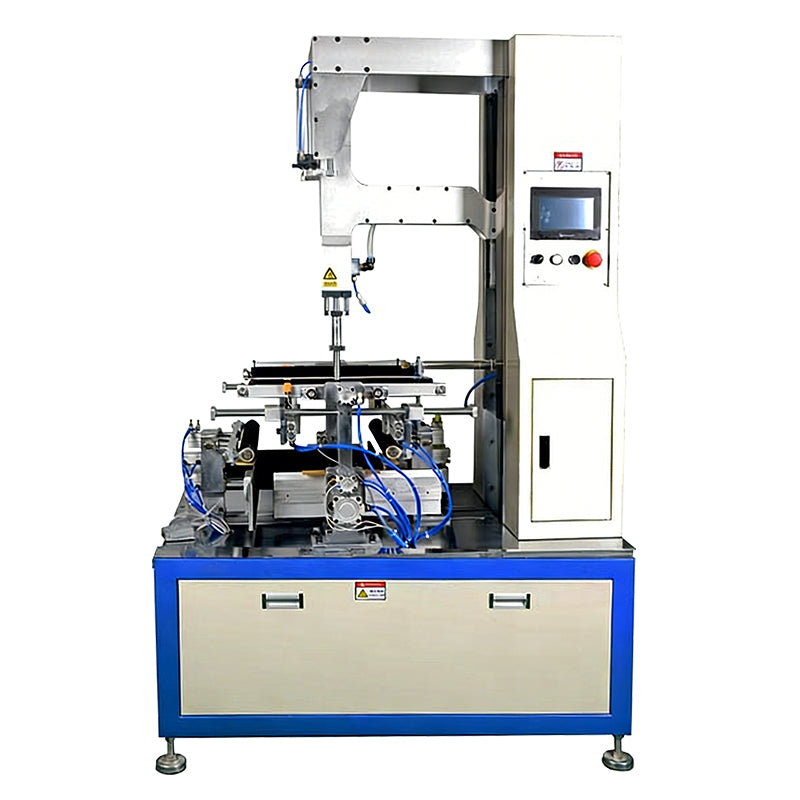

ZONESUN ZS-MS320A Semi-Automatic Rigid Drawer Box Forming Machine | Luxury Gift & Jewelry Box Maker | 15–25 pcs/min

Description

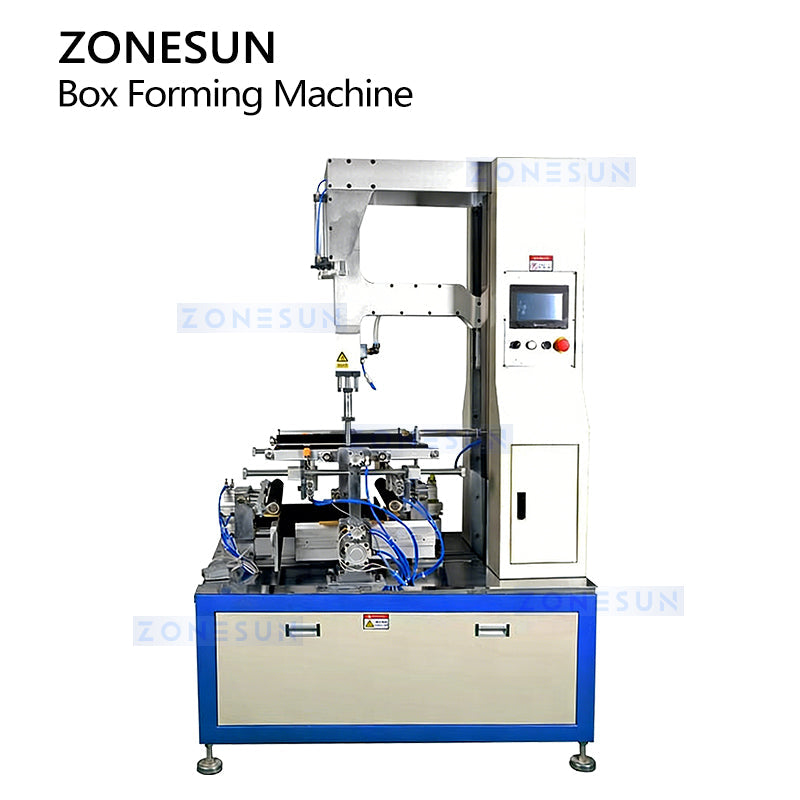

The ZONESUN ZS-MS320A is a semi-automatic rigid drawer box forming machine designed for high-end packaging applications such as luxury boxes, gift boxes, and drawer inner boxes. Operating at 15–25 pcs/min, it transforms pre-glued paper and greyboard into perfectly formed rigid boxes through a precise sequence of wrapping, folding, and pressing actions.

Using servo-driven mechanisms, durable pressing boards, and multi-stage forming units, the machine ensures tight edges, clean corners, and a bubble-free surface. With quick mold changeover and support for three box types, it offers excellent flexibility for small to medium-scale premium packaging production.

Technical Specifications

ZS-MS320A

• Max Box Size: 420 × 320 × 100 mm
• Min Box Size: 40 × 40 × 10 mm
• Speed: 15–25 pcs/min
• Motor Power: 1.5 kW
• Voltage: 220V, 50Hz
• Air Pressure: 0.8 MPa
• Weight: 650 kg
• Machine Dimension (L×W×H): 800 × 1,110 × 2,030 mm
• Package Dimension (L×W×H): 900 × 1,280 × 1,930 mm

ZS-MS520A

• Max Box Size: 520 × 420 × 150 mm
• Min Box Size: 80 × 80 × 10 mm
• Speed: 15–25 pcs/min
• Motor Power: 1.5 kW
• Voltage: 220V, 50Hz
• Air Pressure: 0.8 MPa
• Weight: 850 kg
• Machine Dimension (L×W×H): 1,010 × 1,280 × 2,300 mm
• Package Dimension (L×W×H): 1,110 × 1,450 × 2,200 mm

ZS-MS620A (Customized Model)

• Max Box Size: 620 × 520 × 150 mm
• Min Box Size: 120 × 100 × 15 mm
• Speed: 15–25 pcs/min
• Motor Power: 1.5 kW
• Voltage: 220V, 50Hz
• Air Pressure: 0.8 MPa
• Weight: 950 kg
• Machine Dimension (L×W×H): 1,110 × 1,380 × 2,300 mm
• Package Dimension (L×W×H): 1,210 × 1,600 × 2,200 mm
• Remark: Special size customizable (sample + size required)

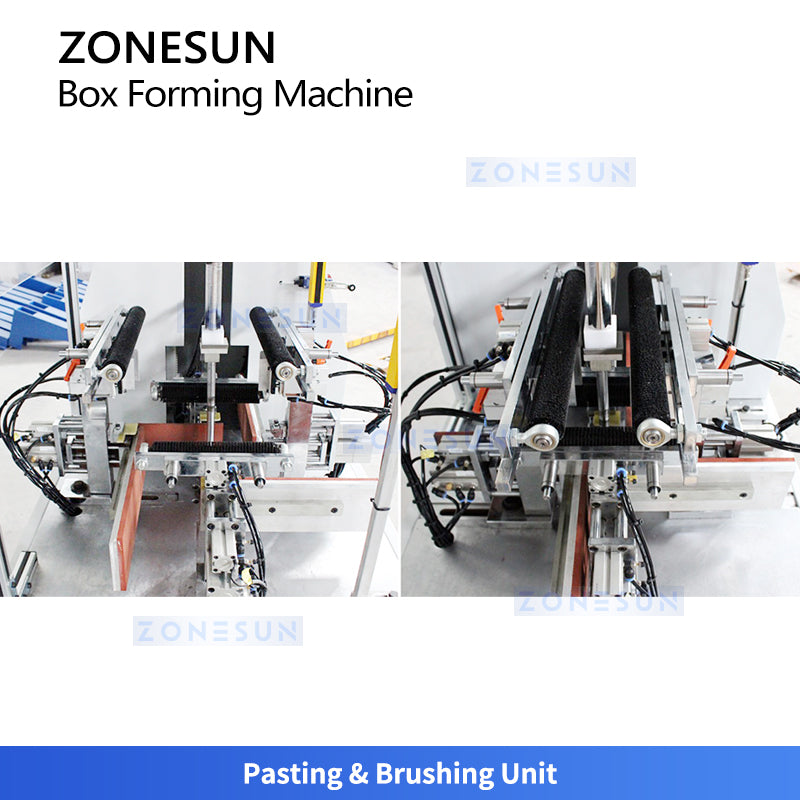

Pasting & Brushing Unit

Simultaneously wraps, presses, and smooths the glued paper with four rotating brushes to ensure firm adhesion and a clean, bubble-free surface.

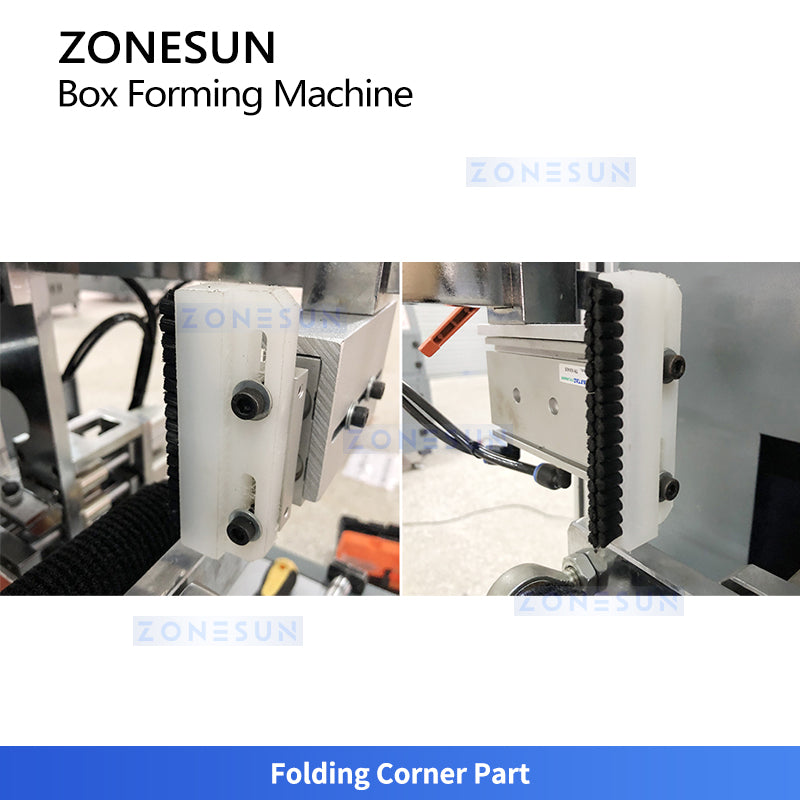

Folding Corner Part

Forms precise 90° corners with adjustable single or double fold modes, folding all corners at once or separating front and rear, to ensure straight, clean, premium angles.

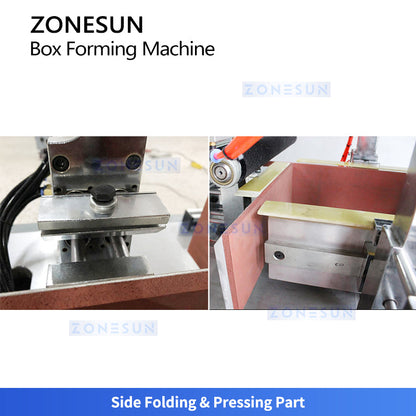

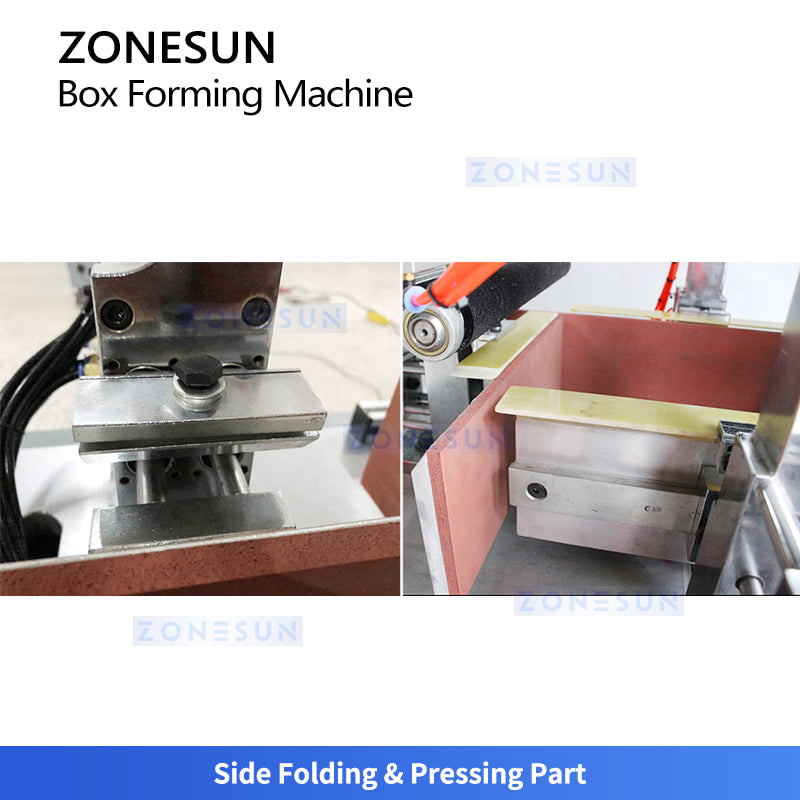

Side Folding & Pressing Part

Sequentially folds and presses four sides with durable imported boards to ensure firm adhesion and a smooth, bubble-free surface.

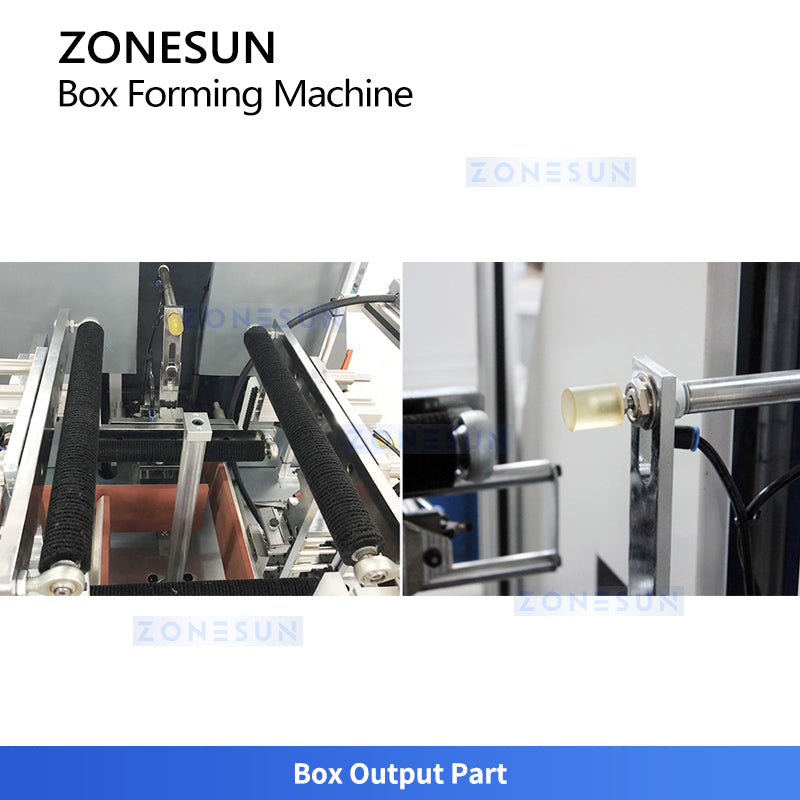

Box Output Part

Uses a dual-cylinder mechanism to automatically push out finished boxes smoothly and reliably, preventing jamming and ensuring continuous output.

Why Choose the ZS-MS320A?

• ✅ Servo-Driven Precision: Ensures consistent forming quality with tight edges and clean corners every cycle
• ✅ Bubble-Free Surface: Four rotating brushes press and smooth glued paper for a flawless premium finish
• ✅ High Speed: 15–25 pcs/min for efficient small to medium-scale production
• ✅ 3 Model Options: ZS-MS320A / ZS-MS520A / ZS-MS620A to suit different box size requirements
• ✅ Quick Mold Changeover: Fast switching between box types for flexible production
• ✅ Dual-Cylinder Output: Smooth, jam-free box ejection for continuous operation
• ✅ Customizable: Special sizes available upon request (sample + dimensions required)

Ideal Applications

• 💎 Jewelry: Ring boxes, necklace boxes, watch boxes
• 🎁 Gift Packaging: Luxury gift boxes, holiday sets, premium drawer boxes
• 💄 Cosmetics: High-end skincare and perfume packaging
• 🍫 Food: Chocolate boxes, confectionery gift sets
• 📚 Stationery & Electronics: Premium product boxes, collector’s edition packaging
