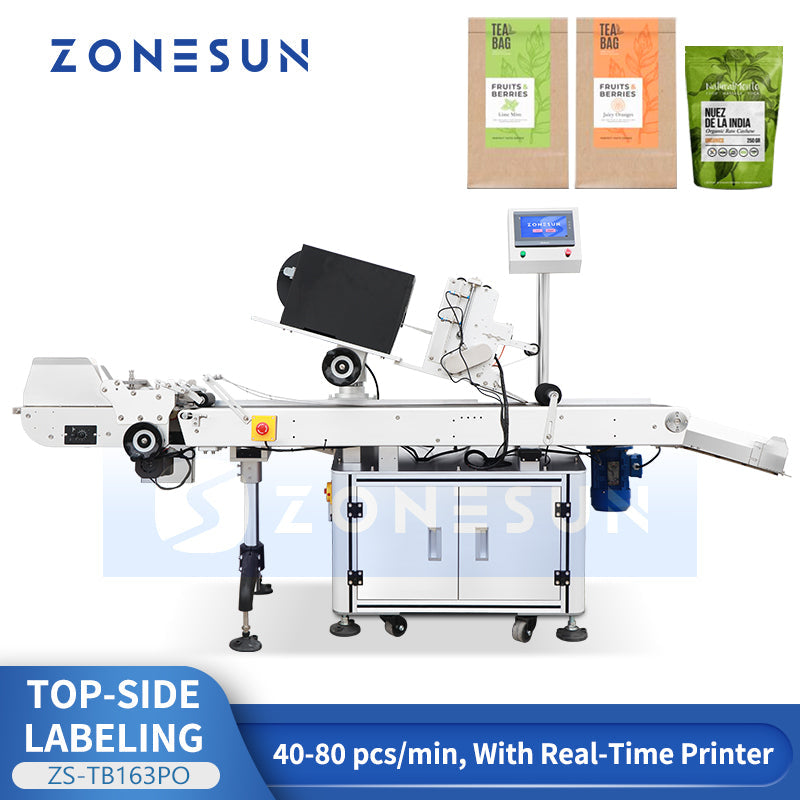

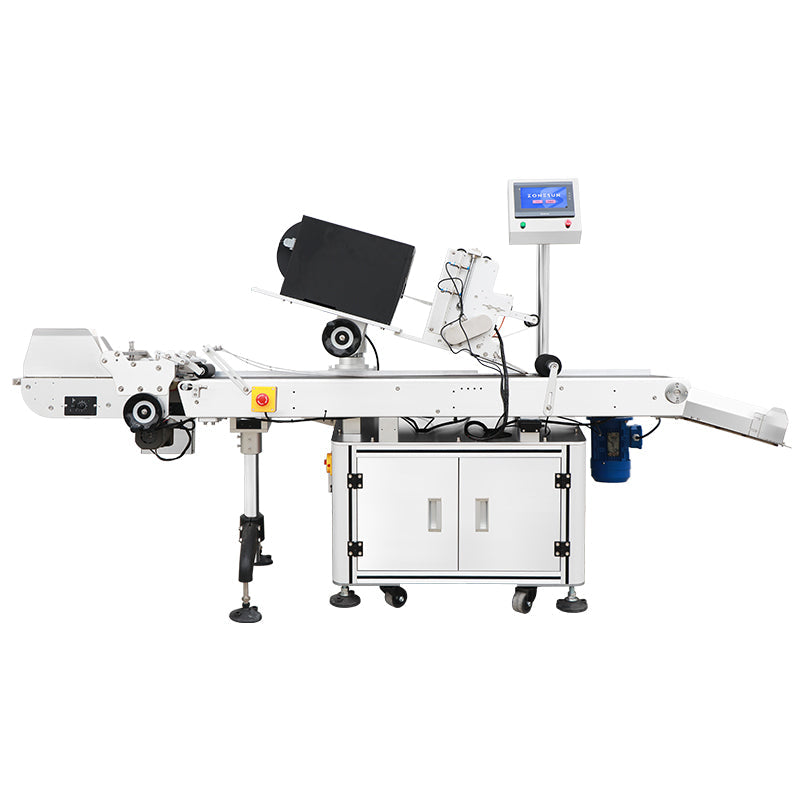

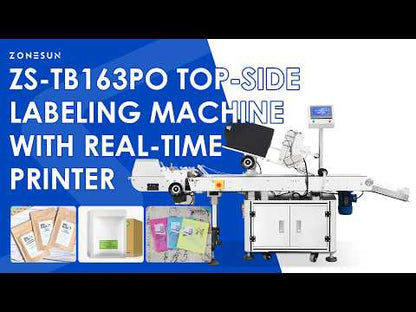

ZONESUN ZS-TB163PO Top Labeling Machine Real-Time Printing Flat Label Applicator

Description

The ZONESUN ZS-TB163PO is a top-side labeling machine with an integrated real-time printer, designed for flat products such as pouches, paper cards, and cartons. Running at 40–80 pcs/min, it combines automatic paging, precise top-side labeling, angled conveyor alignment, and real-time printing in one compact system. It applies labels while printing variable data such as QR codes, barcodes, dates, and batch numbers, ensuring accurate identification and flexible customization. With its customizable design, touchscreen control panel, and computer editing capability, it delivers smooth adhesion, bubble-free finishes, and professional labeling quality.

Parameter

• Model: ZS‑TB163PO
• Power Supply: 110/220 V, 50–60 Hz, 1800 W
• Working Speed: About 40–80 pcs/min (depending on object size)
• Labeling Accuracy: ±1 mm (excluding product & label error)
• Suitable Labeling Object Size: L: 40–400 mm, W: 40–200 mm, H: 0.5–150 mm
• Suitable Label Size: W: 6–300 mm × H: 15–130 mm
• Label Roll OD: Φ300 mm
• Label Roll ID: Φ76 mm
• Machine Dimensions (L×W×H): About 2420 × 800 × 1360 mm
• Package Size: About 2260 × 970 × 1550 mm
• Package Weight: About 347 kg

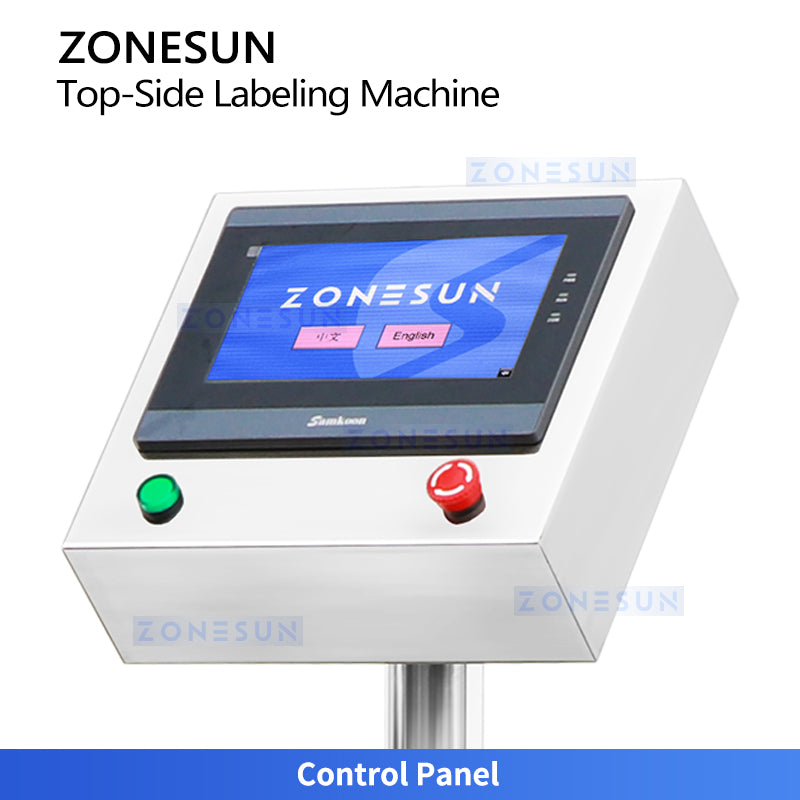

CONTROL PANEL

Touchscreen panel enables easy operation, quick parameter adjustment, and real-time monitoring of printing and labeling processes.

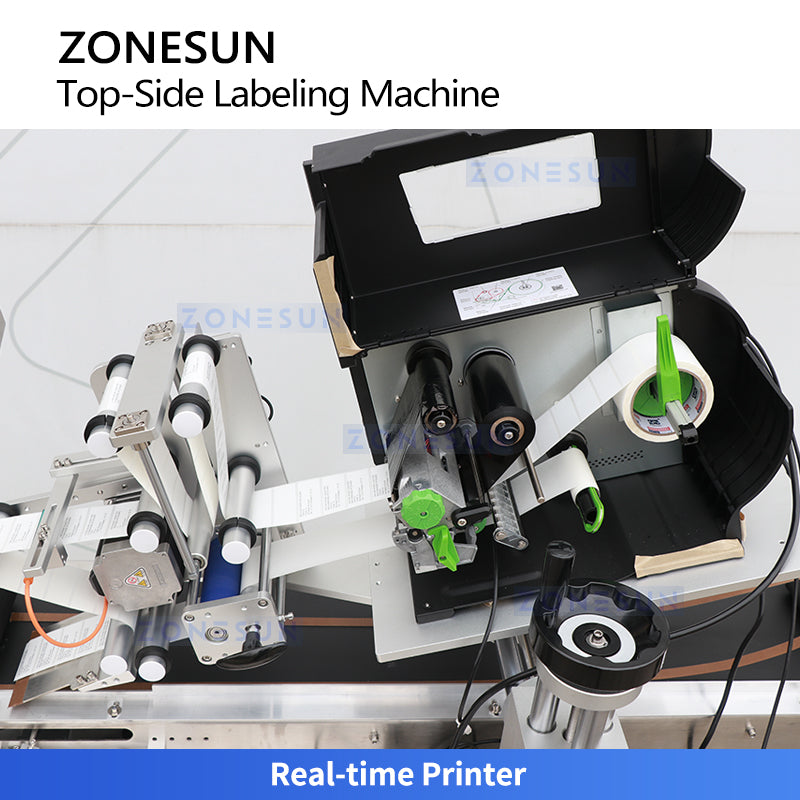

REAL-TIME PRINTER

Prints logos, QR codes, barcodes, patterns, and numbers onto labels in real time, ensuring accurate product identification and flexible customization during the labeling process.

COMPUTER EDITING

Allows easy editing of label information via computer software, enabling flexible customization of printed content (computer is purchased separately).

PAGING STRUCTURE

Automatically feeds thin products like pouches and paper cards, with adjustable settings to match different product sizes, ensuring smooth and accurate labeling.

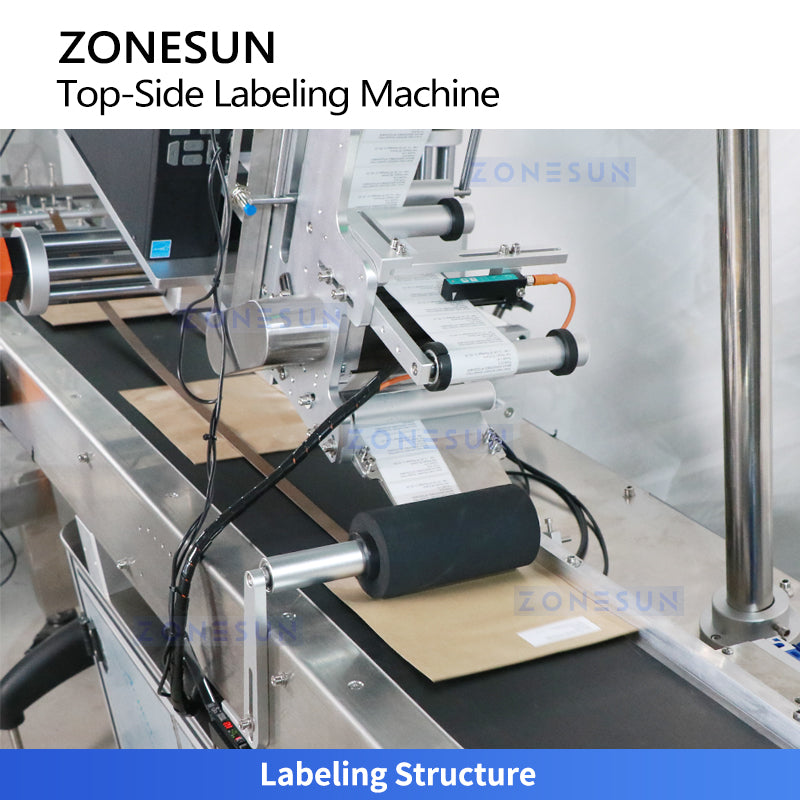

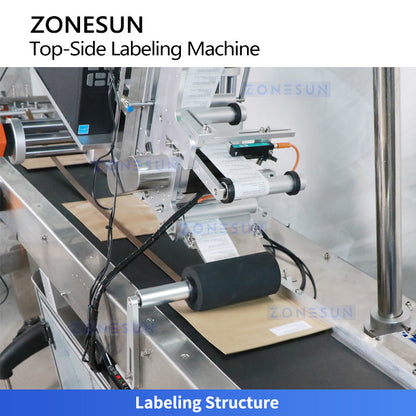

LABELING STRUCTURE

Provides top-side labeling on flat surfaces, with precision rollers ensuring smooth adhesion and a flawless, bubble-free finish.

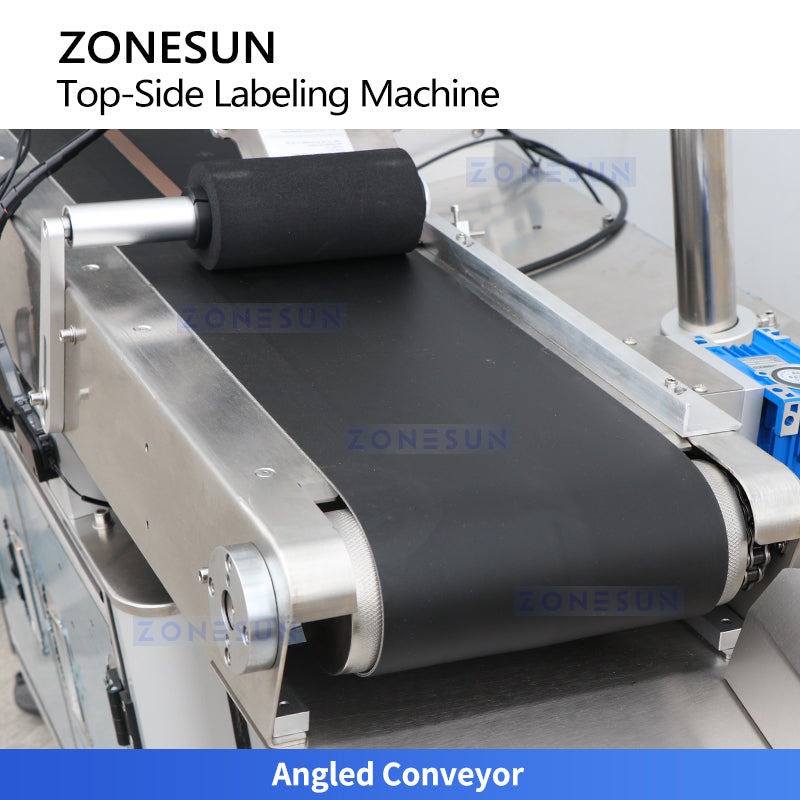

ANGLED CONVEYOR

Guides products to one side during transport, ensuring consistent positioning and improving labeling accuracy.

ELECTRIC CIRCUITS

Engineered with neatly arranged circuits for maximum safety, reliability, and effortless maintenance, keeping machine running smoothly.
