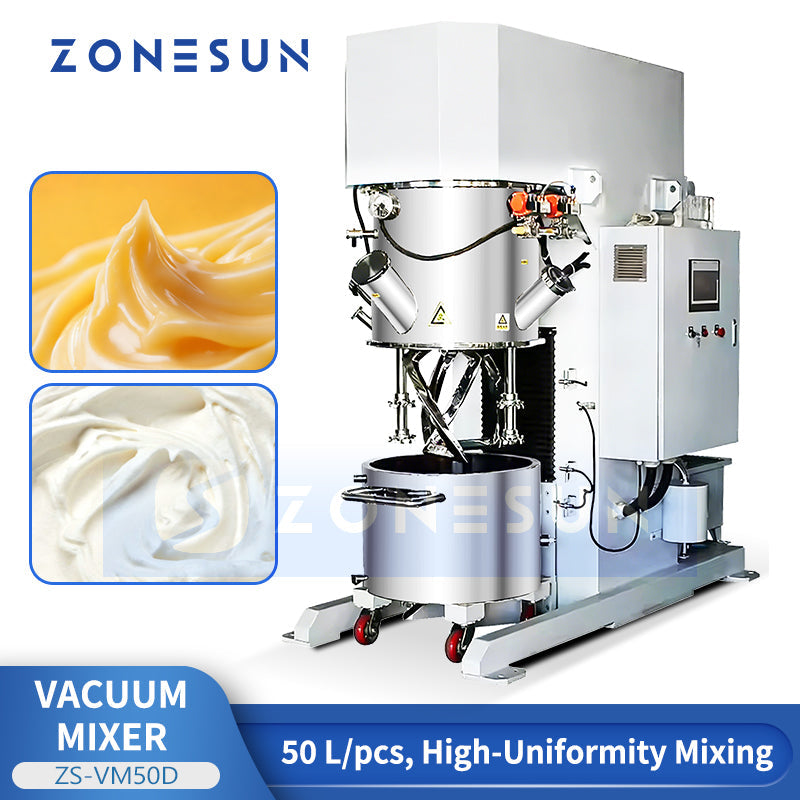

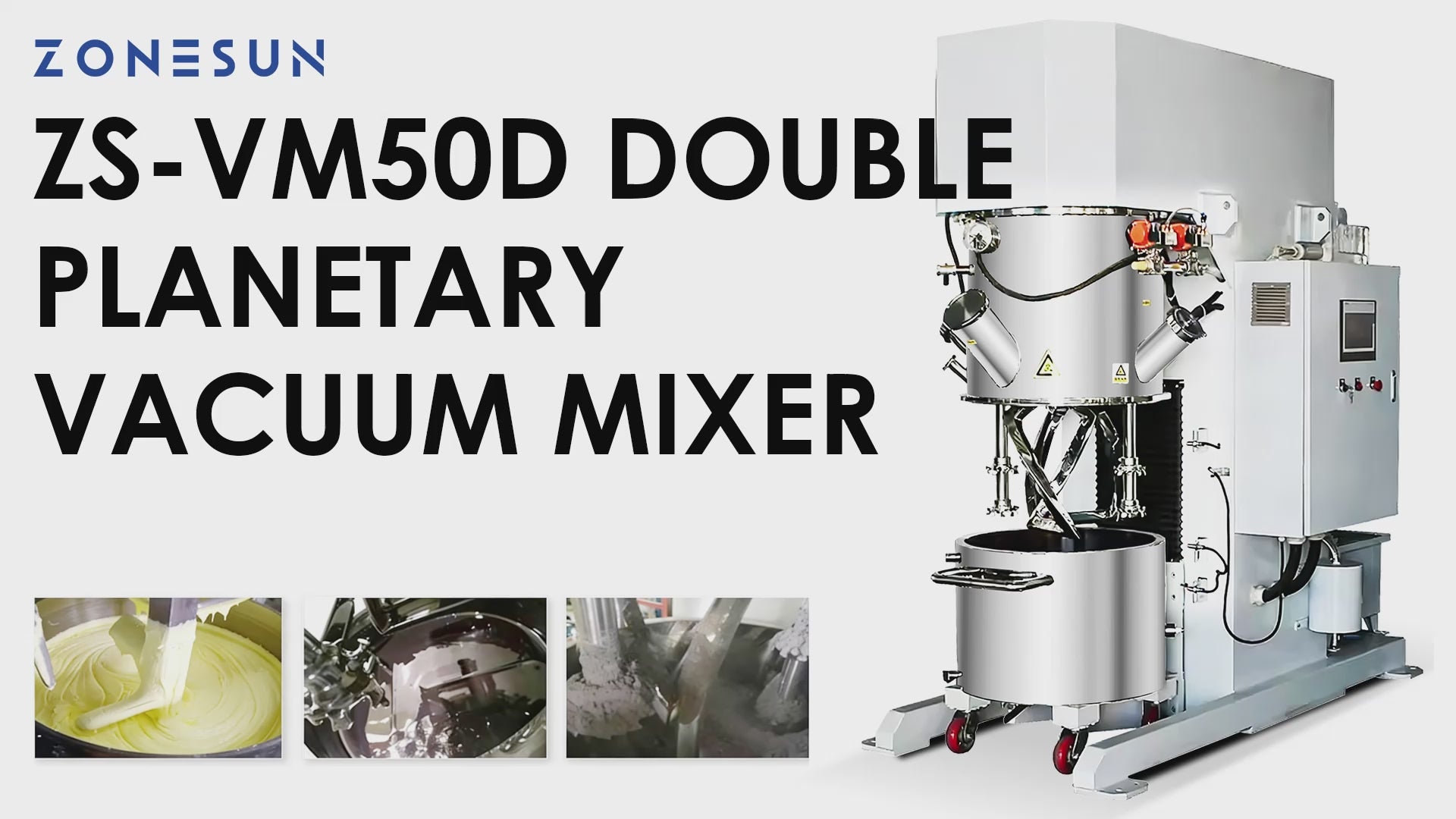

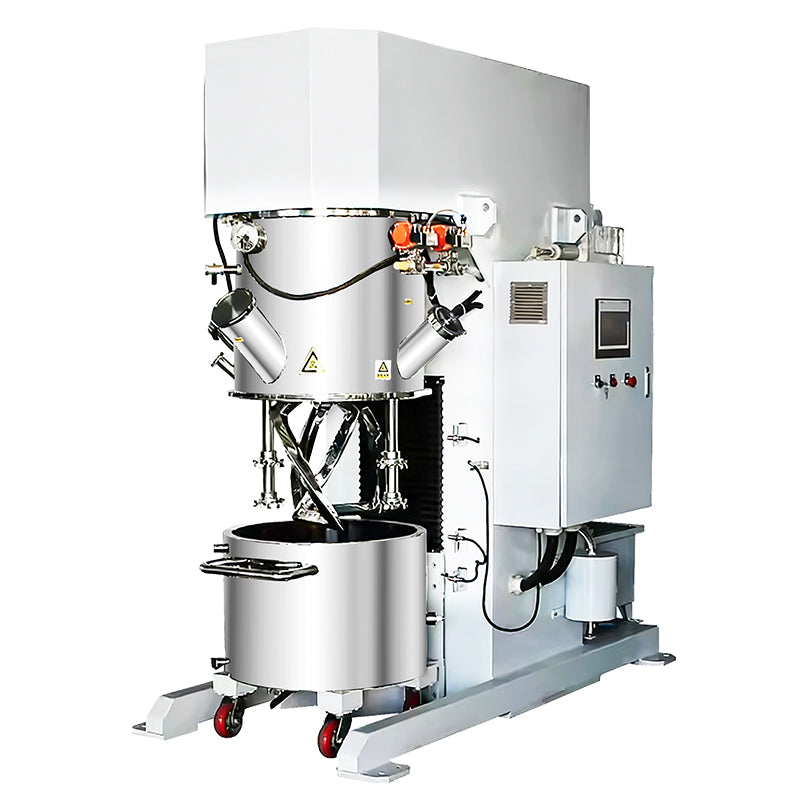

ZONESUN ZS-VM50D Double Planetary Vacuum Mixer | 50L | 7.5kW | Battery Slurry & High-Viscosity Paste

Description

The ZONESUN ZS-VM50D is an industrial-grade double planetary vacuum mixer designed for high-viscosity materials such as battery slurry, adhesives, sealants, and silicone. With a 50L per batch capacity, it combines planetary motion, vacuum deaeration, hydraulic lifting, and precision PLC control to deliver uniform, bubble-free, and stable mixing results.

Commonly applied in energy (lithium battery slurry), chemical (sealants, silicone, adhesives), pharmaceutical, and cosmetic (ointments, gels, concentrates) industries. Also suitable for PUR hot melt, epoxy resin, encapsulants, conductive pastes, solder paste, PCB coatings, and beauty products.

Technical Specifications

• Model: ZS-VM50D
• Voltage: 220V / 380V
• Motor Power: 7.5kW
• Processing Capacity: 50L per batch
• Material Bucket Capacity: 82L
• Speed Range: Up to 3,200 rpm
• Stirring Method: Double planetary (revolution + rotation) with dispersing shaft
• Layout Form: Vertical, fixed
• Mode of Operation: Continuous
• Mixing Drum Shape: Drum type
• Material Type: Solid-liquid, dry powder, paste, high-viscosity materials
• Mixer Type: Vacuum mixer with hydraulic lifting

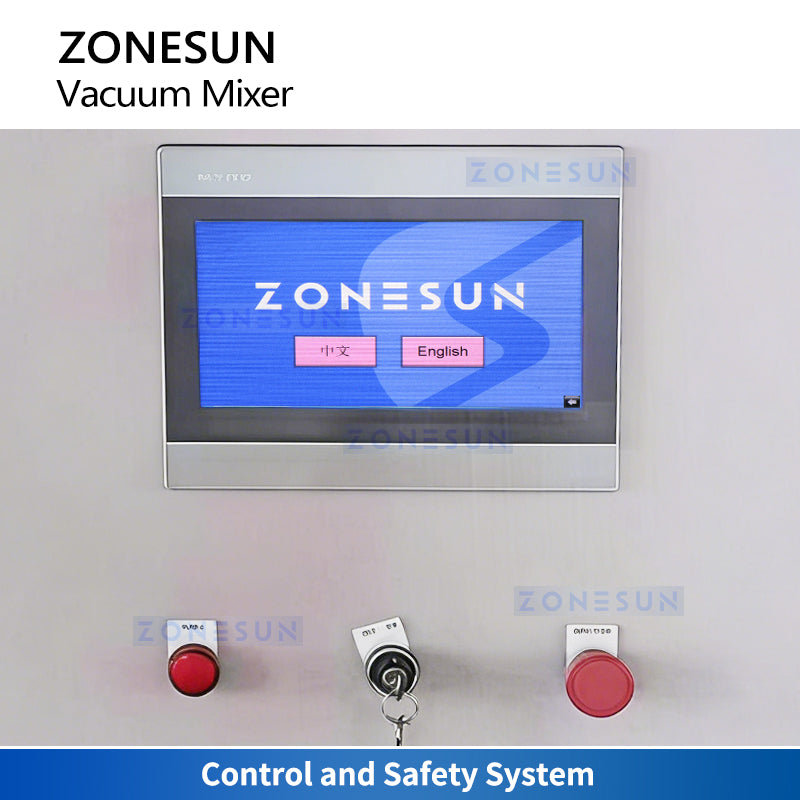

Control & Safety System

Centralized PLC control with emergency stop and safety interlocks, ensuring reliable operation and operator protection.

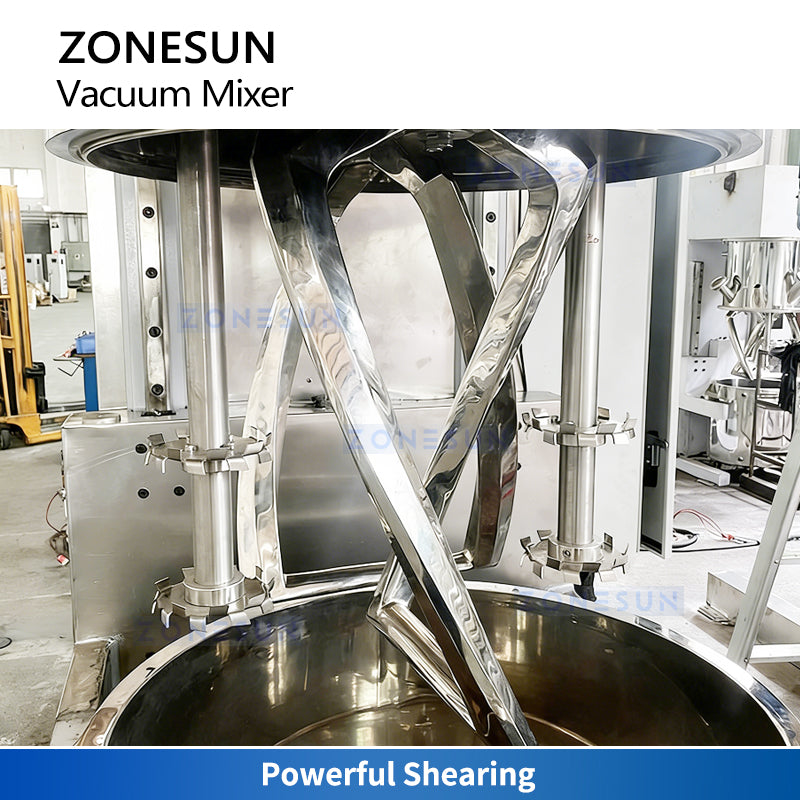

Powerful Shearing

Dual agitators with a dispersing shaft combine revolution and rotation to deliver strong shearing and kneading, ensuring rapid, uniform mixing and stable slurry consistency.

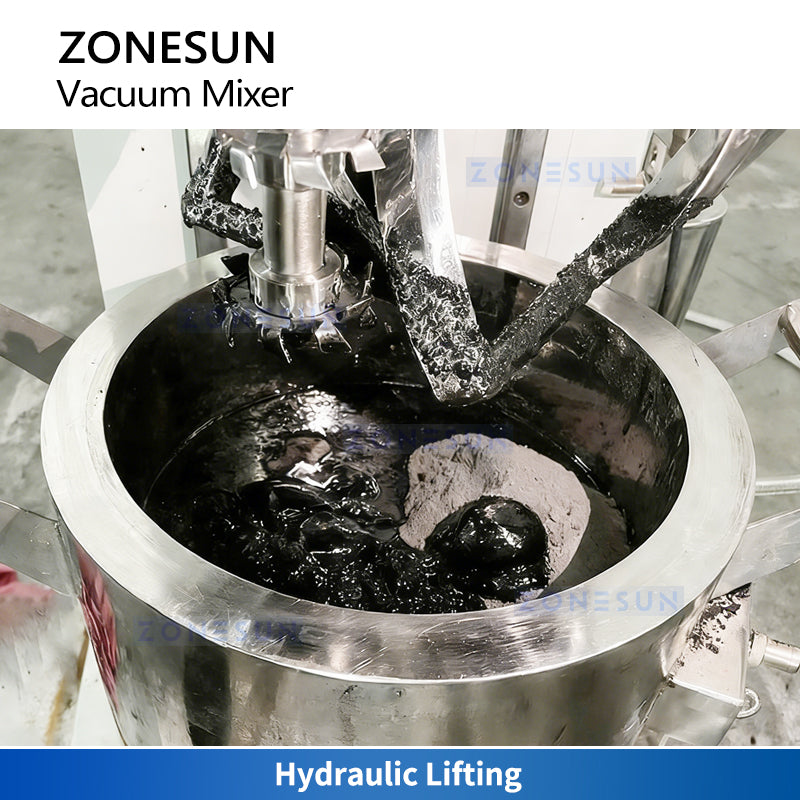

Hydraulic Lifting

Hydraulic lifting ensures smooth operation. The tank lock prevents displacement, and sliding rails enable stable movement and efficient discharging.

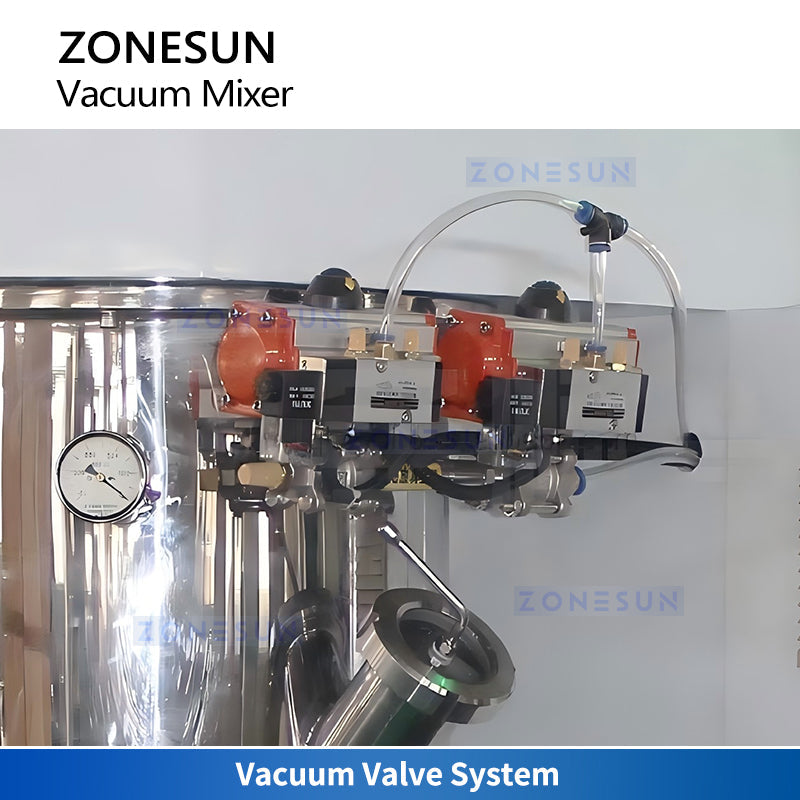

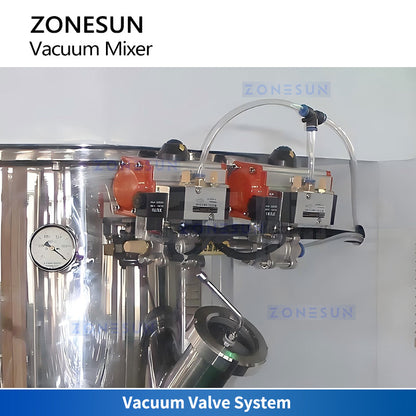

Vacuum Valve System

Vacuum valves with vacuum buffer tank, control, and exhaust valve (pneumatic or manual) provide precise vacuum regulation for stable, bubble-free processing.

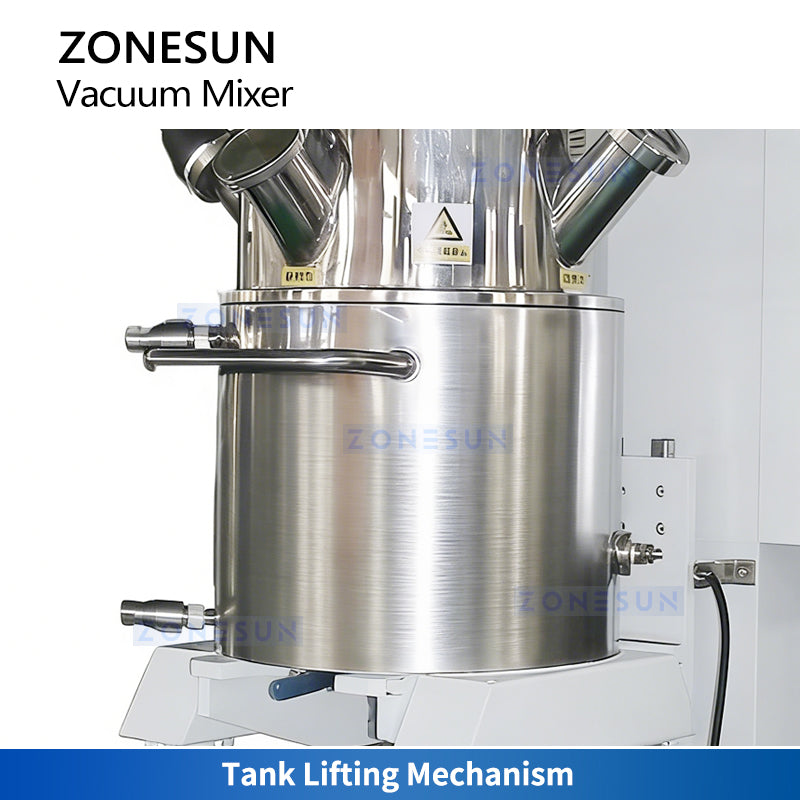

Tank Lifting Mechanism

Electric screw or hydraulic cylinder with linear guides ensures smooth vertical lifting and precise tank positioning for safe, efficient operation.

Why Choose the ZS-VM50D?

• ✅ Double Planetary Motion: Revolution + rotation with dispersing shaft for powerful shearing, kneading, and uniform mixing
• ✅ 50L Batch Capacity: 82L material bucket for efficient industrial-scale high-viscosity material processing
• ✅ Vacuum Deaeration: Removes air bubbles for bubble-free, stable, and high-quality mixing results
• ✅ Hydraulic Lifting: Smooth tank lifting with lock and sliding rails for safe, efficient discharging
• ✅ PLC Control + Safety Interlocks: Centralized control with emergency stop for reliable, protected operation
• ✅ Vacuum Valve System: Pneumatic or manual vacuum regulation for precise, stable processing conditions
• ✅ 7.5kW Motor: Powerful drive for high-viscosity and heavy-load mixing applications
• ✅ Up to 3,200 rpm: Wide speed range for flexible mixing intensity control
• ✅ Multi-Voltage: 220V / 380V for global compatibility

Ideal Applications

• 🔋 Energy & Battery: Lithium battery slurry, electrode paste, solid-state battery materials
• 🧪 Chemical: Sealants, silicone, epoxy resin, PUR hot melt, encapsulants
• 🔧 Electronics: Conductive paste, solder paste, PCB coatings, thermal interface materials
• 💊 Pharmaceutical: Ointments, gels, medical creams, pharmaceutical concentrates
• 🧴 Cosmetics: High-viscosity creams, beauty gels, concentrated serums
• 🏭 Industrial: Adhesives, lubricants, specialty chemical pastes
