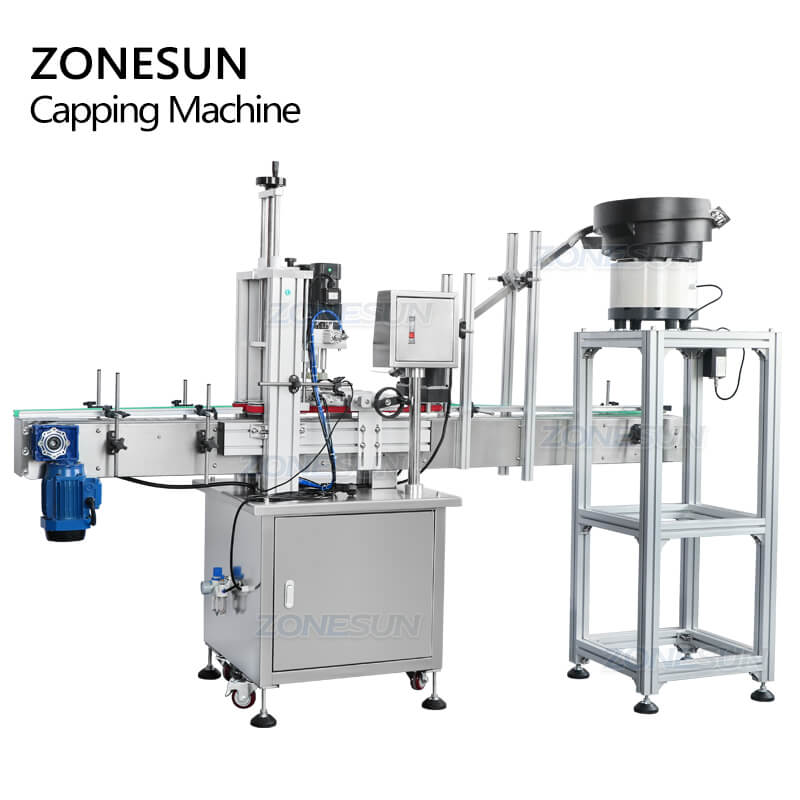

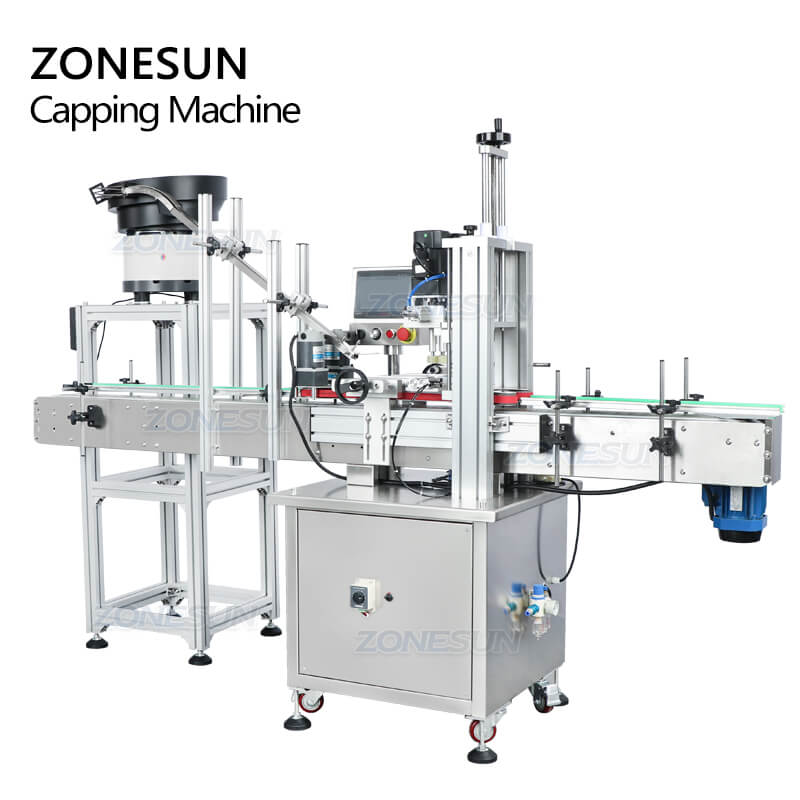

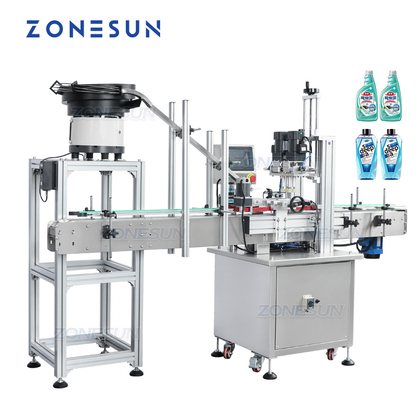

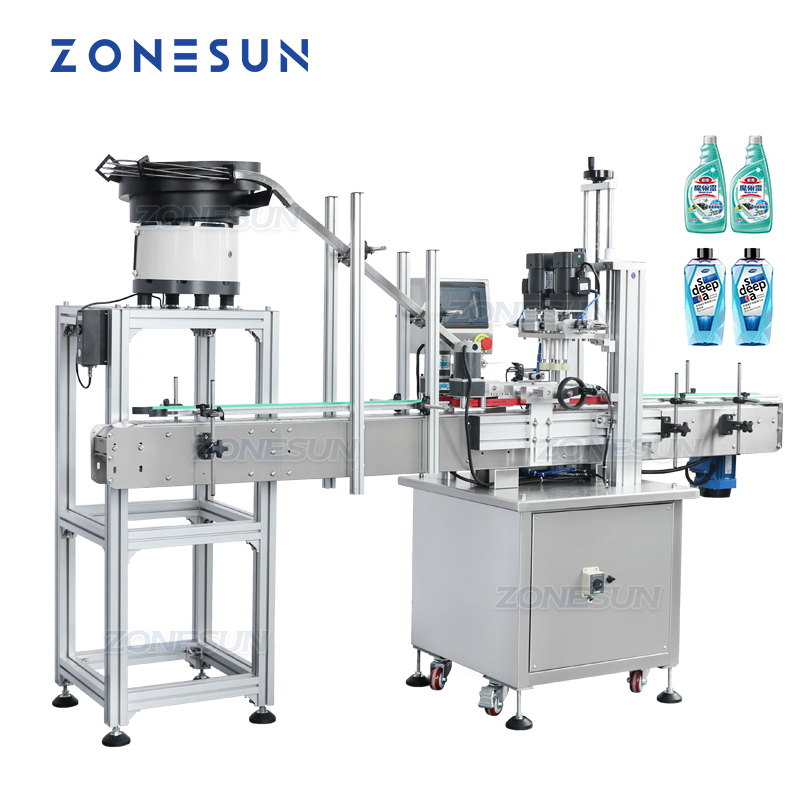

ZONESUN ZS-XG16P — Automatic Bottle Capping Machine with Vibratory Bowl Cap Feeder
The ZONESUN ZS-XG16P is a fully automatic bottle capping machine designed for spray bottles, dropper bottles, and trigger pump containers. Equipped with an integrated vibratory bowl cap feeder and a 4-wheel capping head, it delivers stable, high-speed capping at 20–60 bottles per minute with minimal misalignment. Its adjustable bottle guiding system ensures smooth transport for bottles of various shapes and sizes, making it ideal for cosmetic, food, and daily chemical production lines requiring consistent, tamper-proof sealing.
Key Features
- Vibratory Bowl Cap Feeder — Automatically sorts and feeds caps before capping, reducing labor and error
- 4-Wheel Capping Head — Suits trigger pump, dropper, and spray bottle caps with wide application range
- Adjustable Bottle Guide — Stabilizes bottles during capping, adjustable by bottle diameter to prevent tipping
- Electric Eye Sensor — Detects bottle position precisely, controls machine start/stop for accurate capping
- Chain Conveyor Belt — Large-capacity, stable transport; conveyor width customizable to production needs
- High-Speed Output — 20–60 BPM depending on bottle and cap size
- Wide Compatibility — Handles caps Φ18–70mm and bottles Φ20–160mm in diameter
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-XG16P |
| Voltage | AC 110V / 220V, 50–60 Hz |
| Working Pressure | 0.4–0.6 MPa |
| Production Speed | 20–60 bottles/min (varies by bottle & cap size) |
| Cap Diameter | Φ18–70 mm |
| Bottle Diameter | Φ20–160 mm |
| Bottle Height | 30–300 mm |
| Machine Dimensions | 2420 × 680 × 1700 mm (main machine) |
| Vibratory Sorter Dimensions | 500 × 500 × 1640 mm |

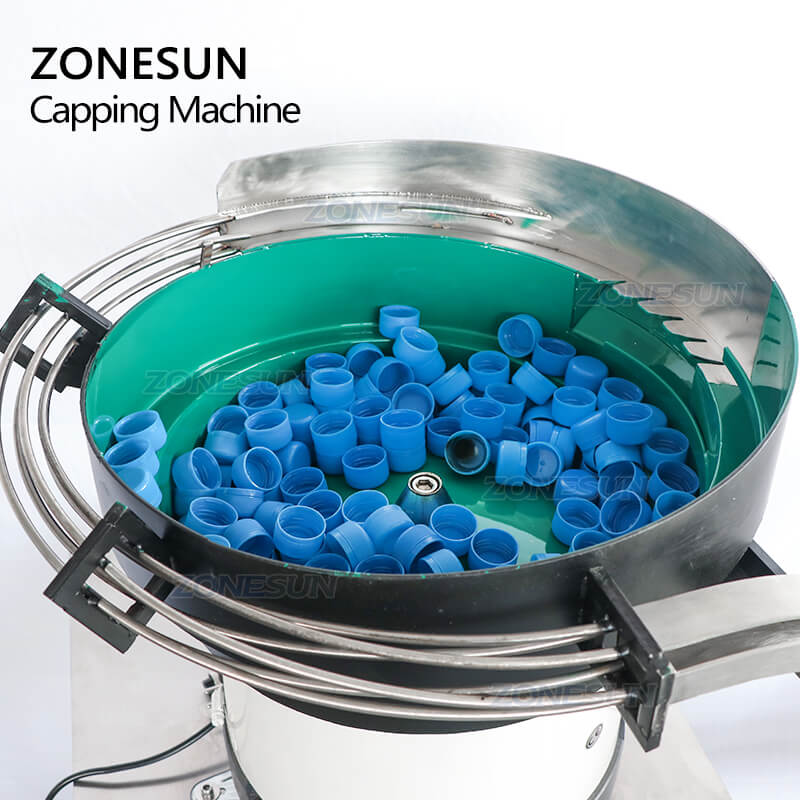

Vibratory Bowl Sorter — Automatically arranges and feeds bottle caps before capping, reducing labor and improving production efficiency.
Bottle Guiding Structure — Adjustable by bottle diameter to prevent tipping during capping, ensuring stable and smooth bottle transport.

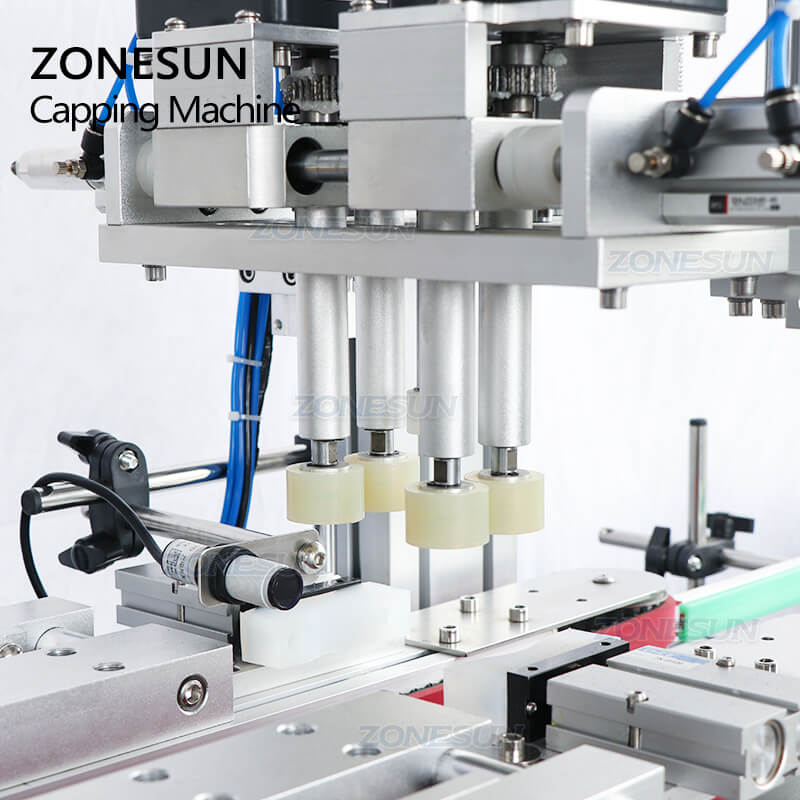

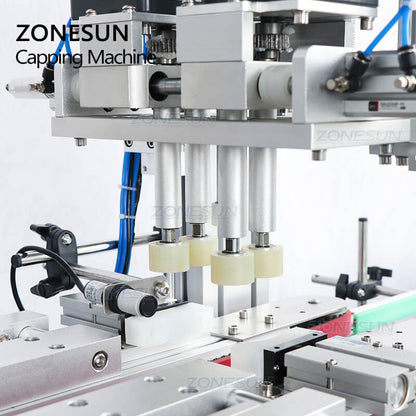

4-Wheel Capping Head — Suitable for trigger pump, dropper, and spray bottle caps, widening the application range across industries.
Electric Eye Sensor — Detects bottle position and controls machine operation for precise, accurate capping with reduced error rate.
Chain Conveyor Belt — Large-capacity conveyor ensures stable bottle transport; width customizable to match your production line requirements.
Suitable Applications
Spray Bottles
Cleaning sprays, sanitizers, hair care
Dropper Bottles
Essential oils, serums, eye drops
Trigger Pump Bottles
Detergents, disinfectants, household cleaners
Cosmetic Bottles
Lotions, toners, skincare products
Food & Beverage
Sauces, condiments, beverage bottles
Daily Chemicals
Shampoo, body wash, cleaning products
