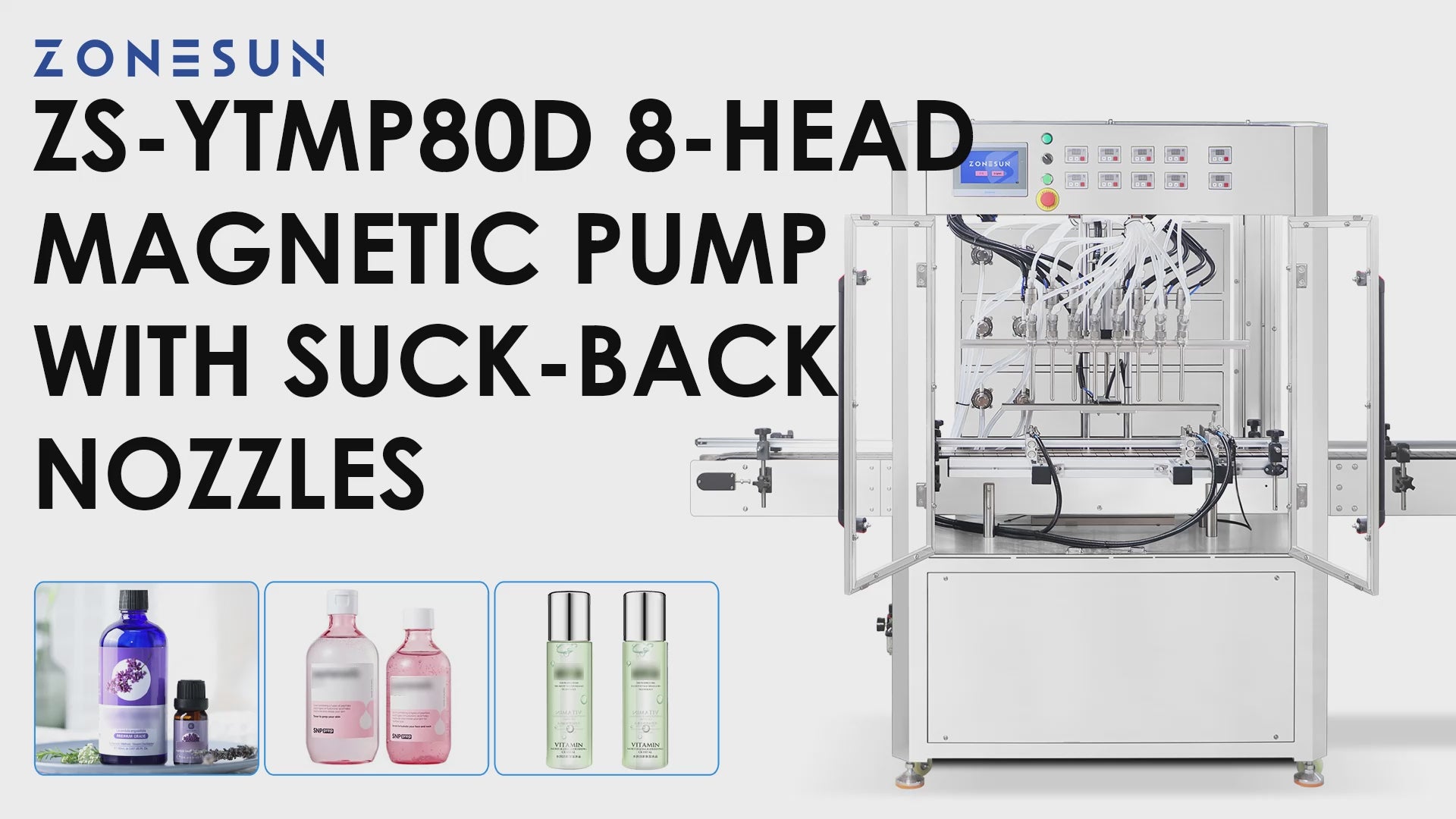

ZONESUN ZS-YTMP80D 8-Head Magnetic Pump Liquid Filling Machine

ZONESUN ZS-YTMP80D 8-Head Magnetic Pump Liquid Filling Machine

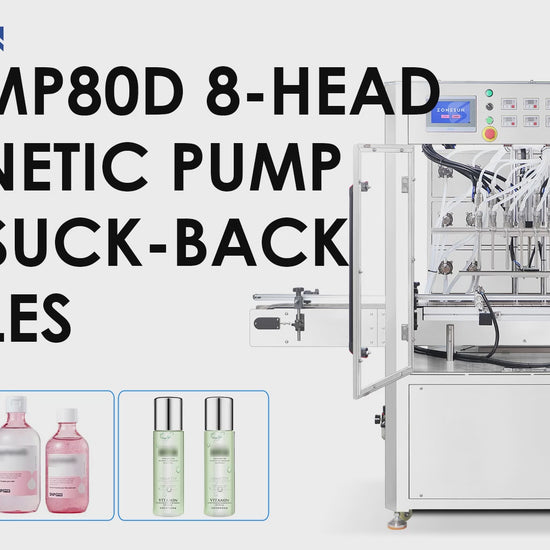

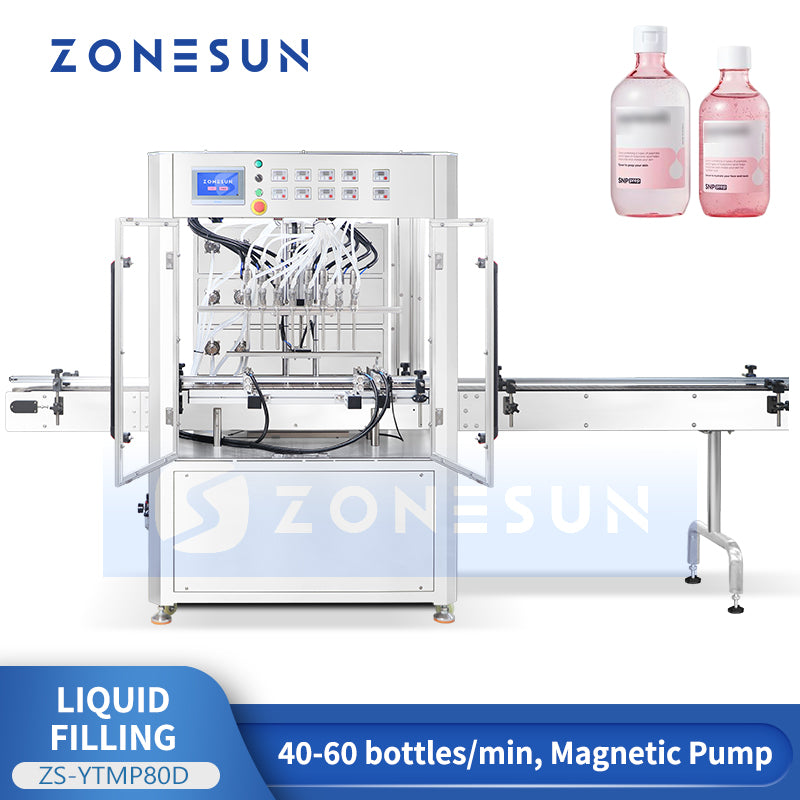

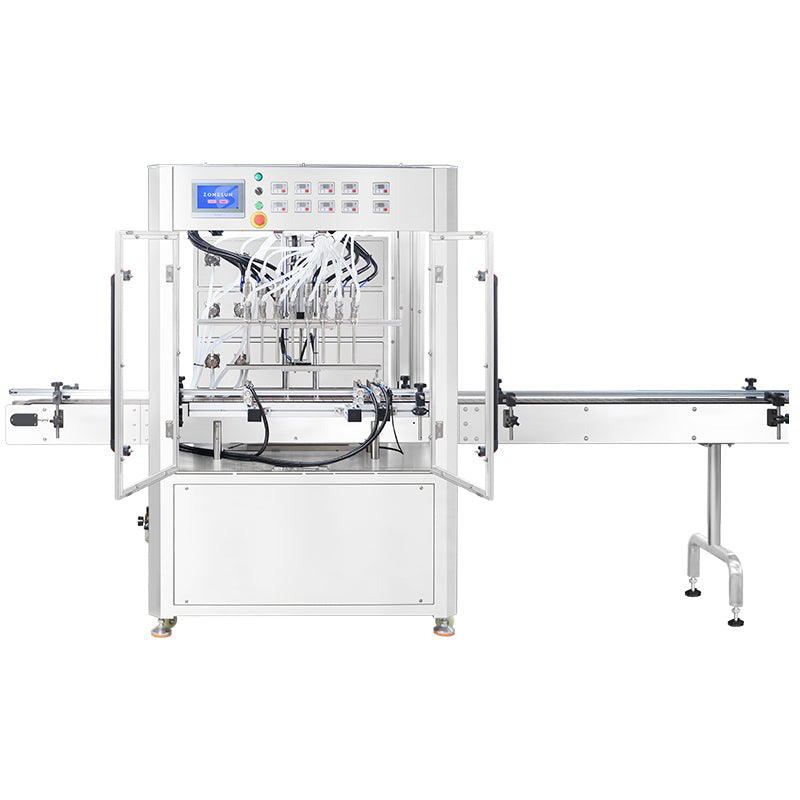

The ZONESUN ZS-YTMP80D is an 8-head magnetic pump filling machine designed for efficient liquid bottling. With a filling range of 50–1000 mL and a listed production capacity of 40–60 bottles/min, it fills eight bottles simultaneously to support continuous production.

Suitable for compatible liquids such as shower gel, red wine, edible oil and beverages, the machine features a diaphragm pump suck-back system to help reduce dripping and overflow after filling. Bottle holders, a conveyor and a drip-catching tray support stable bottle positioning and cleaner operation.

Actual filling performance depends on liquid properties, filling volume and bottle configuration.

Parameter

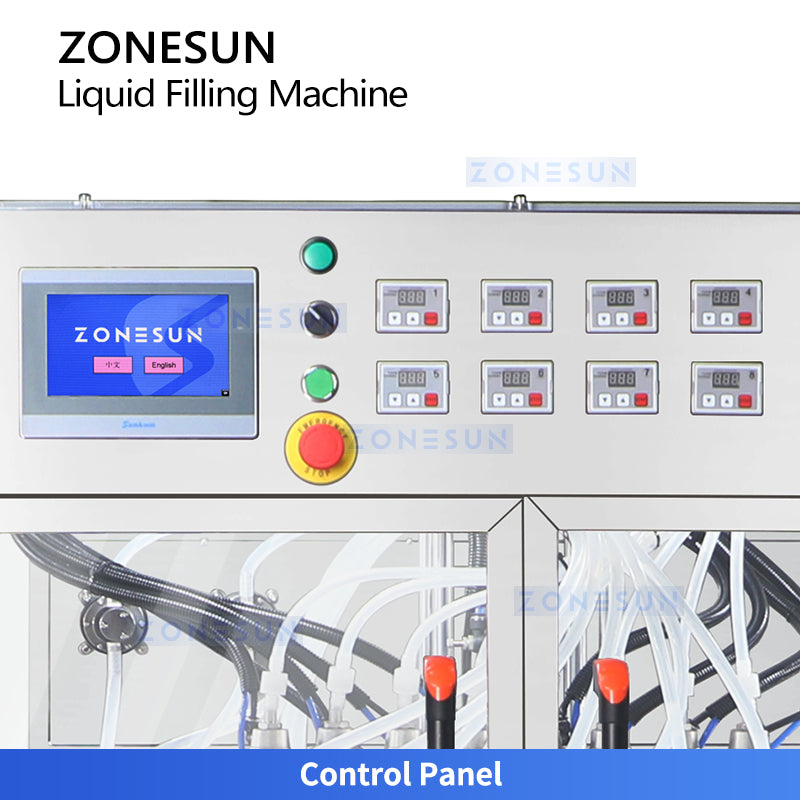

Control Panel

Adjust filling volume, speed and operating parameters for convenient control and consistent filling.

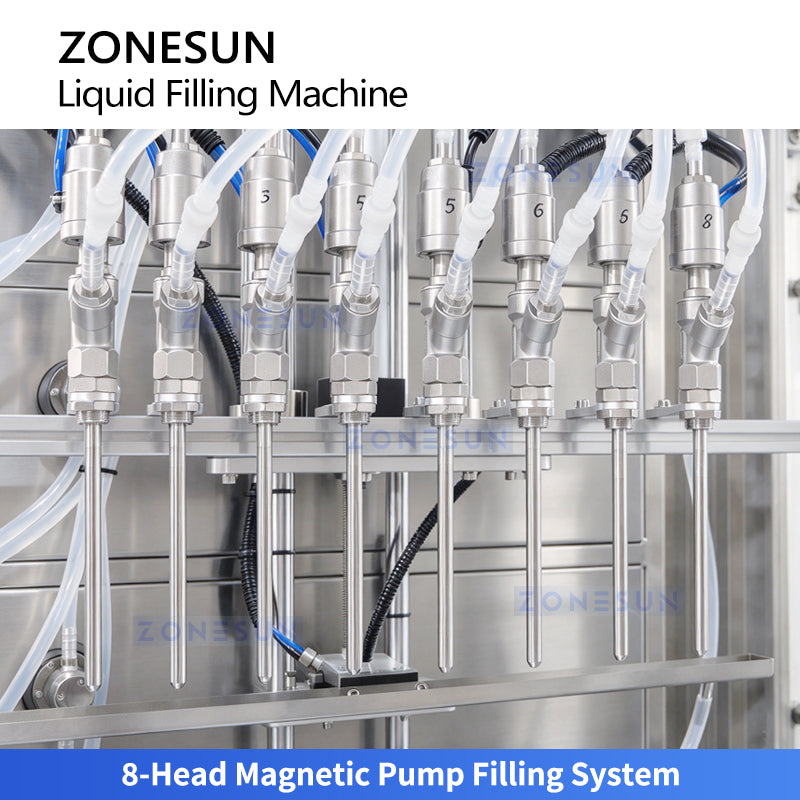

8-Head Magnetic Pump Filling System

Eight magnetic pumps fill bottles simultaneously, while the drip-catching tray collects residual liquid to keep the filling area clean.

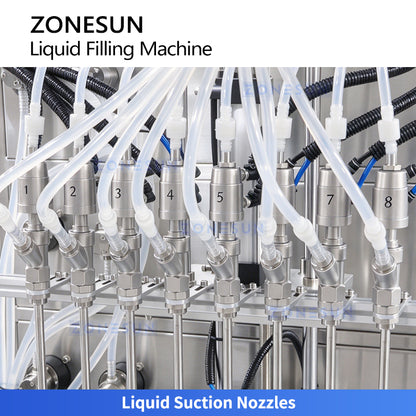

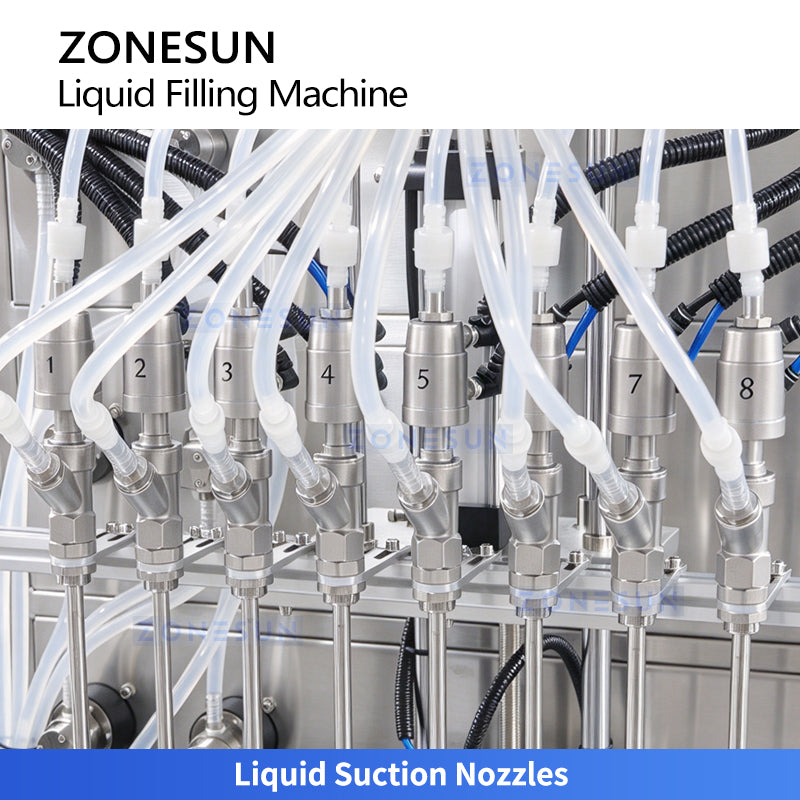

Liquid Suck-Back Nozzles

The diaphragm pump draws back excess liquid after filling to help reduce dripping and overflow and maintain cleaner bottle openings.

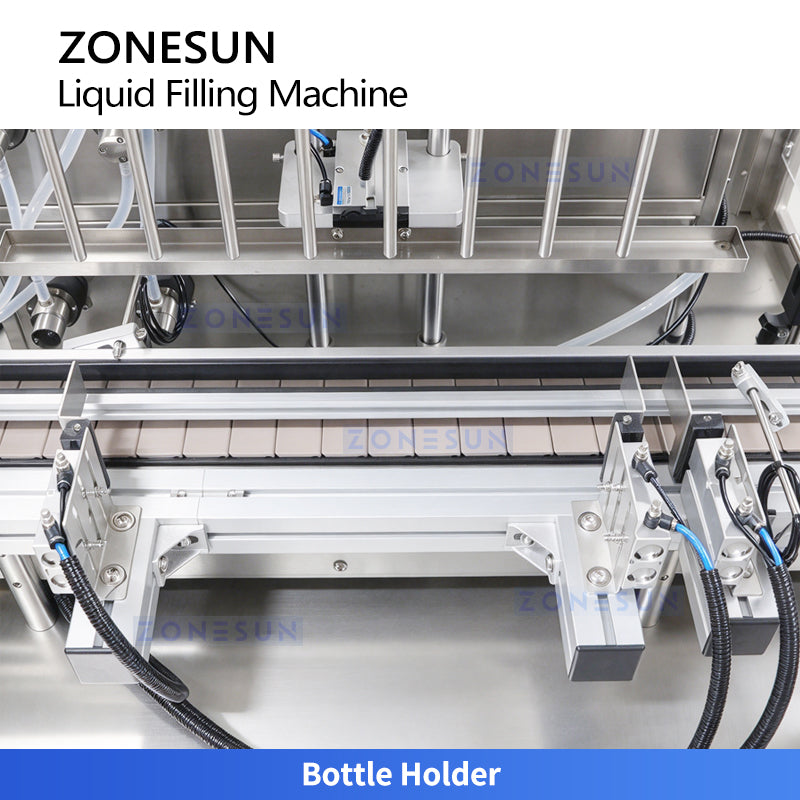

Bottle Holder

Secures bottles beneath the filling nozzles for stable positioning and accurate filling.

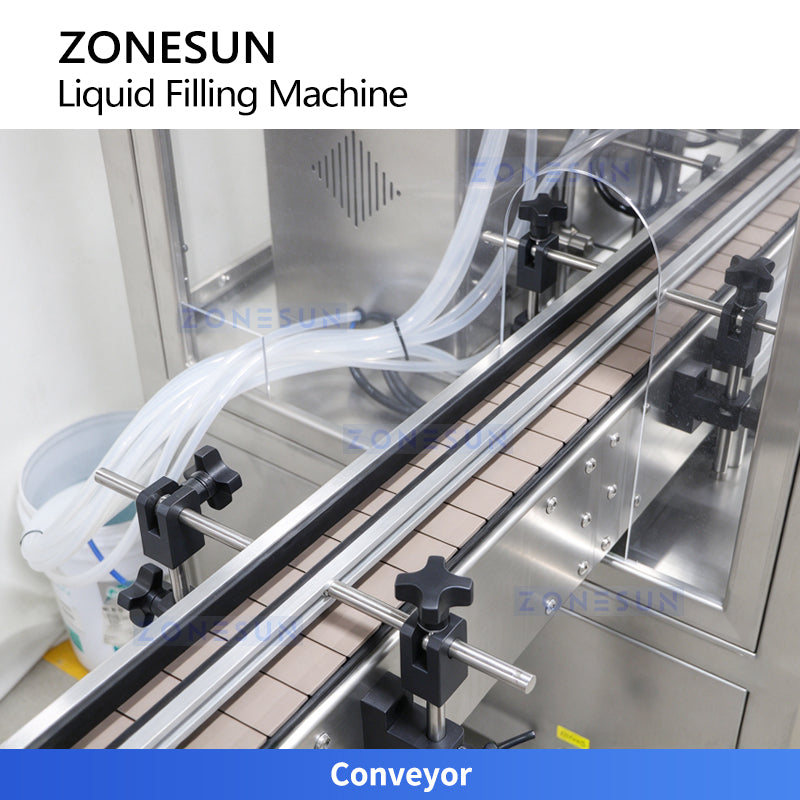

Conveyor

Moves bottles smoothly through the filling station for continuous production.

Electrical Control Cabinet

Houses and protects electrical components for reliable operation and convenient maintenance.

Applications and Selection

Suitable for compatible shower gel, red wine, edible oil and beverage applications. Provide liquid properties, target filling volume, bottle dimensions and required output to confirm pump compatibility and machine configuration.

Key Features

• Eight magnetic pumps for simultaneous bottle filling.

• Diaphragm pump suck-back system to help reduce dripping.

• Drip-catching tray for residual liquid collection.

• Bottle holders and conveyor for stable positioning and transport.

• Control panel for filling parameter adjustment.

Operating Process

1. Set filling parameters according to the liquid and bottle.

2. The conveyor transports bottles to the filling station.

3. Bottle holders align containers beneath the nozzles.

4. Eight magnetic pumps fill bottles simultaneously.

5. The diaphragm pump draws back excess liquid before discharge.

Frequently Asked Questions

What liquids can the ZS-YTMP80D fill?

It is designed for compatible shower gel, red wine, edible oil, beverages and other liquids. Confirm suitability based on viscosity, foaming behavior and liquid properties.

What are the filling range and output?

The listed filling range is 50–1000 mL, with a production capacity of 40–60 bottles/min. Actual output depends on the liquid, filling volume and bottle configuration.

How many filling heads does it have?

The machine has eight filling heads with independently positioned magnetic pumps for simultaneous filling.

How does the suck-back system work?

The diaphragm pump draws back excess liquid after filling to help reduce dripping, overflow and residue around bottle openings.

What is the specified filling accuracy?

The original specification lists ±3 mm. Since this is a linear measurement rather than a volume tolerance, confirm the measurement method and test conditions with ZONESUN.

What bottle sizes are supported?

The listed bottle size range is 40–100 mm, but the applicable dimension is not specified. Provide bottle drawings or samples to confirm compatibility.

Related Capping Equipment

• ZONESUN ZS-XG16 Automatic Pneumatic Spindle Capping Machine

Confirm bottle and cap compatibility, conveyor connections and line speed before integration.

Discuss Your Filling Project

Send your liquid details, bottle dimensions, target filling volume and required output through the online chat. The ZONESUN team can help confirm the appropriate machine configuration.
