ZONESUN ZS-ZY300 Rotary Pouch Bean and Millet Soup Filling Sealing Machine for Granules & Liquids
ZONESUN ZS-ZY300 Rotary Pouch Bean and Millet Soup Filling Sealing Machine for Granules & Liquids
受取状況を読み込めませんでした
Description

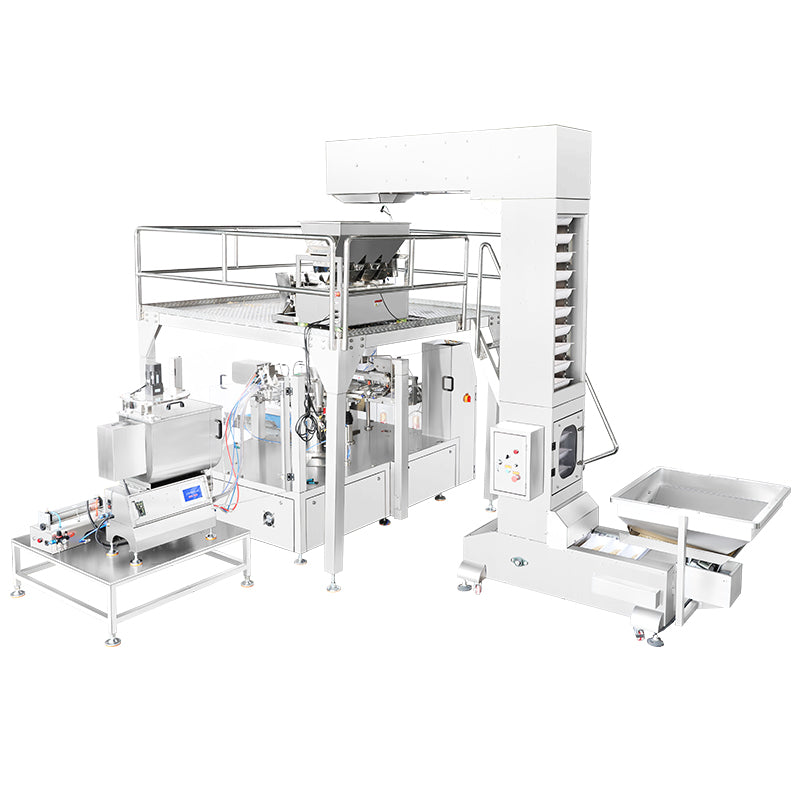

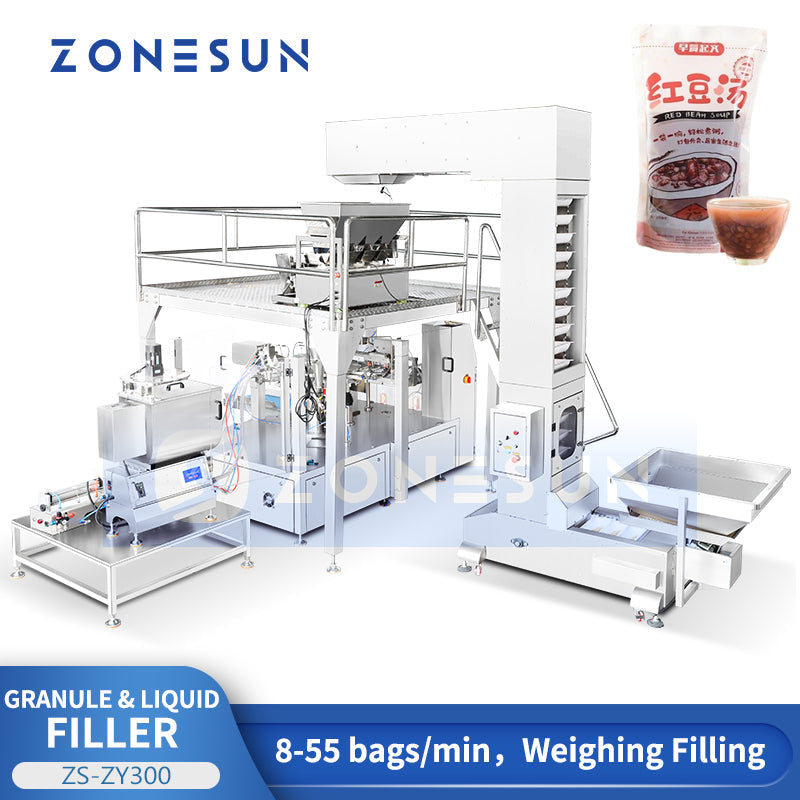

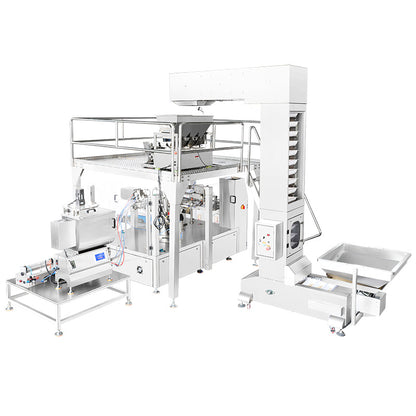

The ZONESUN ZS-ZY300 is an 8-station fully automatic pouch filling and sealing machine designed for mixed granule and liquid products. Operating at 8–55 bags/min, it integrates automatic bag pickup, opening, granule weighing filling, liquid filling, and dual-stage sealing into one compact rotary system. Equipped with a multi-head combination weigher and high-precision liquid pumps, it ensures accurate dosing and stable operation. Compatible with various pouch types, it is ideal for food, seasoning, sauce, and mixed-material packaging applications.
Parameter
- Model: ZS‑ZY300
- Power Supply: AC 380 V, 50 Hz
- Exhaust Pressure: 0.8 MPa
- Exhaust Volume: ≥ 0.6 m³/min
- Packaging Speed: 8–55 bags/min (depends on product and filling weight)
- Packaging Material: PET/AL/CPP composite film bags
- Suitable Products: Roasted nuts, seasonings, snacks, tomato paste, MSG, chicken essence, sauces, liquids
- Bag Types: Flat bags, stand‑up pouches, handle bags, M‑type bags
- Bag Size: Width 150–300 mm; Length 100–500 mm
- Machine Dimensions: 2550 × 1900 × 1530 mm
- Machine Weight: 1700 kg

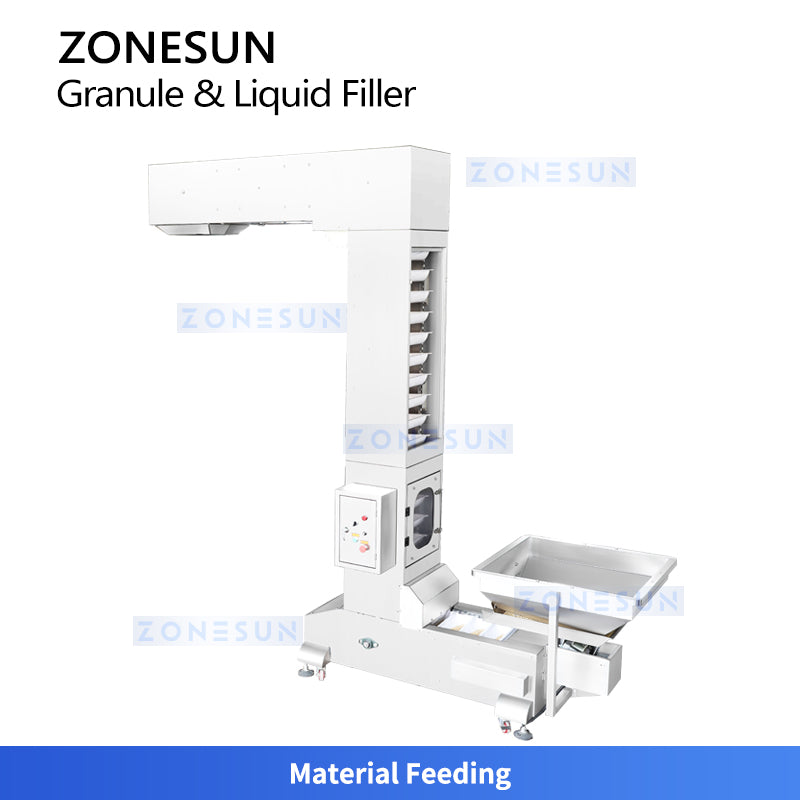

Material Feeding
Lift granular materials from the storage hopper to the high-level weighing system, ensuring continuous and stable material feeding.

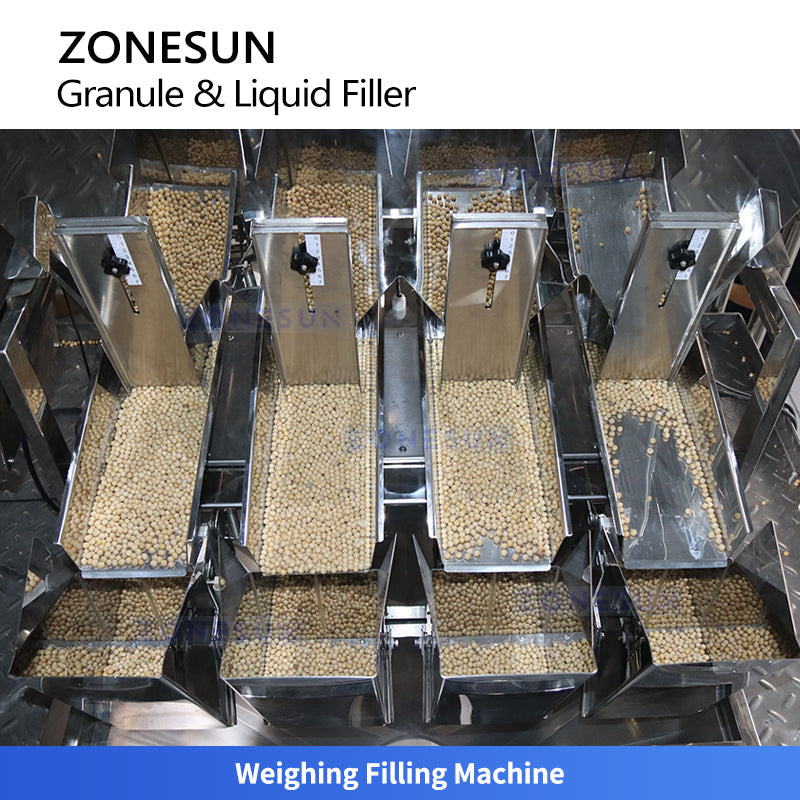

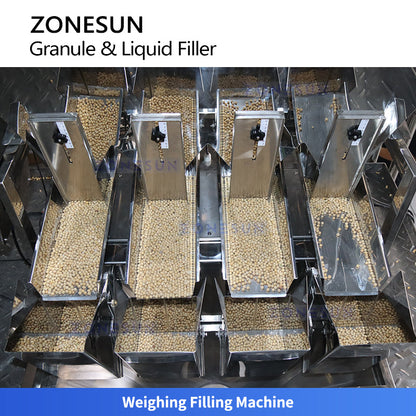

Weighing Filling Machine
Provide high-precision dosing of granular materials through multi-head combination weighing, ensuring accurate and consistent weight distribution for precise granule filling.
Bag Placement Platform
Providing a neat and stable area for placing pouches, keeping the openings aligned and fixed to ensure smooth pickup by the suction.

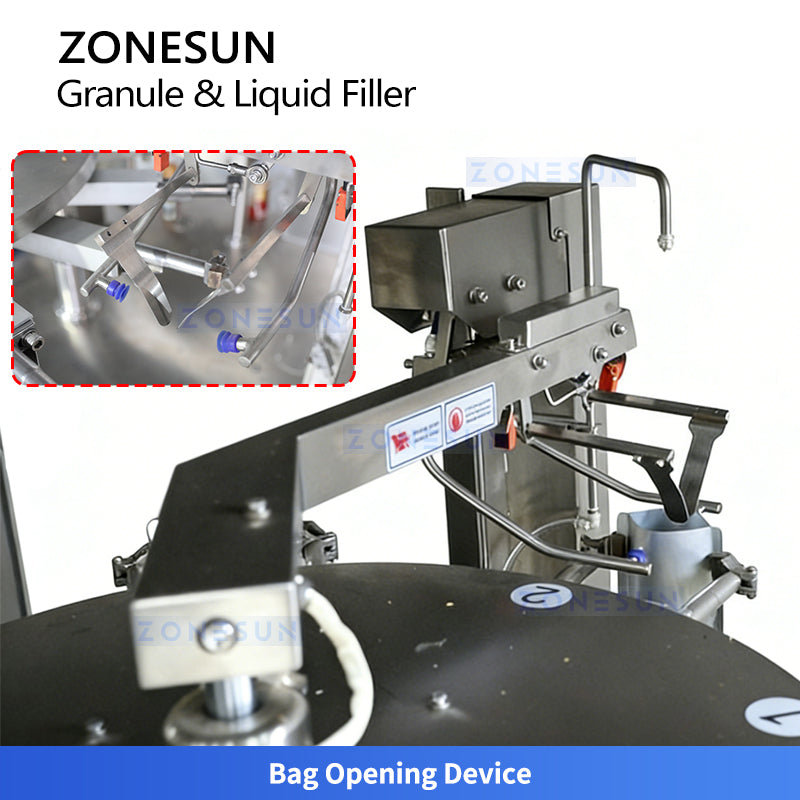

Bag Opening Device
Used to open and hold the pouch mouth, ensuring a fully expanded and stable opening for smooth and accurate filling.

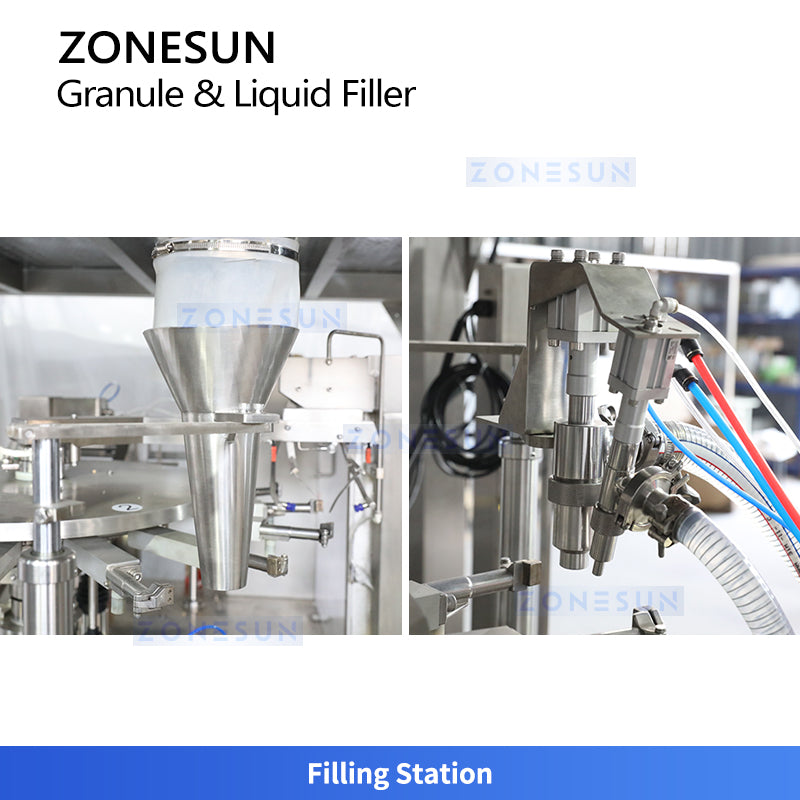

Filling Station
Used for sequential filling of granules and liquids, with the weighing system dosing the granules first, followed by precise liquid filling through a rotor pump and a piston pump for smooth filling.

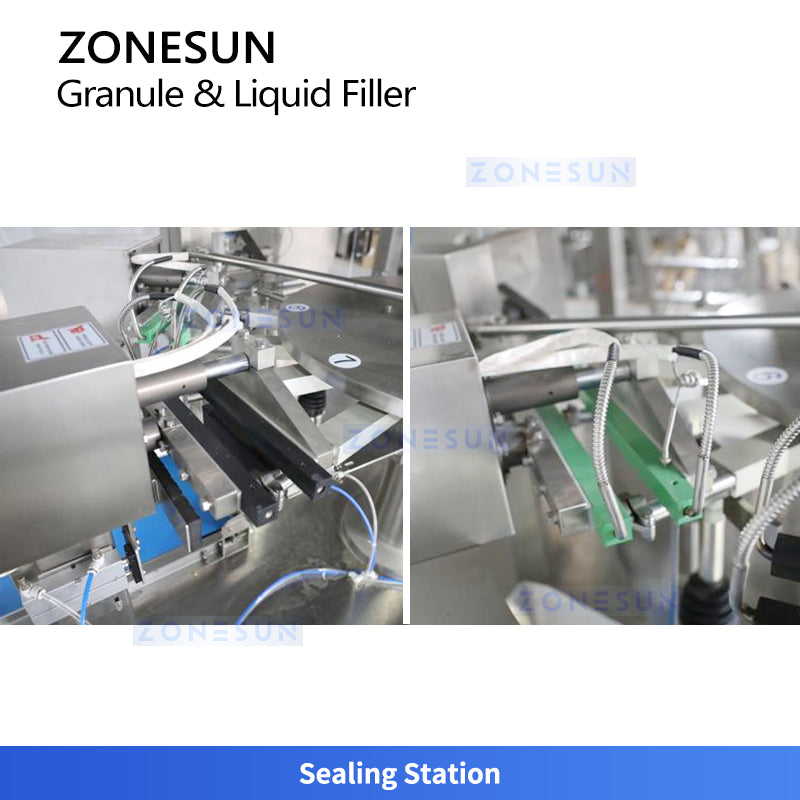

Sealing Station
Used for primary and secondary heat sealing to reinforce the pouch seal, ensuring strong, clean, and leak-proof sealing after the granule and liquid filling process.
Output Conveyor
Convey the filled and sealed pouches out of the station, ensuring smooth, continuous, and stable product discharge while preventing pouch accumulation or blockage.
