ZONESUN ZS-FS03 Automatic Paste Filling and Aluminum Tube Sealing Machine
ZONESUN ZS-FS03 Automatic Paste Filling and Aluminum Tube Sealing Machine
受取状況を読み込めませんでした
DESCRIPTION

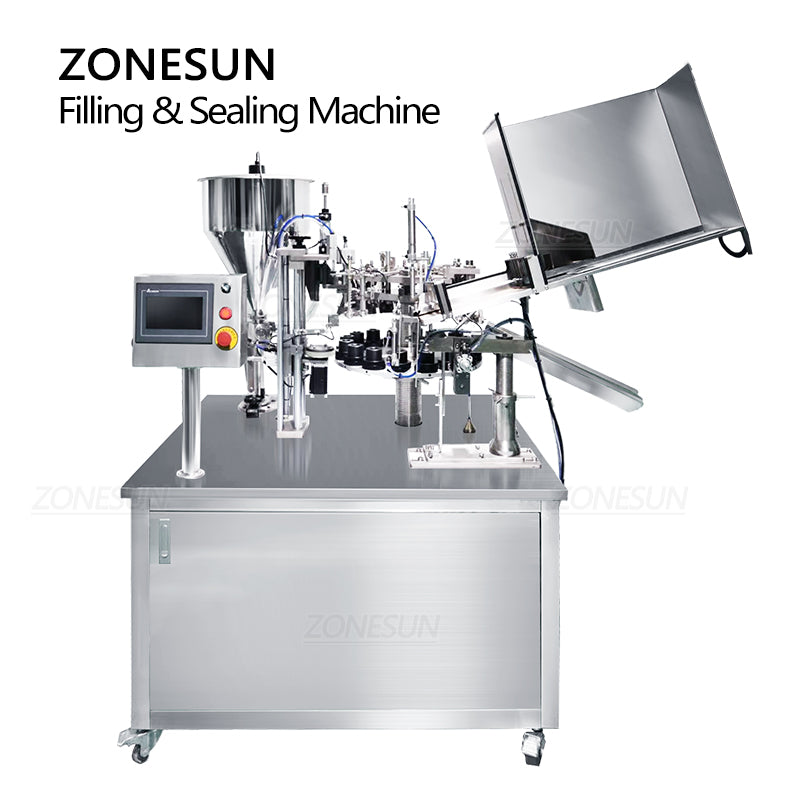

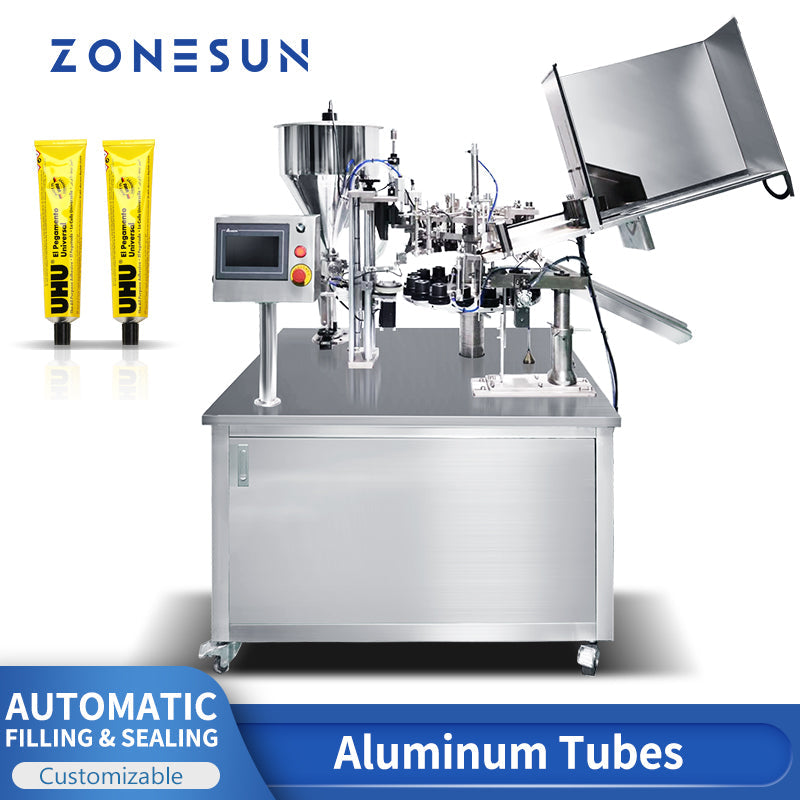

This machine is a filling and sealing machine, especially for aluminum tubes. It can automatically feed, locate, fill and seal the tubes. It is widely used in medicine, daily chemical, food, and other industries of packaging.
PARAMETER
|
Machine model |
ZS-FS03 |
|
Voltage |
110 V/220 V |
|
Filling range |
20-200 ml |
|
Tube Height |
80-180 mm |
|
Tube diameter |
13-35 mm |
|
Jigs |
16 |
|
Working speed |
10-50 pieces/min |
|
Air pressure |
0.4-0.6 Mpa |
|
Size |
About 1940*1280*1780mm |
|
Weight |
About 350kg |
|
Pneumatic component |
AirTAC |
|
Touch screen |
Delta |
|
PLC |
Mitsubishi Electric |
|
VFD |
Eurotherm |
|
Electric eye |
KEYENCE |

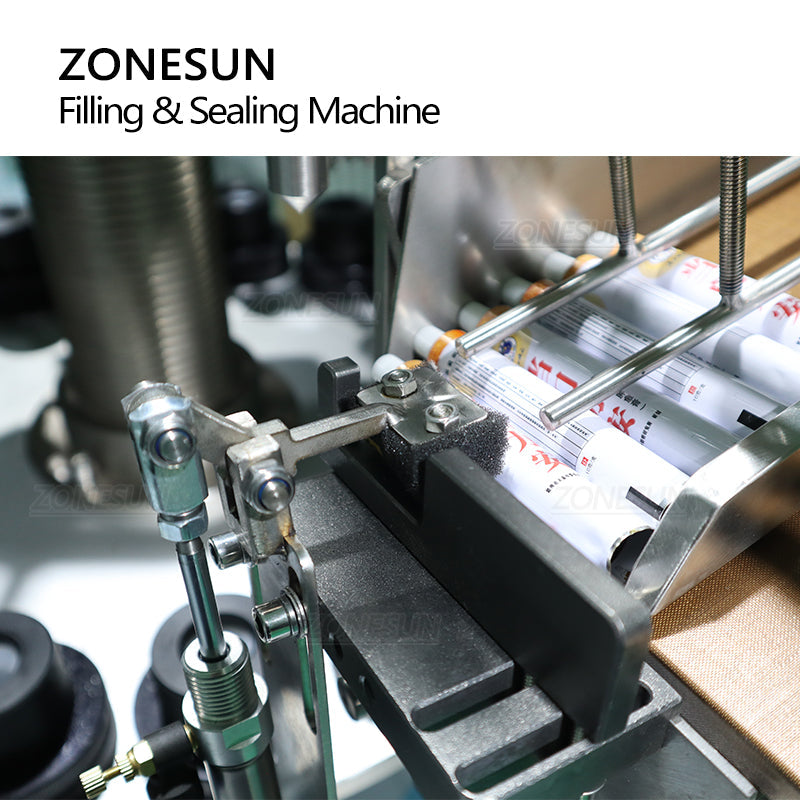

01 / FEEDER
It can automatically feed the tubes.

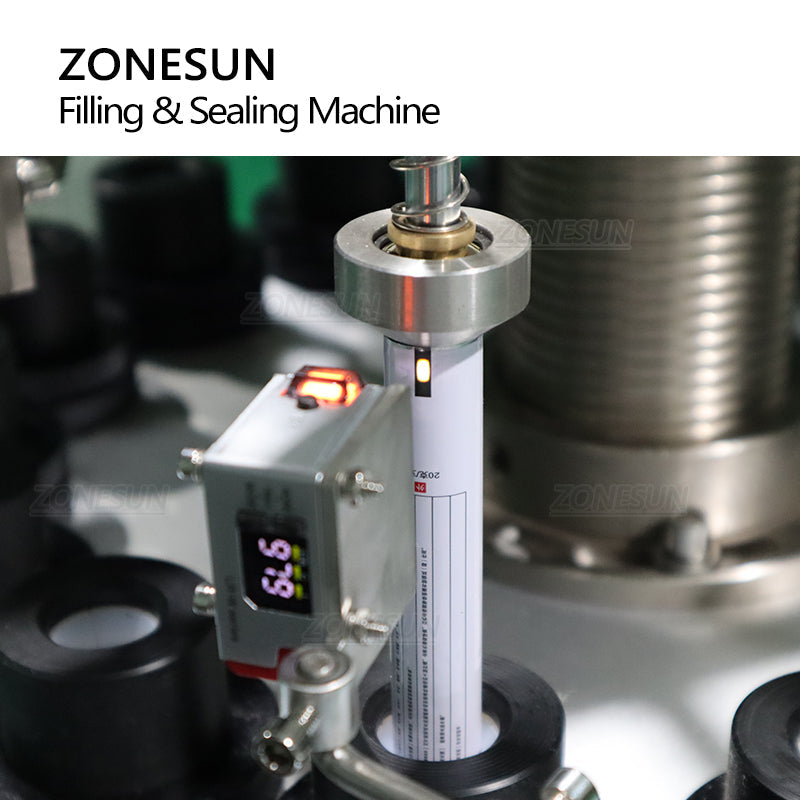

02 / ELECTRIC EYE
It can automatically detect the tube and locate the mark, ensuring the tube is in the right direction.

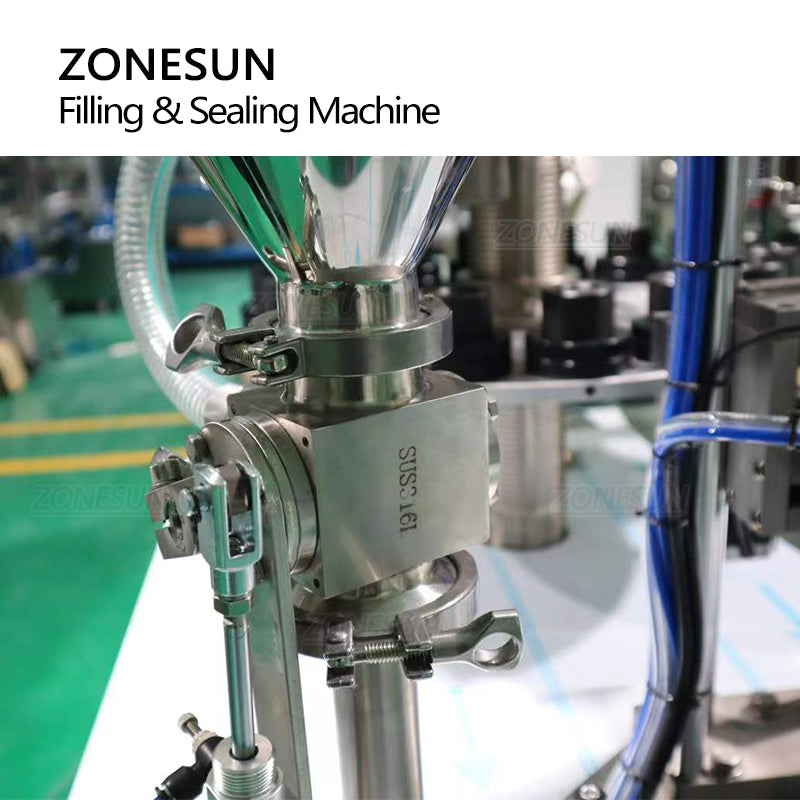

03 / MATERIAL
It is made of stainless steel SUS316L, which is of high quality and suitable for filling food.
04 / SEALING
The sealing head is made of alloy steel which is of high heat conductivity.

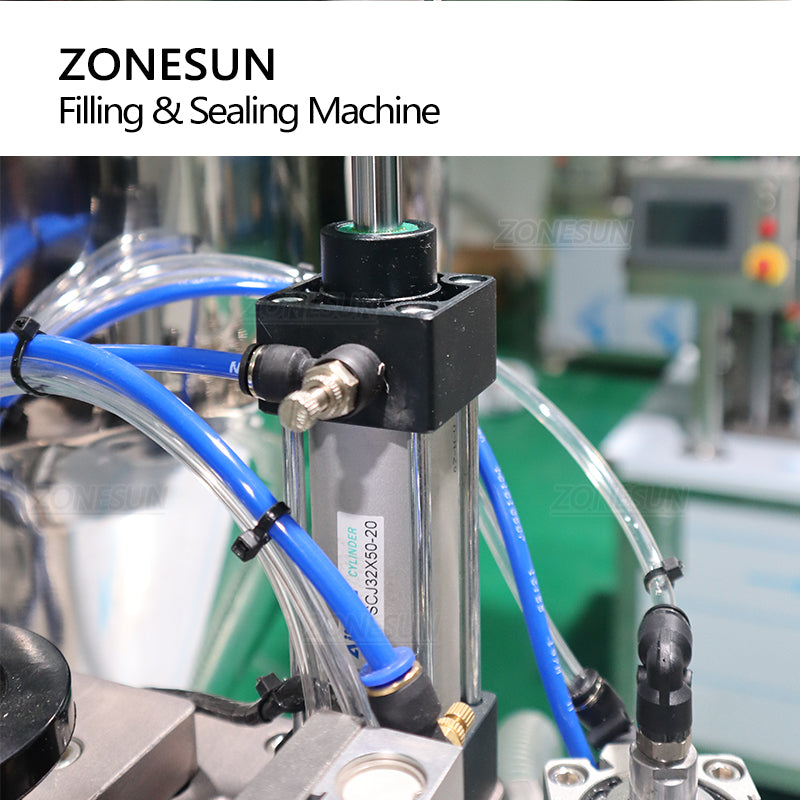

05 / PNEUMATIC
It is pneumatic in control. The components are from the famous brand AirTAC.
