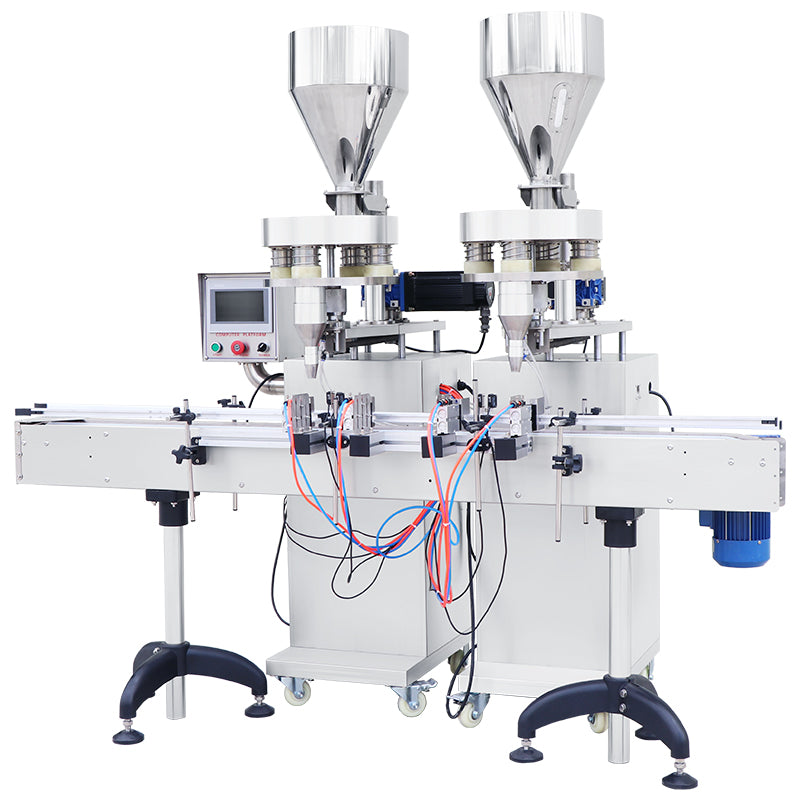

ZONESUN ZS-KL01 2 Nozzles Granule Quantitative Powder Filling Machine With 2 Hopper
ZONESUN ZS-KL01 2 Nozzles Granule Quantitative Powder Filling Machine With 2 Hopper
受取状況を読み込めませんでした
DESCRIPTION
The granule filling machine can only fill granular powder with high density and non-viscous, such as corn, grain, and wheat. It adopts 2 cup-shaped molds for measurement. It is widely used in the food, and chemical industries.
PARAMETER
|
Machine Model |
ZS-KL01 |
|
Voltage |
220/110V 50-60Hz |
|
Machine Power |
0.9Kw |
|
Hopper Capacity |
30L |
|
Hopper Size |
About 320*410 mm(Diameter*H) |
|
Measuring Method |
Cup Measuring |
|
Filling Weight |
1-500 g (can be customized) |
|
Filling speed |
10-30 bottles/min (Depend on bottle size and material) |
|
Filling Nozzle Diameter |
20 mm (other sizes can be customized) |
|
Machine Size |
2000*550*1800 mm(L*W*H) |
|
Machine Weight |
About 166 kg |
|
Gross Weight |
About 205 kg |
01 / PLC CONTROL PANEL
Through the touch screen panel, it's easy to set working parameters. The language of panel can be customized according to customers' need.
02 / MEASURING CUPS
This machine fills granules and powder by the way of cup measuring, which can fill materials accurately. The cups can be changed according to production needs.
03 / FILLING NOZZLE
Made of stainless steel, the nozzle can fill materials smoothly and quickly. The size of filling nozzle can be customized as needed.
04 / ELECTRIC EYE
It is used for detecting bottles and controlling the machine to work automatically. Intelligent and efficient. The sensitivity of it is adjustable.
05 / CONVEYOR BELT
With chain conveyor belt, it has large loading capacity, which can transport bottles stably. The width and conveying speed of it can be adjusted as needed.
