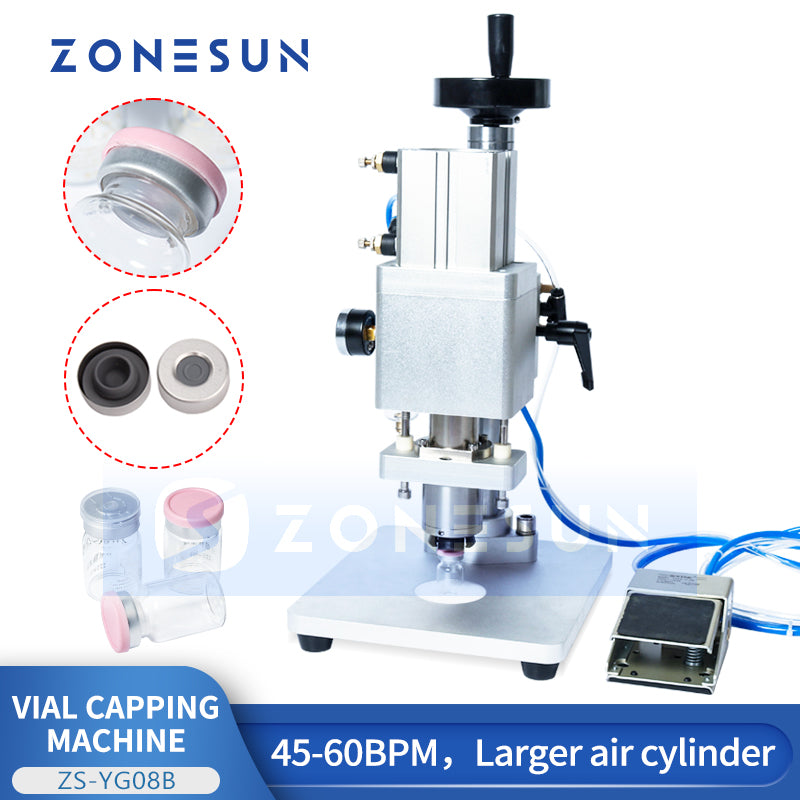

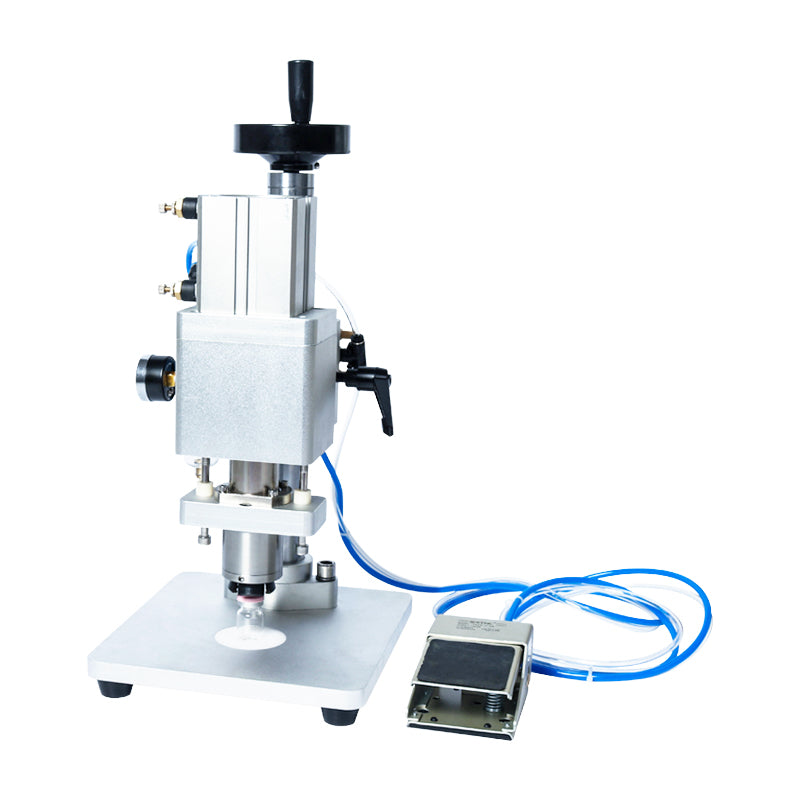

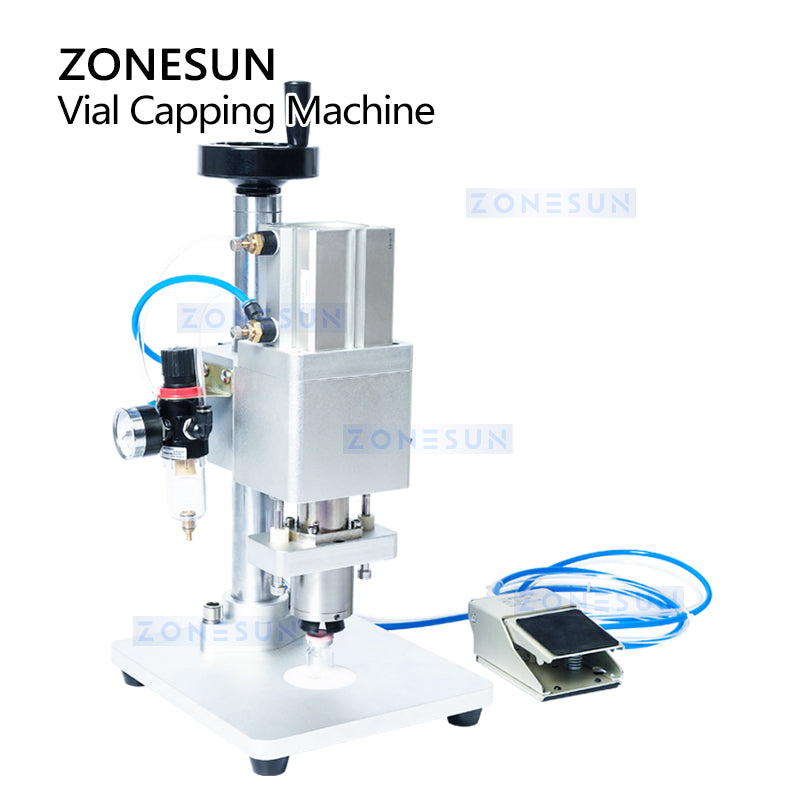

ZONESUN 13/20mm Pneumatic Aluminum Plastic Penicillin Vial Capping Machine
ZONESUN 13/20mm Pneumatic Aluminum Plastic Penicillin Vial Capping Machine
Regular price
$599.40 USD
Regular price
Sale price
$599.40 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Parameter
- Machine Model：ZS-YG08B
- Air Pressure：0.4–0.5 MPa
- Sealing Diameter：Φ13 mm / Φ20 mm
- Suitable Bottle Height：20–100 mm
- Production Capacity：45–60 bottles/min
- Machine Weight：14 kg
- Machine Size：220 × 250 × 500 mm
Features
1. Easy to operate, compact structure, crimping head can change, one machine for different size caps.
2. Provide air pressure to 0.6-0.8Pa.
3. The crimping mouth is strength, wear-resistance, have long service life.
4. Have pierced aluminum sealed performance is good, the mouth even and neat.
5. It’s used for the pharmaceutical, cosmetic, chemical products.
6. Suitable for the clamping of the spray-bottle cap, it uses the crimping head to crimp the cap, and fix tightly on the bottle mouth.
7. It consists of the body, platform, clamping device and pneumatic control system.
8. This item can adjust the height of heating board by rotating the knob.
Notice:
1.Sealing diameter 13mm and 20mm mean the bottle opening size
2.Please choose The aluminum and plastic cap and full aluminum cap which one want
NOTE
Air compressor required, Sold separately.

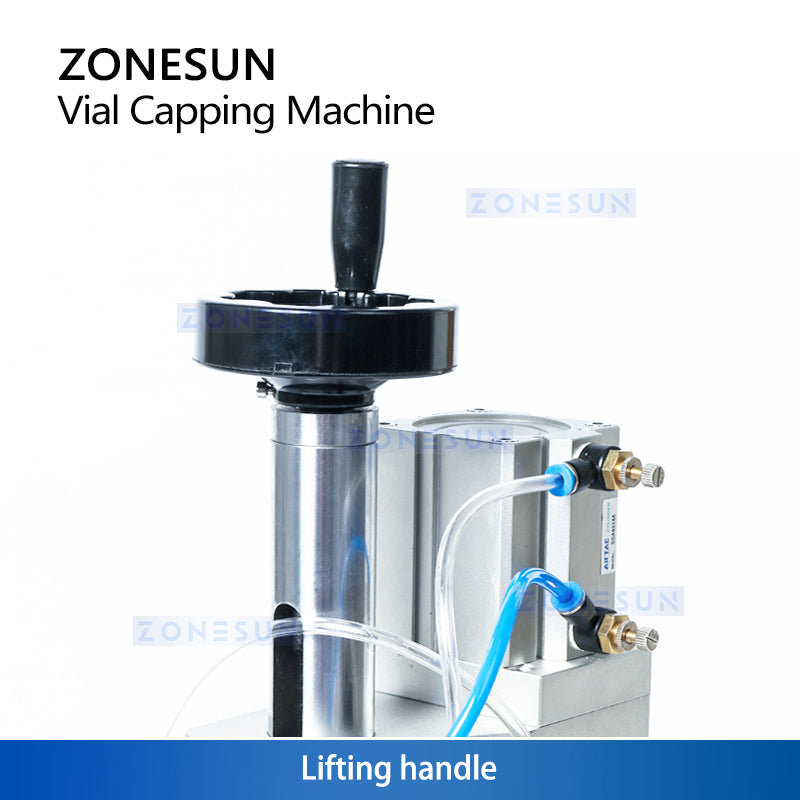

LIFTING HANDLE
Allows manual lifting of capping head for bottle alignment, setup, or maintenance.

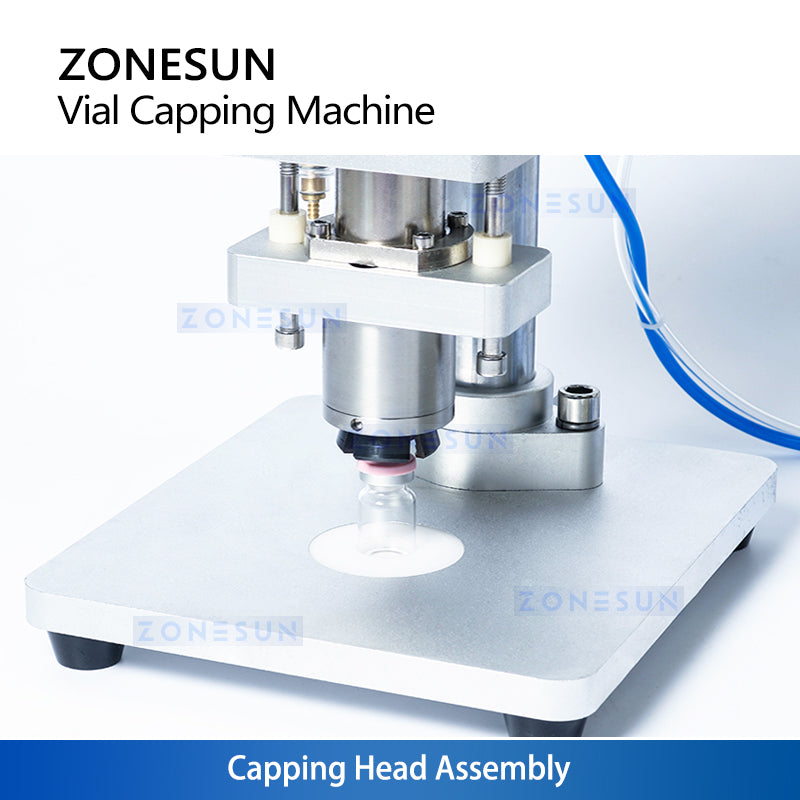

CAPPING HEAD ASSEMBLY
Suitable for the clamping of the spray-bottle cap. It uses the crimping head to crimp the cap and fix it tightly on the bottle mouth.

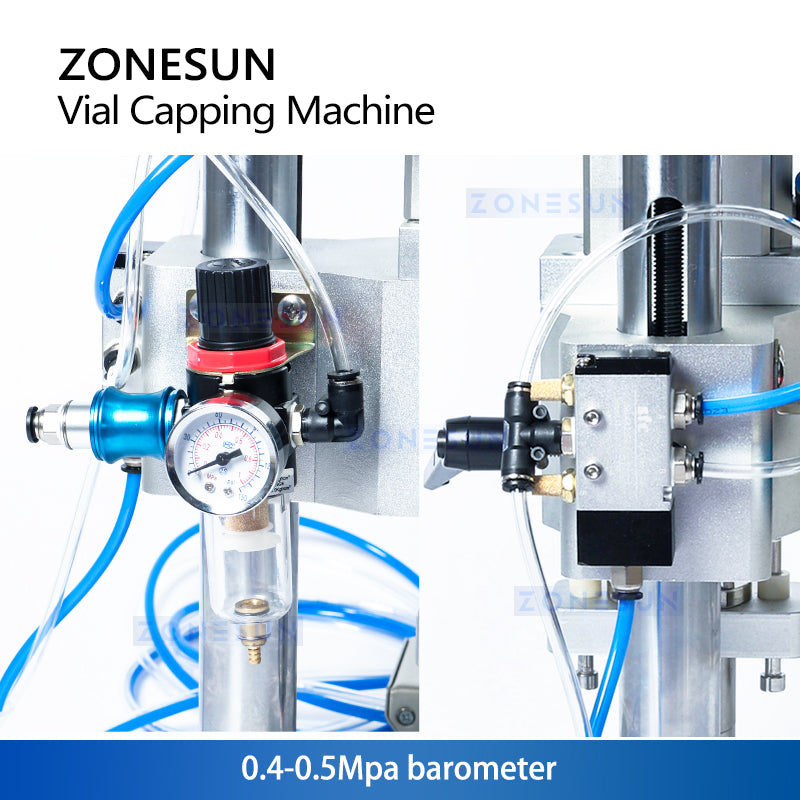

0.4–0.5MPA BAROMETER
Displays and regulates air pressure (0.4–0.5 MPa) to ensure consistent pneumatic sealing performance.

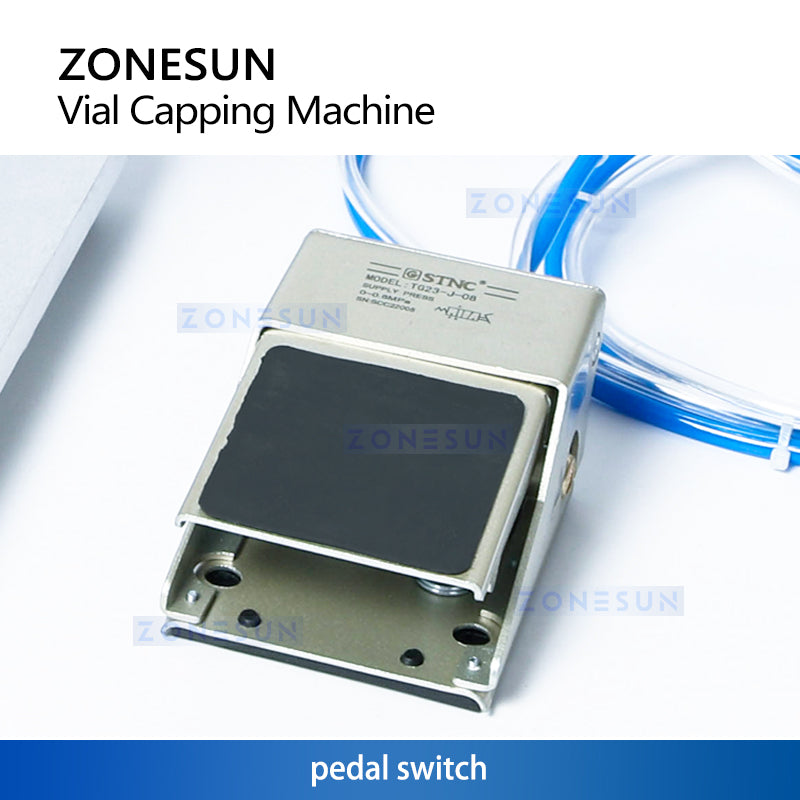

PEDAL SWITCH
Activates capping cycle via foot control for hands-free operation and improved workflow efficiency.
ATTENTION
Please note that this product must be used with an AIR COMPRESSOR which is sold separately. It is confirmed that the buyer has read this requirement once an order is placed.
