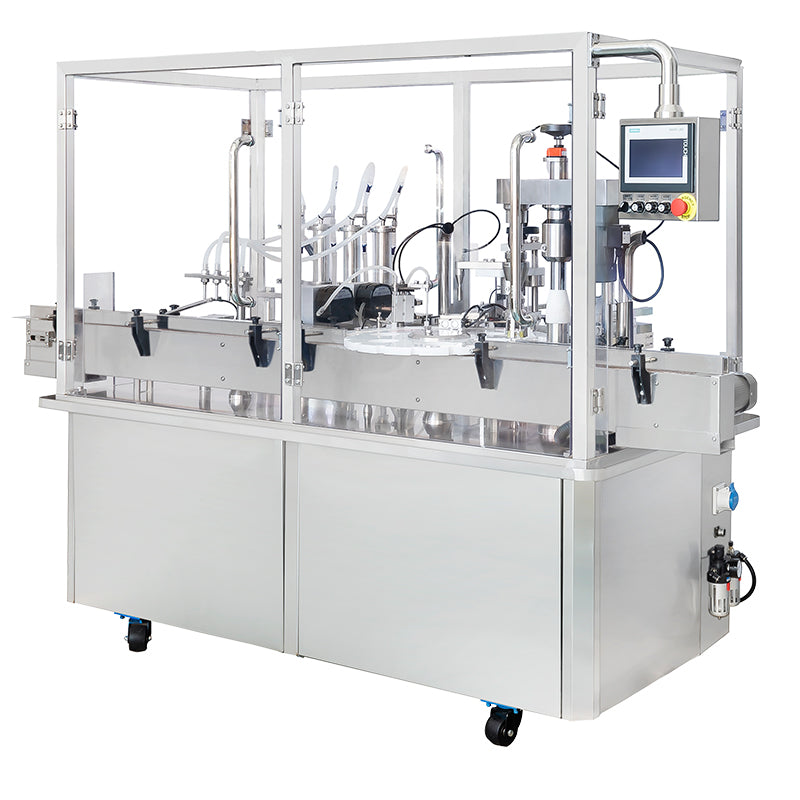

ZONESUN ZS-AFC450-2 Automatic Liquid Filling & Capping Machine
The ZONESUN ZS-AFC450-2 is an advanced all-in-one automatic packaging machine that combines liquid filling, inner cap insertion, and bottle sealing in a single continuous production line. Engineered for precision small-volume bottling, it is the ideal solution for essential oils, eyedrops, perfumes, serums, and other high-value liquid products requiring accurate, contamination-free filling and secure capping.
Equipped with dual peristaltic pumps for consistent fill accuracy and a high-precision closed cam indexing mechanism for cap placement, the ZS-AFC450-2 delivers repeatable, reliable performance across every production cycle.
Suitable Applications
Technical Specifications
| Model | ZS-AFC450-2 |
| Function | Filling + Capping + Sealing |
| Filling System | Dual Peristaltic Pump |
| Capping System | High-Precision Closed Cam Indexing Mechanism |
| Cap Feeding | Dual Vibratory Bowl Sorter |
| Suitable Fill Volume | 1–50ml |
| Voltage | 110V / 220V, 50–60Hz |
| Machine Weight | ~500kg |
Need custom fill volumes, bottle formats, or line integration?
Contact ZONESUN for OEM/ODM customization, technical specifications, and bulk pricing.
FILLING
Dual peristaltic pumps, accurate and consistent filling, ideal for precise liquid dispensing. Move the liquid through a flexible tube without any contact with the pump mechanism. This helps to prevent contamination and minimize waste.
CAPPING
Cam splitter, high-precision, accurate and fast. Ensure each lid and inner cap is precisely positioned and inserted into the bottle with minimal room for error.
SEALING
Servo motor driven, secure and efficient sealing of each bottle.
STAR WHEEL
The rotation of the star wheel is carefully controlled to ensure that each bottle is in the correct position for filling, capping, and sealing.
Key Features
- Dual peristaltic pump filling — precise, consistent fill volumes with minimal product waste
- High-precision cam indexing capping — closed cam splitter mechanism ensures accurate cap positioning and insertion every cycle
- Dual vibratory bowl cap feeding — lid and inner cap conveyed and positioned automatically
- Integrated sealing station — secure and efficient bottle sealing in one continuous pass
- All-in-one design — filling + capping + sealing in a single compact machine
- Dual voltage support — available in 110V and 220V (50–60Hz)
- Suitable for small bottles — ideal for 1–50ml containers including dropper bottles, vials, and roll-ons
How It Works
Bottles are fed into the machine and indexed through three stations in sequence:
- Filling Station — dual peristaltic pumps dispense precise liquid volumes into each bottle
- Capping Station — inner caps and lids are sorted by vibratory bowls, then inserted and pressed using the cam indexing mechanism
- Sealing Station — bottles are sealed securely before exiting the production line
