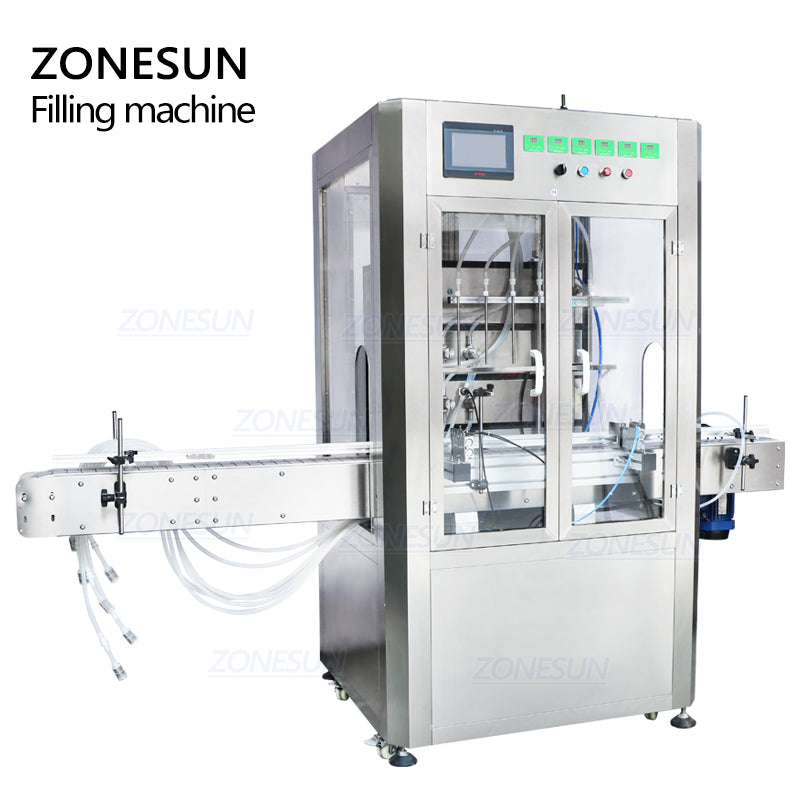

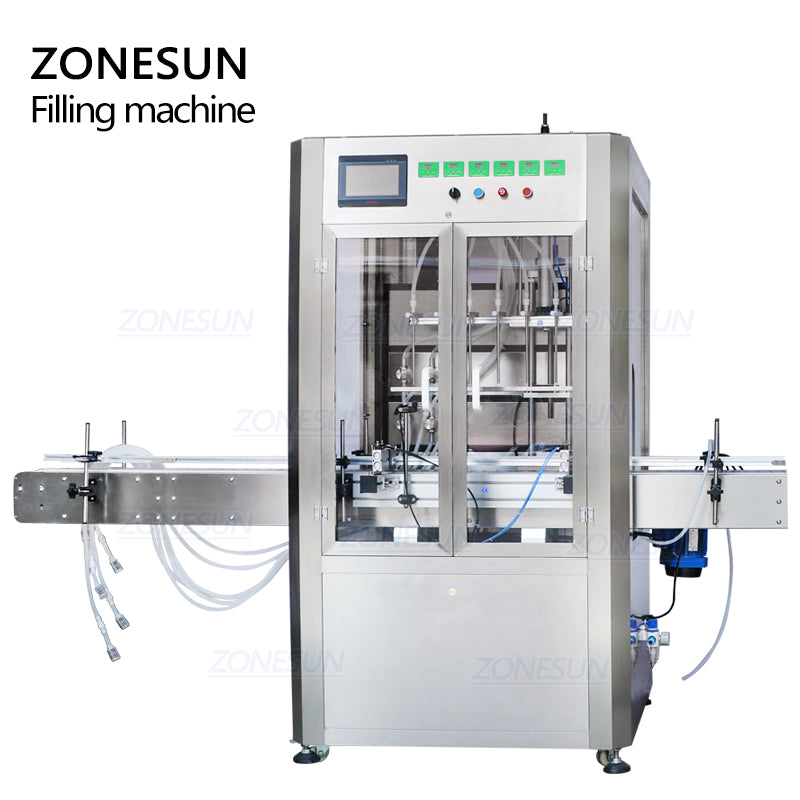

ZONESUN ZS-VTMP80D Custom 6 Heads Magnetic Pump Liquid Filling Machine With Dust Cover
ZONESUN ZS-VTMP80D Custom 6 Heads Magnetic Pump Liquid Filling Machine With Dust Cover
Couldn't load pickup availability
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Parameter
|
Machine model |
ZS-VTMP80D |
|||
|
Container size |
φ20-100mm H30-300mm |
|||
|
Max flow rate |
5500ml/min |
5500ml/min |
7500ml/min |
12000ml/min |
|
Material of pump |
304 stainless steel |
316 stainless steel |
||
|
Filling accuracy |
≤100ml deviation≤±1ml > 100ml deviation≤±1% ( based on water) |
|||
|
Filling speed |
20-50pcs/min |
20-50pcs/min |
25-60pcs/min |
50-70pcs/min |
|
|
(depending on bottles and filling liquid) |
|||
|
Power supply |
220V-50HZ/110V-60HZ |
|||
|
The whole machine power |
2000W |
|||
|
Size of air compressor connector |
OD8mm |
|||
|
Machine weight |
About 285kg |
|||
|
Machine size |
About 1000*900*1860mm |
|||
|
Packing weight |
About 390kg |
|||
|
Packing size |
About 1970*1020*2050mm |
|||
Description

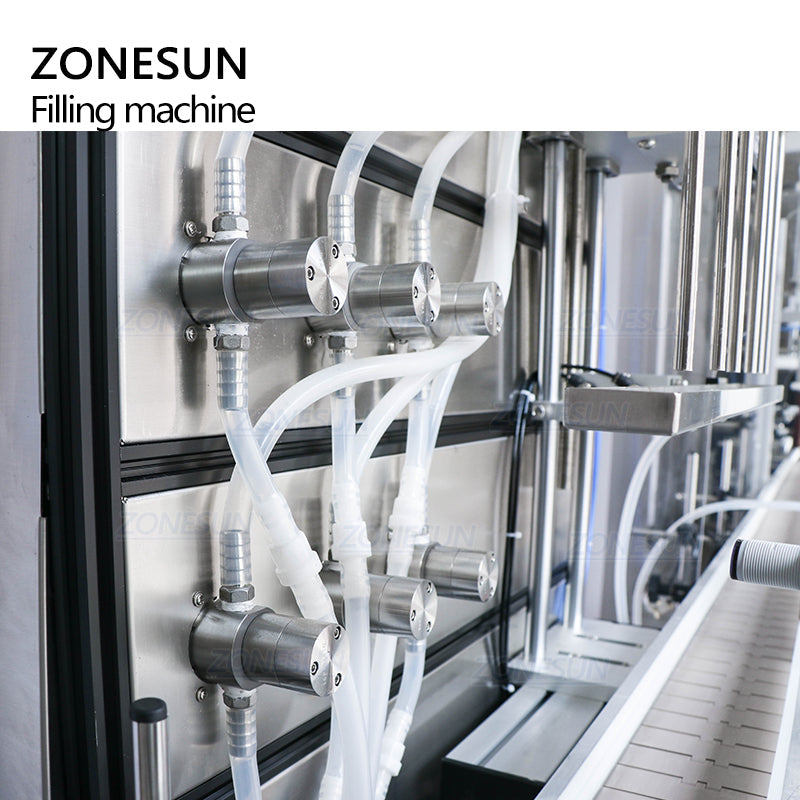

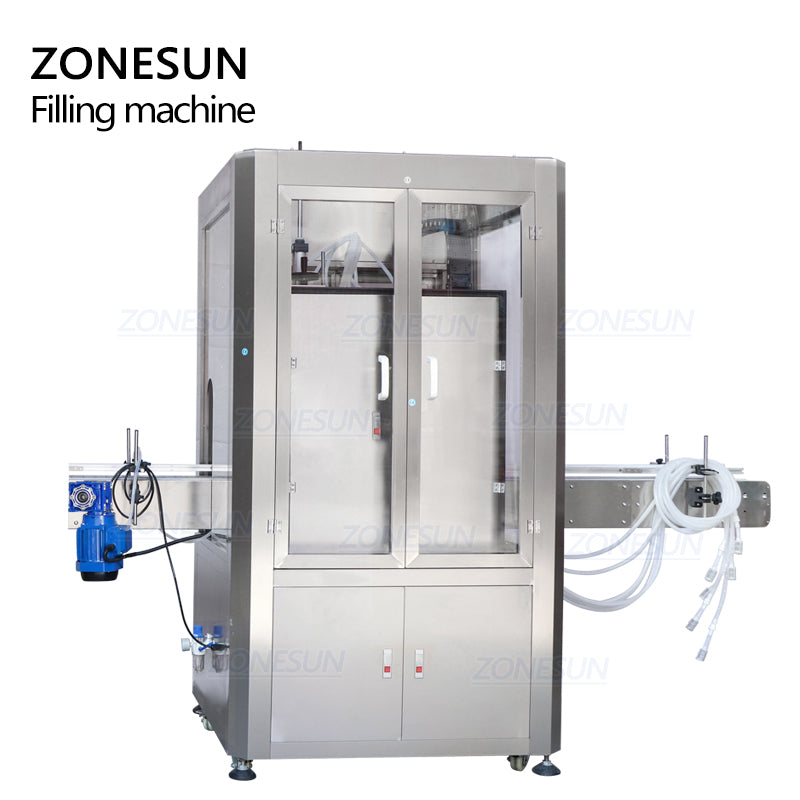

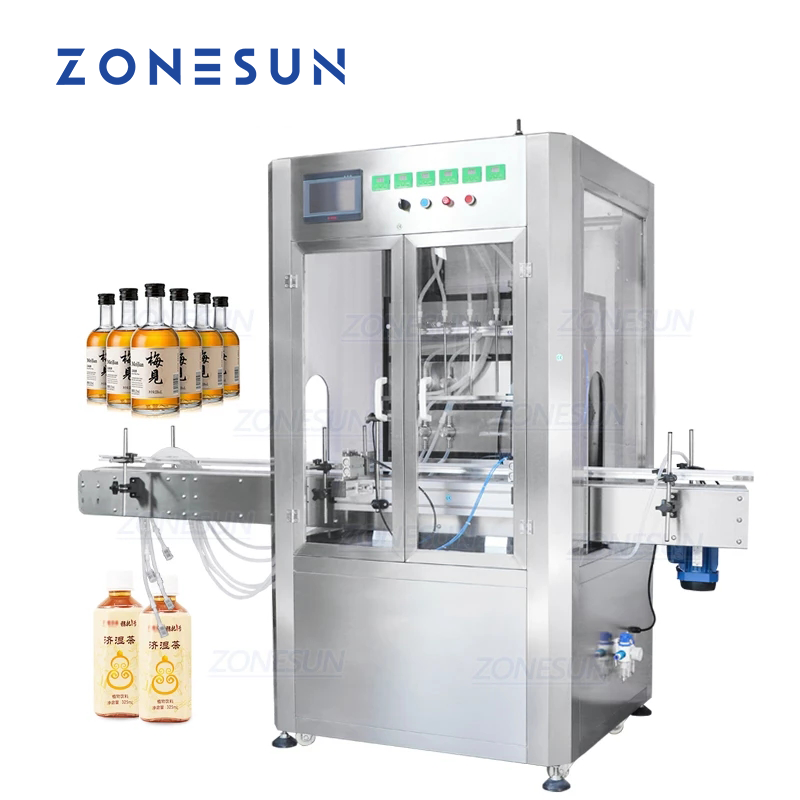

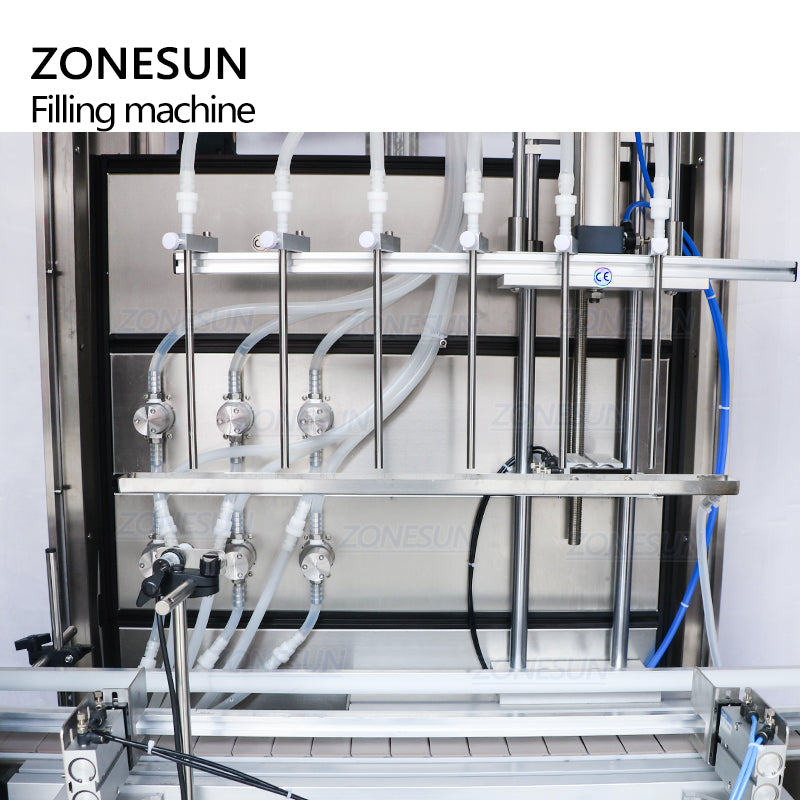

This automatic filling machine is suitable for liquid like solvent, juice, perfume, essential oil, etc. With magnetic pumps, it will fill liquid accurately. The machine is with a dust cover, which can prevent from pollution and ensure production quality. The number of filling heads can be customized as needed. This machine can be widely used in medicine, daily chemical, cosmetic, beverage industries. Improve work efficiency.
Attention
This machine can work with automatic capping machine and labeling machine, realizing automated production. If you need, please contact us. Thank you!
