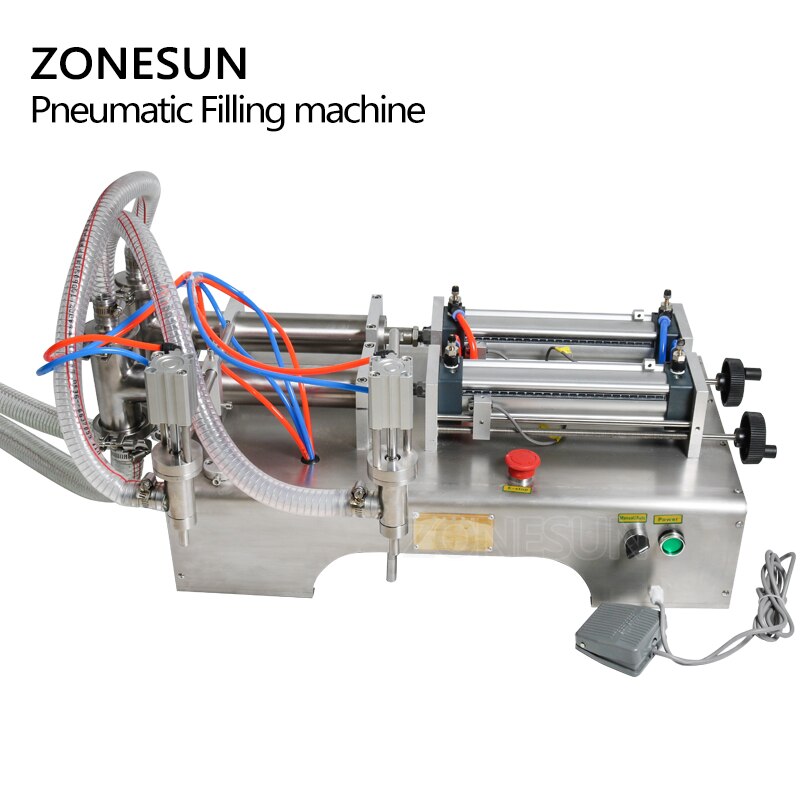

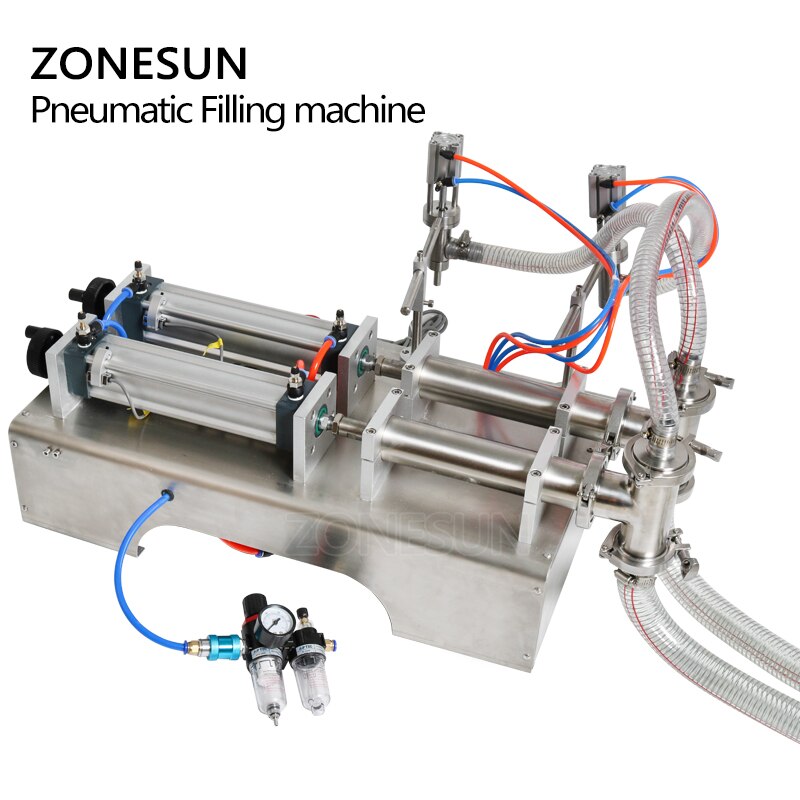

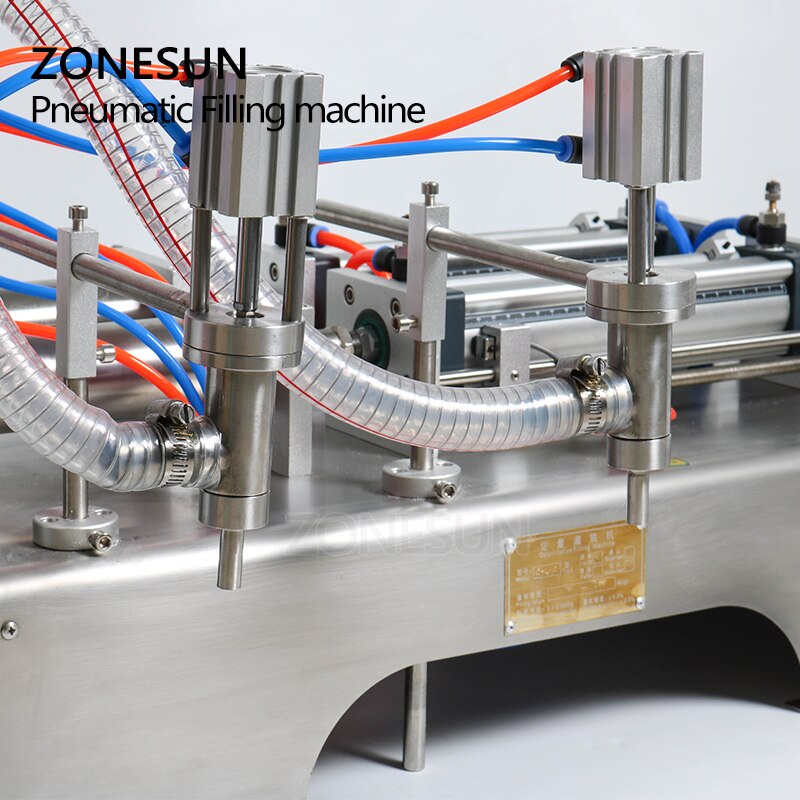

ZONESUN Pneumatic 2 Nozzles Liquid Filling Machine

ZONESUN Pneumatic 2 Nozzles Liquid Filling Machine

$560.70 USD
$560.70 USD
Sale Sold out
Shipping calculated at checkout.
Filling Range
Voltage

Description

· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)
· All Parts in Contact with Product are Food Grade (SS 304/316)
· Stainless Steel Construction
· Rugged Rotary Valve System Design
· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate (+/- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.

Control Panel

· Semi Auto/Continuous Operation Selector Switch
· Air Pressure Gauge
· Air Intake Pressure Adjustment
· Piston Volume Adjust

Accessory

Air Consumption 3-5KG   0.4-0.6MPa

Wearing parts :  Silica gel O-ring System (when delivery, I will prepared enough for you use in one year. Customer can buy in the future in their country)


Warranty : one year

Parameter

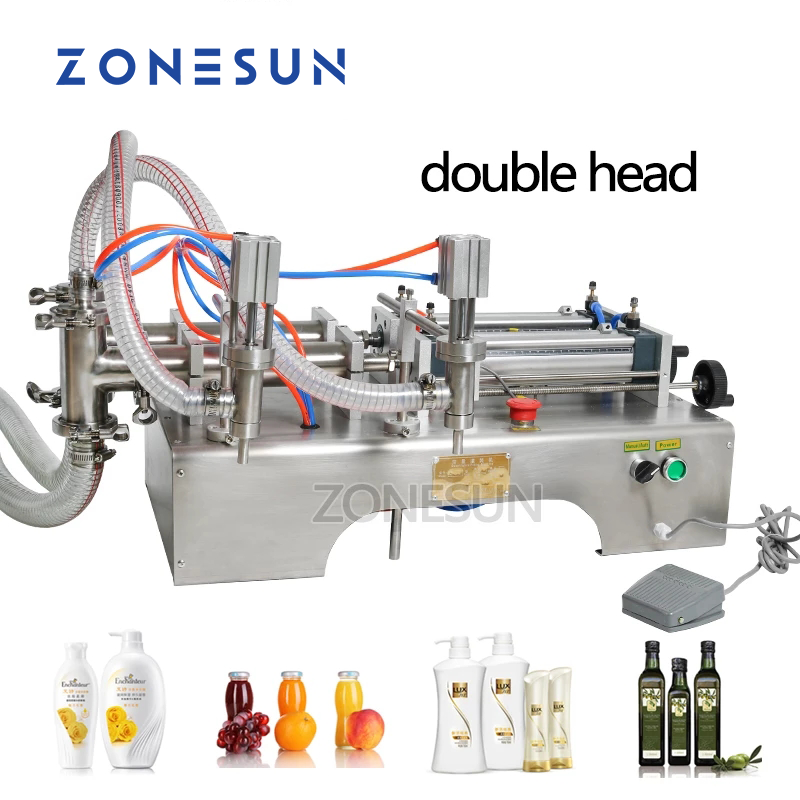

Model double G1WY-L-200
Voltage 220V/50Hz or 110V/60Hz (Optional)
Pressure 0.4-0.6mpa
Filling Speed 5-30 bottles/min
Accuracy >=±1%
Fillable Range 10~200ml



Features:

(1) Only for liquid filling,not for paste filling;

(2) Adopts pneumatic working principle, simple operation, high filling precision;

(3) A certain concentration or certain size granular materials ideal filling  equipment;

(4) Stainless Steel Construction;

(5) Rugged Rotary Valve System Design;

(6) Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor:

Pressure: 0.4-0.6MPa;

Power: 750W;

Gas Capacity: >30L

(7) Piston Feed Speed Adjustment;

(8) No-drip Option Included and Installe;

(9) Extremely Easy to Clean and Maintain;

(10) Sanitary Stainless Steel Quick Disconnect Fittings;

(11) Extremely Easy to Operate;

(12) Quick Connect/ Disconnect Pneumatic Fittings;
