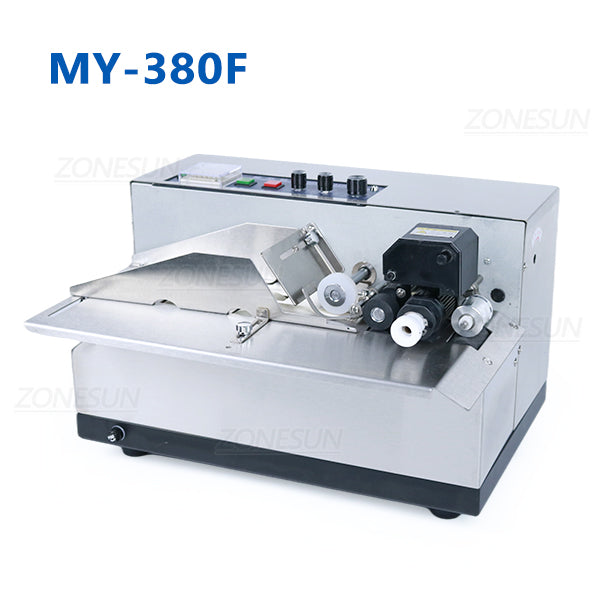

ZONESUN MY-380F Solid Ink Roll Coding Machine
ZONESUN MY-380F Solid Ink Roll Coding Machine
Couldn't load pickup availability
Description
MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.
Characteristic
- Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
- The printing position can be adjusted by rotating the knob, easy to operate.
- Work efficiently and automatically at high speed, up to 30pcs per minute.
- The thickness can be adjusted as needed, making it suitable for products of different thickness.
- With the function of paging and printing date at one machine, saving labor cost and improving efficiency.
Parameter
|
Machine Model |
MY-380F |
MY-380FW |
|
Feature |
Standard |
Wider Type |
|
Voltage |
AC 220V/110V 50-60Hz |
|
|
Power |
180W |
|
|
Solid InkRollSize（OD*H） |
φ36×32MM(default),φ36*16MM,φ36*32MM,φ36*36MM,φ36*40MM |
|
|
ApplicableFont Size |
2*3.5*6.8mm(T, default)3*3.5*6.8mm(T) |
|
|
Attention |
Please remark which ink roll and letters you want in the order, or we’ll ship the defaulted one.(One machine is only with one type of letters and ink roll) |
|
|
Working Speed |
12.5m/min |
|
|
Printing Speed |
≤300 times/min |
|
|
Printing Lines |
Max 11 Lines, 15pcs letters(based on2*3.5*6.8mm) |
|
|
Minimum Product Size(L*W) |
55*30MM |
50*30MM |
|
Maximum Product Size(L*W) |
500*190MM |
500*300MM |
|
Product’s Thickness |
10-25MM |
|
|
Print Position |
Unilateral 60-250mm |
|
|
Font |
Number 0-9, Alphabet A-Z |
|
|
Machine Size |
440*365*260mm |
440*465*300mm |
|
Machine Weight |
22kg |
24kg |
|
Package Size |
510*410*340mm |
560*510*340mm |
|
Package Weight |
23kg |
25kg |
Notice
STANDARD MACHINE is 220V, if you need 110V. PLS contact to us or leave message, or we will ship 220V in Euro Plug Directly. Thank you!
OPERATION PANEL
Through the operation panel, you can control the machine easily and accurately. It is with automatic counting function, and the number of the products will display on the panel. Visual and precise.
BELT
With high-quality conveyor belt, it can transport products smoothly and stably. Improve work efficiency.
ROTARY KNOB
It is designed for adjusting the thickness, enabling it to suit for products of different thickness. Widen the scope of application.
STAINLESS STEEL
Made of stainless steel, the machine body is durable and of great design. It has a long service life and can work for a long time.
Machine Instructions
