ZONESUN Trigger Sprayer Bottle Capping Machine ZS-XG445A

Description

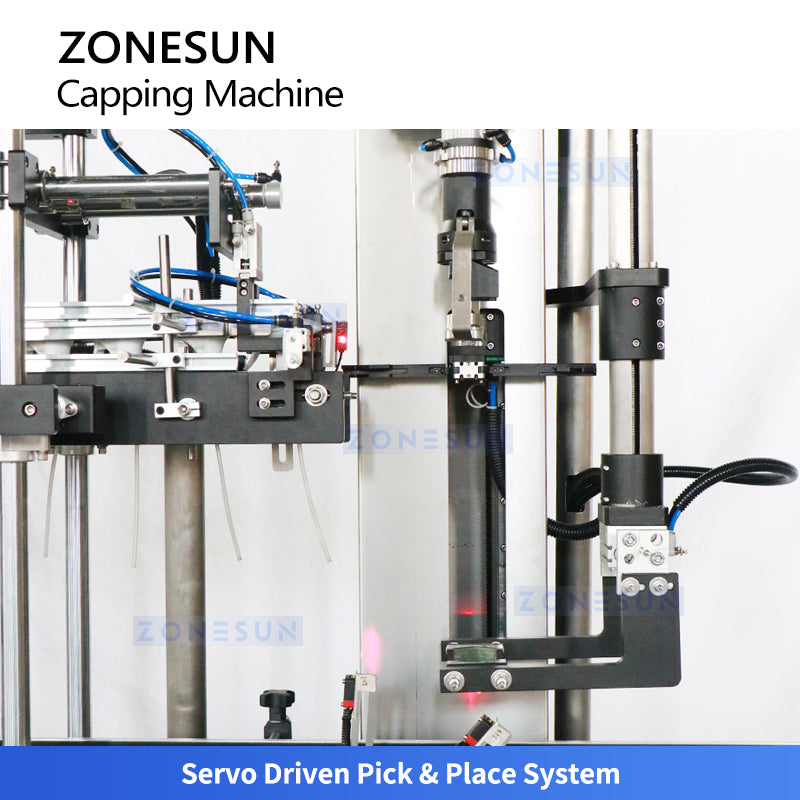

This fully automatic capping machine is specifically designed for capping spray pump bottles. It features an elevator for lifting the pump, a vibratory bowl for sorting and feeding caps, and a guide mechanism for directing the pump to the main unit. A gripper grabs the pump while another gripper controls the position of the dip tube, allowing for smooth insertion into the bottle transported by the conveyor belt. The capping head then tightens the cap and the finished product is ejected. The lifting and lowering of the capping head and grippers are driven by servo motors, ensuring precise positioning and controllable torque.

CONTROL PANEL

Touch screens provide a user-friendly interface that is intuitive and easy to understand. Users can interact with the system by simply touching icons, buttons, or menus on the screen, eliminating the need for extensive training.

CAP ELEVATOR

Equipped with cap elevator, this is customized according to cap size, this can ensure the working accuracy. Cap elevator can supply trigger pump caps in time and save working labor.

VIBRATORY BOWL

Vibratory bowl sorter can make caps be in order before capping work and transport them to cap feeding structure. This offers a cost-effective solution for sorting and orienting parts compared to manual sorting.

CAP FEEDING

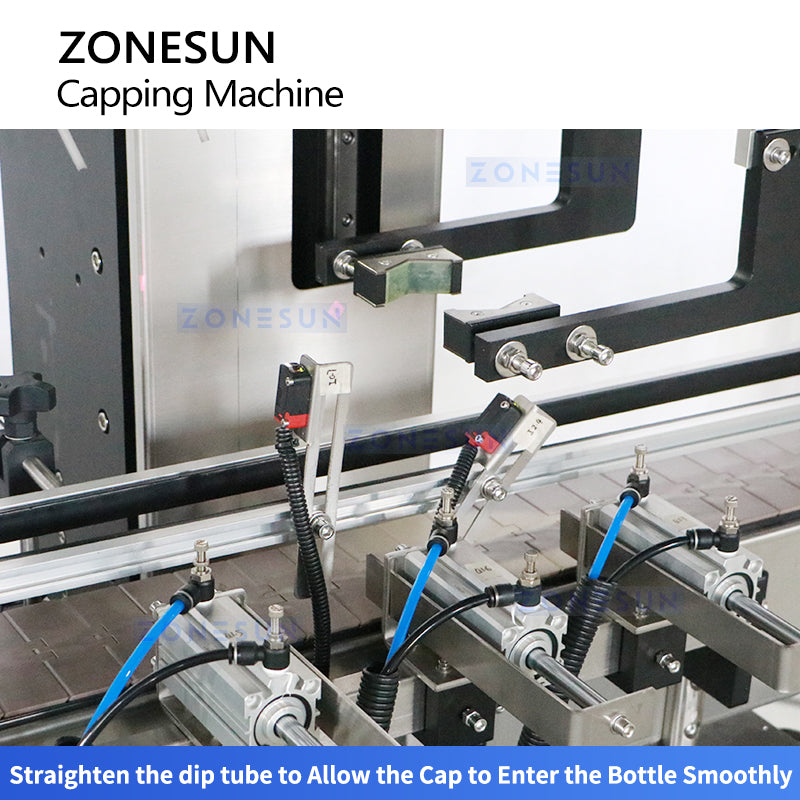

The cap feeding structure can straighten the long and soft tube and then put caps into bottles automatically, the capping structure is controlled by servo motor, which has high capping accuracy.

ELECTRIC EYE

Equipped with electric eye for detecting passing by bottles and send signal to system, this can control the automated capping work in time and improves working efficiency.

CONVEYOR

Chain conveyor has larger weight capacity, it can transport packaging products more stably and smoothly. The width and length can be customized as needed.
