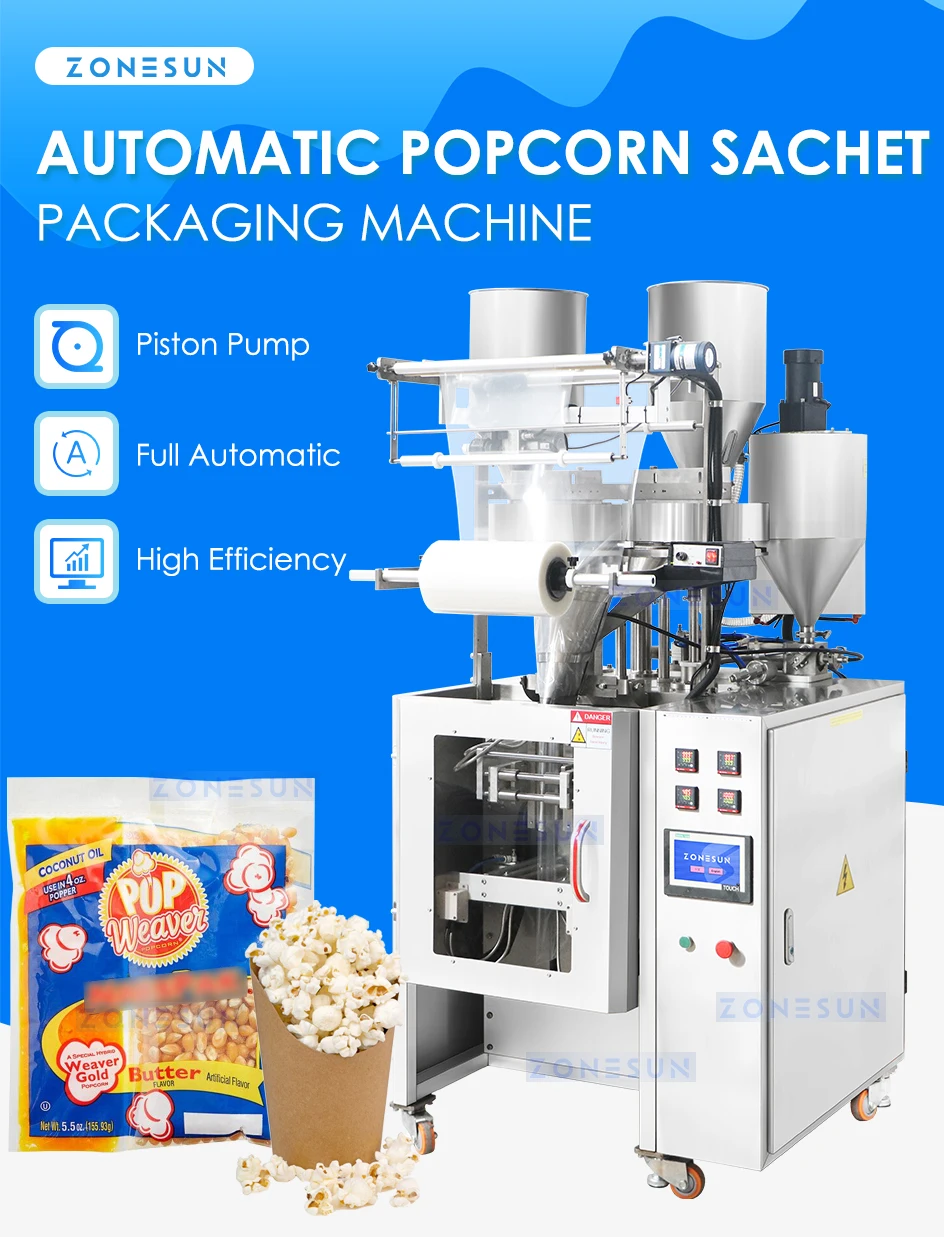

ZONESUN Popcorn Portion Packs Oil Salt Packing Equipment Cup Filling Sealing Machine ZS-FS01
ZONESUN Popcorn Portion Packs Oil Salt Packing Equipment Cup Filling Sealing Machine ZS-FS01
Couldn't load pickup availability
DESCRIPTION

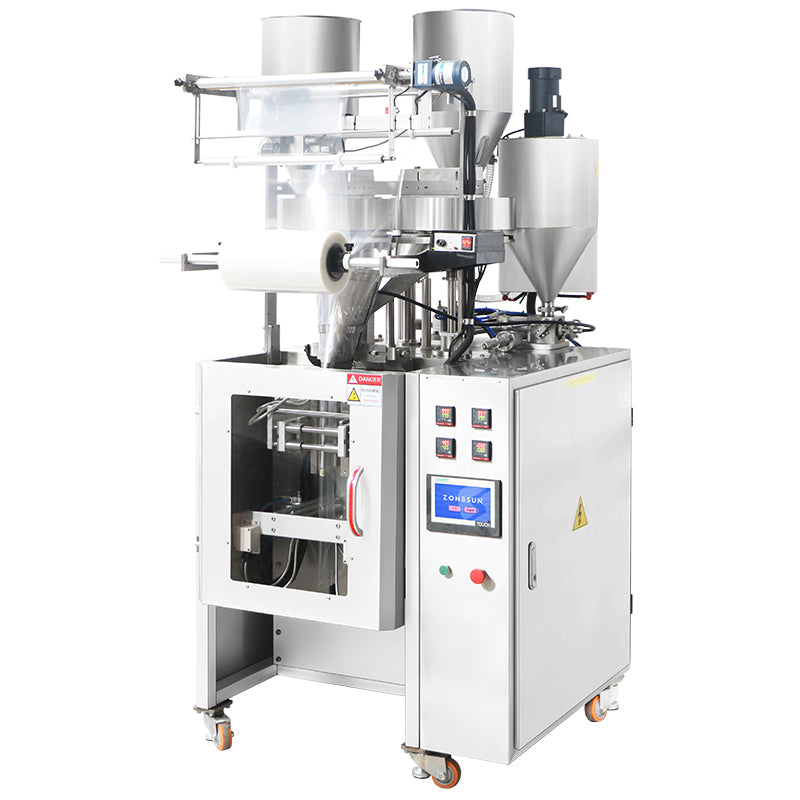

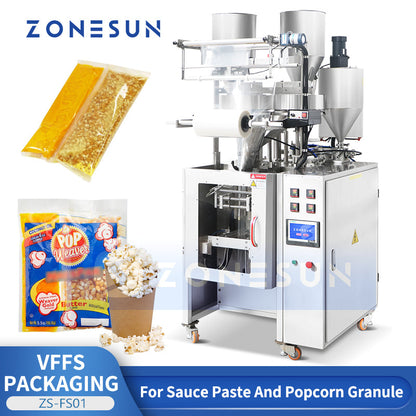

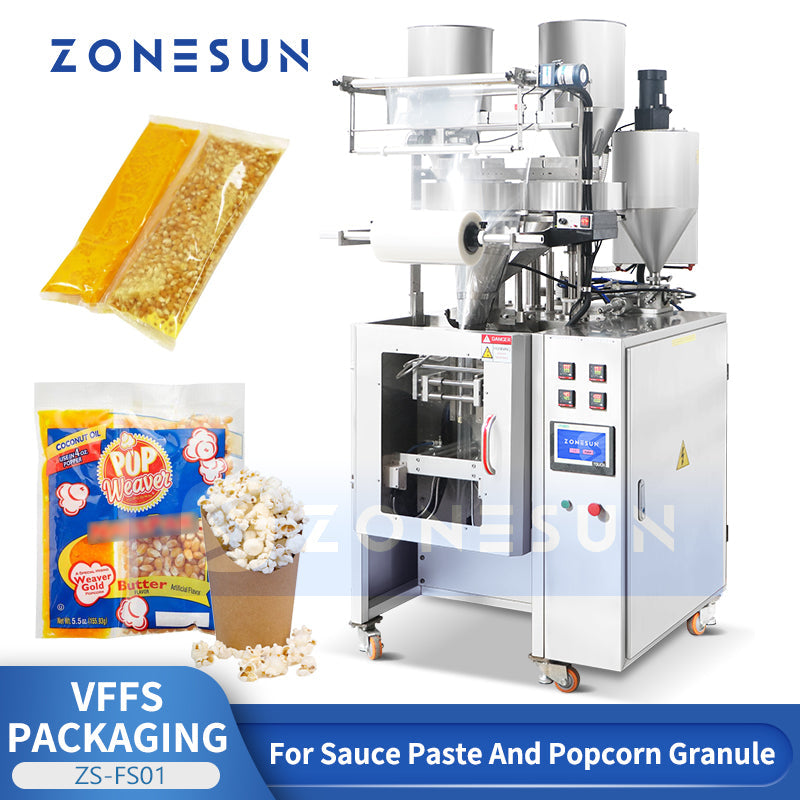

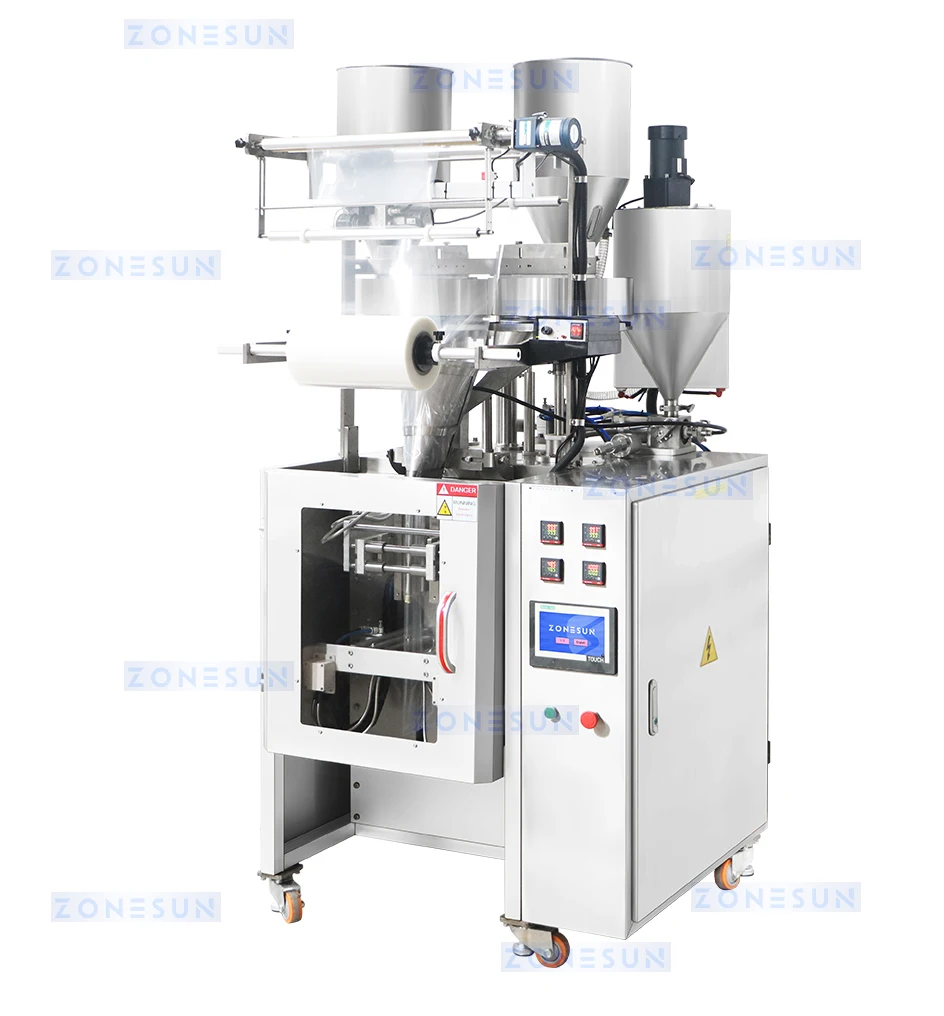

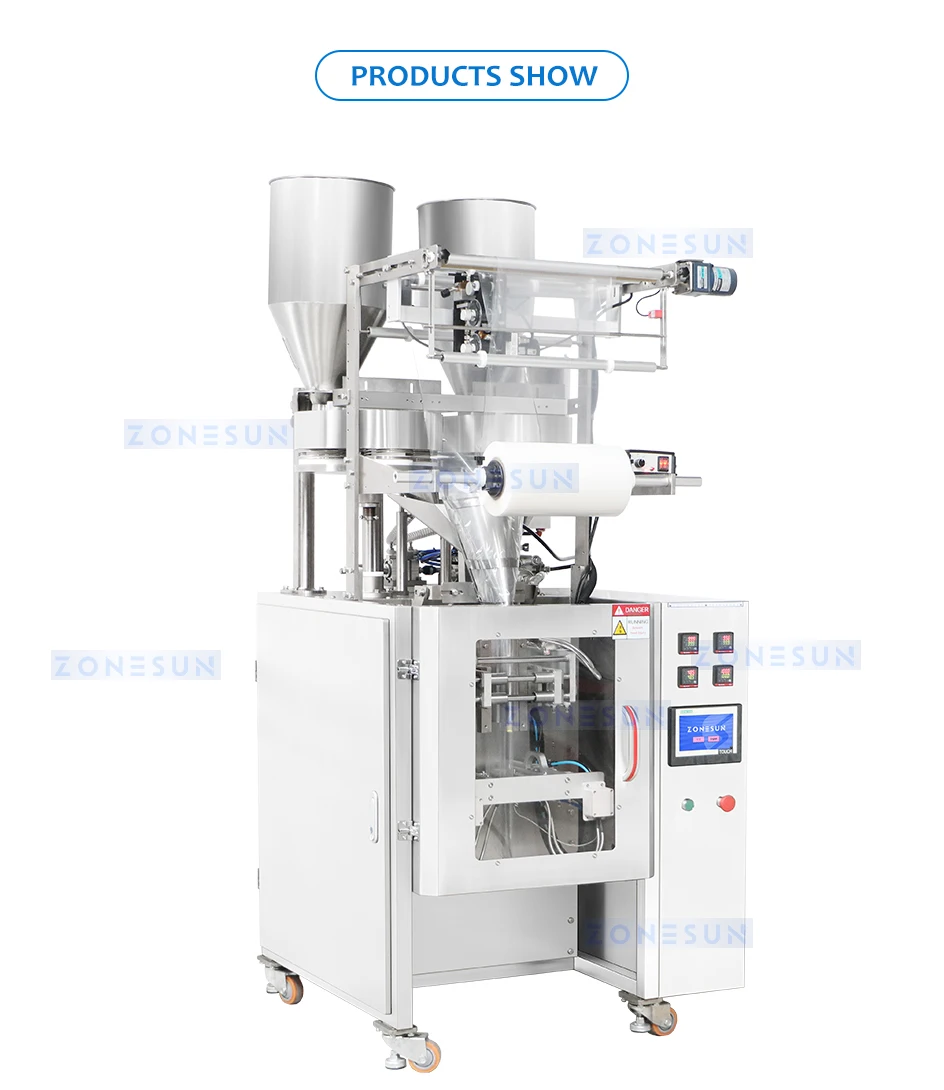

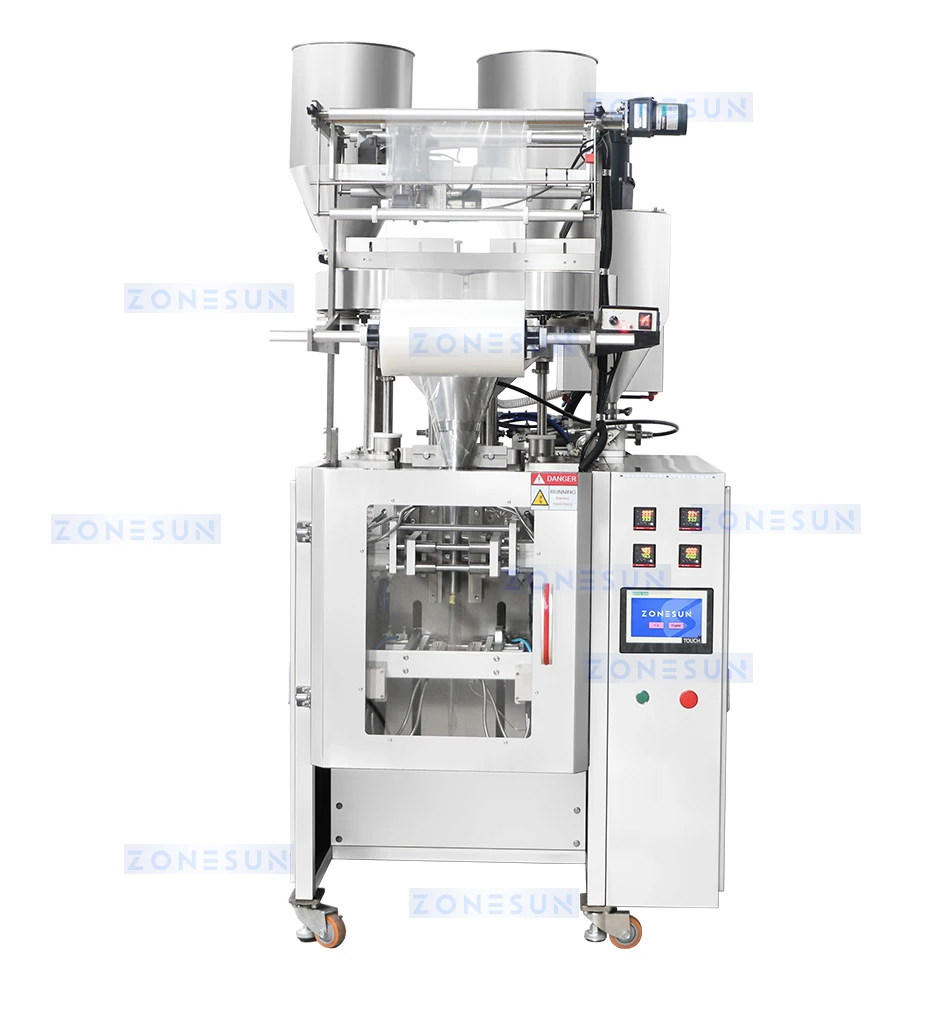

Introducing our innovative VFFS (Vertical Form Fill Seal) packaging machine, designed to revolutionize your packaging process. This versatile machine is capable of simultaneously packaging both liquids and granules, creating a single pack with a sealed compartment in the middle. The unique feature of the machine lies in its ability to separate and seal the liquid and granule components effectively.
Whatever your packaging needs are, you can rely on ZONESUN.

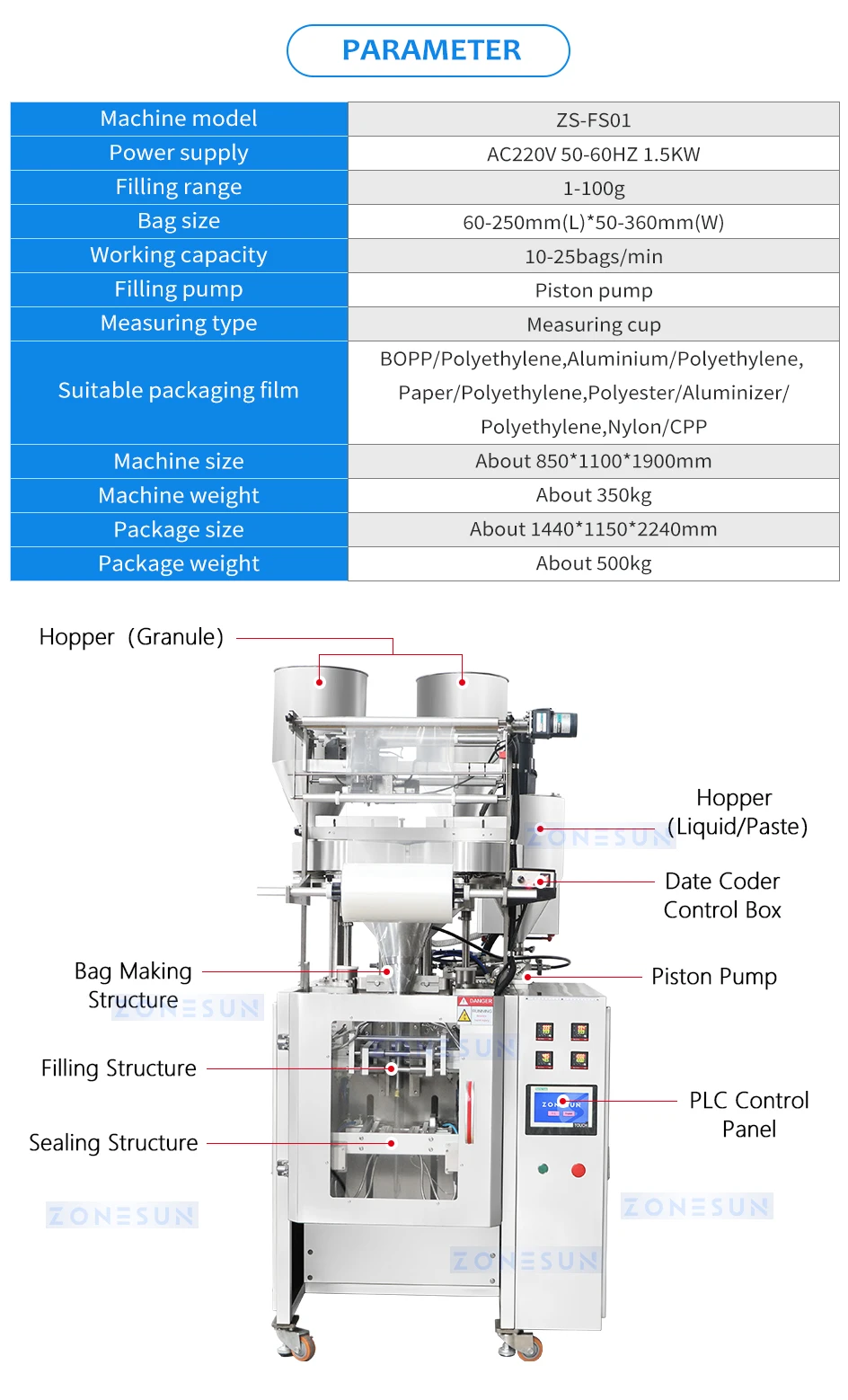

PARAMETER
|
Machine model |
ZS-FS01 |
|
Power supply |
AC220V 50-60HZ 1.5KW |
|
Filling range |
1-100g |
|
Bag size |
60-250mm(L)*50-360mm(W) |
|
Working capacity |
10-25bags/min |
|
Filling pump |
Piston pump |
|
Measuring type |
Measuring cup |
|
Suitable packaging film |
BOPP/Polyethylene, Aluminium/Polyethylene, |
|
Machine size |
About 850*1100*1900mm |
|
Machine weight |
About 350kg |
|
Package size |
About 1440*1150*2240mm |
|
Package weight |
About 500kg |

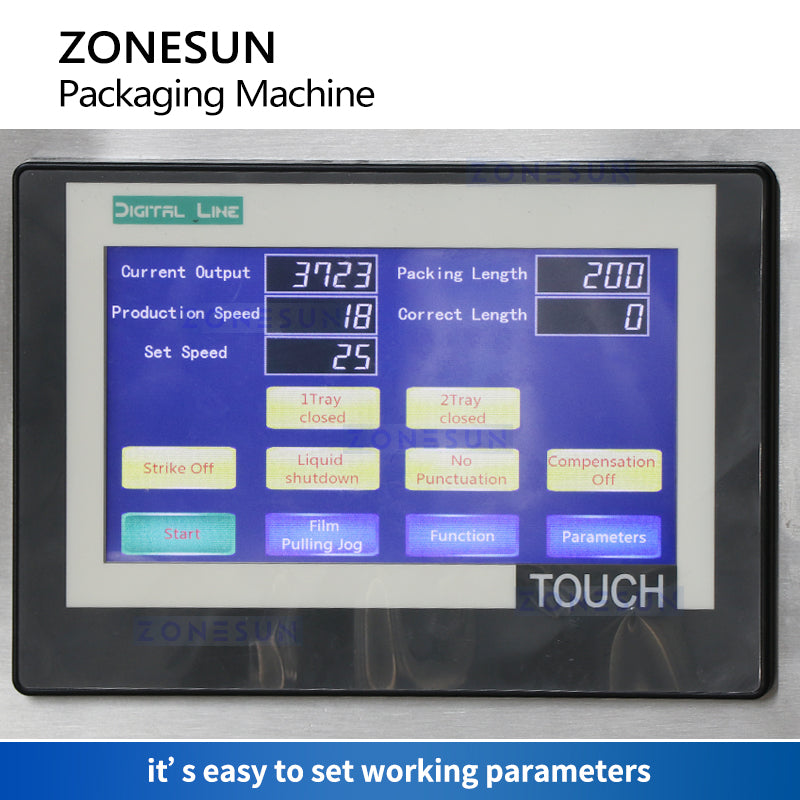

CONTROL PANEL
Through the touch screen panel, it's easy to set working parameters.

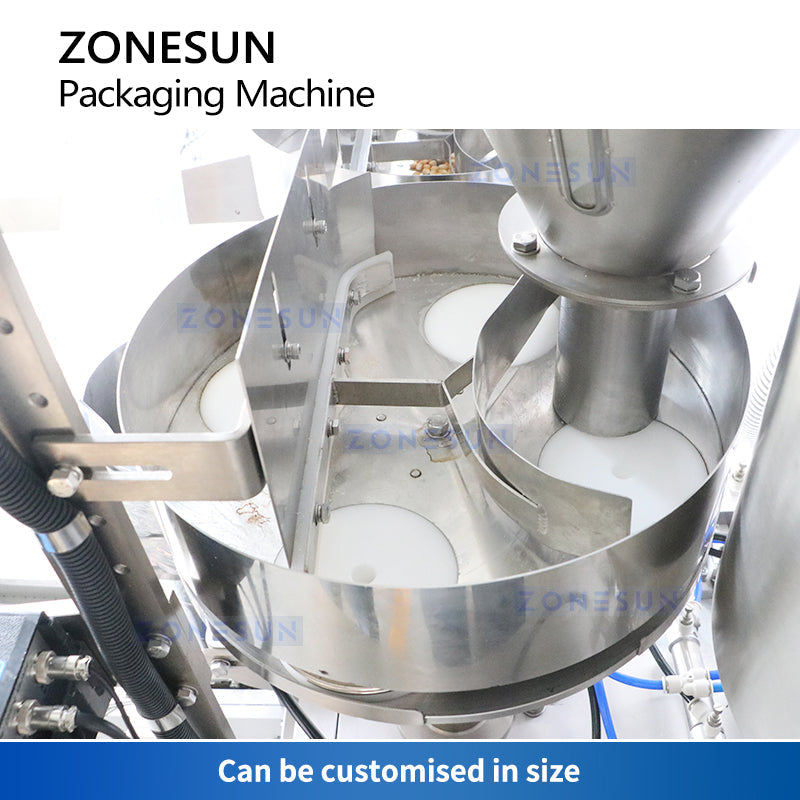

MEASURING CUP
The amount of pellet filling is controlled by the capacity of the measuring cup, which can be customized in size.

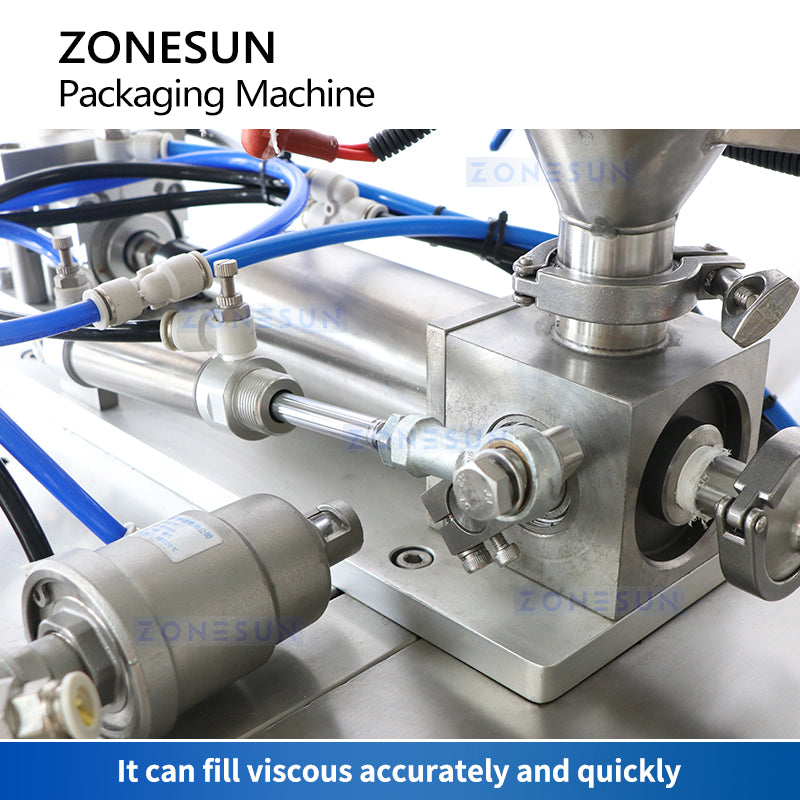

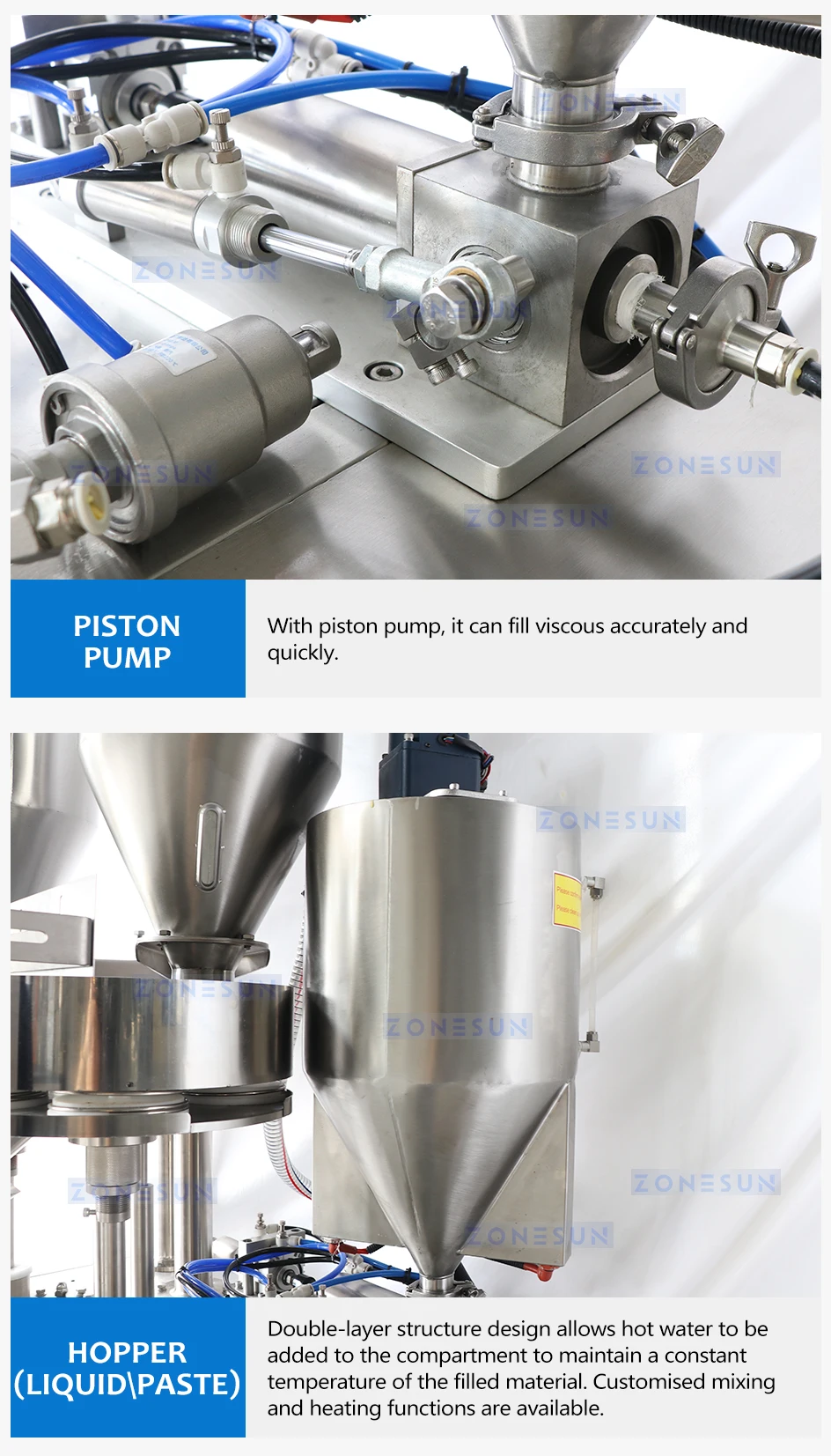

PISTON PUMP
With piston pump, it can fill viscous accurately and quickly.

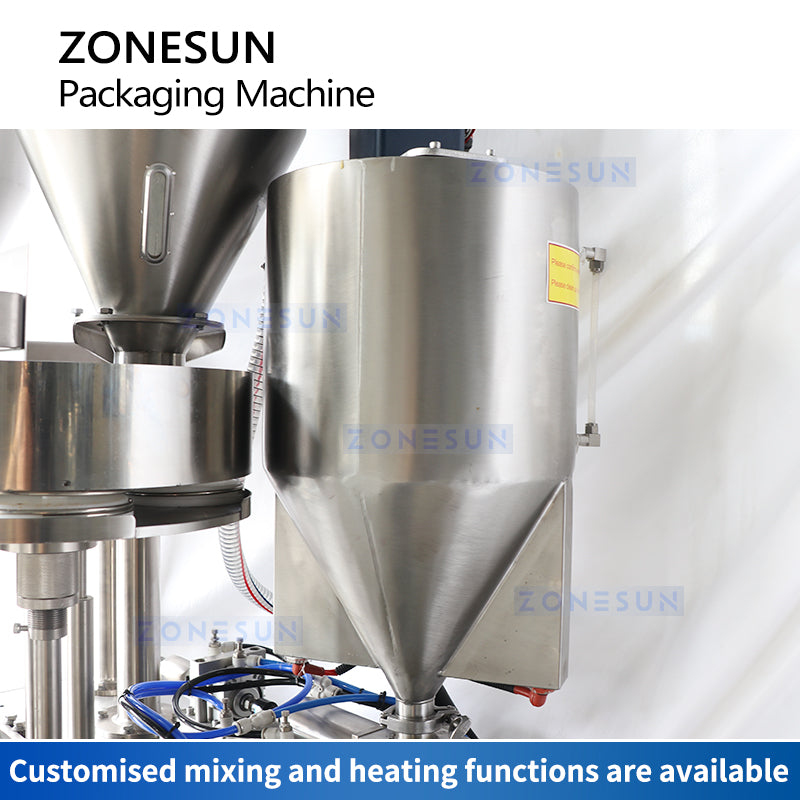

HOPPER (LIQUID/PASTE)
Double-layer structure design allows hot water to be added to the compartment to maintain a constant temperature of the filled material. Customized mixing and heating functions are available.

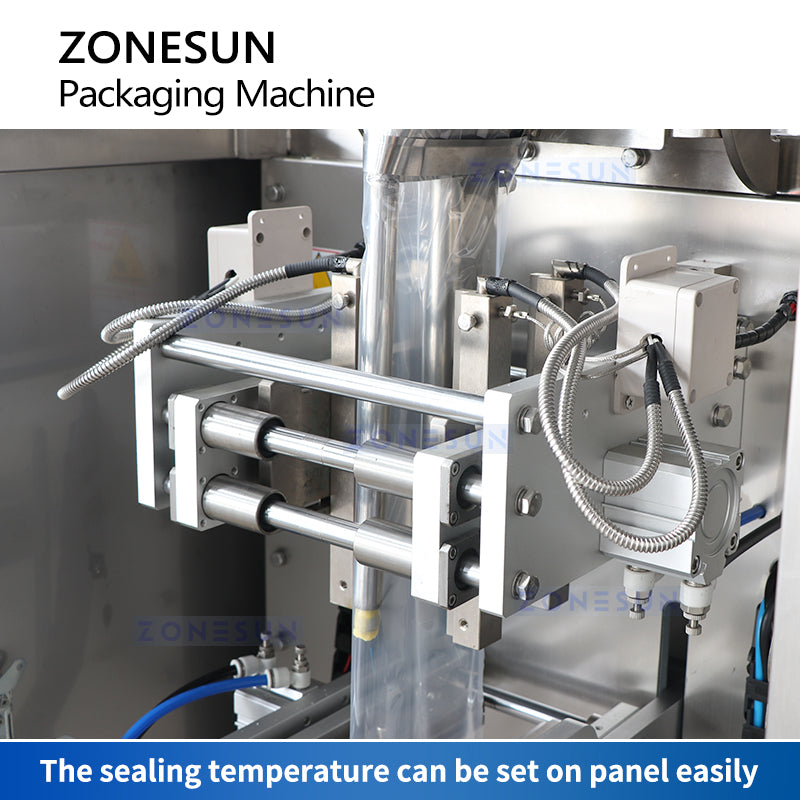

SEALING STRUCTURE
With the way of heat sealing, it can seal bags firmly. The sealing temperature can be set on panel easily.
DATE CODER
To print batch number or production date.

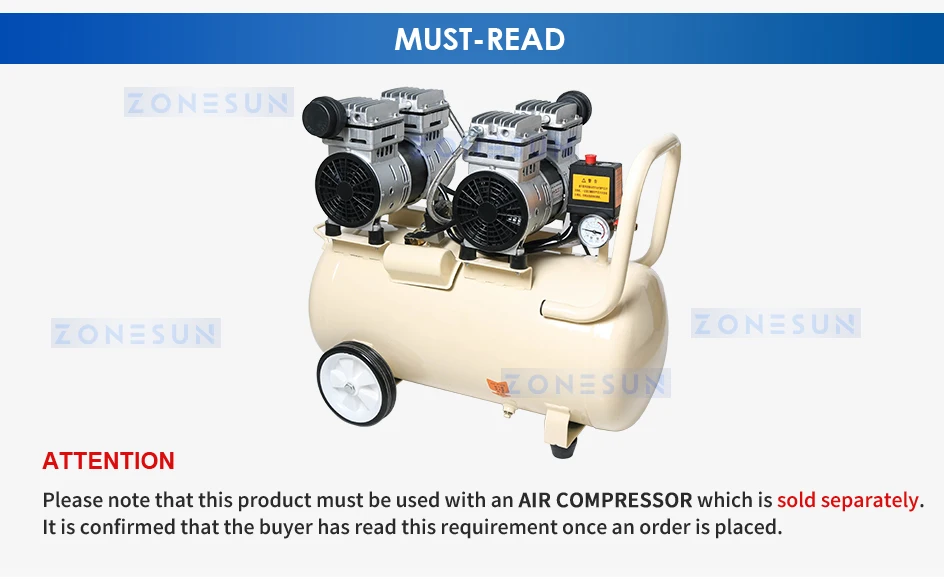

ATTENTION
Please note that this product must be used with an AIR COMPRESSOR which is sold separately. It is confirmed that the buyer has read this requirement once an order is placed.
