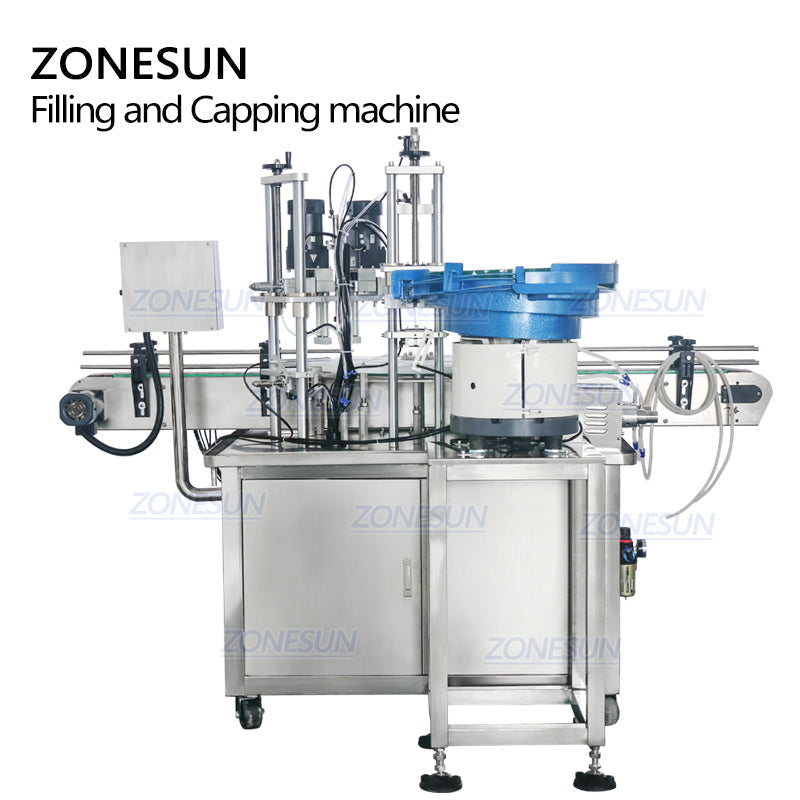

ZONESUN ZS-AFC1 Automatic 2 Heads Rotary Liquid Filling And Capping Machine With Cap Feeder
ZONESUN ZS-AFC1 Automatic 2 Heads Rotary Liquid Filling And Capping Machine With Cap Feeder
Couldn't load pickup availability
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Parameter
- Machine model：ZS-AFC1
- Machine voltage：AC220V/110V 50-60HZ
- Bottle diameter：25-50mm（Can Customize）
- Bottle height：50-350mm
- Working speed：0-40 bottles/min.(depending on liquid,bottle and caps)
- Max power：300W
- Air pressure：0.4-0.6MPa
- Capping torsion：4-9kgf/cm
- Conveyor size：About 2000*100mm(L*W)
- Machine size：About 1015*800*1560mm
- Machine weight：About 341kg
- Package size：About 2210*980*1740mm
- Package weight：About 411kg
Description
This automatic rotary liquid filling and capping machine is designed for high-precision packaging of low-viscosity liquids such as perfume, essential oil, toner.
Equipped with dual filling heads and an automatic cap feeding system, it integrates filling, cap sorting, and capping into one compact production unit—significantly improving efficiency and reducing labor costs.
Touch Screen Control Panel
The touch screen control panel makes the working parameter can be set easily it is no need to train operator, helps to improve working efficiency. The language of operation panel can be customized in different kinds of language, if you need this, please contact us.
Dual Filling Nozzles + Magnetic Pump
Equipped with two filling nozzles, and each one can be controlled separately. The filling nozzle can be customized according to filling materials, makes the machine works better with your products. This machine is equipped with high quality magnetic pump, ensures filling accuracy.
Four-Wheel Capping Machine
This machine will tighten bottle caps by four rubber wheels, this kind of capping method is suitable for bottles with screws. The application range is wider. It is suitable for dropper bottles, spray bottles etc.
Vibratory Bowl Cap Sorter
Equipped with vibratory bowl, it can arrange bottle caps before capping reduce production labor and time. This cap sorter size should be customized according to cap size.
Rotary Dish
The rotary dish can help to fix and transport bottles during working. This dish should be customized according to bottle size. Change different rotary dish for different kinds of bottles.
Electric Eye Detection
Equipped with high quality electric eye, this can be used to detect bottles and make the machine start or stop to work. The sensitivity of the electric eye can be adjusted by the adjusting part. Improves working accuracy.
