ZONESUN ZS-AFC33A01 Automatic Reed Diffuser Filling & Assembly Machine | 5–30ml | Plug Insertion Capping

Description

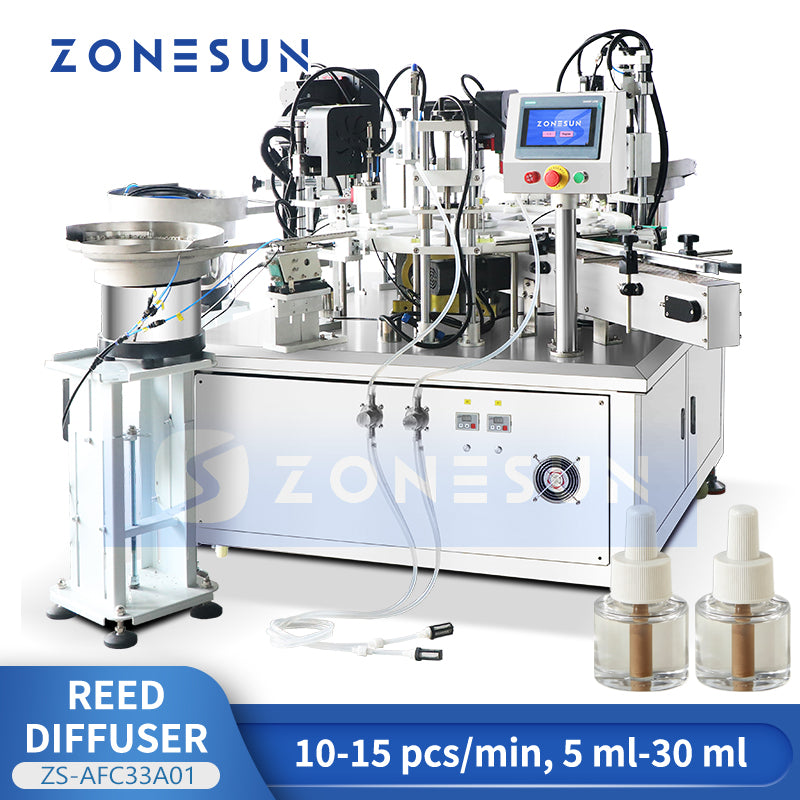

The ZONESUN ZS-AFC33A01 is an automatic monoblock system designed for efficient filling and complete assembly of reed diffuser bottles. Operating at 10–15 pcs/min, it integrates conveyor infeed, dual-head magnetic pump filling, inner plug placement and pressing, reed stick insertion and pressing, cap placement, and torque-controlled capping into a compact rotary platform.

The system ensures accurate dosing, precise component positioning, and airtight sealing for fragrance, aroma, and small-volume liquid products ranging from 5 ml to 30 ml. Ideal for reed diffusers, essential oil bottles, home fragrance items, and other small personal-care liquid packaging applications.

Technical Specifications

• Model: ZS-AFC33A01
• Voltage: 110V / 220V
• Power: 3 kW
• Speed: 10–15 pcs/min
• Bottle Size: 20–40 mm diameter
• Filling Range: 5–30 ml
• Filling Accuracy: ±1%
• Machine Dimensions (L×W×H): Approx. 1,760 × 1,180 × 1,550 mm
• Machine Weight: Approx. 390 kg

CONTROL PANEL

Providing centralized parameter setting, real-time monitoring, workflow coordination, and safety protection for stable, efficient filling and capping.

DUAL-HEAD FILLING

Delivering precise, stable, and synchronized dual-head filling with magnetic pumps to ensure accurate dosing, clean liquid delivery, and higher productivity.

INNER PLUG

Automatically placing and vertically pressing inner plugs into the bottle neck to ensure precise positioning and a tight, secure seal for the following assembly steps.

REED STICK

Precise placing and vertical pressing of pre-cut reed sticks to ensure proper depth, stable positioning, and no tilting or loosening.

CAPPING STATION

Automatically gripping, aligning, and tightening caps with controlled torque to ensure a firm, airtight seal that prevents fragrance liquid from evaporating.

VIBRATORY BOWL

Sorting, orienting, and feeding small components in a continuous, orderly flow to ensure stable and accurate supply for downstream assembly stations.

CUSTOMIZED LABELING

Applying four-side labels with precise positioning and stable control to ensure a clean, consistent appearance and complete product information display.

CONVEYOR BELT Conveying bottles into the star wheel for filling and capping, and transferring finished bottles to the labeling machine for a stable, continuous production flow.

Why Choose the ZS-AFC33B4?

• ✅ All-in-One Monoblock: Filling, plug pressing, reed stick insertion, and capping in one compact system
• ✅ Dual-Head Magnetic Pump: Synchronized filling for accurate dosing and higher throughput
• ✅ Precise Reed Stick Insertion: Vertical pressing ensures proper depth with no tilting or loosening
• ✅ Airtight Capping: Torque-controlled capping prevents fragrance evaporation
• ✅ Vibratory Bowl Feeding: Continuous, orderly component supply for uninterrupted production
• ✅ Integrated Labeling Option: Four-side labeling machine available for complete packaging line
• ✅ High Accuracy: ±1% filling precision for consistent, waste-free production
• ✅ Worldwide Voltage: 110V / 220V compatible

Ideal Applications

• 🌸 Reed Diffusers: Home fragrance reed diffuser bottle filling and assembly
• 🌿 Essential Oils: Small-volume essential oil bottling and sealing
• 💄 Cosmetics: Perfume vials, serum bottles, personal care liquids
• 🏠 Home Fragrance: Aroma diffuser products, scented oil packaging

About ZONESUN

ZONESUN is a leading manufacturer of packaging machinery serving global industries. Every machine is built to strict quality standards, backed by professional technical support and after-sales service. Order with confidence — we’re here to support your production success.
