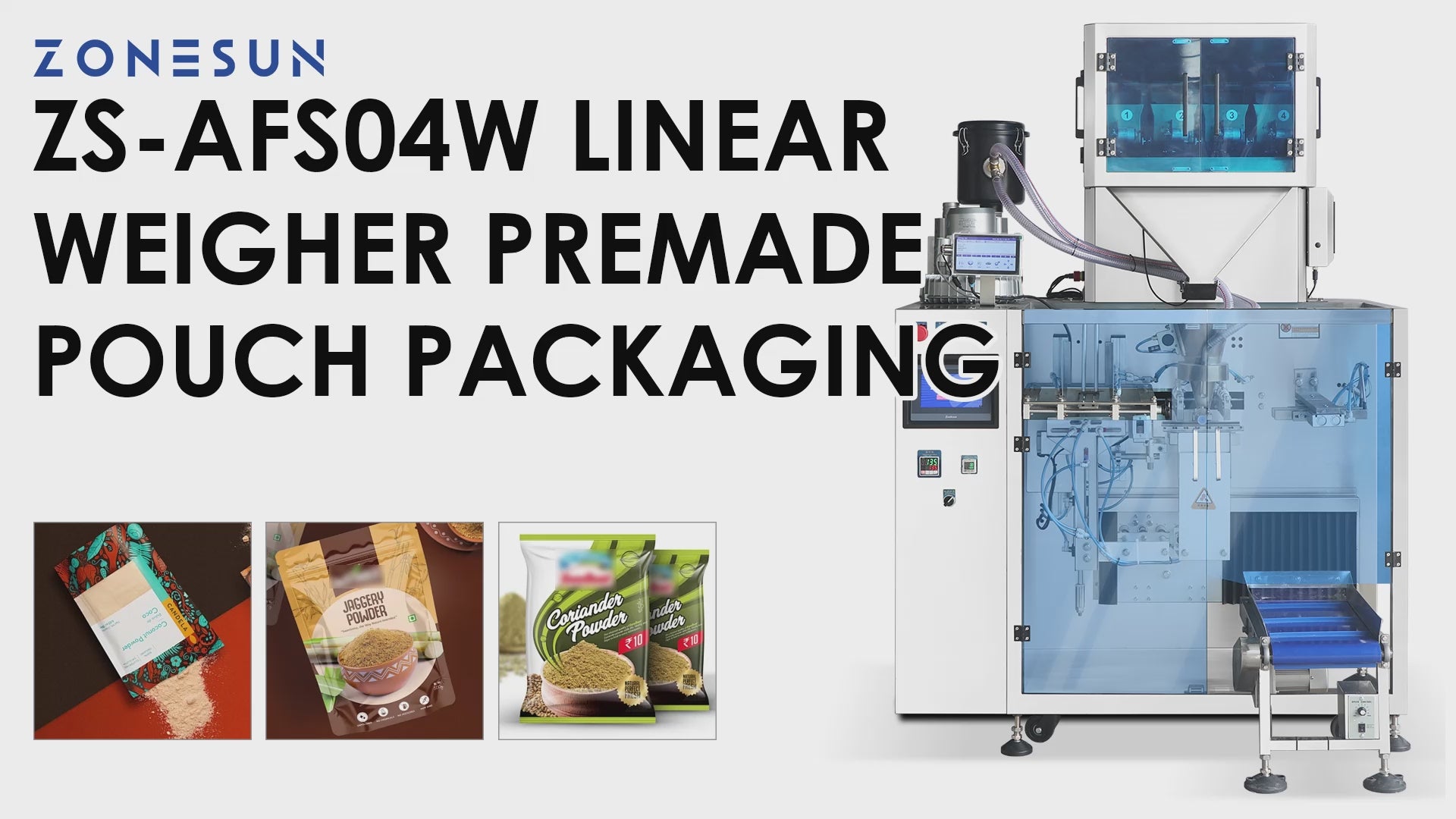

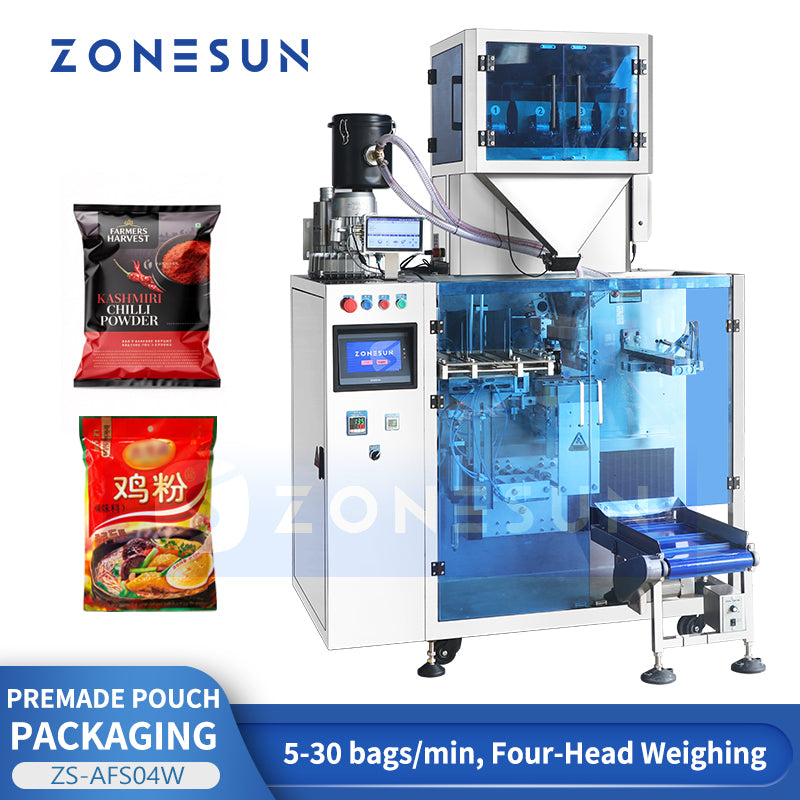

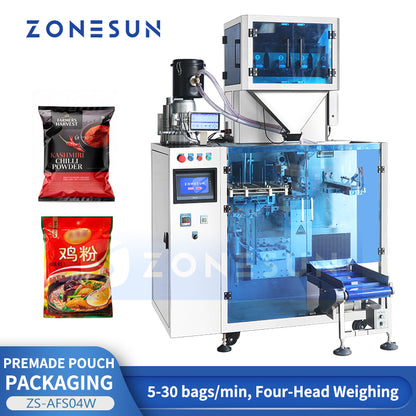

ZONESUN ZS-AFS04W 4-Head Linear Weigher Premade Pouch Filling & Sealing Machine

Automatic 4-Head Linear Weigher Premade Pouch Packaging Machine

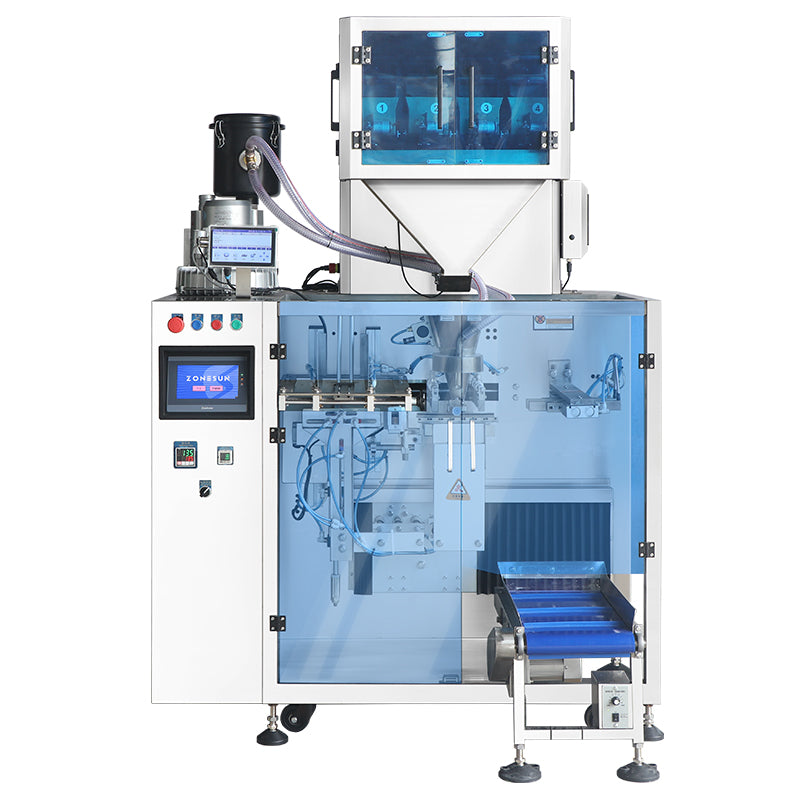

The ZONESUN ZS-AFS04W integrates 4-head weighing, automatic pouch feeding, filling, heat sealing and finished-pouch discharge into one continuous packaging process.

Four independent vibratory feeding channels support accurate dosing of compatible dry products, with a weighing range of 2–500 g, specified accuracy of ±1.5%, and packaging speed of approximately 5–30 bags/min.

The machine supports compatible flat pouches, stand-up pouches and zipper pouches, with touchscreen control, vacuum dust collection and adjustable sealing parameters.

Suitable for seasoning powders, spices, dried herbs, granular seasonings and dry ingredient mixes. Optional inkjet coding and nitrogen flushing are available according to production requirements.

Parameter

• Machine Model: ZS-AFS04W
• Power Supply: 110/220 V, 50–60 Hz
• Power: 4 kW
• Number of Weighing Heads: 4
• Weighing Range: 2–500 g
• Weighing Accuracy: ±1.5%
• Bag Size (W × L): 60–220 × 80–310 mm
• Packaging Speed: Approximately 5–30 bags/min (depending on filling material)
• Hopper Capacity: 32 L
• Air Pressure: 0.6 MPa
• Pouch Types: Flat Pouches, Stand-Up Pouches, Compatible Zipper Pouches
• Dust Collection: Integrated Vacuum Dust Collection System
• Coding System: Optional Inkjet Coding
• Machine Dimensions (L × W × H): Approximately 1300 × 900 × 1910 mm
• Package Dimensions (L × W × H): Approximately 1400 × 1100 × 2100 mm
• Package Weight: Approximately 495 kg

Application

The ZONESUN ZS-AFS04W is suitable for packaging seasoning powders, spices, dried herbs, granular seasonings and other compatible dry products. It supports single or mixed-product dosing into premade pouches, with optional inkjet coding and nitrogen flushing. Actual performance depends on product characteristics and pouch specifications.

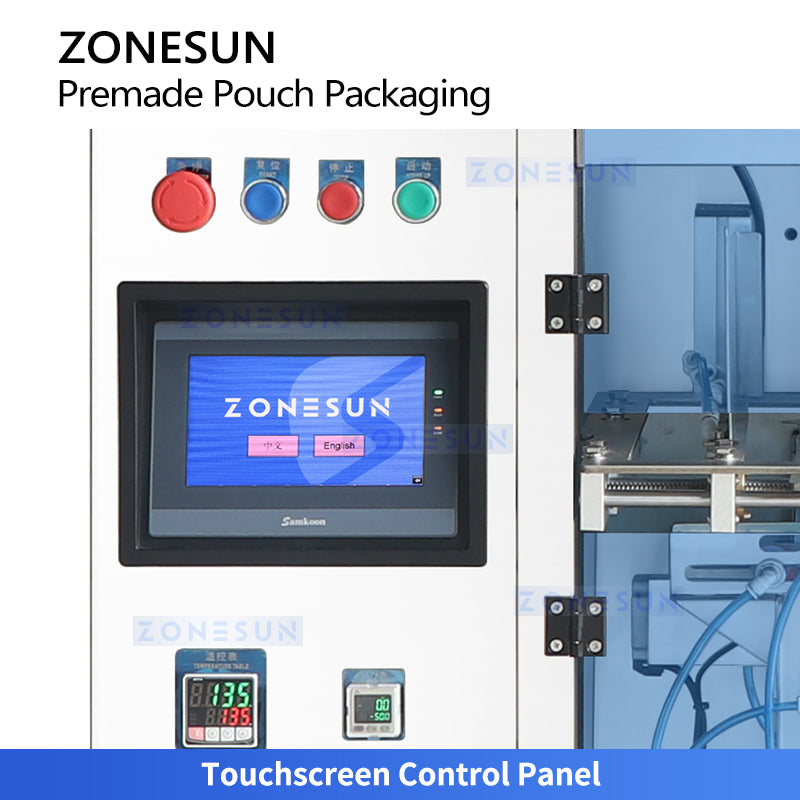

Touchscreen Control Panel

Adjust packaging parameters, save product recipes and monitor machine operation.

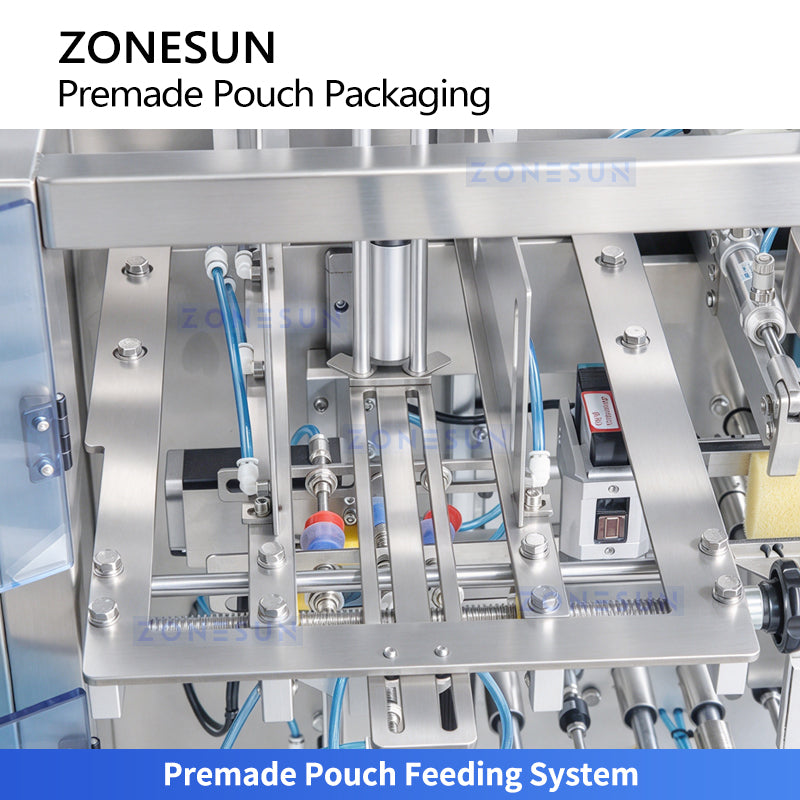

Premade Pouch Feeding System

Automatically feeds premade pouches for continuous packaging and reduced manual handling.

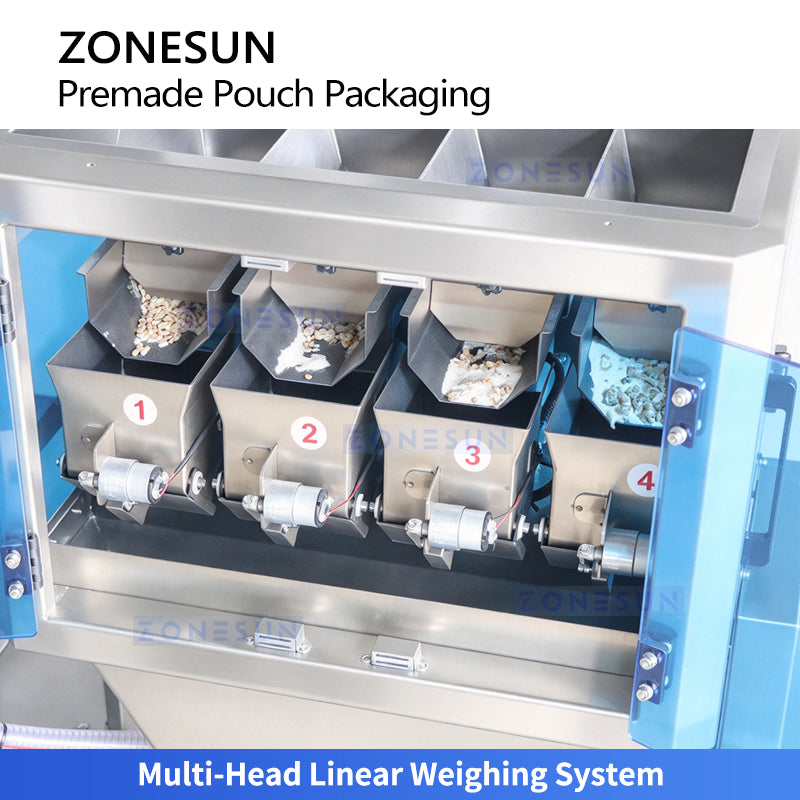

4-Head Linear Weighing System

Four independent weighing heads support accurate dosing of granular products and mixed ingredients.

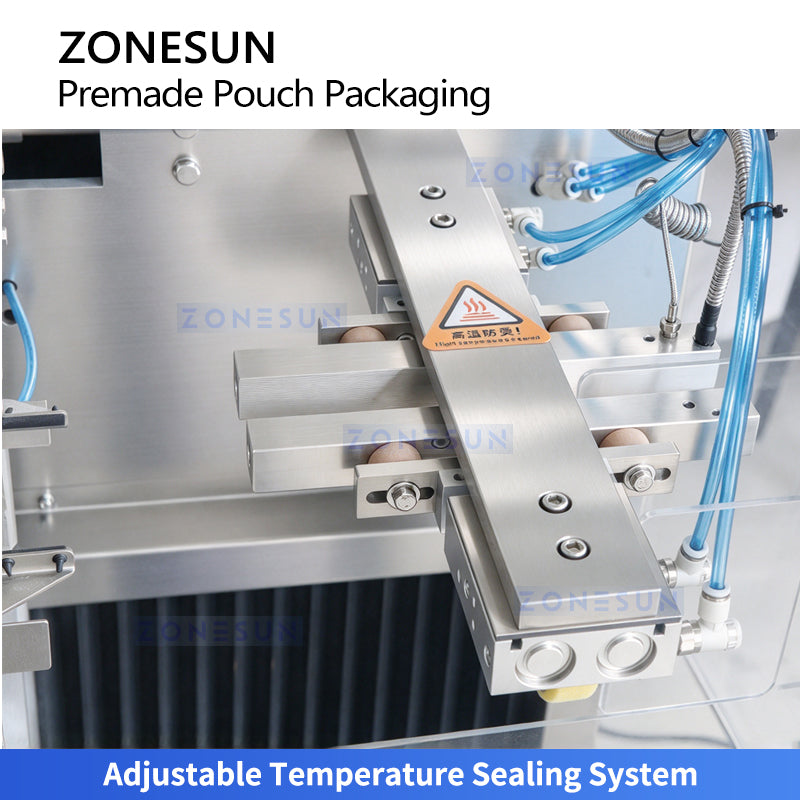

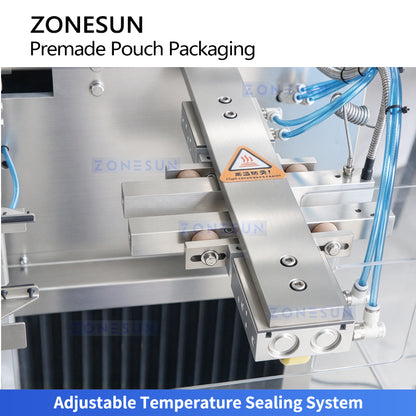

Adjustable Heat Sealing System

Adjust sealing temperature to suit compatible pouch materials and ensure secure seals.

Vacuum Dust Collection System

Captures airborne dust during weighing and filling to maintain a cleaner working environment.

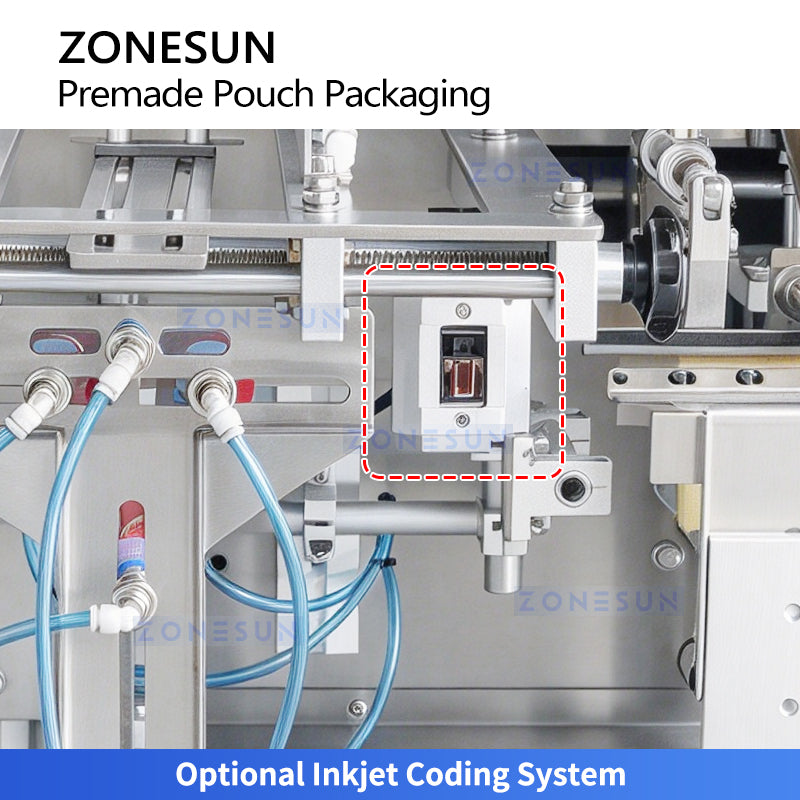

Optional Inkjet Coding System

Prints production dates, batch numbers and other variable information on pouches.

Finished Pouch Discharge Conveyor

Transfers sealed pouches for convenient collection and downstream handling.
