ZONESUN ZS-CT200L Milk Cooling Tank

DESCRIPTION

The ZS-CT200L is a high-performance refrigerated tank designed for liquid cooling and hygienic storage. Featuring honeycomb Miller plates for rapid heat exchange, a fully enclosed American compressor, and imported expansion valves, it ensures stable and energy-efficient operation. The SUS304 stainless steel body includes automatic stirring and CIP cleaning, making it ideal for dairy, beverage, and chemical industries.

PARAMETER

• Model：ZS-CT200L

• Tank Size：1550 × 1000 × 1350mm

• Unit Power：3P/set
• Refrigeration Temp：≥0°C
• Total Power：2kW

• Mixer Power：0.75kW

• Stirring Speed：36 rpm

• Plate Thickness：2mm


NOTE

Before use, please make sure the material temperature is below 45°C before feeding it into the cooling tank.
The compressor will start working only when the temperature is within this range, allowing the material to cool down to 2–6°C.
If the material is too hot, the compressor may fail to start or the cooling performance may be affected.

CASING

Uses advanced honeycomb Miller plate technology. This results in high heat-exchange efficiency, rapid temperature reduction, effective shortening of freezing time, and preservation of product freshness.

OPERATION

Intelligent operation panel, real-time temperature control with one-button operation, no need for human supervision, saving labor.

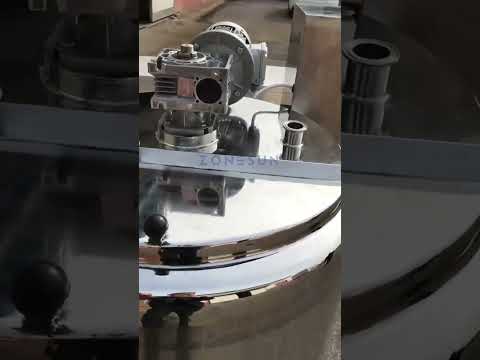

MOTOR REDUCER

The motor is combined with the reducer, providing strong and flexible sealing strips, stable low noise, and economical low consumption.

COMPRESSOR

Adopts an American Valley Wheel fully enclosed compressor unit, featuring stable and reliable performance, low noise, and long service life.
