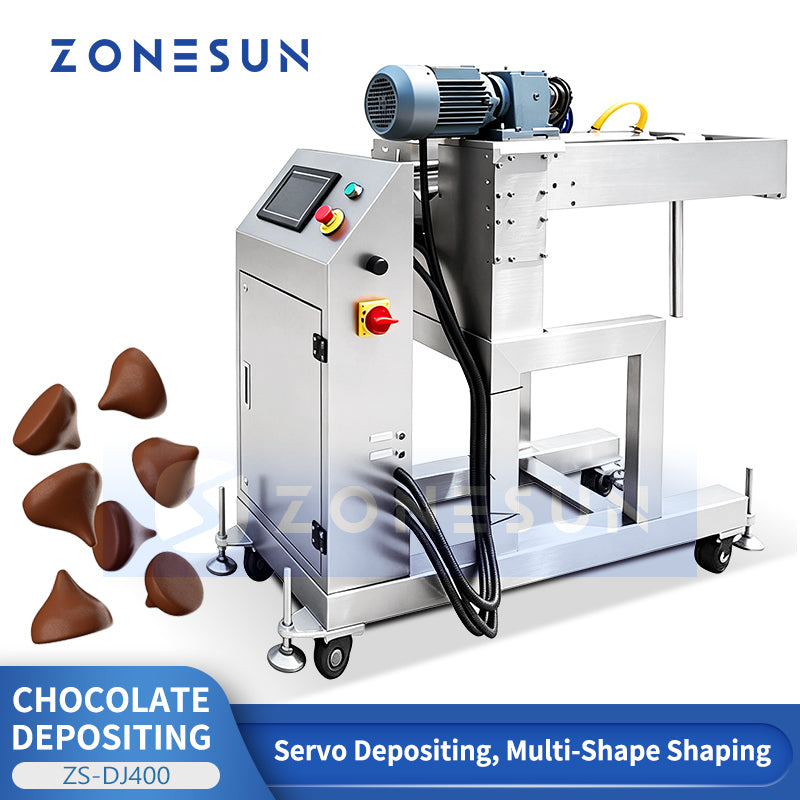

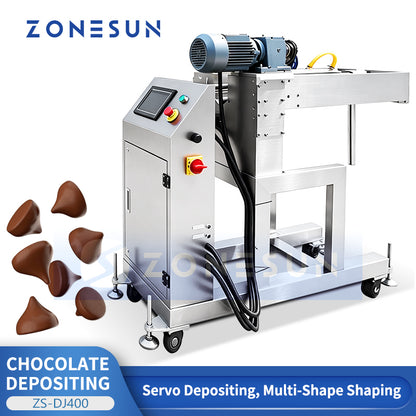

ZONESUN ZS-DJ400 Chocolate Making Machine with Automatic Depositing System for Chocolate Drops

$26,999.00 USD

Sale Sold out

Shipping calculated at checkout.

Voltage 380V

Overview

The ZONESUN ZS-DJ400 is an automatic servo-driven chocolate depositing machine designed for precise and efficient production of chocolate drops, chips, buttons, and shaped products. With intelligent PLC control, servo motor drive, and quick-release hygienic design, it accurately deposits tempered chocolate onto conveyor belts or into molds at 10–25 cycles per minute.

Available in five belt widths from 400 mm to 1200 mm, the ZS-DJ400 series scales from medium to large-scale production and is ideal for chocolate and confectionery manufacturing lines requiring consistent drop size (3–25 mm) and weight (0.5–3 g).

Technical Specifications

Model ZS-DJ400

Voltage: 380V
Drip Rate: 10–25 times/min
Belt Width: 400 mm
Drop Size: 3–25 mm
Drop Weight: 0.5–3 g
Pump: Durrex 1.1 kW
Holding Tank: 500 L
Pipe Filter: Φ63

Model ZS-DJ600

Voltage: 380V
Drip Rate: 10–25 times/min
Belt Width: 600 mm
Drop Size: 3–25 mm
Drop Weight: 0.5–3 g
Pump: Durrex 1.1 kW
Holding Tank: 500 L
Pipe Filter: Φ63

Model ZS-DJ900

Voltage: 380V
Drip Rate: 10–25 times/min
Belt Width: 900 mm
Drop Size: 3–25 mm
Drop Weight: 0.5–3 g
Pump: Durrex 1.5 kW
Holding Tank: 1000 L
Pipe Filter: Φ63

Model ZS-DJ1000

Voltage: 380V
Drip Rate: 10–25 times/min
Belt Width: 1000 mm
Drop Size: 3–25 mm
Drop Weight: 0.5–3 g
Pump: Durrex 1.5 kW
Holding Tank: 1000 L
Pipe Filter: Φ63

Model ZS-DJ1200

Voltage: 380V
Drip Rate: 10–25 times/min
Belt Width: 1200 mm
Drop Size: 3–25 mm
Drop Weight: 0.5–3 g
Pump: Durrex 2.2 kW
Holding Tank: 1000 L
Pipe Filter: Φ63

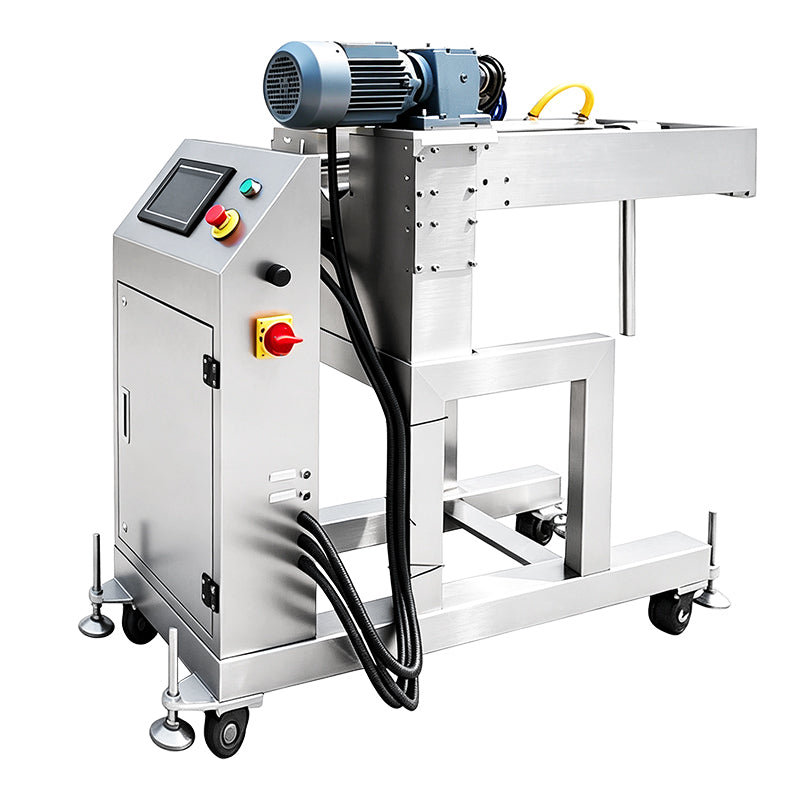

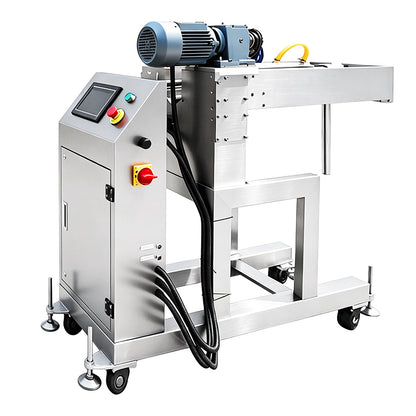

ZONESUN ZS-DJ400 Automatic Chocolate Depositing Machine

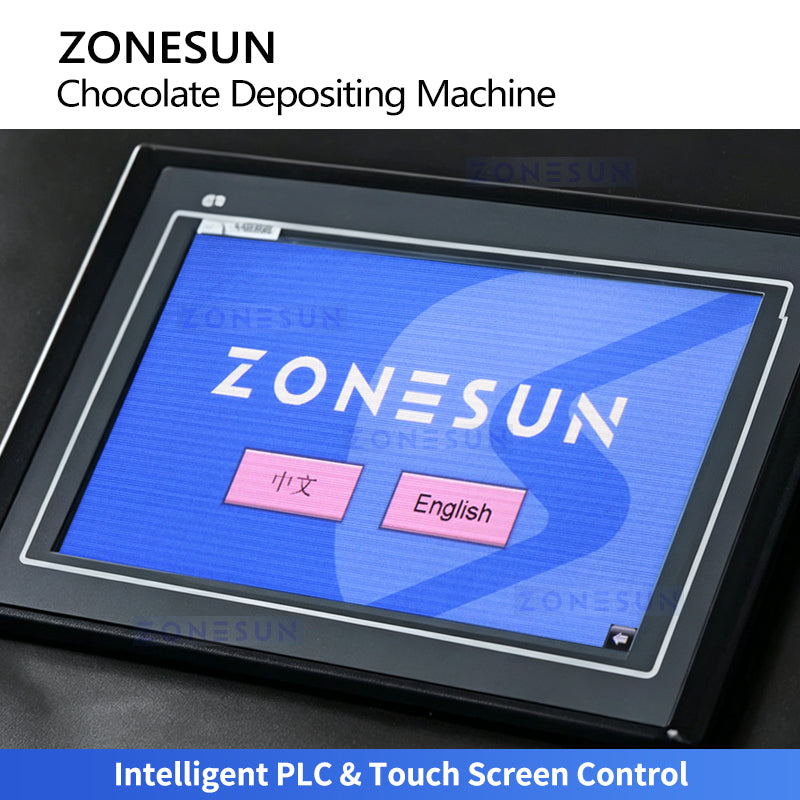

CONTROL PANEL

Monitors and adjusts depositing speeds, production frequency, and temperature parameters via a smart interface, ensuring precise recipe control.

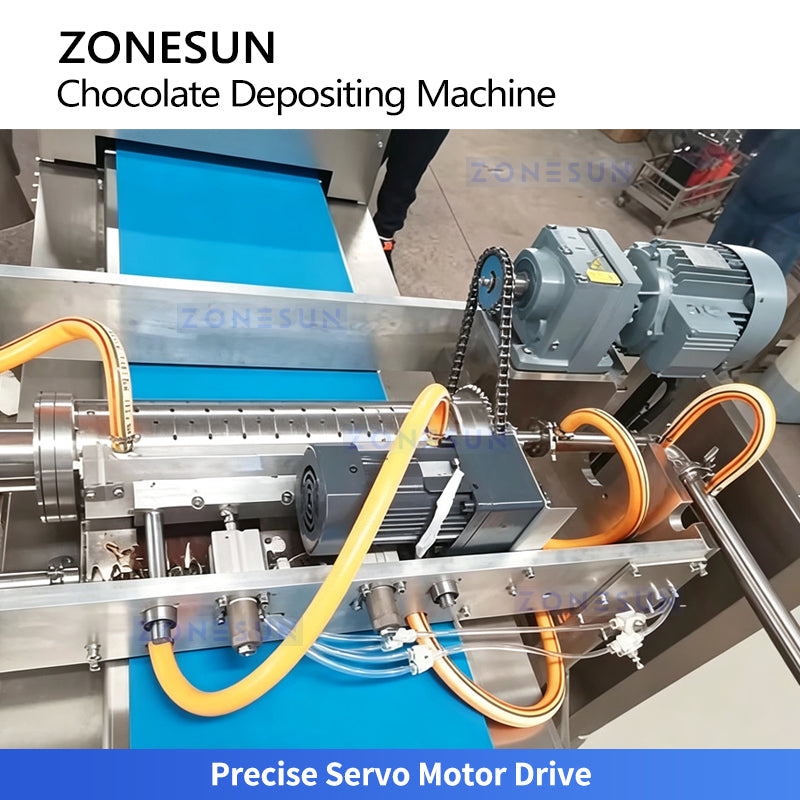

SERVO MOTOR

Delivers high-torque driving power to control the internal piston assembly, executing synchronous and precise material squeezing, effectively reducing material waste.

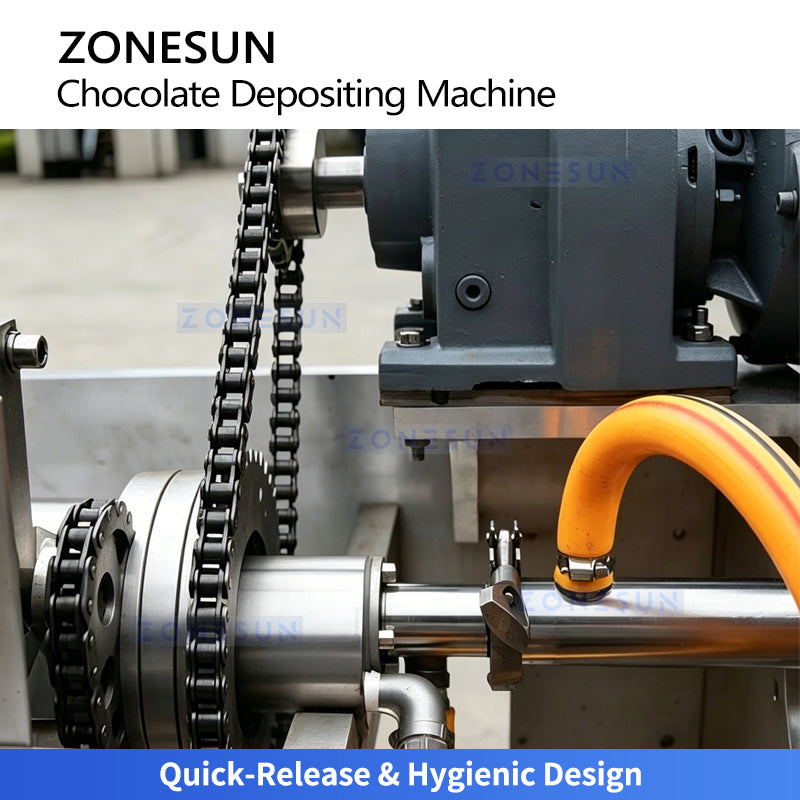

QUICK-RELEASE & HYGIENIC

Made of stainless steel, the depositing head can be quickly disassembled for thorough cleaning and food safety maintenance after production.

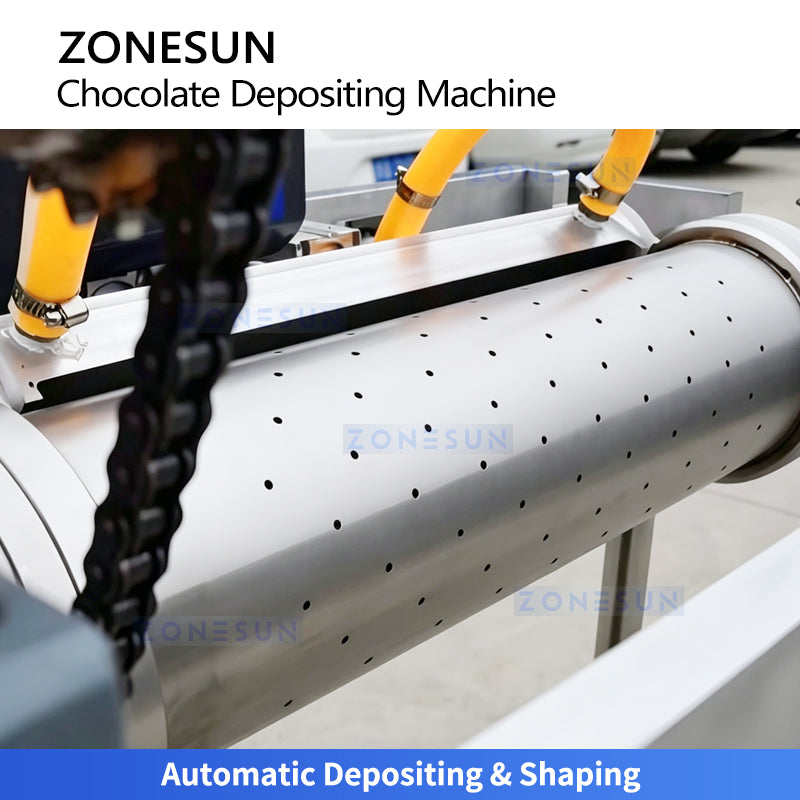

DEPOSITING & SHAPING

Deposits tempered chocolate mass accurately onto a conveyor belt or into molds, automatically forming regular drop, chip, or button shapes.

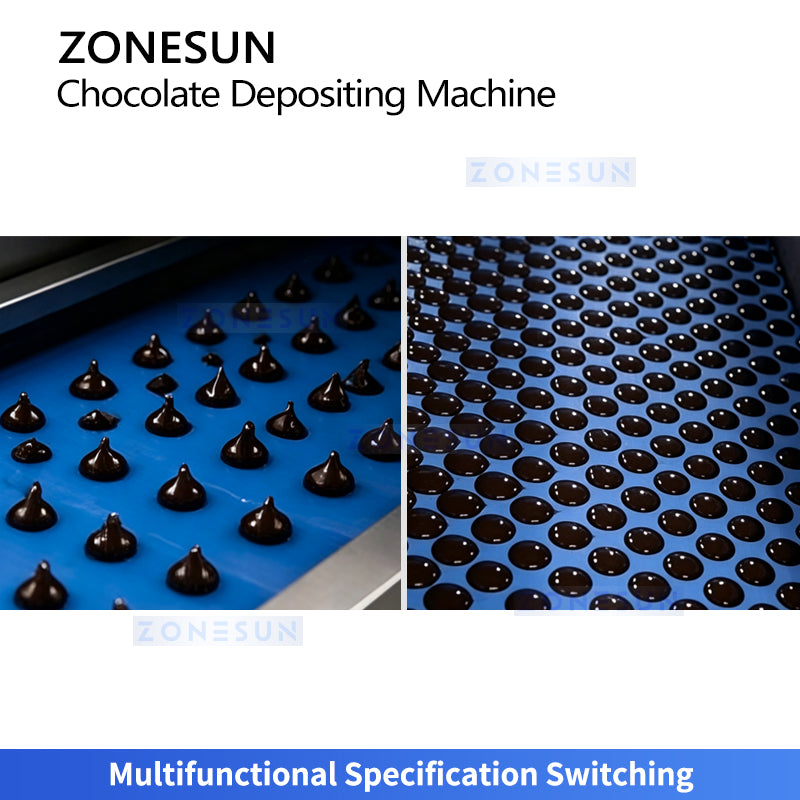

SPECIFICATION SWITCHING

Produces chocolate products of various sizes and shapes from micro-chips to large buttons by changing the depositing head or adjusting system parameters.

COOLING BELT

Transports chocolate chips smoothly through an insulated tunnel via a cooled belt, utilizing low-temperature airflow to ensure rapid and uniform solidification.

Key Features

✅ Servo Motor Drive + PLC Touchscreen Control
Precise servo-driven depositing with intelligent PLC parameter management ensures consistent drop weight and shape across every cycle.
✅ 10–25 Cycles/Min — High-Speed Continuous Depositing
Adjustable drip rate supports both precision small-batch and high-volume production on the same machine.
✅ 5 Belt Width Options — 400 to 1200 mm
Scalable output from medium to large-scale lines; wider belts accommodate more drops per cycle for higher throughput.
✅ Quick-Release Hygienic Design
Tool-free disassembly of contact parts enables fast cleaning and product changeover to meet food-grade hygiene standards.
✅ Precise Drop Size & Weight Control
Deposits chocolate drops at 3–25 mm diameter and 0.5–3 g weight with high repeatability for uniform product appearance.

Ideal Applications

🍫 Chocolate Drops & Chips — High-volume production of chocolate chips, buttons, and drops for baking and confectionery.
🍭 Candy & Confectionery — Shaped depositing for candy centers, coated products, and novelty confections.
🏭 Industrial Chocolate Processing — Large-scale chocolate ingredient production for food manufacturers and OEM suppliers.
🥛 Compound & Coating Lines — Depositing of compound chocolate, carob, and flavored coating drops for snack and bakery applications.
