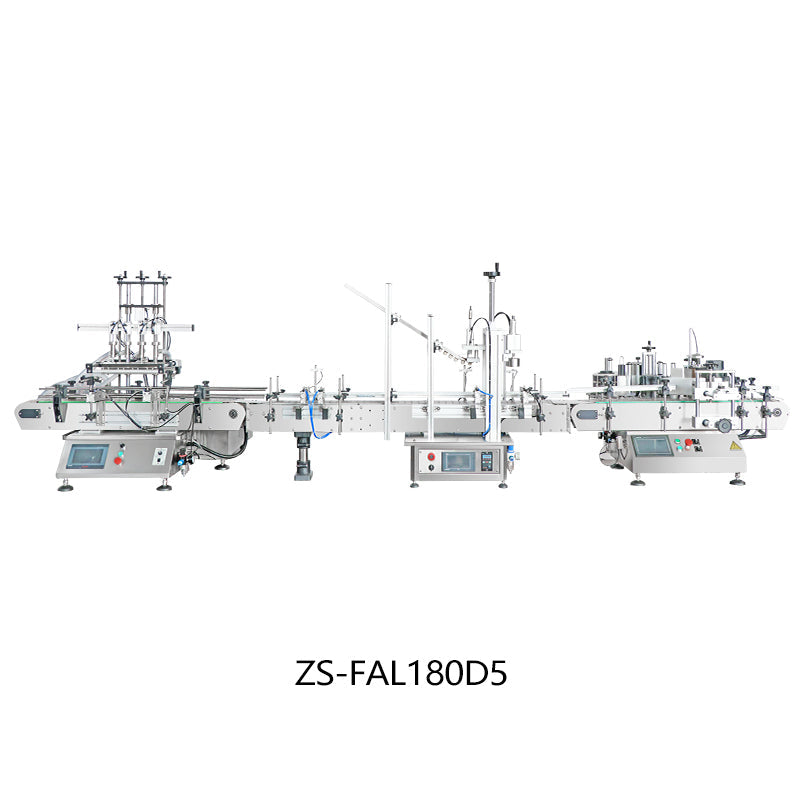

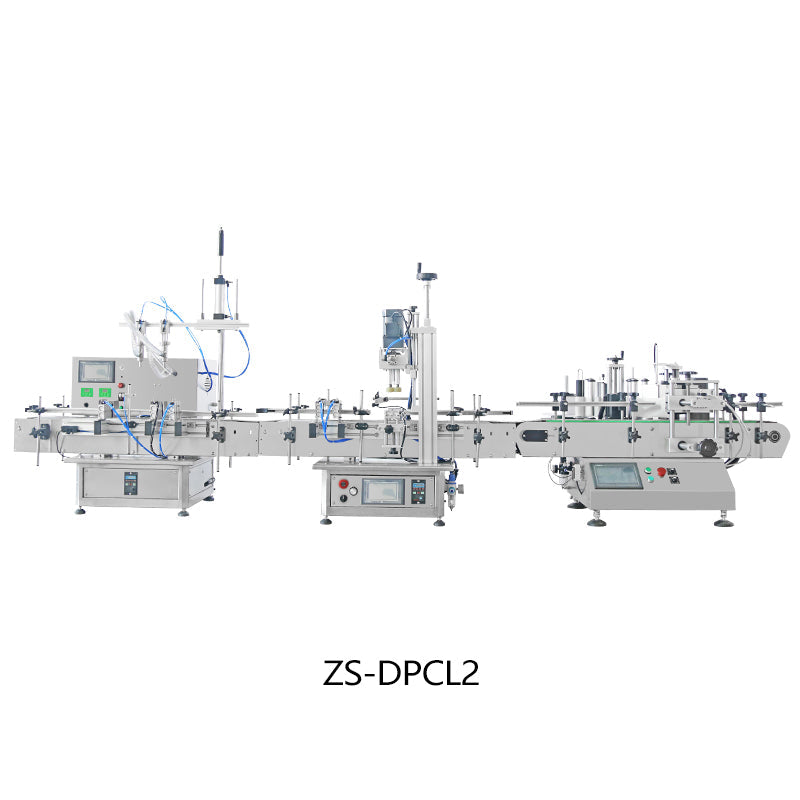

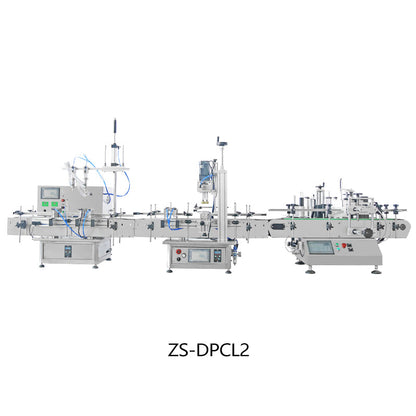

ZONESUN ZS-DPCL2/ZS-FAL180D5 Custom Liquid Filling Capping Round Bottle Labeling Production Line
ZONESUN ZS-DPCL2/ZS-FAL180D5 Custom Liquid Filling Capping Round Bottle Labeling Production Line
Regular price
$7,299.00 USD
Regular price
Sale price
$7,299.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DESCRIPTION

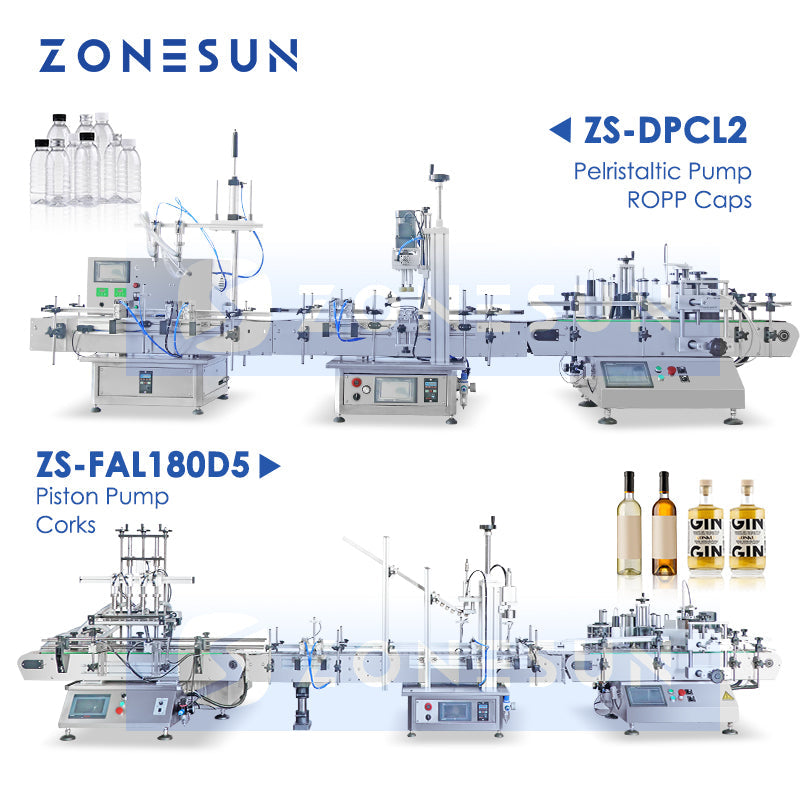

These are 2 tabletop custom lines. One is used for screw caps, the other is used for corks. We offer a complete solution. Whatever your packaging needs are, you can rely on ZONESUN.

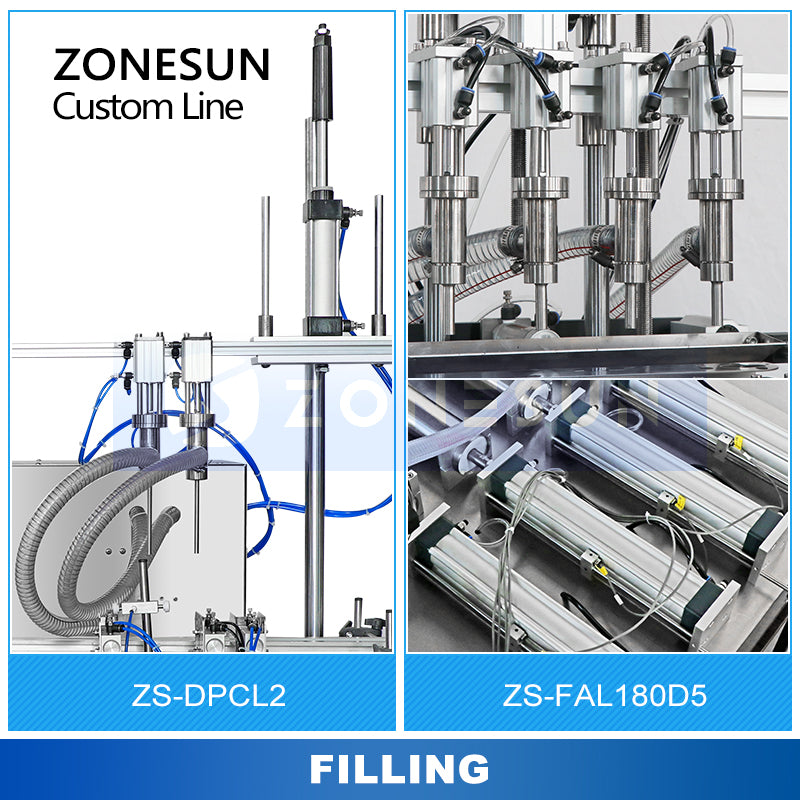

Filling Machine
- Machine Model：ZS-DTDP2C Filling Machine
- Voltage：220V / 110V, 50–60Hz
- Power：1000 W
- Filling Pump：Diaphragm Pump
- Filling Speed：20–25 bottles/min × 2 (depends on bottle & liquid)
- Max Flow Rate：20 L/min × 2 (each pump)
- Suitable Bottle Height：<220 mm (customizable, max height 300 mm)
- Filling Accuracy：≤ ±1% (for water)
- Max Suction Distance：2 m
- Power-Off Memory Function：Available

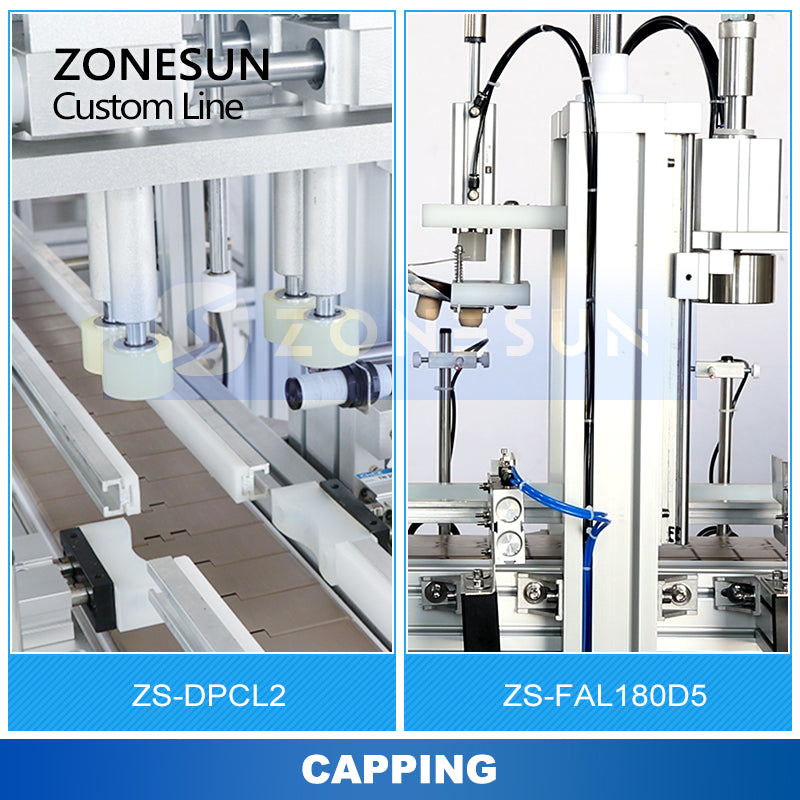

Capping Machine
- Machine Model：ZS-DTHSP4 Capping Machine
- Voltage：220V / 110V, 50–60Hz Filling Machine
- Power：500 W
- Filling Head：4 Heads (customizable)
- Filling Range：5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
- Filling Speed：20–60 bottles/min (depends on bottle & liquid)
- Filling Head Diameter：OD 10 mm (other sizes optional)
- Filling Accuracy：≤ ±1% (for water)
- Air Pressure：0.4–0.6 MPa
- Packaging Size Approx.：1530 × 1400 × 1350 mm
- Gross Weight Approx.：234 kg
Capping Machine
- Machine Model：ZS-XG1870 Capping Machine
- Bottle Height：60–270 mm
- Cap Diameter：18–70 mm
- Working Speed：20–40 bottles/min (depends on bottle & cap)
- Working Voltage：AC 220V / 110V, 50–60Hz
- Air Pressure：0.4–0.6 MPa
- Air Connector Size：OD 8 mm
- Conveyor Length：1117 mm
- Machine Size Approx.：1170 × 580 × 1110 mm
- Package Size Approx.：1160 × 610 × 1140 mm
- Net/Gross Weight Approx.：65.5 kg / 97.5 kg
Capping Machine
- Machine Model：ZS-XG1870D1 Capping Machine
- Working Voltage：AC 220V / 110V, 50–60Hz
- Bottle Height：60–270 mm
- Cap Diameter：Customizable (≤130 mm)
- Working Speed：20–40 bottles/min (depends on bottle & cap)
- Air Pressure：0.4–0.6 MPa
- Air Connector Size：OD 8 mm
- Conveyor Size：1150 mm (W) × 1200 mm (L)
- Package Size Approx.：1150 × 650 × 820 mm
- Package Weight：Approx. 95 kg

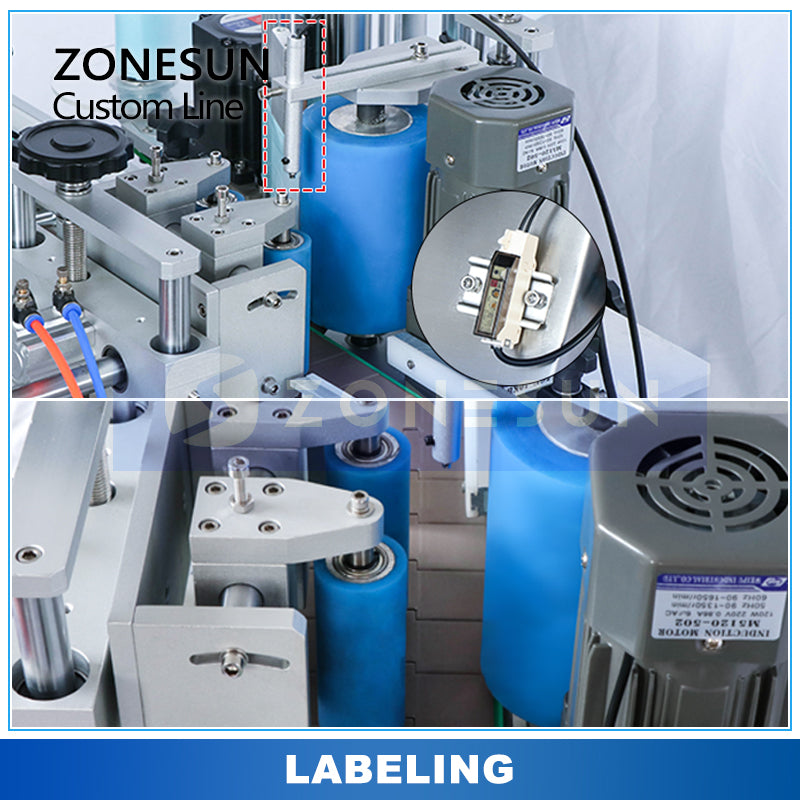

Labeling Machine
- Machine Model：ZS-TB500 Labeling Machine
- Voltage：110V–60Hz / 220V–50Hz
- Working Speed Approx.：20–50 bottles/min
- Labeling Size：Height: 15–140 mm / Length: 25–300 mm
- Roll Inside Diameter：Ø76 mm
- Roll Outside Diameter：Ø350 mm
- Suitable Bottle Diameter：≤100 mm
- Air Compressor Connector：OD 8 mm
- Package Size Approx.：1290 × 860 × 900 mm
- Net/Gross Weight Approx.：95.5 kg / 130 kg
