ZONESUN ZS-FAL180Z4 5L Automatic Oil Bottling Line Filling Capping Round Flat Bottle Double Labeling Production Line
ZONESUN ZS-FAL180Z4 5L Automatic Oil Bottling Line Filling Capping Round Flat Bottle Double Labeling Production Line
Regular price
$31,327.00 USD
Regular price
Sale price
$31,327.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
DESCRIPTION

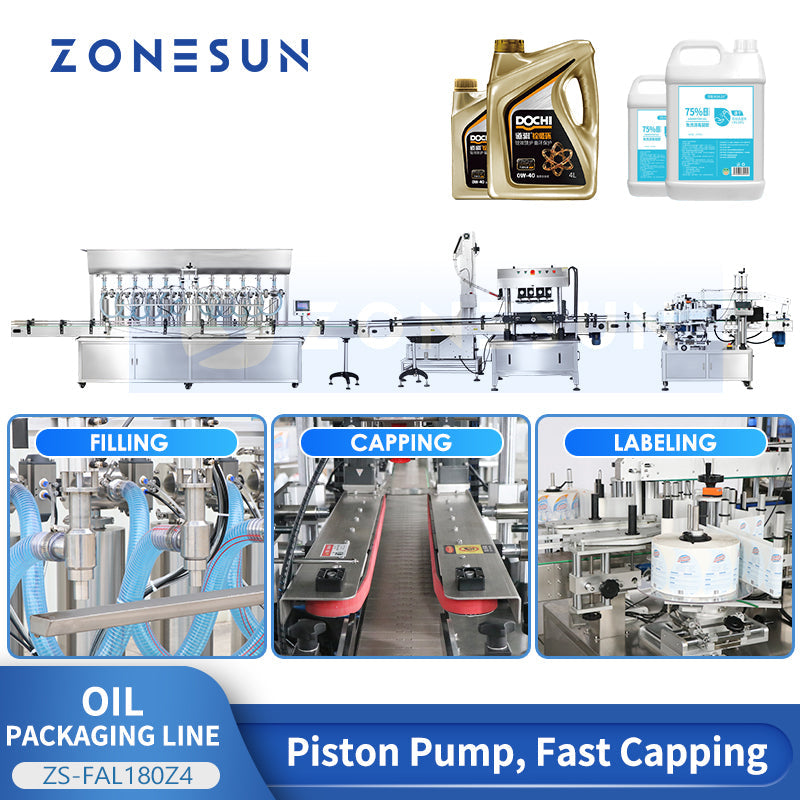

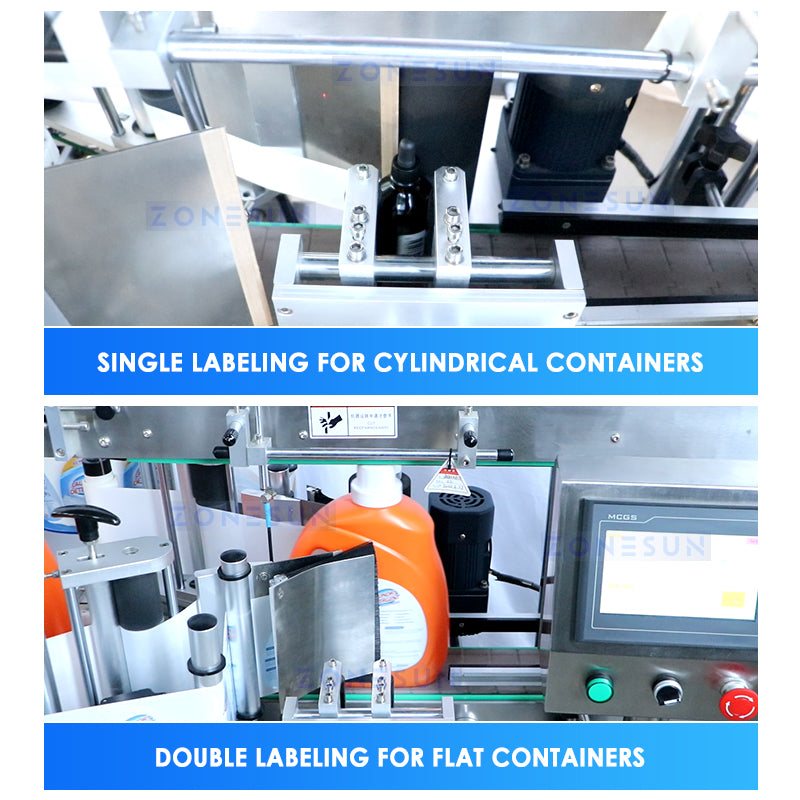

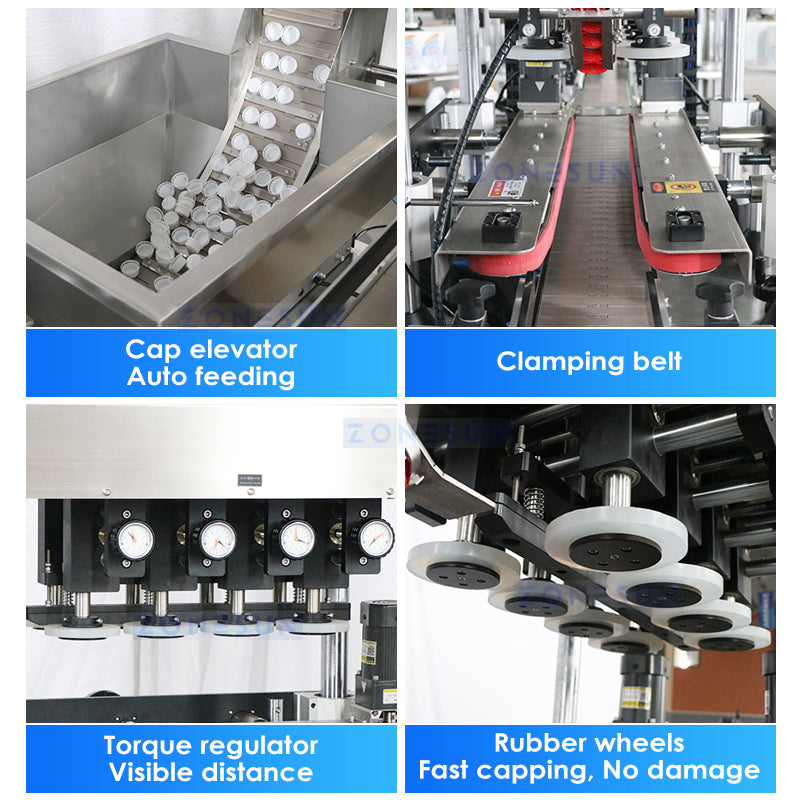

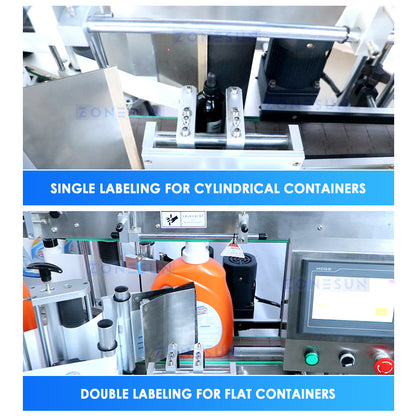

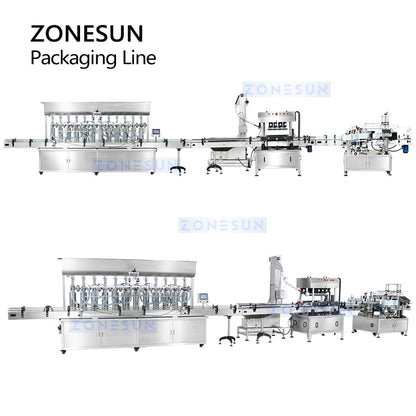

This is an automatic oil bottling line for a customer from Russia. It adopts piston pumps to fill 5-liter bottles. With an elevator, it automatically feeds the caps. It is designed with 8 rubber wheels for fast capping. It applies to both round and flat bottles with single or double labels.
Automatic Oil bottling Line Parameter
- Model：ZS-YT12T-12PX
- Voltage：110/220V, 50–60Hz, 1KW
- Filling Range：1000–5000ml (Customizable)
- Working Speed：24–36 bottles/min (based on 5000ml)

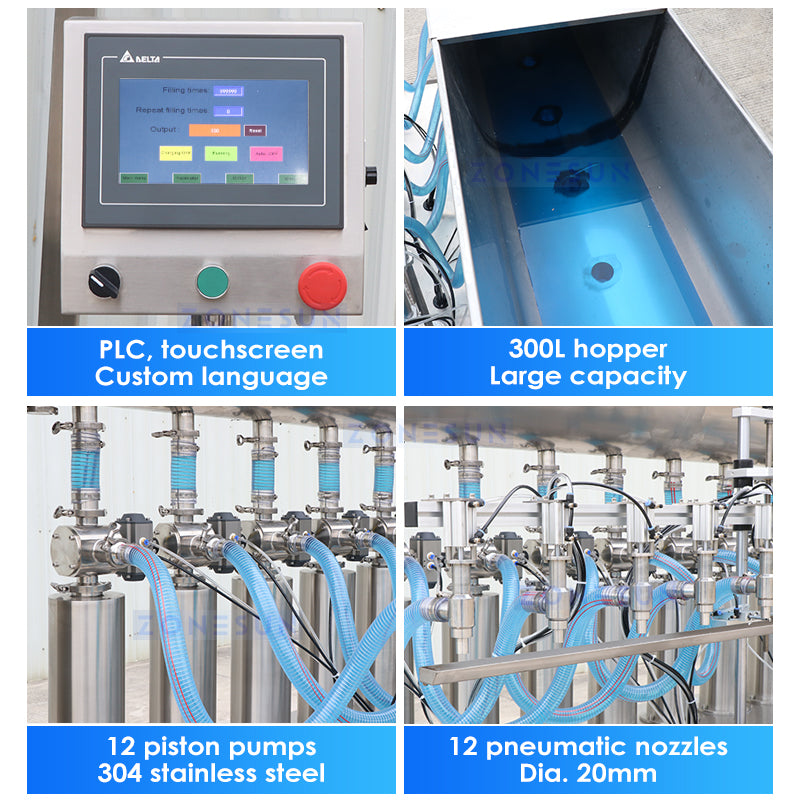

- Hopper Capacity Approx.：300L
- Air Pressure：0.6–0.8 MPa
- Filling Nozzles：12(Customizable), 2 configuration options
- Pump Type：12 piston pumps, 304 stainless steel
- Conveyor Size Length: 4m, Width: 152mm
- Machine Dimensions：Approx. 5300 × 2100 × 1480 mm (L×W×H)
