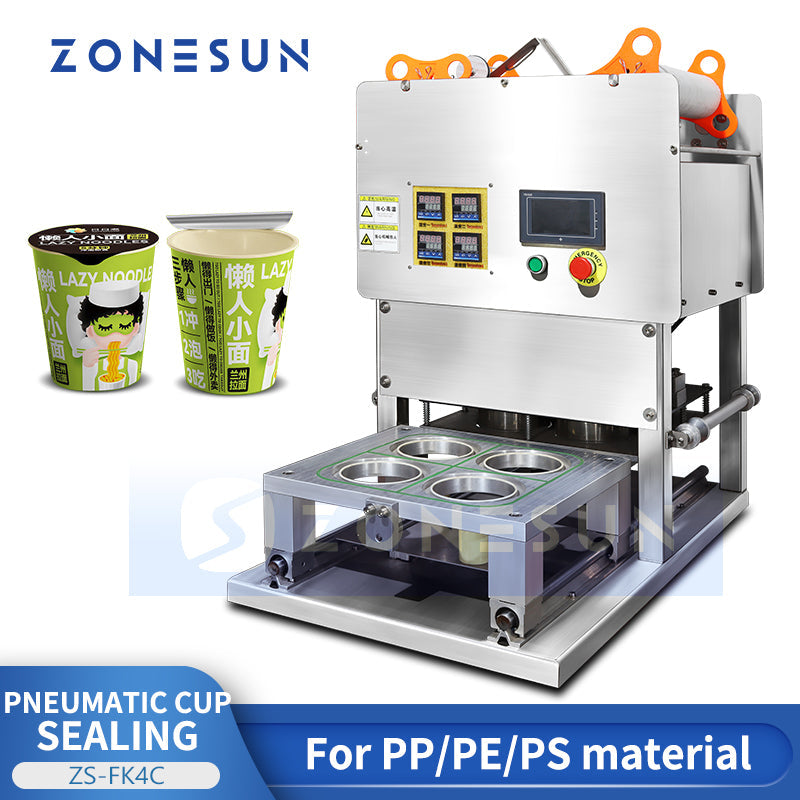

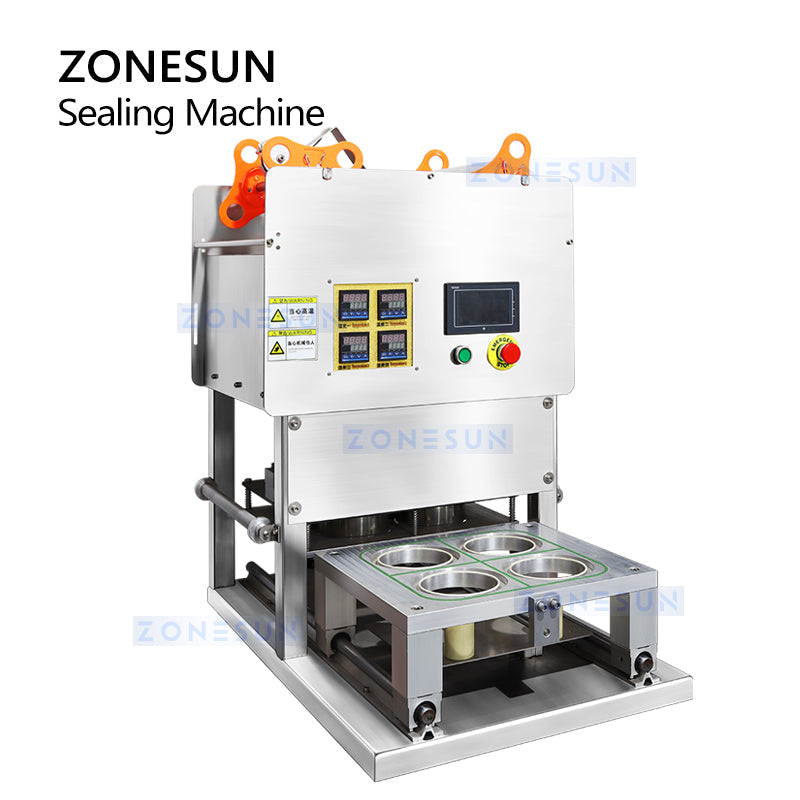

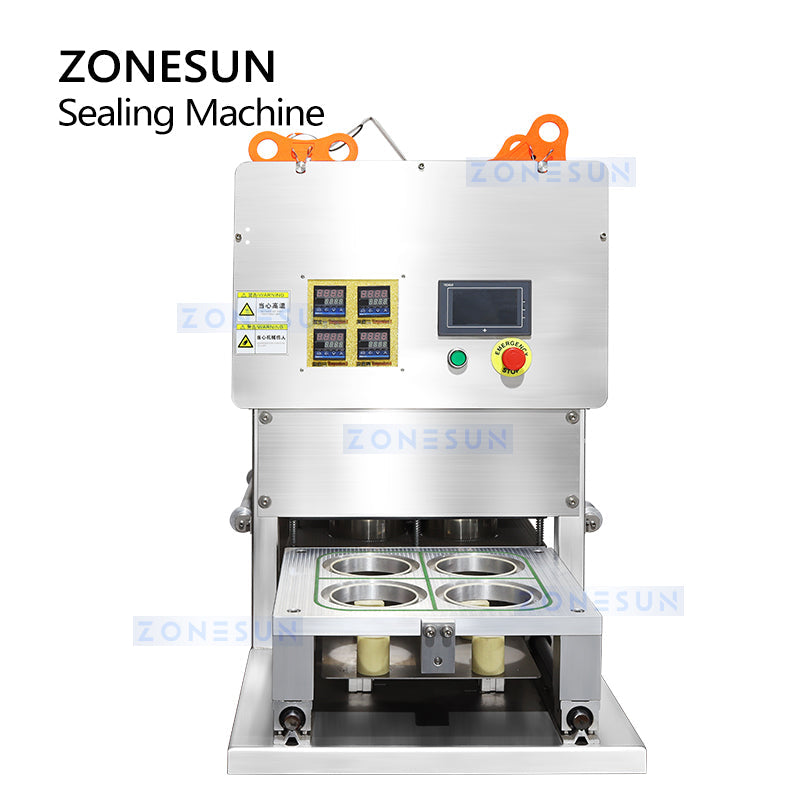

ZONESUN ZS-FK4C Semi Automatic Cup Sealing Machine

DESCRIPTION

Introducing our semi-automatic sealing machine, equipped with a PCL intelligent control system that allows for regulating sealing time and temperature. With a strong and efficient sealing process, our machine can customize molds to adapt to various sizes, and shapes of trays for sealing cups, boxes, etc. It is widely used in soy milk, milk tea, fast food restaurants, snack shops, etc.

Whatever your packaging needs are, you can rely on ZONESUN.

ZS‑FK3530

• Mold Size: 350 × 300 × 20 mm
• Speed: 300–1000 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 0.5–2 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 840 × 520 × 780 mm
• Weight: 80 kg

ZS‑FK4035

• Mold Size: 400 × 350 × 23 mm
• Speed: 400–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–2.5 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 950 × 570 × 790 mm
• Weight: 90 kg

ZS‑FK5040

• Mold Size: 500 × 400 × 25 mm
• Speed: 600–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–3 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 1050 × 670 × 840 mm
• Weight: 110 kg

Customizable molds of different shapes

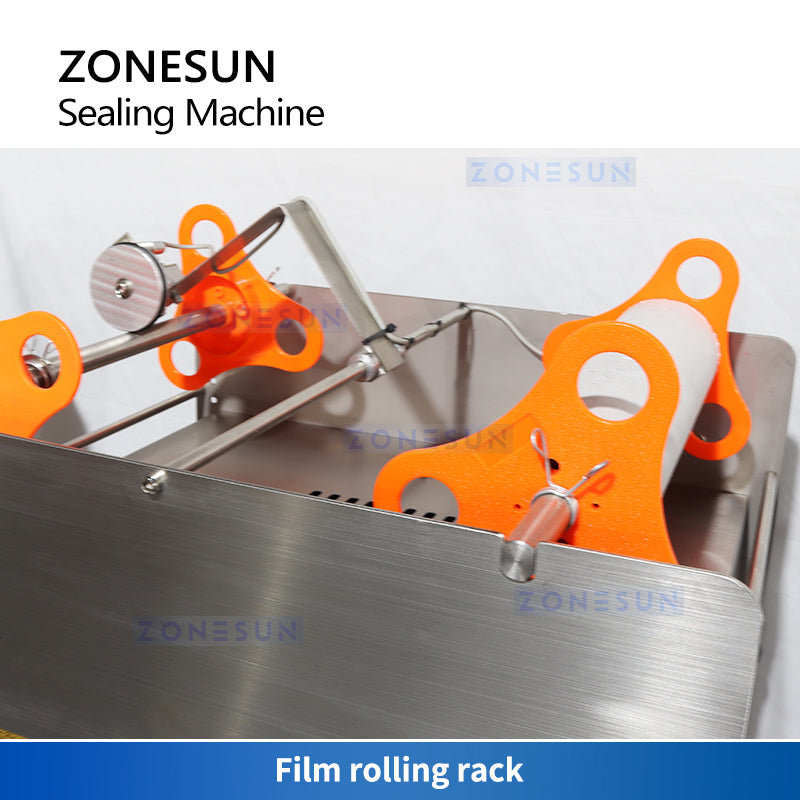

FILM ROLLING RACK

Automatic film, efficient and time-saving. Easy to replace the film.

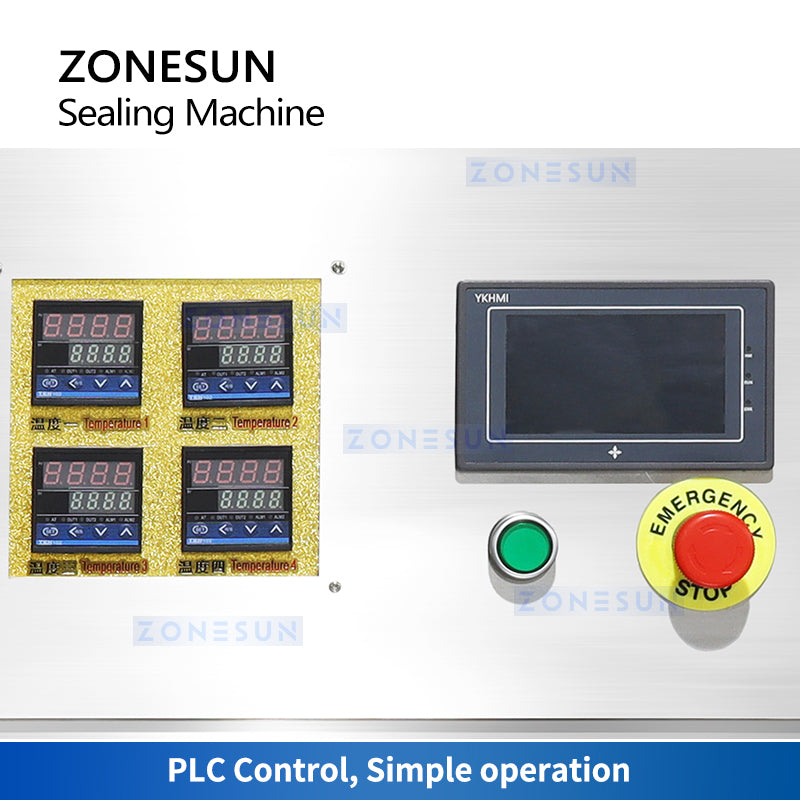

OPERATION PANEL

PLC Control, Simple operation.Four temperature controllers can be adjusted separately.

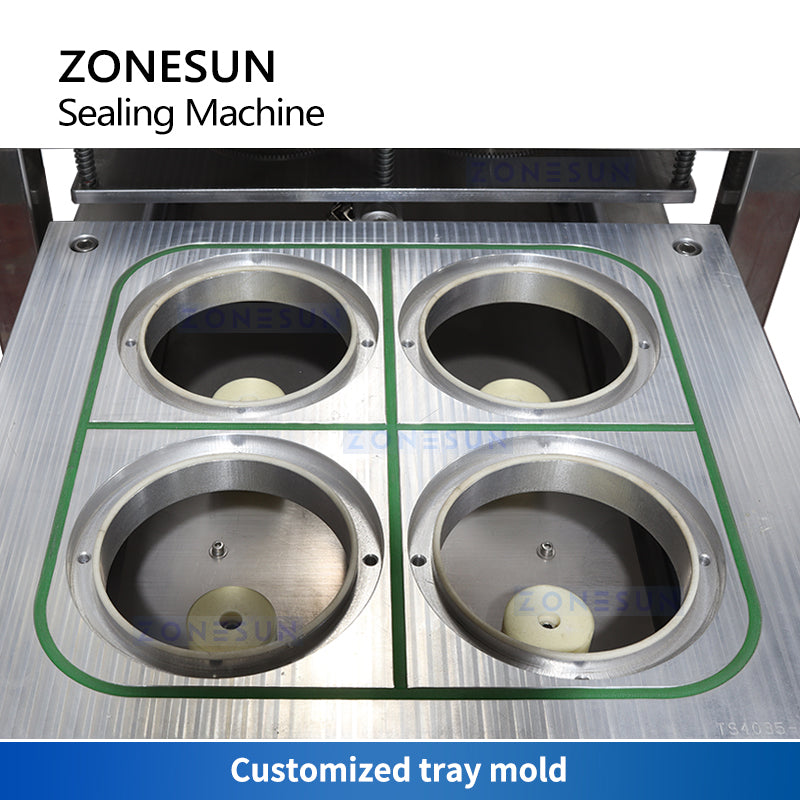

CUSTOMIZED TRAY MOLD

The mold is made of high-quality aluminum alloy, which is durable for use. It is customized by various shapes, sizes, and size containers on demand.

ATTENTION

Please note that this product must be used with an AIR COMPRESSOR which is sold separately. It is confirmed that the buyer has read this requirement once an order is placed.
