ZONESUN ZS-FM80 6-Station Premade Pouch Filling & Sealing Packaging Machine
ZONESUN ZS-FM80 6-Station Premade Pouch Filling & Sealing Packaging Machine
Couldn't load pickup availability

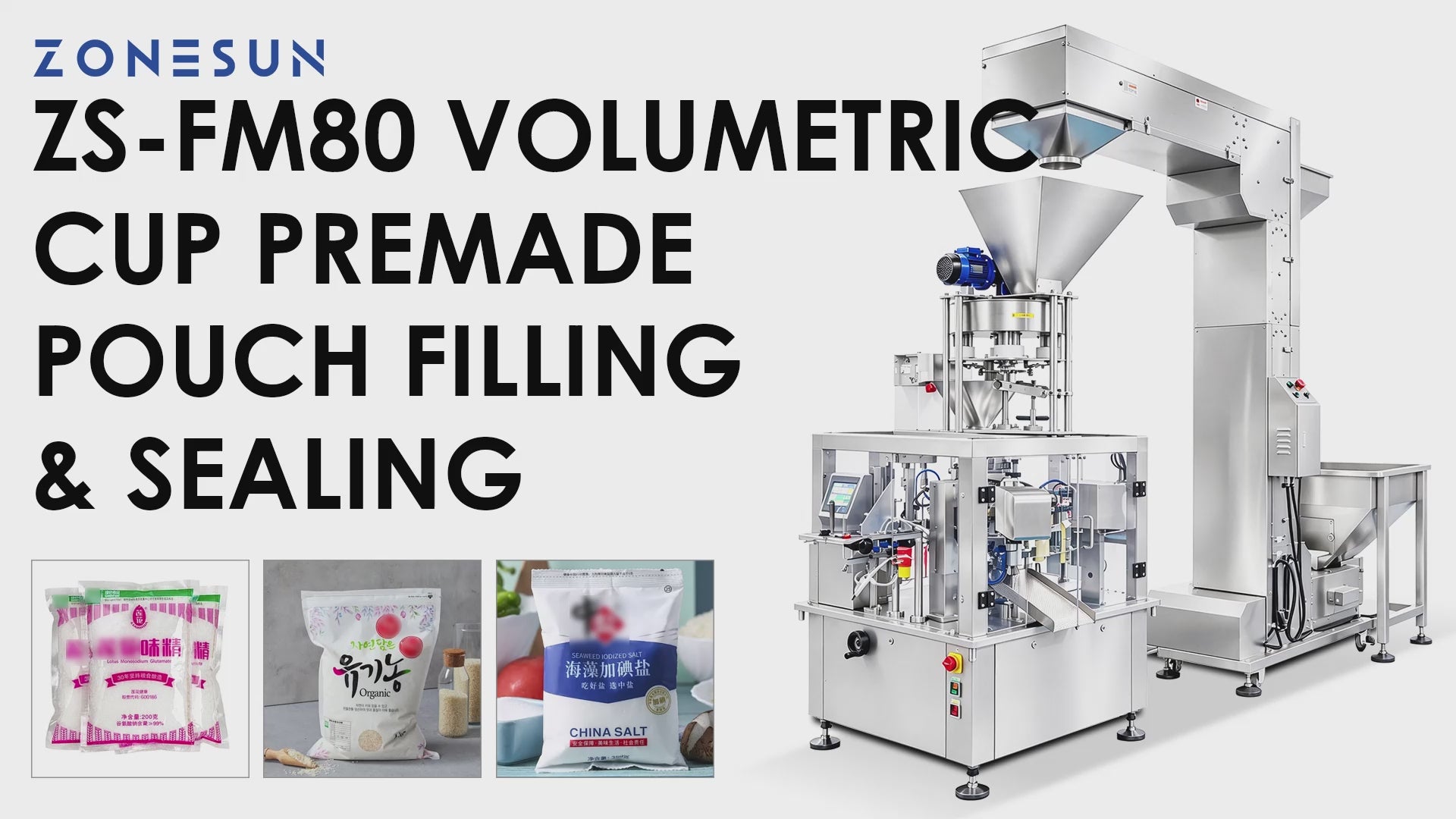

6-Station Premade Pouch Filling & Sealing Machine

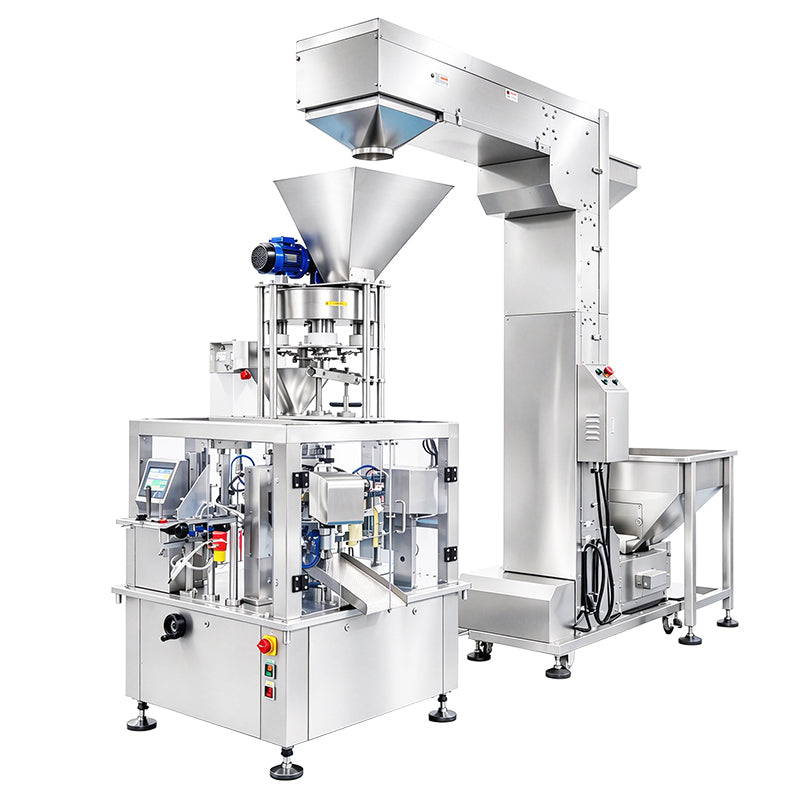

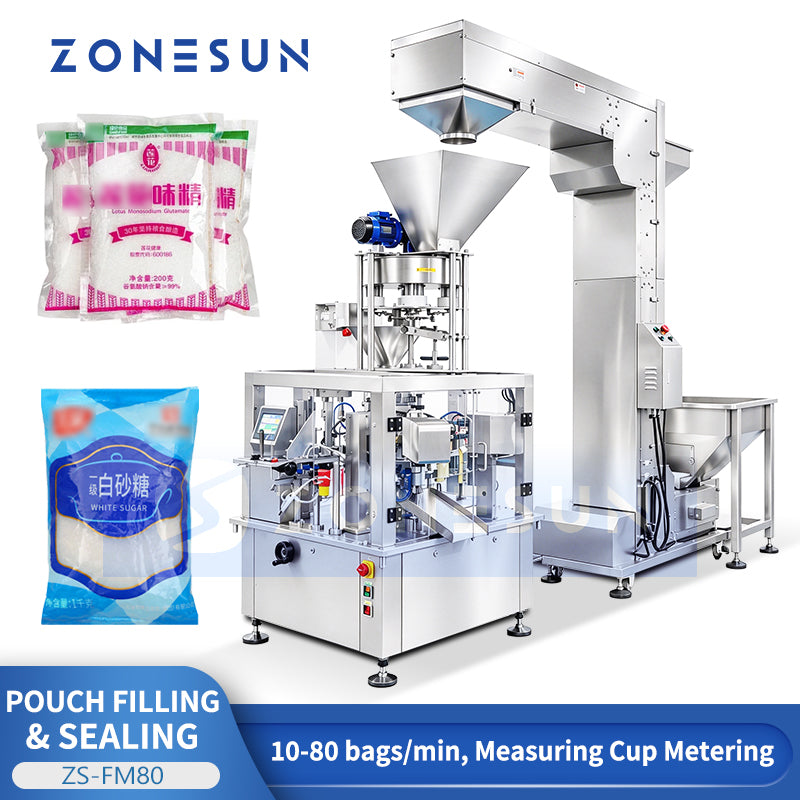

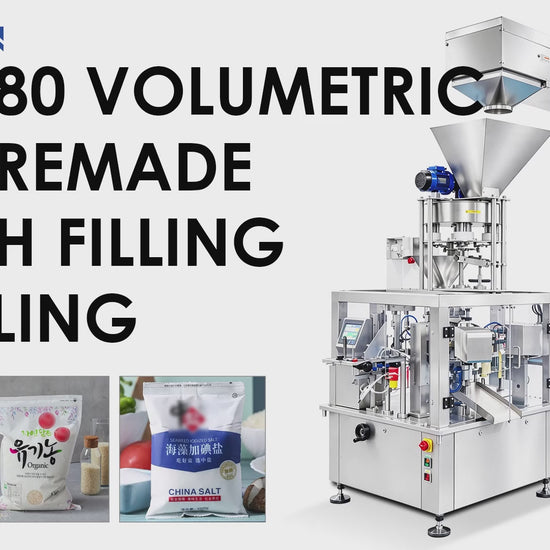

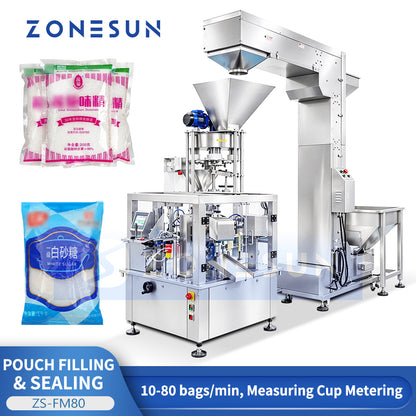

The ZONESUN ZS-FM80 6-Station Premade Pouch Packaging Machine is designed for automatic measuring, filling and sealing of compatible granules and free-flowing solid products using premade pouches.
The machine uses volumetric measuring cups for dosing and is suitable for products such as rice, grains and similar granular materials. Six working stations coordinate pouch handling, filling and sealing for continuous packaging operation.
Technical Specifications
ZS-FM80A Z-Type Bucket Elevator
| Model | ZS-FM80A |
|---|---|
| Machine Name | Z-Type Elevator |
| Structure | Cabinet-Type Structure,304 Stainless Steel Body |
| Cabinet Plate Thickness | 1.8 mm |
| Hopper,Door and Cover Plate Thickness | 1.2 mm |
| Material | 304 Stainless Steel |
| Bucket Capacity | 1.8 L Plastic Buckets |
| Power | 0.75 kW |
| Power Supply | Single-Phase 220V,50Hz |
| Speed Control | Variable-Frequency Speed Control |
| Max. Conveying Capacity | 6 m³/h |
ZS-FM80B Volumetric Cup Filler
| Model | ZS-FM80B |
|---|---|
| Machine name | Volumetric Cup Filler |
| Hopper Capacity | 20 L |
| Measuring Cup Range | 50–1500 ml |
| Voltage | 220V/380V |
| Rotating Motor Power | 550W (750W–1.5kW Optional) |
| Gearbox | RV50,Ratio 1:80 |
| Machine Weight | 96 kg |
| Machine Dimensions | L840 × W700 × H1013 mm |
| Packing Dimensions | L910 × W790 × H1200 mm |
ZS-FM80C Premade Pouch Bagging Machine
| Model | ZS-FM80C |
|---|---|
| Machine Name | Bagging Machine |
| Packaging Size | Length:140–300 mm;Width:80–200 mm |
| Packaging Speed | 10–80 bags/min |
| Power Supply | 380V,3-Phase,5-Wire,6.5 kW |
| Compressed Air | Pressure: 5–7 kg/cm²; air consumption: to be confirmed |
| Machine Dimensions | 1140 × 1050 × 3000 mm |
| Packaging Film | Single-layer PE,PE laminated film,paper film and other laminated films |
| Available Bag Styles | Flat Bags,Stand-Up Pouches,Zipper Bags |
| Machine Weight | Approx. 750 kg |
Because the measuring cups dose by volume, actual package weight depends on product bulk density. Product samples, target filling amount and actual premade pouches should be provided before machine configuration.
Electrical requirements, compressed-air consumption and total connected load should be confirmed according to the selected machine configuration before installation.
Machine Details

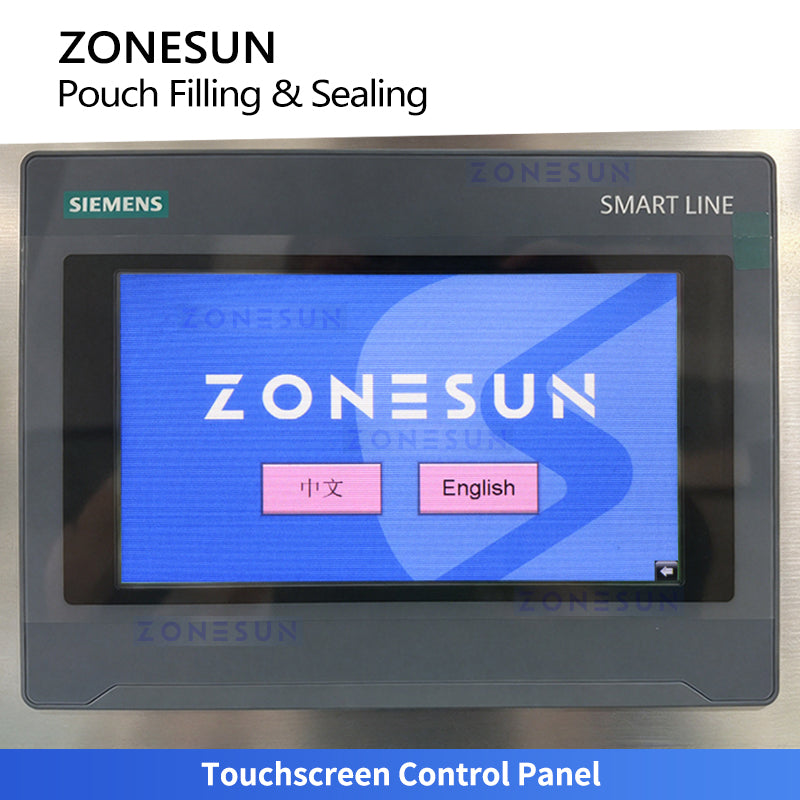

Touchscreen Control Panel
Provides centralized control for dosing, filling, sealing and other operating parameters, while allowing operators to monitor machine status in real time.

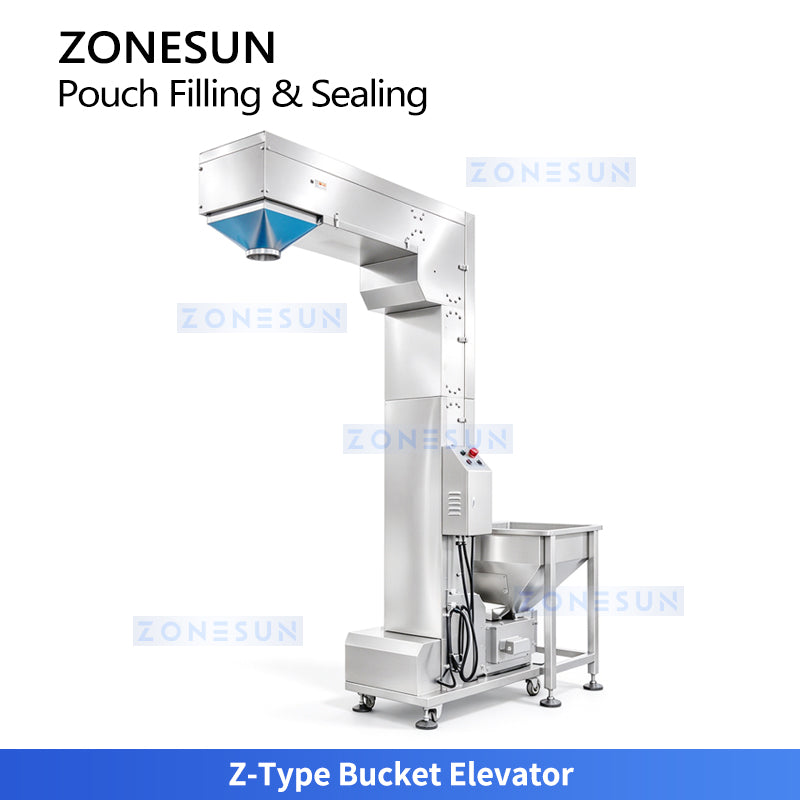

Z-Type Bucket Elevator
Automatically conveys granular materials from the lower hopper to the dosing system, supporting continuous and stable product feeding.

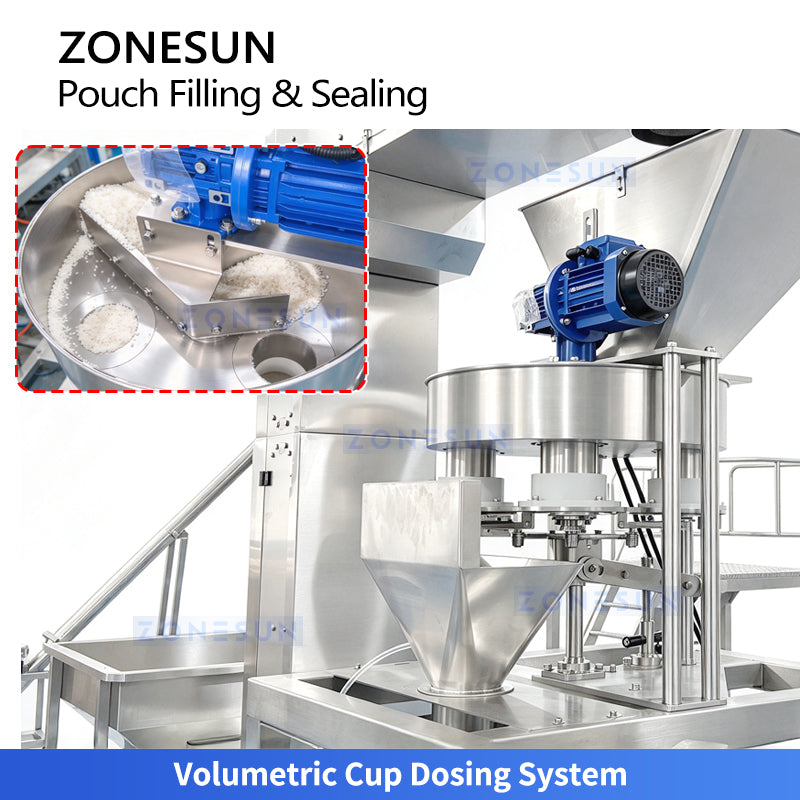

Volumetric Cup Dosing System
Uses measuring cups to portion free-flowing granular products by volume for efficient and repeatable dosing.
Automatic Pouch Feeding System
Automatically picks, opens and transfers premade pouches to the filling and sealing stations for continuous packaging operation.

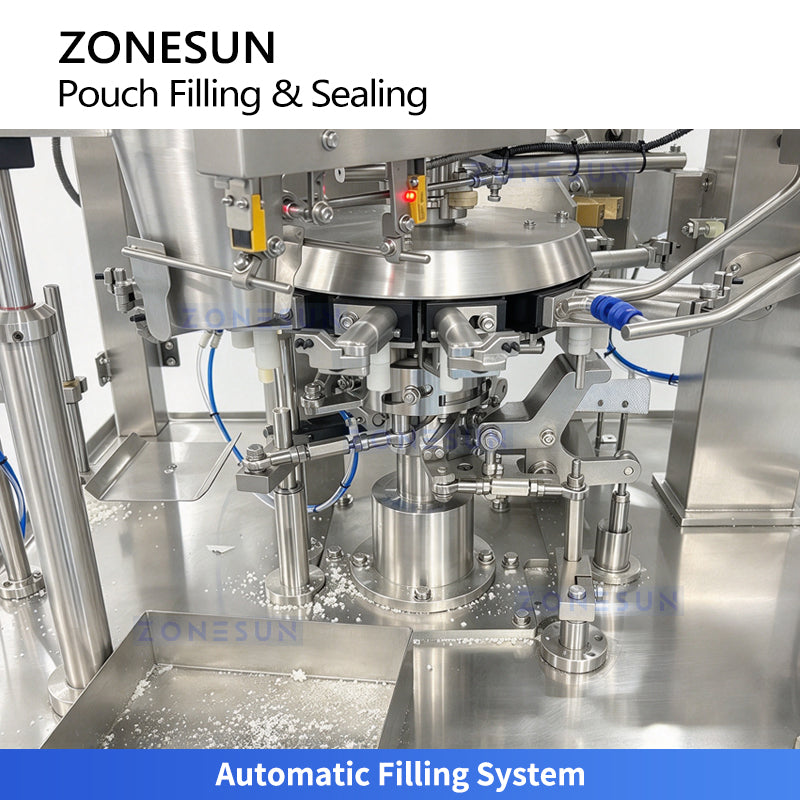

Automatic Filling System
Transfers the measured product into each positioned pouch for consistent and efficient filling.

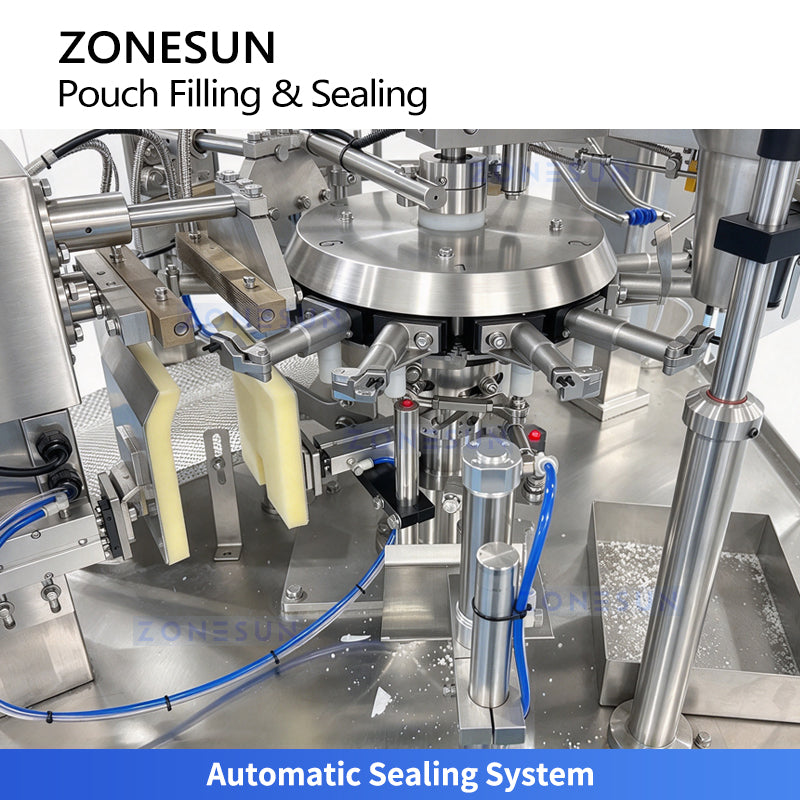

Automatic Sealing System
Heat-seals filled pouches to create a secure and consistent package closure.
Finished Product Discharge Chute
Guides completed pouches out of the machine for convenient collection or transfer to downstream equipment.
Key Features
-
6-station premade pouch packaging
-
Automatic measuring, filling and sealing
-
Volumetric cup dosing system
-
Suitable for rice, grains and free-flowing granules
-
Compatible with premade pouches
-
Continuous automatic packaging
-
Customizable according to product and pouch specifications
How the Packaging Process Works
- Confirm product flow, measuring cup configuration, premade pouch dimensions and sealing suitability.
- Load material into the elevator's lower hopper and load compatible premade pouches into the pouch feeding system.
- The Z-type bucket elevator supplies material to the volumetric cup filler.
- The measuring cups portion the product by volume, and the pouch feeding system positions bags for filling.
- The filling system dispenses each measured portion into a positioned pouch.
- The sealing system heat-seals the filled pouch, which exits through the discharge chute. Check sample weights and seals before continuous operation.
How to Choose the Right Packaging Configuration
Share the product name, granule size, flow characteristics, bulk density and target pack volume or weight. Provide pouch samples, bag style, width, length, zipper details and sealing-layer material, together with the required output. Confirm cup selection, bag handling, sealing settings, electrical requirements and air consumption for the complete line. Other product types or dosing methods require a separate configuration review.
Frequently Asked Questions
What products can this configuration package?
The listed configuration uses a bucket elevator and volumetric measuring cups for compatible granular and free-flowing solid products such as rice. Confirm suitability with actual product samples rather than assuming it handles every powder or liquid.
Does the machine dose by weight or volume?
It doses by volume using measuring cups, with a listed range of 50–1500 mL. The equivalent weight depends on the product's bulk density; confirm the cup setup and weight variation with your product.
What premade pouch sizes and styles are supported?
The stated range is 140–300 mm long and 80–200 mm wide. Listed styles include flat bags, stand-up pouches and zipper bags. Confirm bag opening, zipper handling and heat-seal compatibility using your pouch samples.
What packaging speed can it achieve?
The listed speed is 10–80 bags per minute. Actual output depends on the material, portion size, bag style and sealing conditions; confirm performance for your application.
Does it make bags from a continuous film roll?
This configuration feeds premade pouches. The listed packaging-film materials describe compatible pouch materials subject to seal testing; they do not establish rollstock bag-forming capability.
Can the entire line use single-phase 220 V?
The elevator is listed as single-phase 220 V, 50 Hz, the cup filler as 220/380 V, and the bagging module as 380 V, three-phase, five-wire. A 220 V product option is also offered, so confirm the complete line's electrical configuration in the quotation. The listed air pressure is 5–7 kg/cm²; air consumption requires confirmation.
