ZONESUN ZS-HFQ1 High-Frequency Blister Card Heat Sealing Machine | PVC PET PETG | Max 120×300mm

Description

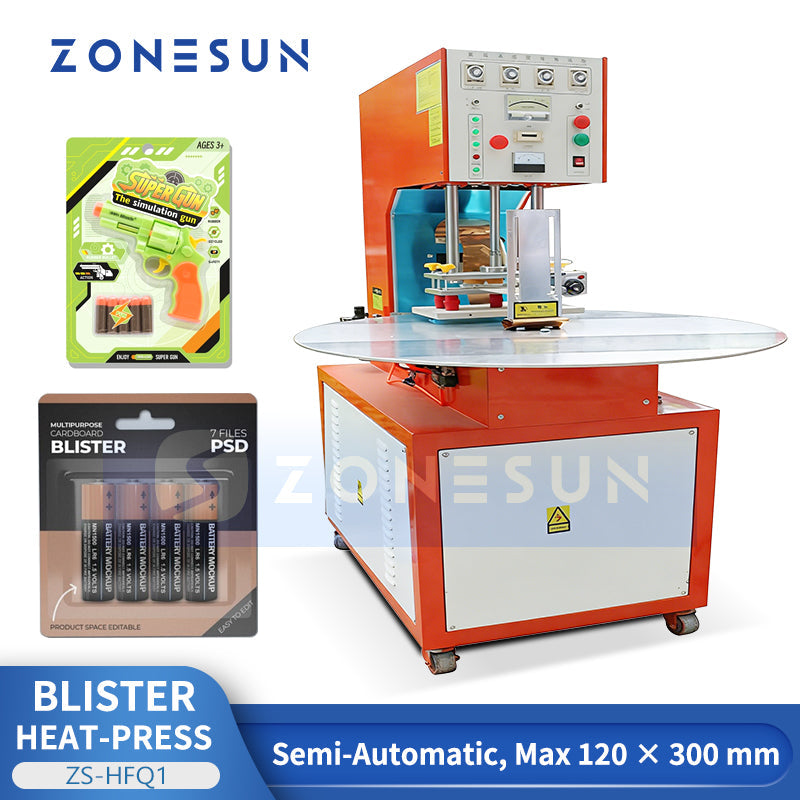

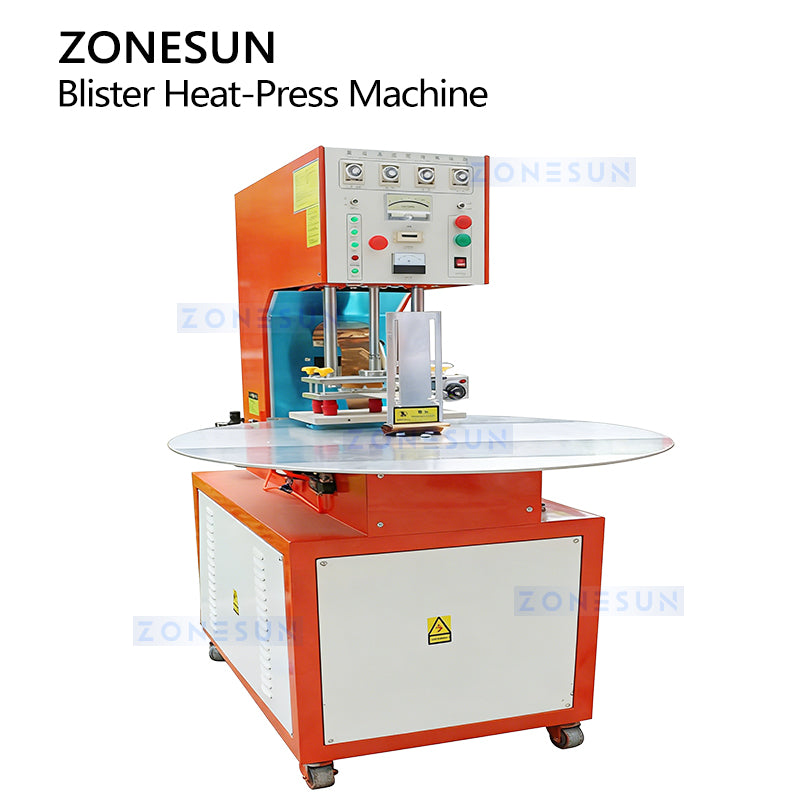

The ZONESUN ZS-HFQ1 is a semi-automatic high-frequency blister heat-press packaging machine designed for sealing PVC, PET, and PETG blisters onto backing cards. Supporting product sizes up to 120 × 300 mm, it integrates a control panel, pressing system, electrical system, oscillation barrel, and rotary table for stable, precise, and efficient sealing.

With reliable 8 KVA power output, dual-frequency options (27.12 / 40.68 MHz), adjustable parameters, and customizable configurations, it suits small to medium-scale production requiring consistent sealing strength and high-quality blister packaging — ideal for electronics, hardware, daily goods, toys, accessories, and retail products.

Technical Specifications

• Model: ZS-HFQ1
• Voltage: 380V / 50Hz
• Input Power: 8 KVA
• Operating Frequency: 27.12 MHz or 40.68 MHz
• Max Product Size: 120 × 300 mm
• Sealing Materials: PVC, PET, PETG
• Disk Size: 400 × 600 mm
• Machine Dimensions (L×W×H): 750 × 1,100 × 1,890 mm
• Weight: 450 kg
• Customization Support: Yes

Control Panel

Precisely adjusting and monitoring key parameters to achieve optimal welding and sealing results across various plastic materials and thicknesses.

Pressing System

Combining high-pressure compression with high-frequency heating to align, fuse, and solidify blister and backing materials into a strong, flat, and reliable seal.

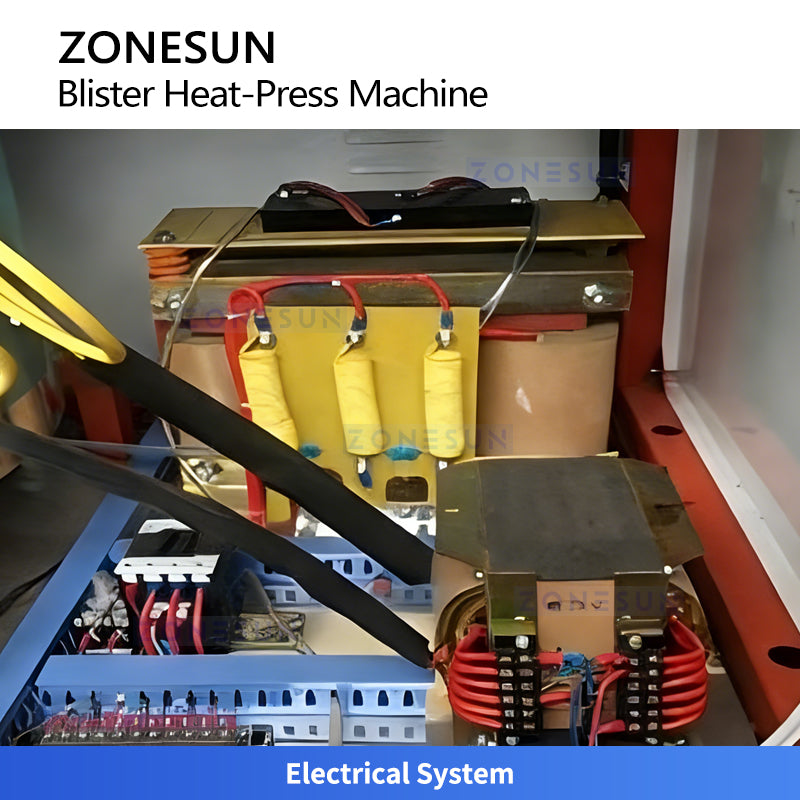

Electrical System

Distributing stable power, regulating frequency output, and providing overload protection to ensure reliable and safe operation of all machine components.

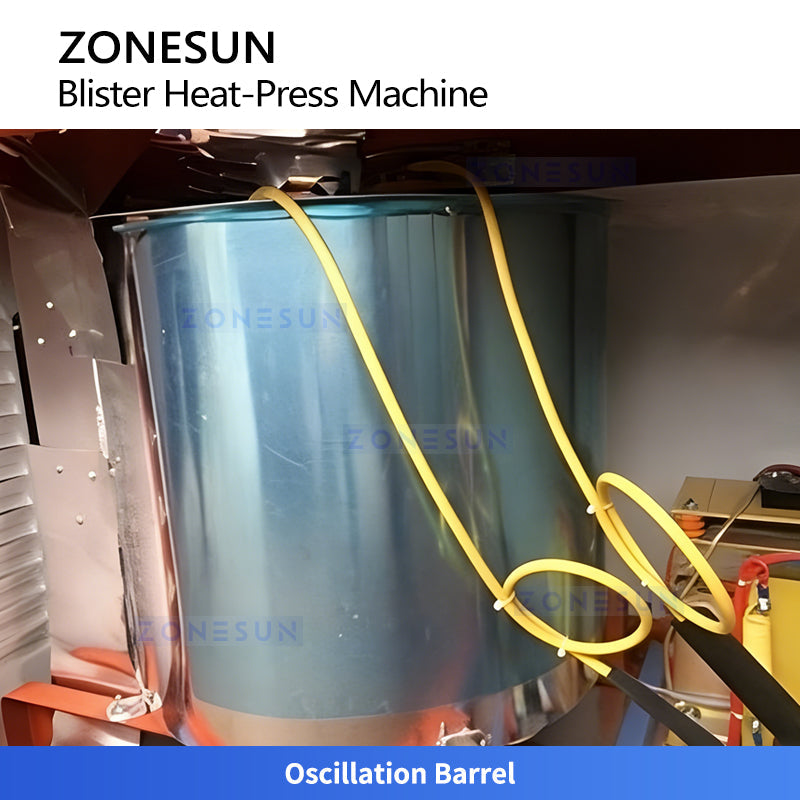

Oscillation Barrel

Outputting stabilized, high-frequency energy to the mold according to the preset parameters, ensuring proper welding depth, strength, and sealing quality.

Why Choose the ZS-HFQ1?

• ✅ High-Frequency Precision: 27.12 / 40.68 MHz dual-frequency options for optimal sealing across different materials
• ✅ Multi-Material Compatible: Seals PVC, PET, and PETG blisters to backing cards
• ✅ Large Format Support: Handles products up to 120 × 300 mm
• ✅ Stable Power Output: 8 KVA with overload protection for safe, continuous operation
• ✅ Adjustable Parameters: Fine-tune welding depth, pressure, and frequency for consistent results
• ✅ Rotary Table Design: Smooth, efficient workflow for semi-automatic production
• ✅ Customizable: Configurations available to suit specific product and production requirements

Ideal Applications

• 🔌 Electronics: USB accessories, cables, small gadgets blister packaging
• 🔧 Hardware: Screws, tools, fasteners retail card packaging
• 🧸 Toys: Action figures, small toy blister card sealing
• 🛒 Retail Products: Daily goods, accessories, cosmetic tools
• 💊 Pharmaceuticals: Medical device blister packaging
