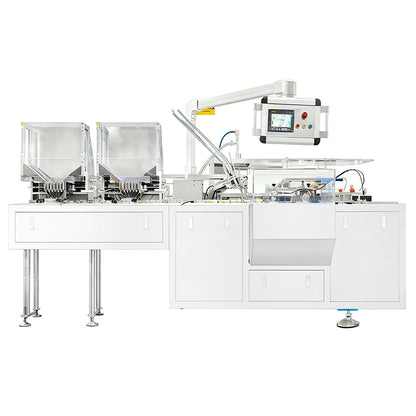

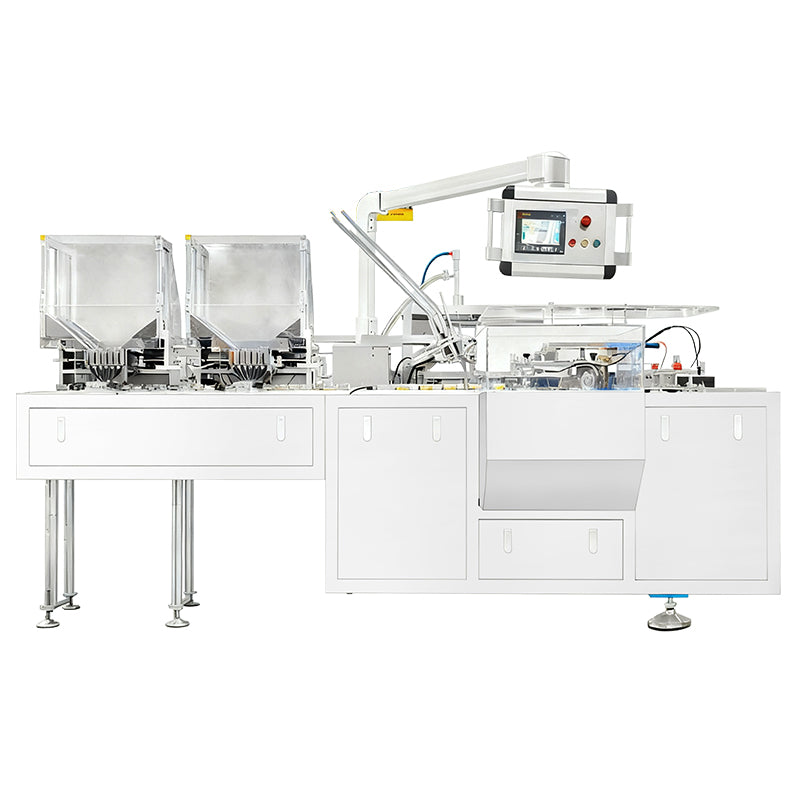

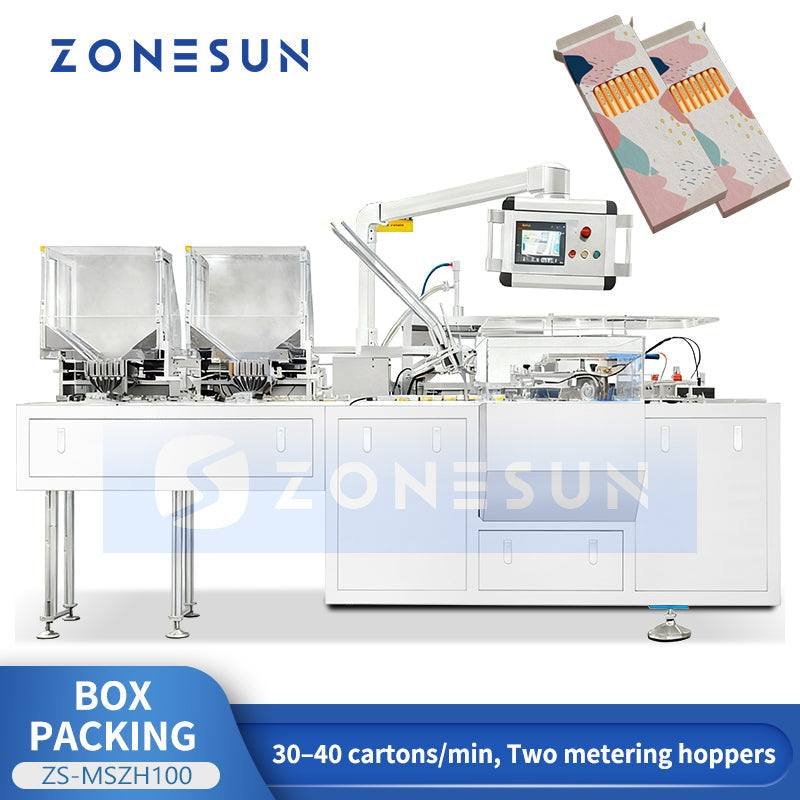

ZONESUN ZS-MSZH100 Automatic Box Pen Packing Machine for Chalk and Pencils

Description

The ZONESUN ZS-MSZH100 is a fully automatic box packing machine designed for efficient and precise packaging of colored school chalk or pencils. Operating at 30–40 cartons per minute, it integrates automatic feeding, dual-hopper metering, box placing, flattening, pushing, folding, and sealing into one streamlined process. Equipped with a PLC color touch screen, it enables intuitive parameter adjustment and multi-set storage for enhanced efficiency. Ideal for stationery and educational product packaging, it ensures consistent output with minimal manual intervention.

Parameter

• Model: ZS-MSZH100
• Carton Size: (W) 18–160 mm × (L) 80–160 mm × (H) 15–50 mm
• Capacity: 30–40 cartons/min
• Power: 220V 50Hz, single-phase electricity
• Weight: 1200 kg
• Air Consumption: 300 m³/h
• Machine Dimension (L×W×H): 3910 × 1107 × 1530 mm

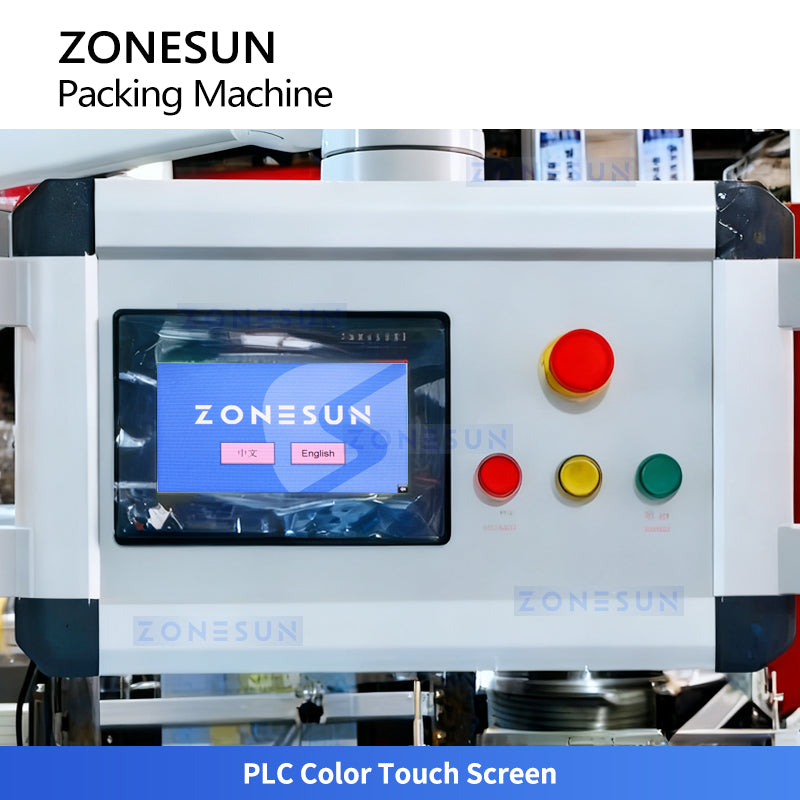

CONTROL PANEL

Adjust packaging parameters through the touch screen which can store multiple sets of parameters to improve work efficiency.

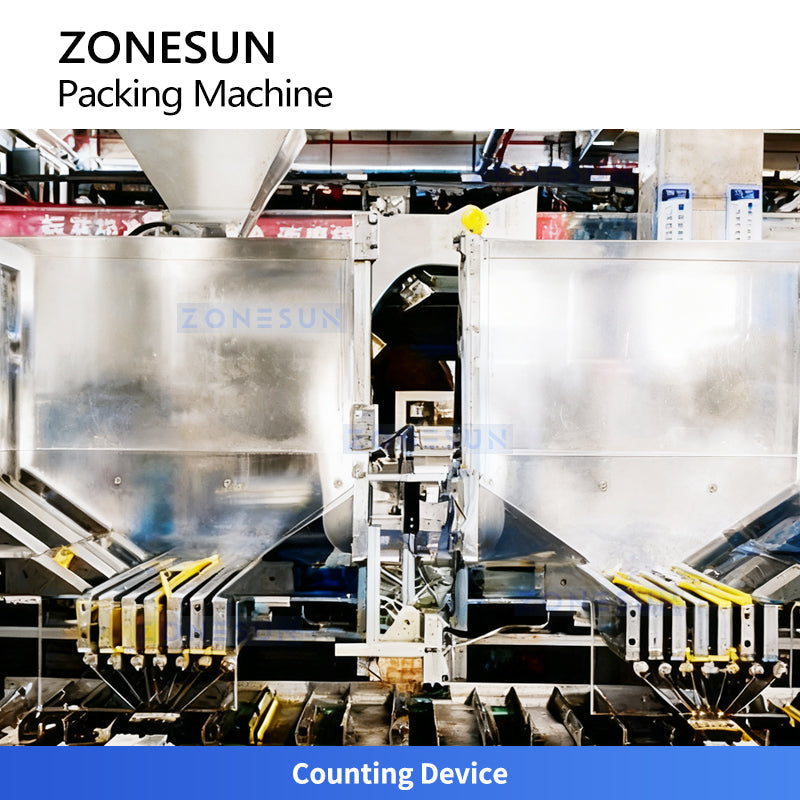

COUNTING DEVICE

Accurately count and control packaging quantity to ensure production efficiency and packaging consistency.

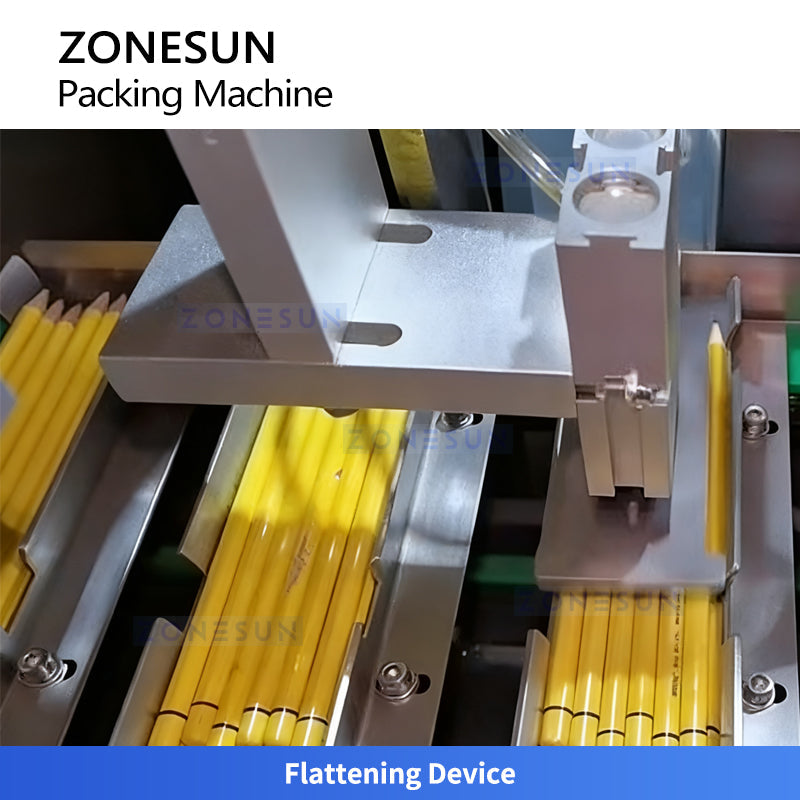

FLATTENING DEVICE

Ensure the flatness and fit of packaging materials to improve packaging quality and appearance consistency.

BOX PLACING DEVICE

Accurately and efficiently delivers empty pencil boxes to the packing station for box opening, ensuring smooth downstream packaging.

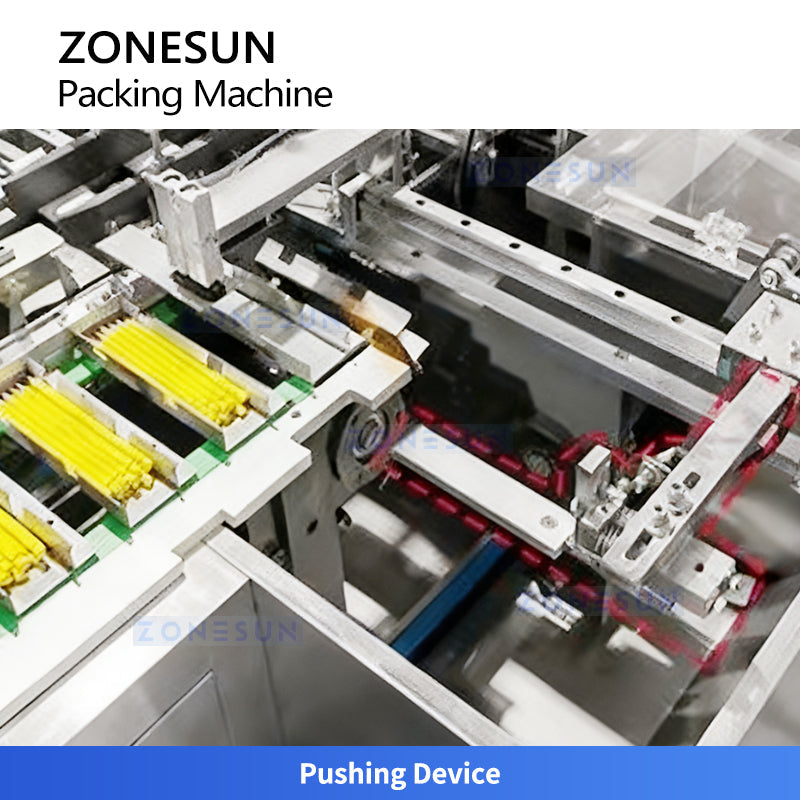

PUSHING DEVICE

Push pencils precisely into designated work stations to ensure the continuity and accuracy of the packaging process.

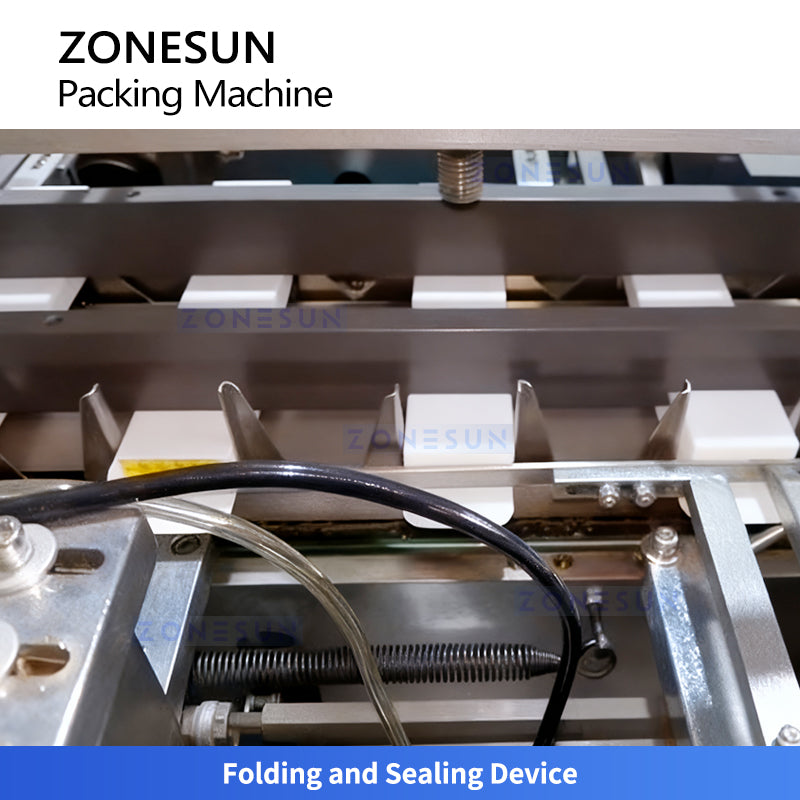

FOLDING & SEALING

Seals pencil case via physical or chemical methods to ensure integrity during transport, storage, and sale.
