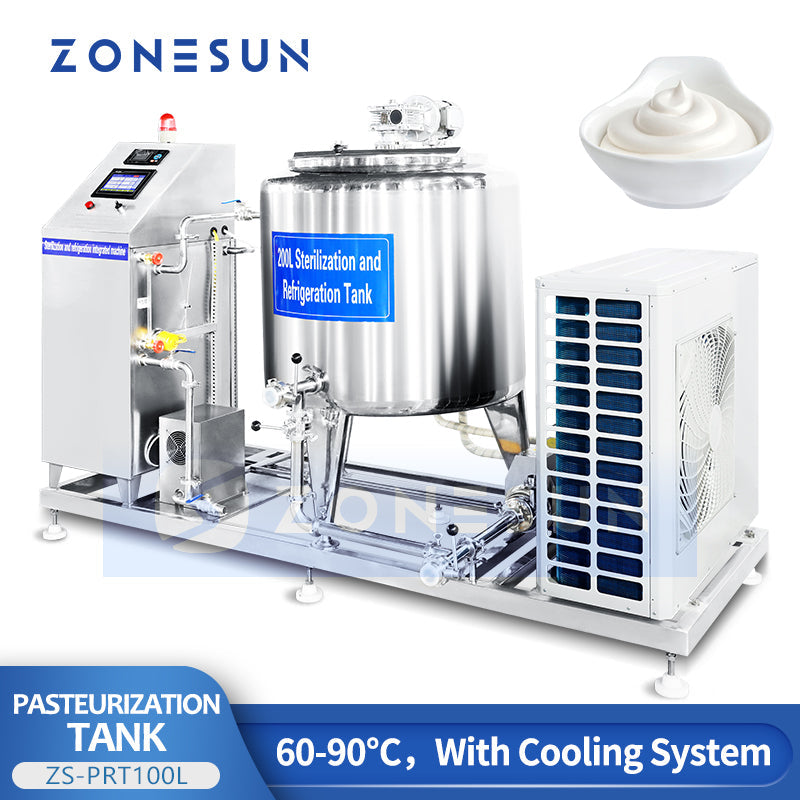

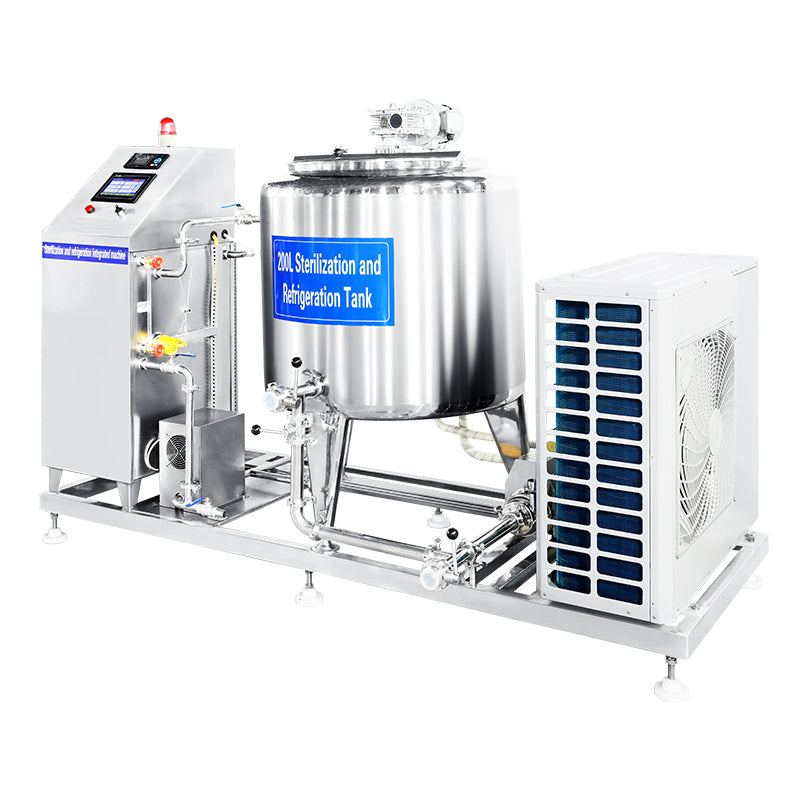

ZONESUN ZS-PRT100L Milk Pasteurization & Refrigeration Tank

$7,199.00 USD

~~$0.00 USD~~ $7,199.00 USD

Sale Sold out

Shipping calculated at checkout.

Size 100L 200L 300L 500L 1000L

Voltage 220V 3-phase 380V 3-phase

DESCRIPTION

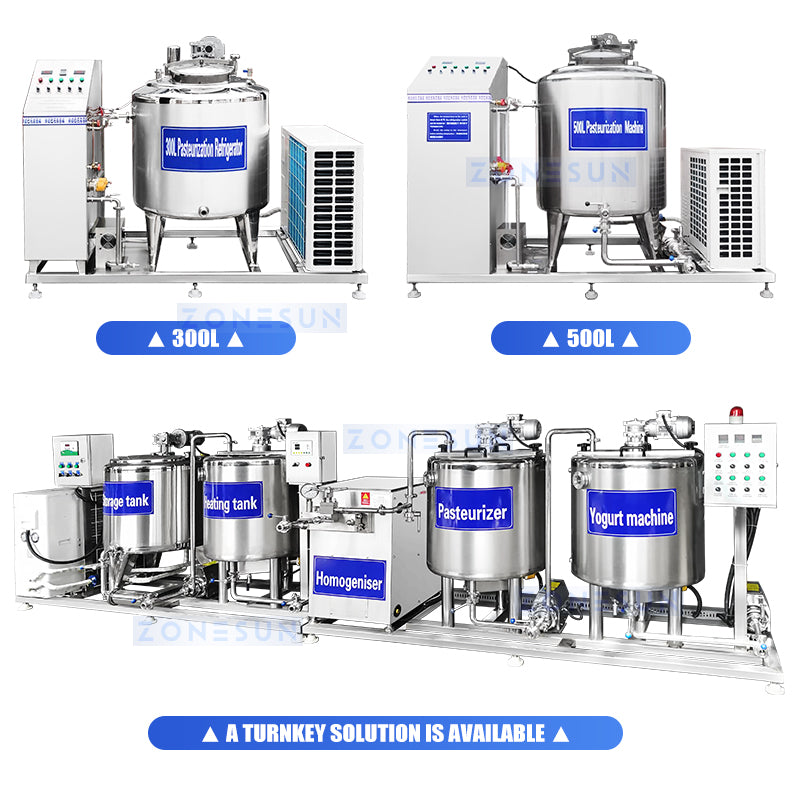

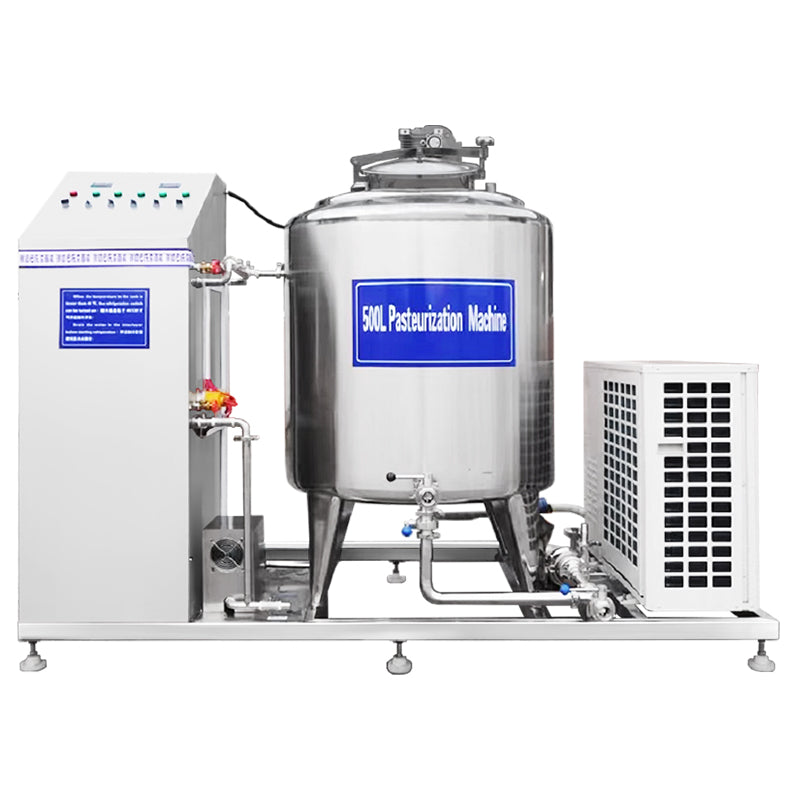

This set of a pasteurization tank and condenser unit is specifically designed for the processing and production of dairy products. It effectively pasteurizes milk and cools it to the desired temperature. The tank can be customized from 100L to 500L, catering to the diverse needs of different users.

SERCIFICTIONS

Refrigeration Type Sterilization Machine
Model	ZS-PRT100L	ZS-PRT-200L	ZS-PRT-300L	ZS-PRT--500L
Structure	3P compressor, four-layer tank, hot water tank, circulation pump
Compressor Unit	3P Copeland compressor	3P Copeland compressor	3P Copeland compressor	3P Copeland compressor
Barrel Inner Diameter	625mm	630mm	850mm	1000mm
Milk Barrel Inner Height	605mm	670mm	750mm	850mm
Sterilization Temperature	60-90°C (adjustable)	60-90°C (adjustable)	60-90°C (adjustable)	60-90°C (adjustable)
Cooling Temperature	Water cooling to 45 °C; compressor cooling to 2–6 °C
Heating Cycle	30-40 min	40-60 min	60-90 min	60-90 min
Cooling Cycle	Water cooling to 40 °C ≈ 20–30 min; compressor cooling to 2–6 °C ≈ 60 min
Power Supply	380V/12kw	380v/12kw	380W/24kw	380W/24kw
Machine Dimensions (L×W×H)	250011001500mm	250011001500mm	270011001600mm	280011001800mm
Machine Weight	About 300kg	About 350kg	About 500kg	About  600kg

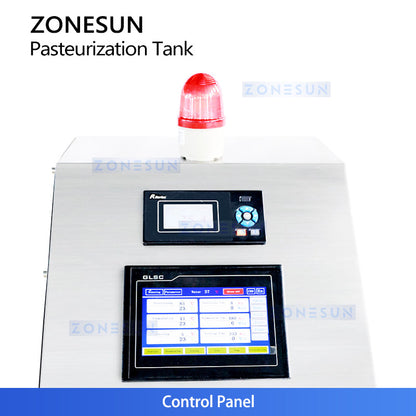

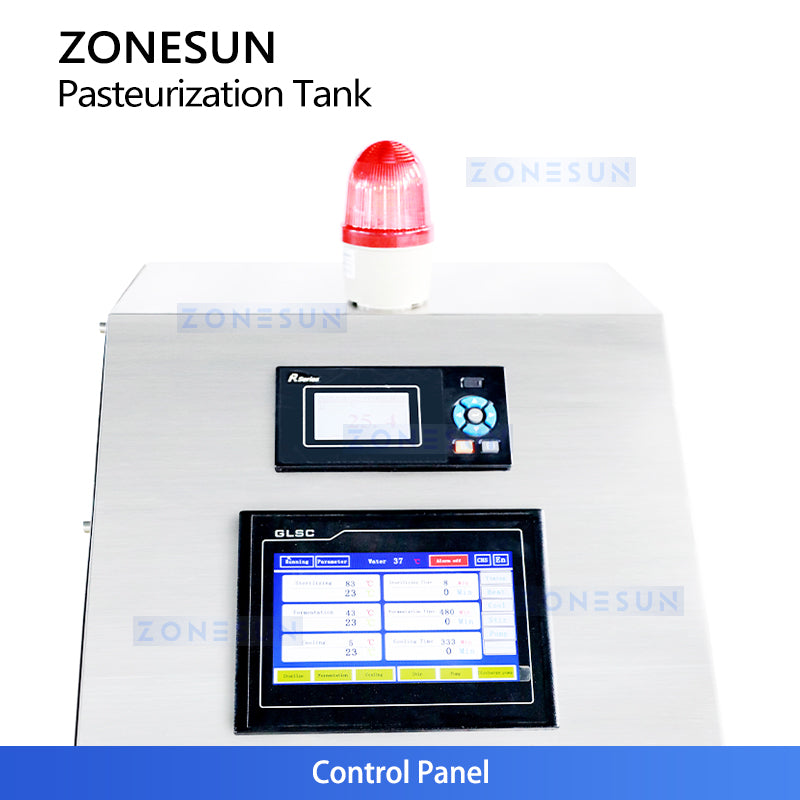

CONTROL PANEL

Provides intuitive temperature control through a user-friendly physical keypad, while the digital regulator ensures precise temperature readings and adjustments.

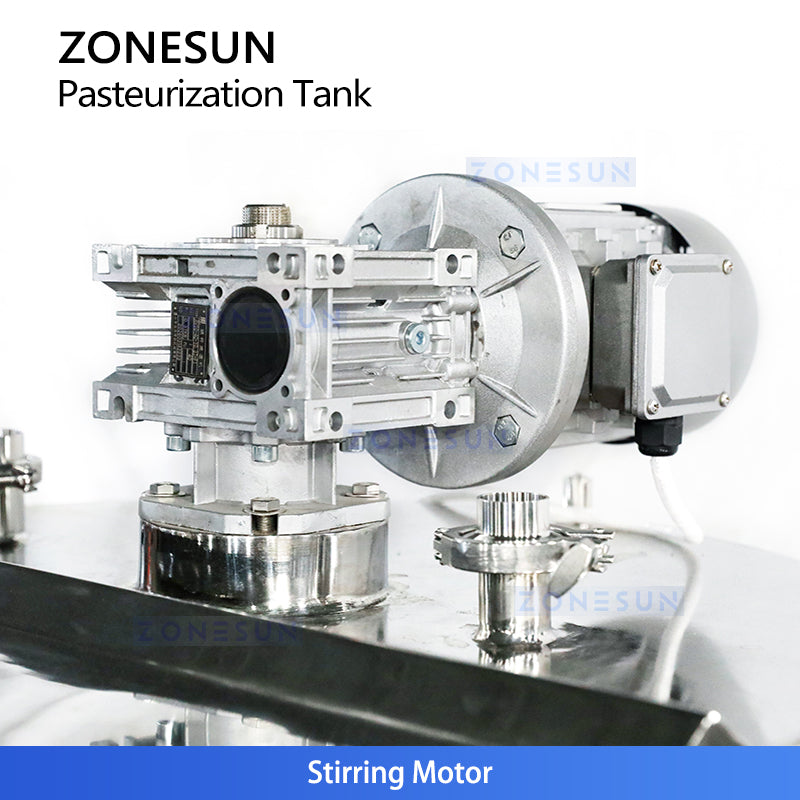

STIRRING MOTOR

Drives the internal agitator to ensure continuous and uniform mixing, promoting even fermentation, temperature distribution, and material circulation inside the tank.

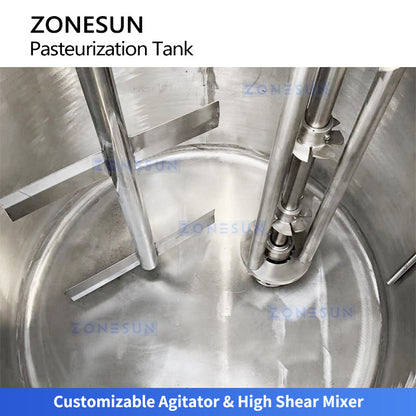

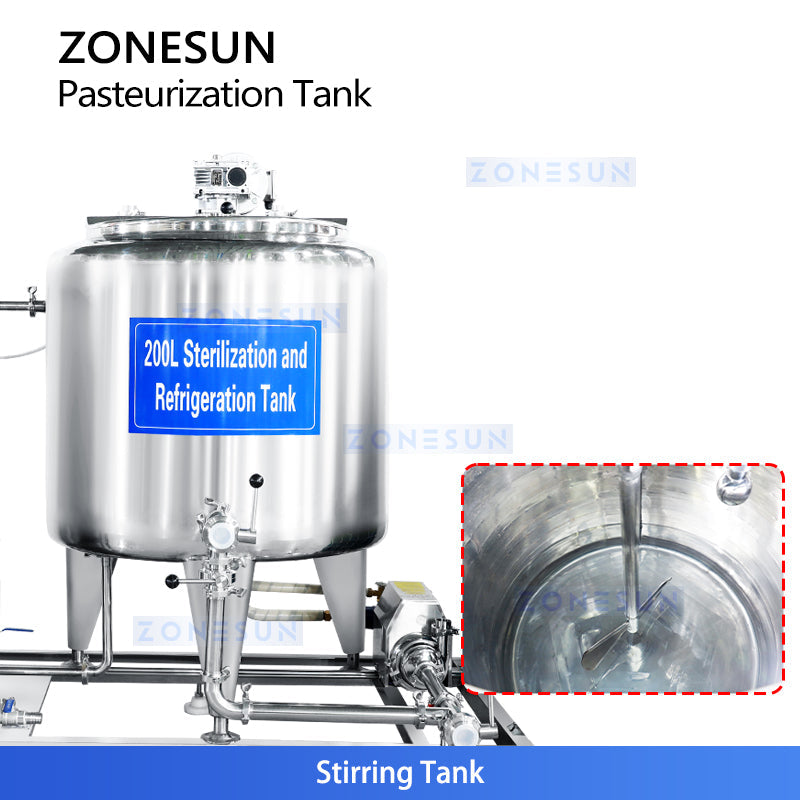

STIRRING TANK

Houses an internal agitator to ensure uniform mixing of milk during heating and cooling, and can be integrated with a high-shear mixer to support enhanced processing requirements.

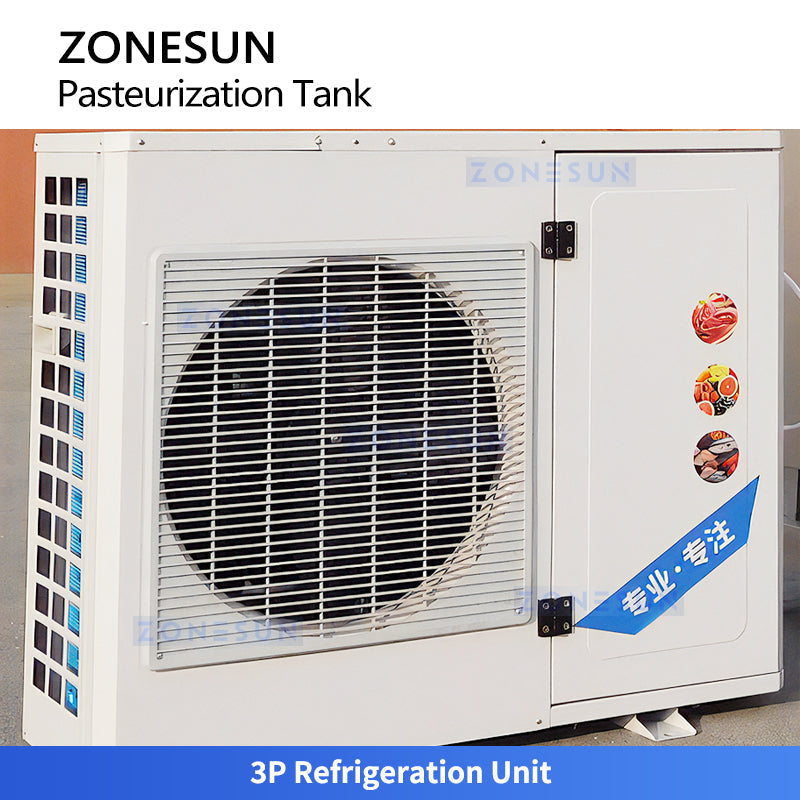

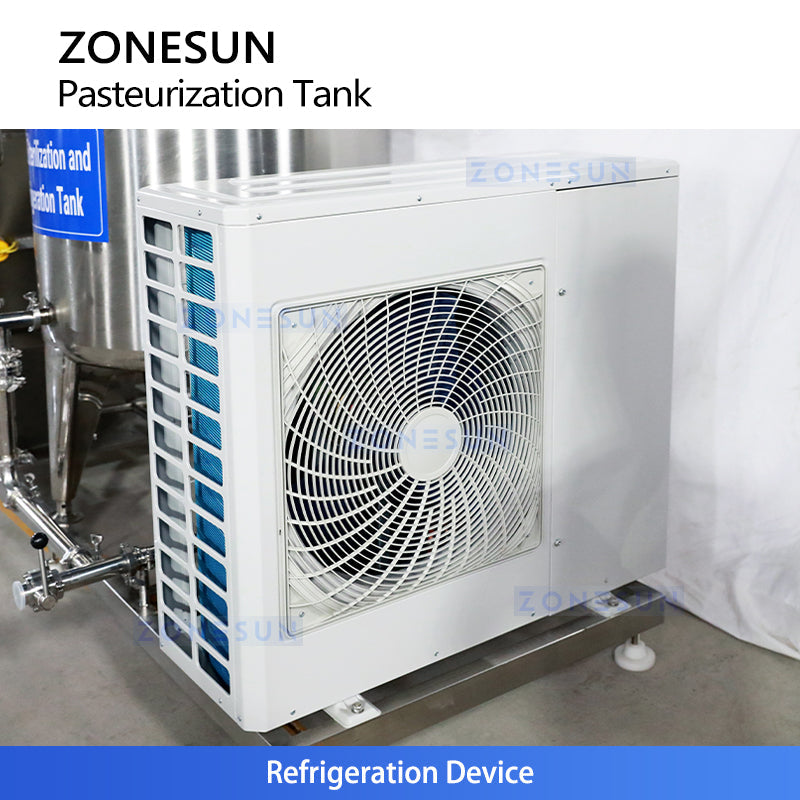

REFRIGERATION DEVICE

Delivers high-power cooling performance to efficiently and reliably chill pasteurized milk, helping maintain its freshness and safety during storage.

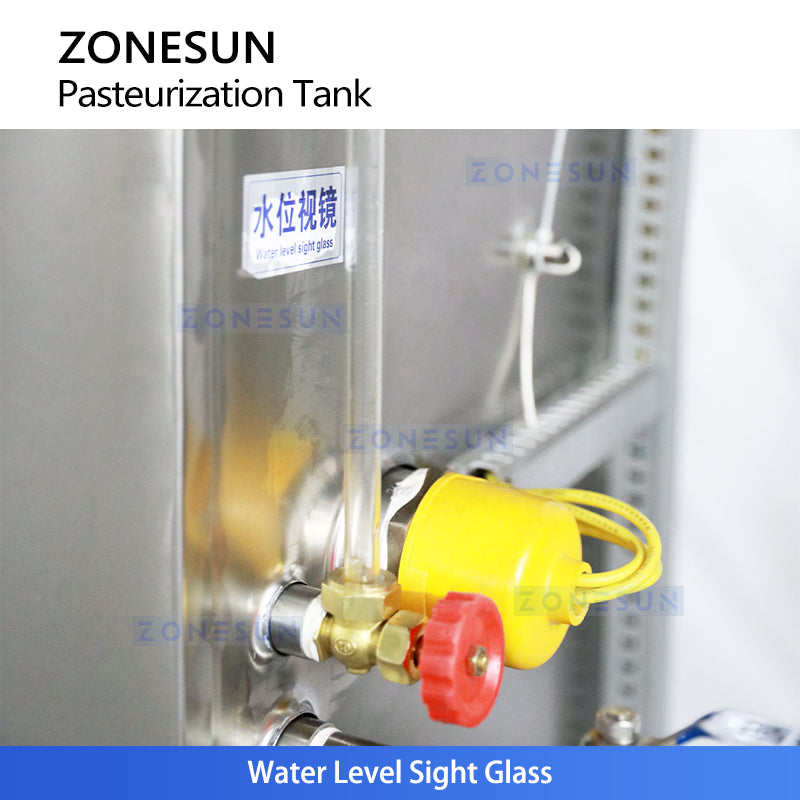

WATER LEVEL SIGHT GLASS

Provides real-time visual indication of the tank's internal water level for accurate filling, safe operation, and basic water-quality observation through the transparent sight tube.
