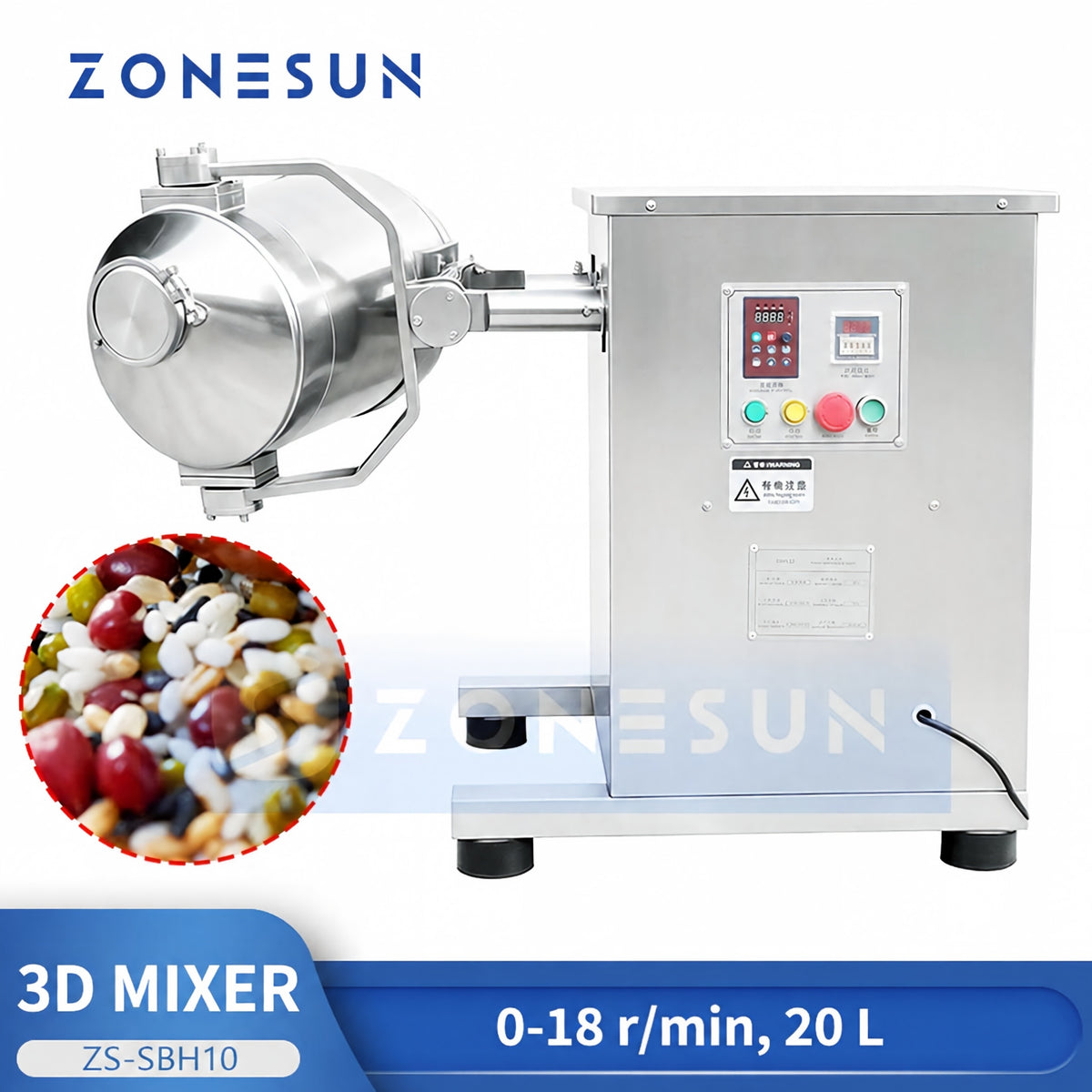

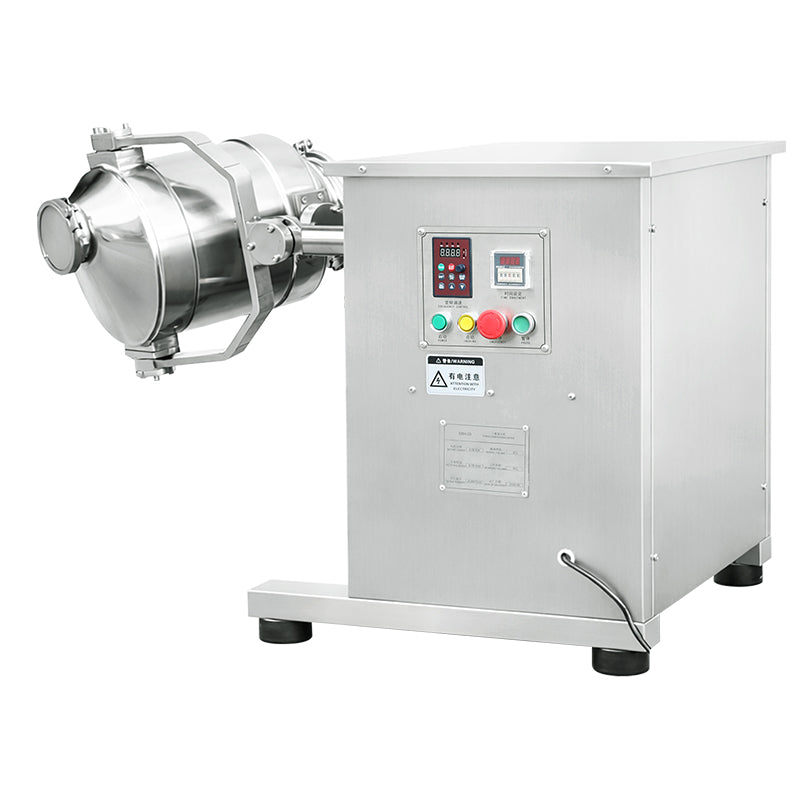

ZONESUN ZS-SBH10 3D Dry Powder Mixer Particle Blender

DESCRIPTION

The ZONESUN ZS-SBH10 is a high-efficiency 3D powder mixer designed for uniform blending of dry materials with varying densities and particle sizes. Its unique triangle swing and rotational motion generate strong alternating pulses for thorough mixing. Ideal for food and chemical industries, it ensures consistent results with low noise and easy cleaning.

Parameter

SBH-10

• Tank Volume: 10 L
• Recommended Volume: 8 L
• Working Volume: 5 kg
• Spindle Speed: 0–15 rpm
• Power: 0.75 kW
• Machine Size: 800 × 1200 × 1000 mm
• Machine Weight: 135 kg

SBH-20

• Tank Volume: 20 L
• Recommended Volume: 14 L
• Working Volume: 10 kg
• Spindle Speed: 0–15 rpm
• Power: 0.75 kW
• Machine Size: 880 × 720 × 750 mm
• Machine Weight: 150 kg

SBH-50

• Tank Volume: 50 L
• Recommended Volume: 40 L
• Working Volume: 25 kg
• Spindle Speed: 0–15 rpm
• Power: 1.1 kW
• Machine Size: 1000 × 1400 × 1200 mm
• Machine Weight: 300 kg

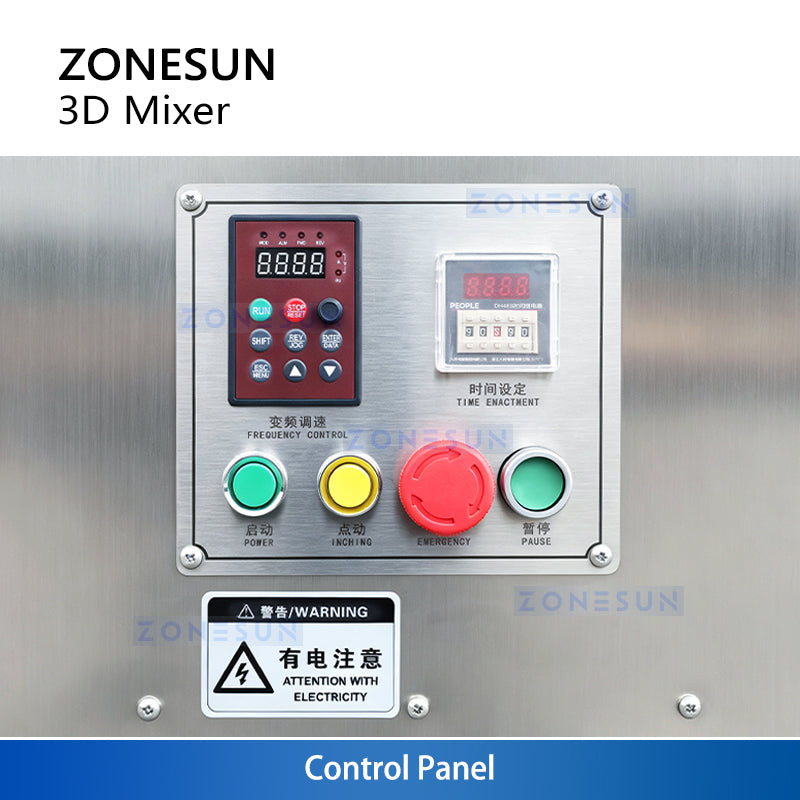

Control Panel

Allows operators to set mixing speed and operating time while providing convenient start and stop control.

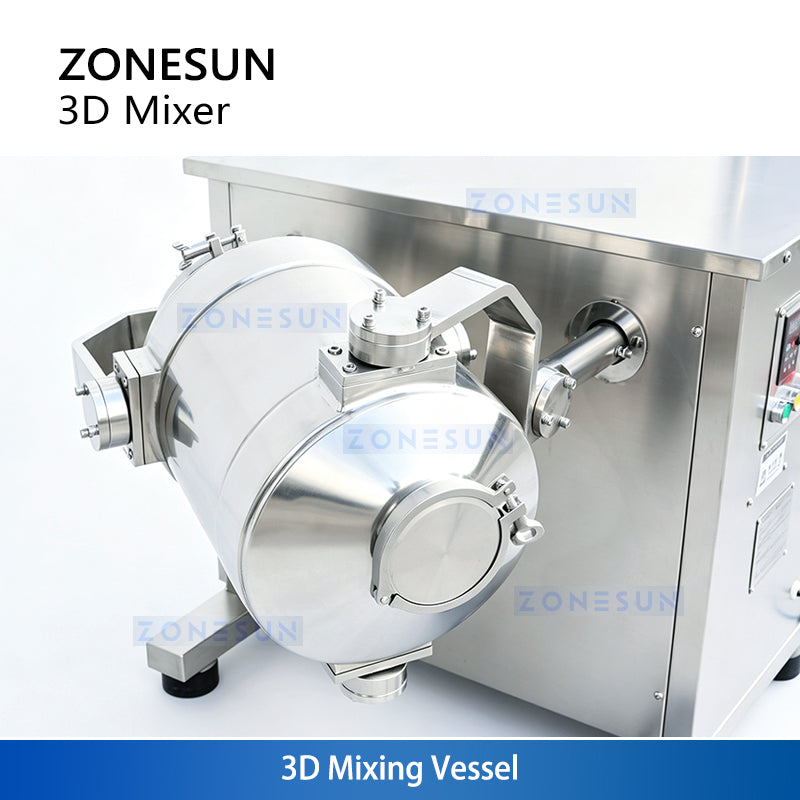

3D Mixing Vessel

The sealed mixing vessel moves in multiple directions to continuously tumble and redistribute powders or granules, promoting fast and uniform mixing.

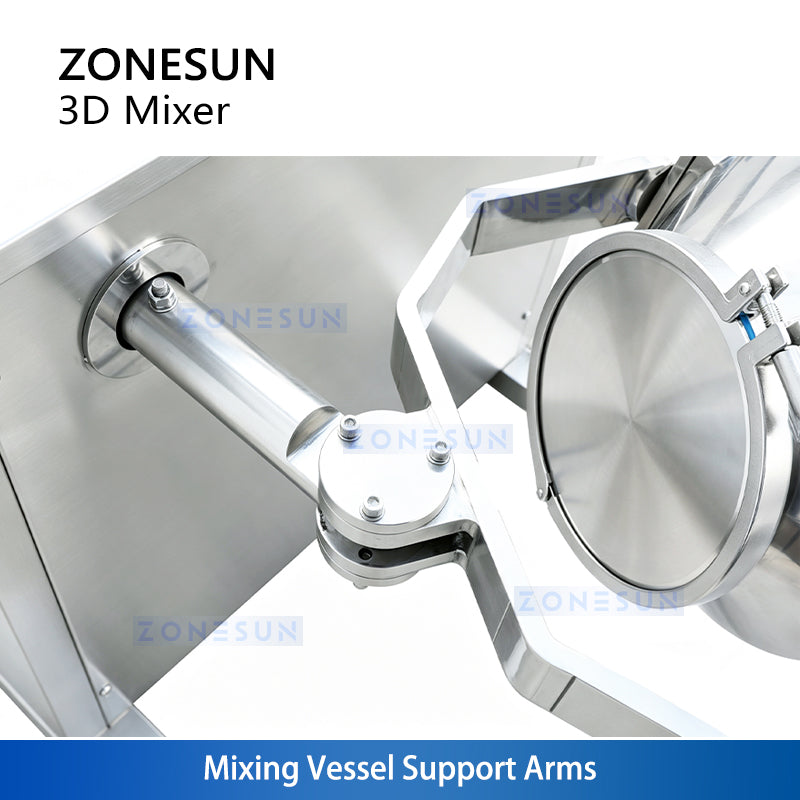

Mixing Vessel Support Arms

Securely support the mixing vessel and transmit multi-directional motion from the drive system for stable operation.

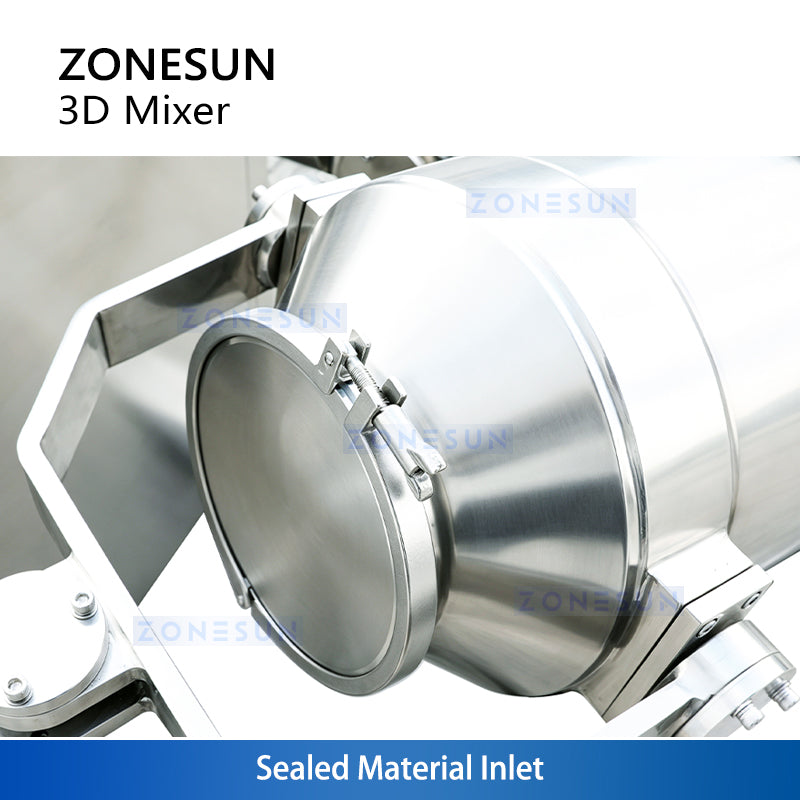

Sealed Material Inlet

Provides convenient material loading while maintaining an enclosed mixing environment to help reduce dust and external contamination.

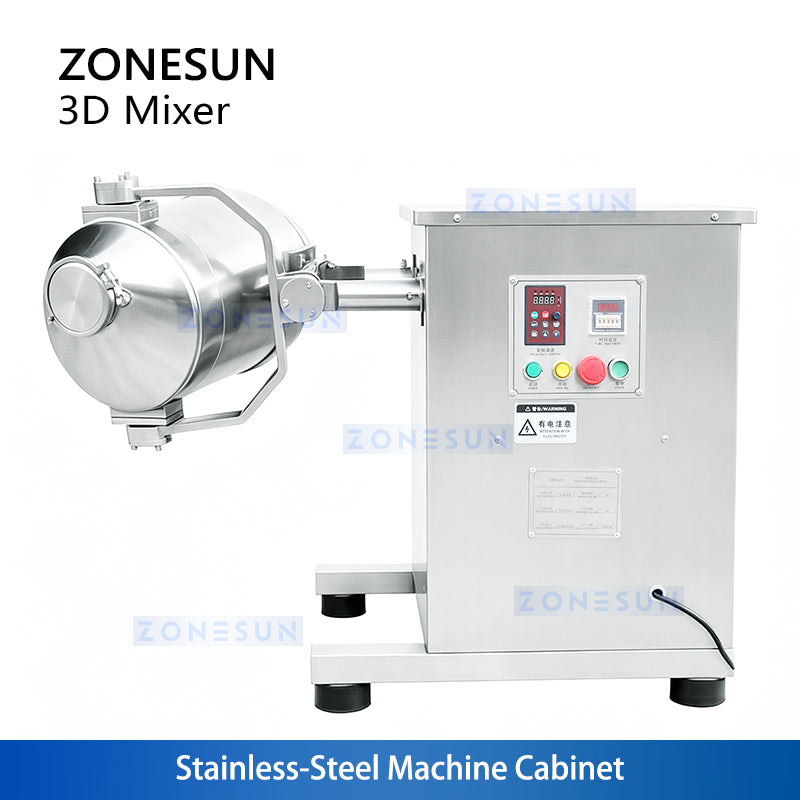

Stainless-Steel Machine Cabinet

Provides stable structural support while protecting the internal drive and electrical components.
