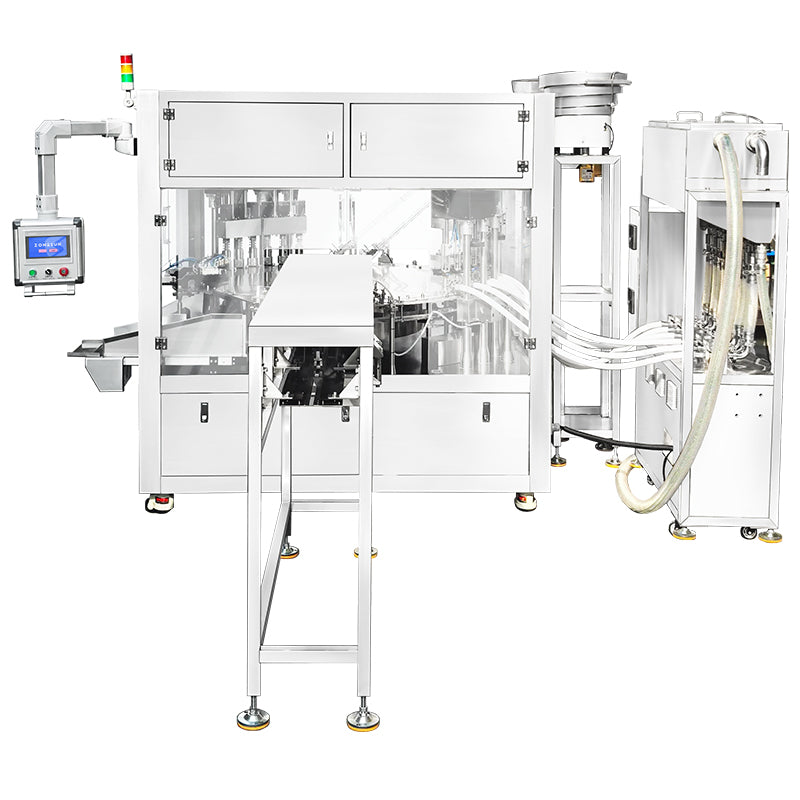

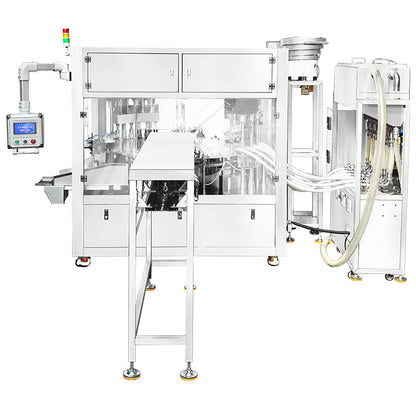

ZONESUN ZS-SPFC6 Automatic High Speed Spout Pouch Filling and Capping Machine

DESCRIPTION

Introducing our Fully Automatic High-Speed Spout Pouch Filling and Capping Machine, designed for seamless production efficiency. This machine features automatic bag feeding, automatic insertion, and advanced detection capabilities. Constructed from 304 food-grade stainless steel, with 316 stainless steel in material contact areas, it ensures excellent rust resistance and hygiene. Its stability and efficiency make it ideal for various bag sizes, thanks to interchangeable molds, providing strong compatibility with different packaging materials.

Parameter

• Model: ZS-SPFC6
• Voltage: 220V 50Hz
• Machine power: 5kW
• Production speed: Within
• 500ml: 60–70 bags/min
• 1L: 50–60 bags/min
• Filling accuracy: ±1%
• Filling volume: 100ml–1000ml
• Filling viscosity: 12000CPS
• Overall machine size: L2400 * W2200 * H1900mm
• Net weight: About 1000KG
• Filling pump head: 60L gear pump * 6 (can be customized according to needs)
• Number of lock heads: 6

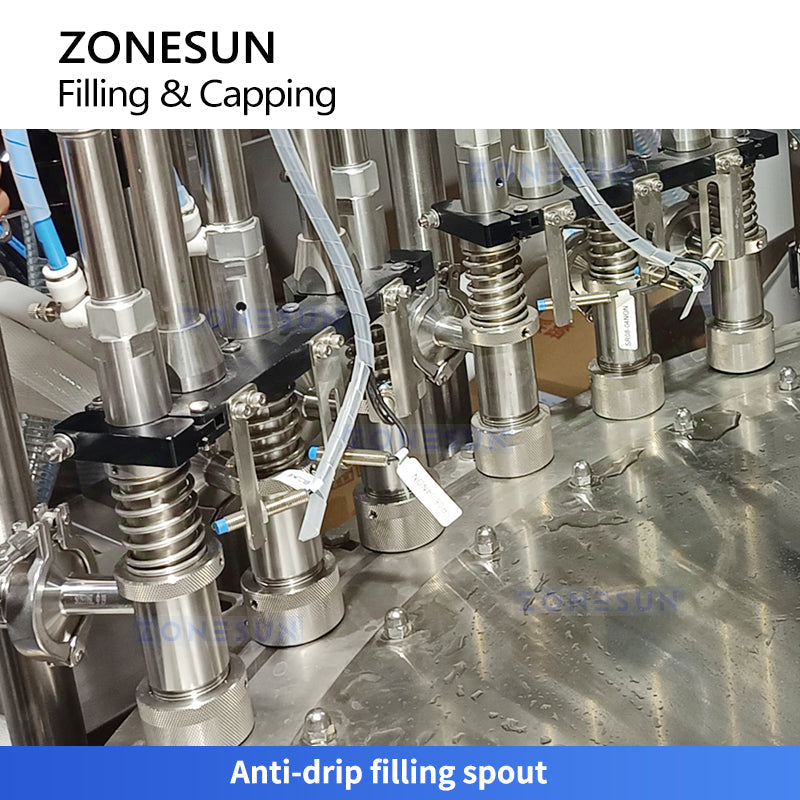

ANTI-DRIP FILLING

Six independently controlled filling nozzles support precise operation. Their lifting design enables accurate, efficient filling while reducing drips.

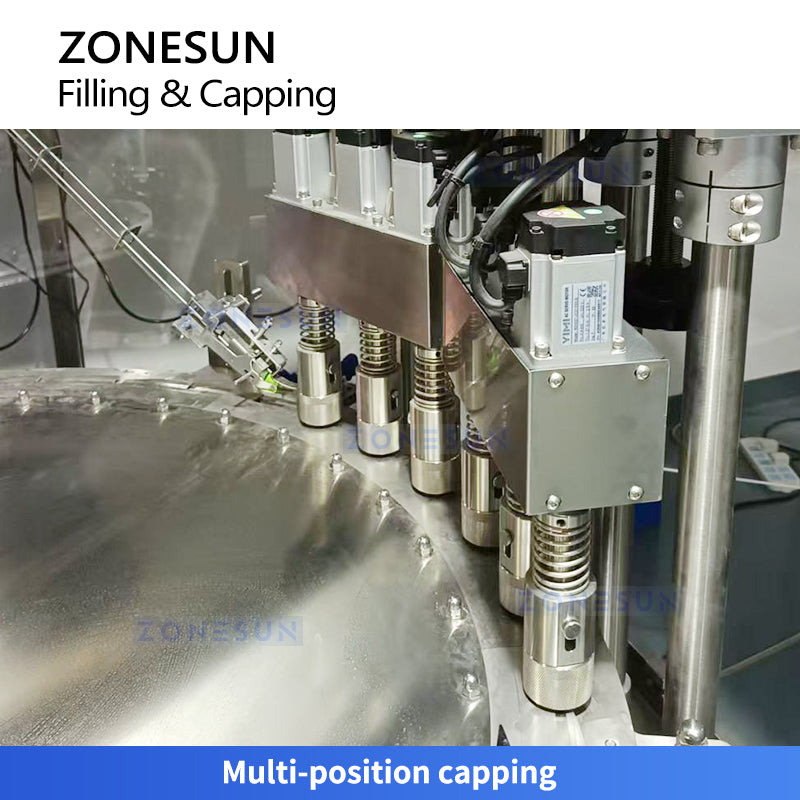

MULTI-POSITION CAPPING

Multiple pouches can be capped at the same time. Integrated cap rotation and locking mechanisms fasten caps quickly and securely.

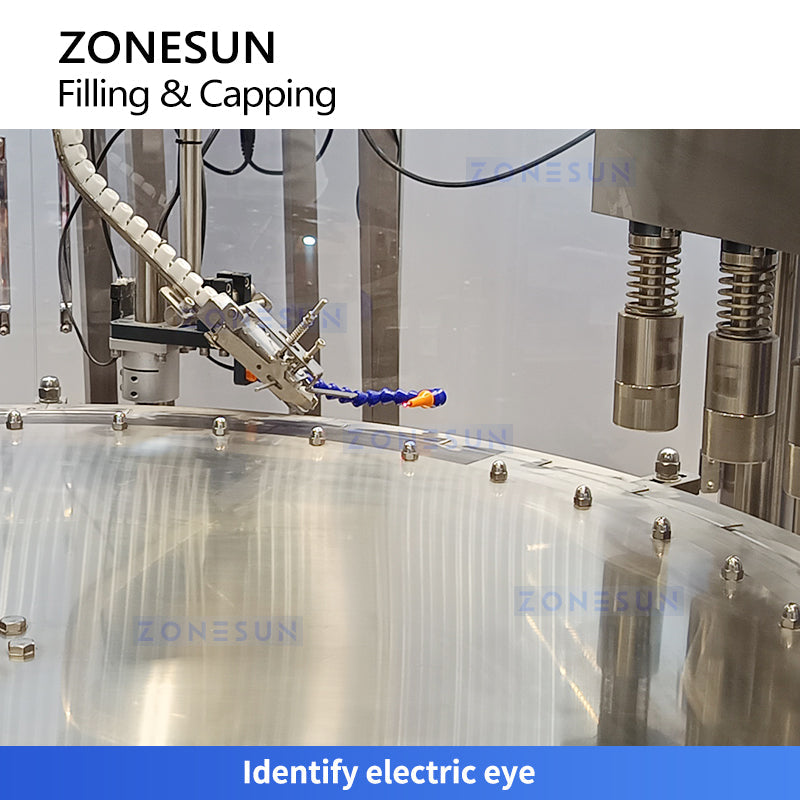

ELECTRIC EYE

The precision positioning system uses electric-eye sensing during capping to ensure correct positioning and avoid handling when no pouch is present.

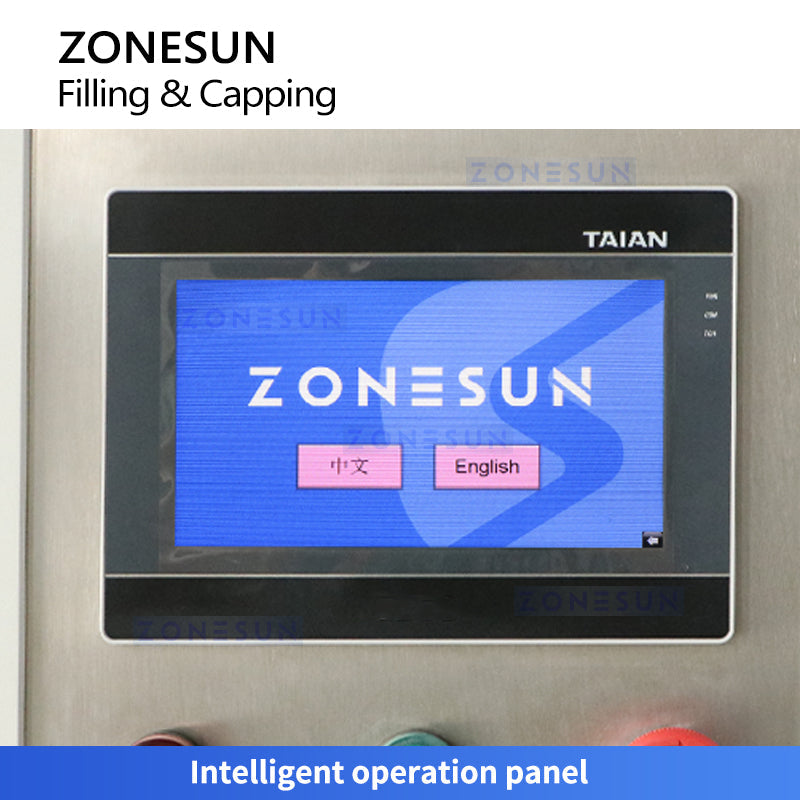

OPERATION PANEL

The PLC touchscreen is easy to operate, and its interface can be customized to support multiple languages.
