ZONESUN ZS-TSM07 Anti-drip Nozzle 1-20L Servo Liquid Filling Machine
ZONESUN ZS-TSM07 Anti-drip Nozzle 1-20L Servo Liquid Filling Machine
Couldn't load pickup availability
DESCRIPTION

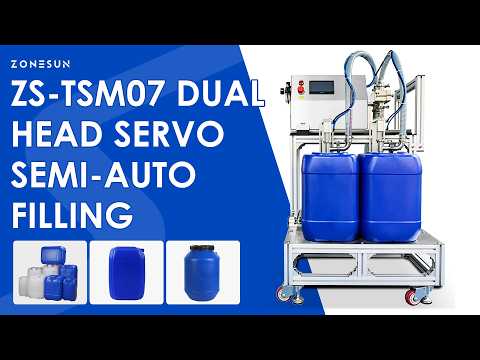

The ZONESUN ZS-TSM07 is a dual-head servo semi-automatic liquid filling machine engineered for medium and large container filling across a 1–20 L range. Equipped with a high-flow magnetic pump (up to 100 L/min), servo motor drive, and PLC touchscreen control, it delivers high-precision, stable filling for a wide range of liquids.
Featuring an anti-drip, anti-splash nozzle system, modular quick-release pipelines, and lockable caster wheels, the ZS-TSM07 is designed for flexible, hygienic, and efficient industrial packaging — ideal for edible oil, juice, beer, detergents, laundry liquids, paints, and urea solution.
Technical Specifications
| Model | ZS-TSM07 |
| Power | 1,600 W |
| Voltage | 110V / 220V, 50–60 Hz |
| Motor Type | Servo Motor |
| Filling Pump | Magnetic Pump (up to 100 L/min) |
| Recommended Filling Range | 1–20 L |
| Filling Range | 1,000–50,000 ml |
| Production Efficiency | ~4–10 barrels/min (depending on size) |
| Applicable Bottle Height | ~30–300 mm |
| Applicable Bottle Diameter | ~20–90 mm |
| Suitable Cap Size | Height ≤10–30 mm, Diameter ≤20–50 mm |
| Packaging Dimensions (L×W×H) | ~760 × 920 × 1,390 mm |
| Shipping Weight | ~120 kg |
Key Features
PLC Touchscreen Control Panel
Touchscreen interface with emergency stop and operation buttons enables parameter adjustment, real-time monitoring, and error reduction for stable, consistent production.
High-Flow Magnetic Pump System
Powered by high-precision magnetic pumps with up to 100 L/min flow rate, it shortens drum-filling cycles while maintaining exceptional accuracy — ideal for large-volume industrial containers.
Anti-Splash & Anti-Drip Nozzle System
Deep-reach nozzle prevents splashing and foam at high flow, while a pneumatic sealing mechanism cuts fluid instantly — ensuring clean, drip-free filling even with viscous liquids.

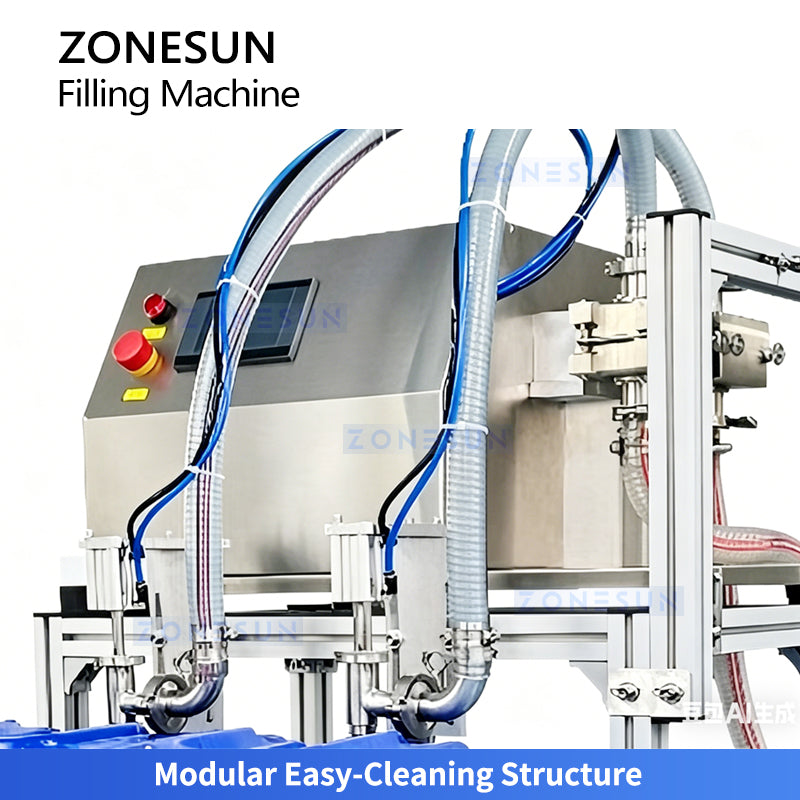

Modular Easy-Cleaning Pipeline Structure
Quick-release clamps and a dead-zone-free design allow rapid cleaning and maintenance when switching between different products — minimizing downtime and cross-contamination risk.
Suitable Applications
🔧 Need custom filling range, nozzle configuration, or production line integration?
Contact ZONESUN for OEM/ODM customization, technical specifications, and bulk pricing. Our engineering team is ready to tailor the ZS-TSM07 to your exact production requirements.
