ZONESUN ZS-VPM20 Automatic Bag Feeding Vacuum Shrink Packaging Machine
ZONESUN ZS-VPM20 Automatic Bag Feeding Vacuum Shrink Packaging Machine
Couldn't load pickup availability
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Description

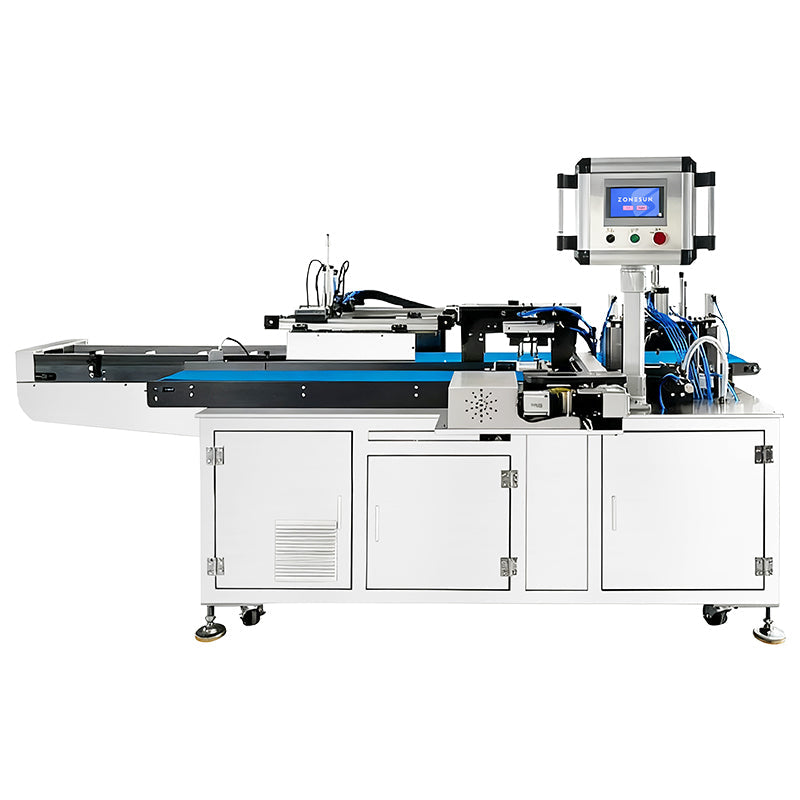

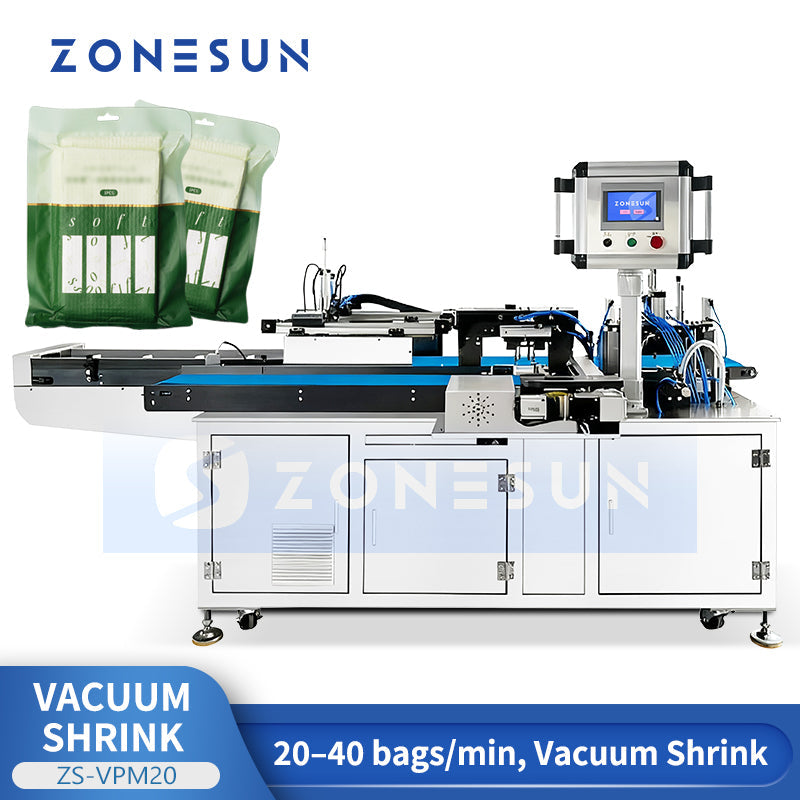

The ZONESUN ZS-VPM20 is a fully automatic vacuum shrink packaging machine designed for preformed bags and pouches. It integrates vacuum suction cup bag opening, material pushing, heat sealing, and shrink wrapping into a streamlined process that ensures tight and uniform seals. Operating at 20–40 bags per minute, the machine supports various pouch formats and packaging materials. Its compact design, touch-screen control, and modular structure make it ideal for high-speed, multi-format packaging lines in food, chemical, and daily product industries.
Parameter
- Machine Name: ZS-VPM20
- Packaging Type: Bags / Pouches
- Packing Speed: 20–40 bags/min
- Seal Width: 80–200 mm
- Seal Length: 150–350 mm
- Voltage: 220V / 380V / 50Hz / 60Hz
- Driven Type: Electric
- Automation Grade: Automatic
- Packaging Material: Plastic
- Machine Dimensions: 1450 × 650 × 980 mm
- Package Size: 1200 × 1500 × 1800 mm
- Machine Weight: 350 kg

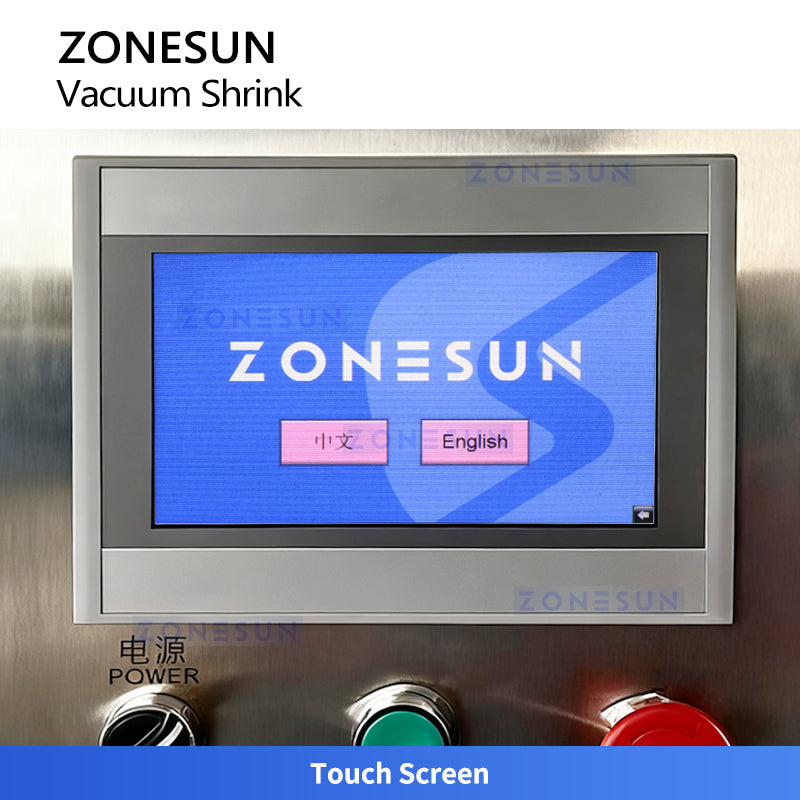

TOUCH SCREEN
The machine parameters are set using a touchscreen, which supports multiple languages and is easy to operate.

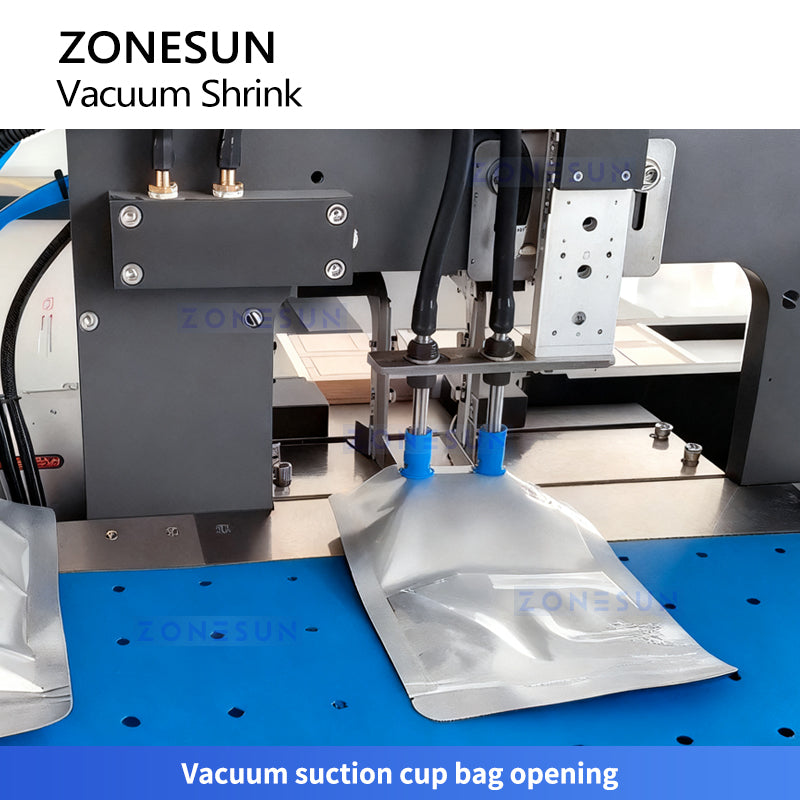

VACUUM SHRINK
Utilizes vacuum suction cups to adsorb and open pouch mouths.

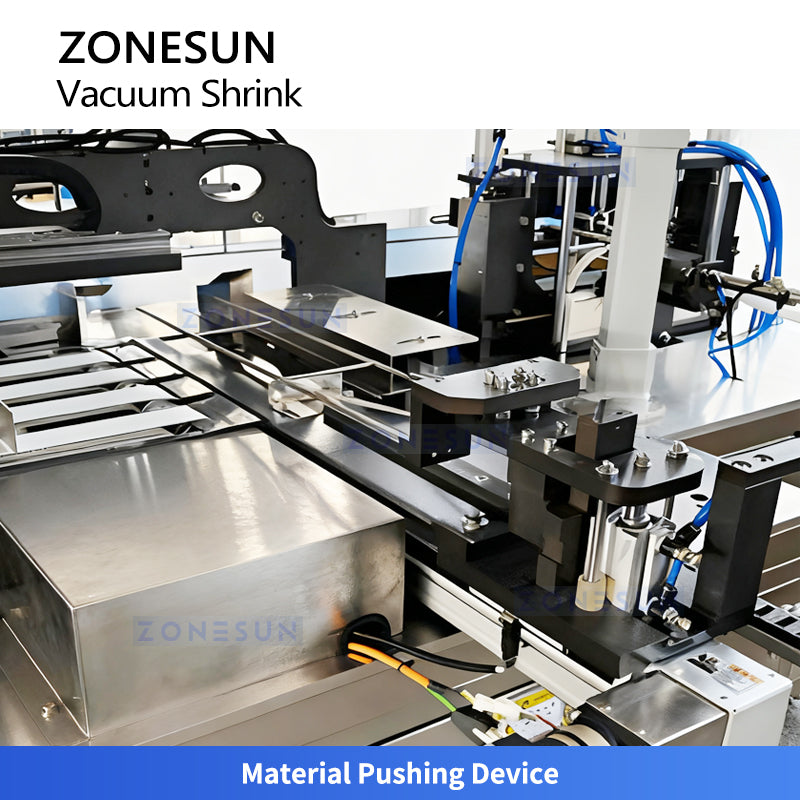

MATERIAL PUSHING
Automatically push materials into the bag through the opening of the suction cup.

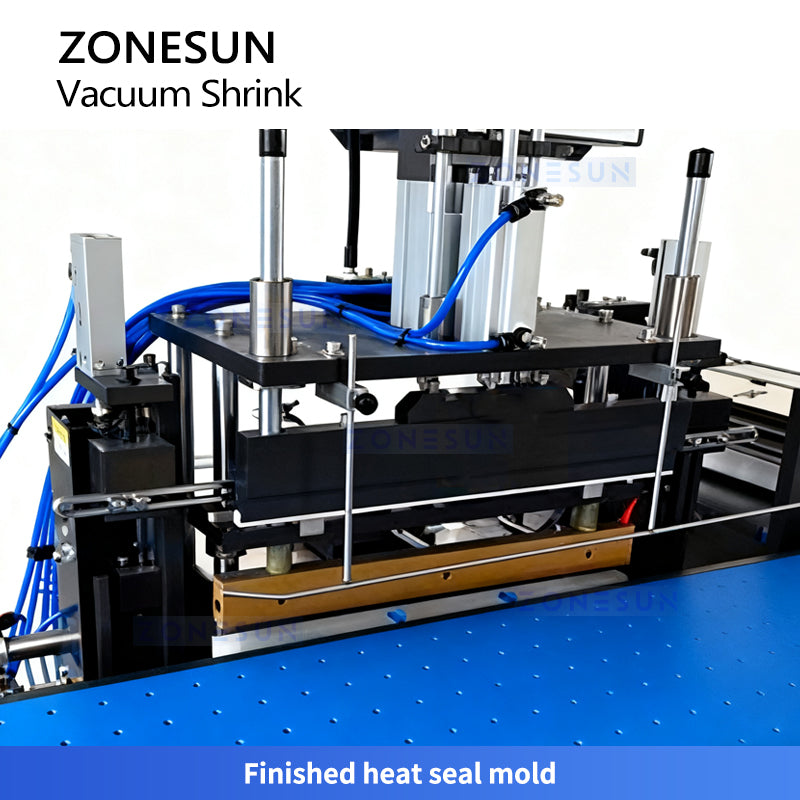

HEAT SEAL MOLD
Intelligent heat sealing and shrinking ensures tight and uniform seals.

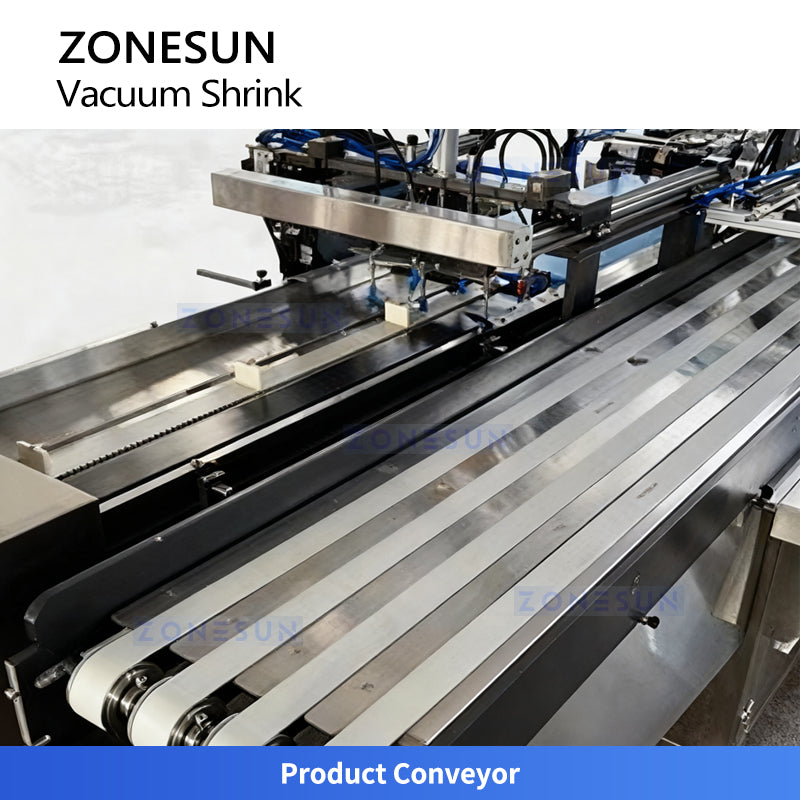

PRODUCT CONVEYOR
Put the products that need to be packaged on the conveyor belt.
VACUUMING DEVICE
High-speed vacuum system with suction cups for precise and automatic bag handling.
