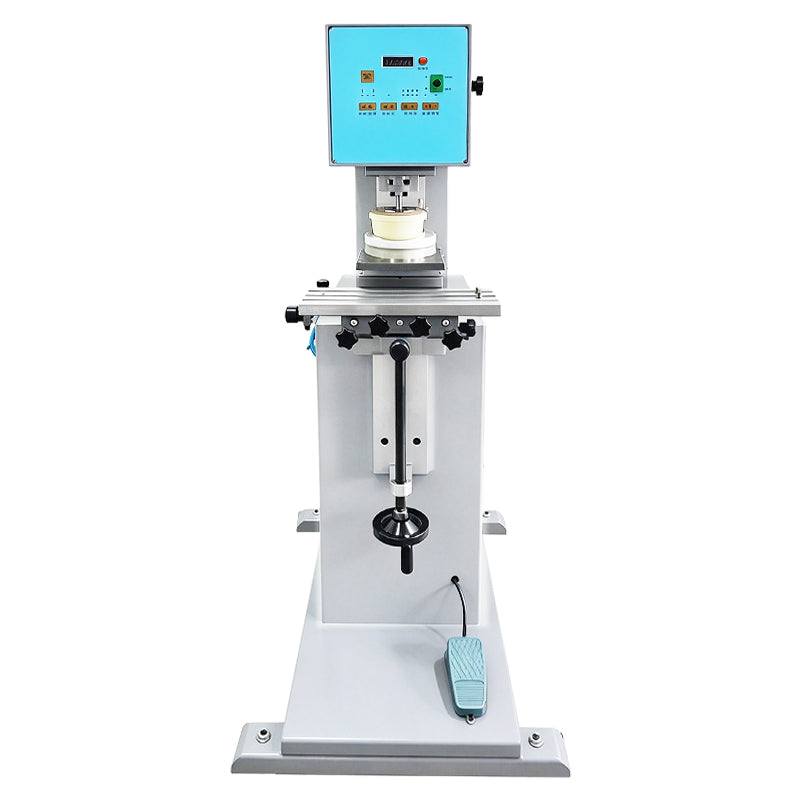

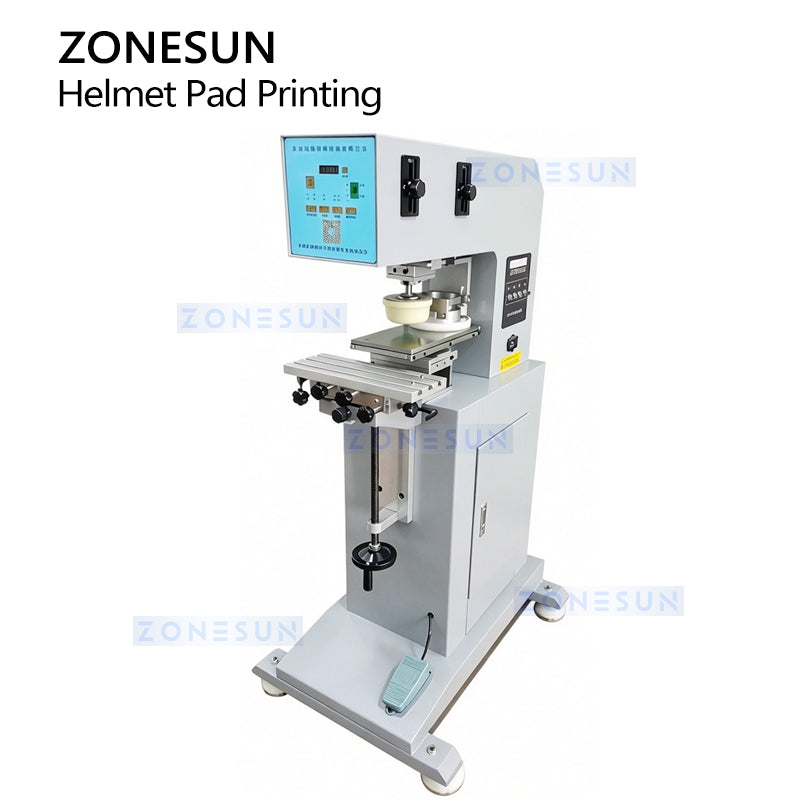

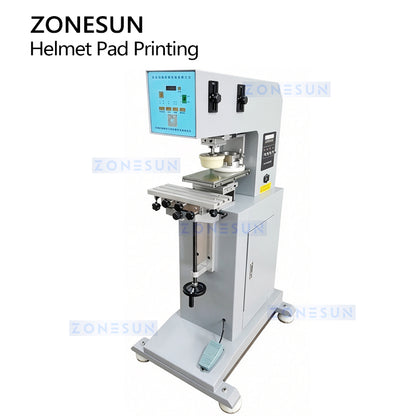

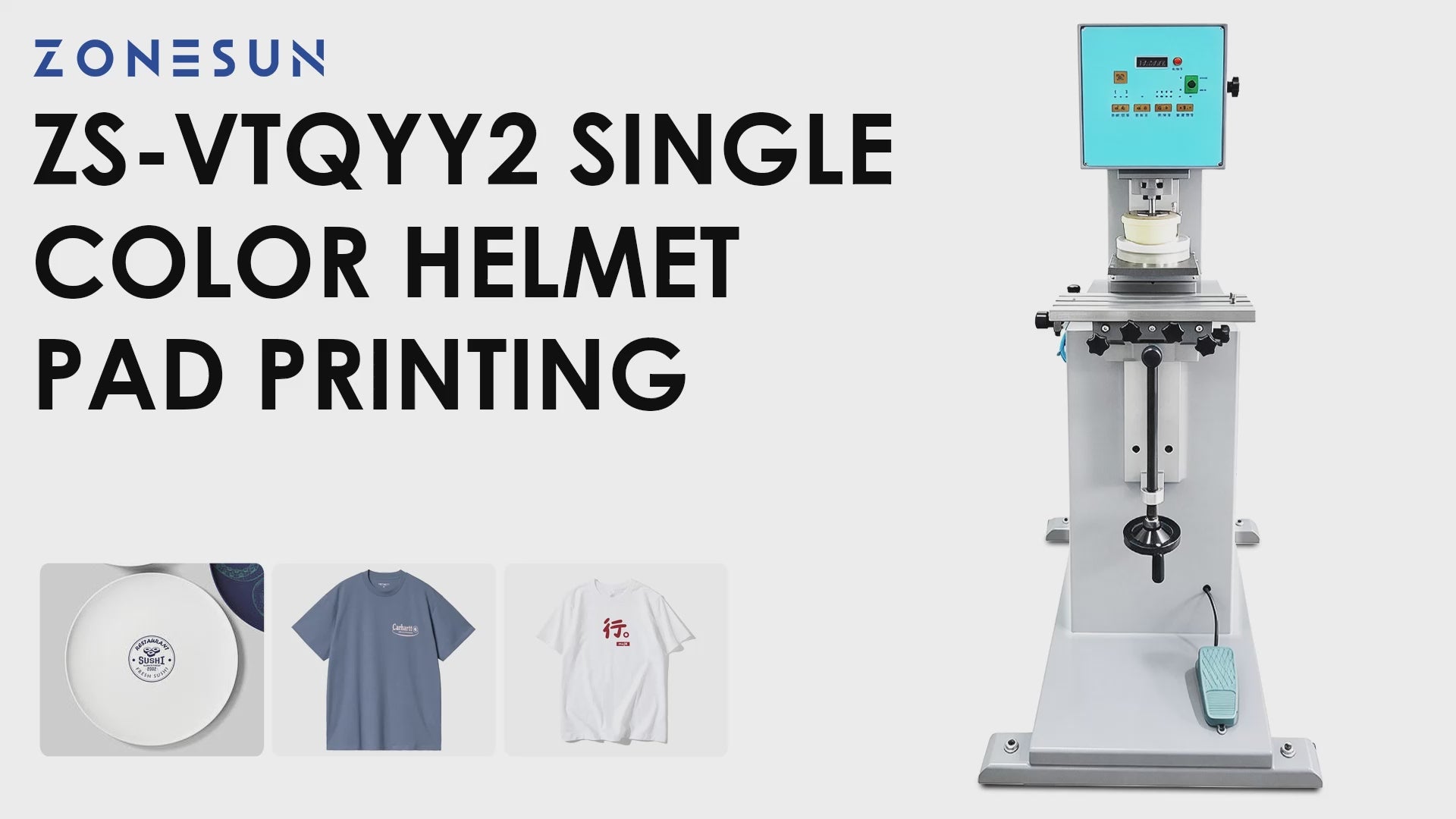

ZONESUN ZS-VTQYY2 Semi-Automatic Helmet Curved Surface Pad Printing Machine

$2,710.00 USD

Sale Sold out

Shipping calculated at checkout.

Voltage 220V

Semi-Automatic Helmet Curved Surface Pad Printing Machine

The ZONESUN ZS-VTQYY2 Semi-Automatic Pad Printing Machine is designed for printing logos, text, graphics and patterns on helmets and other compatible curved, concave, convex or irregular surfaces.

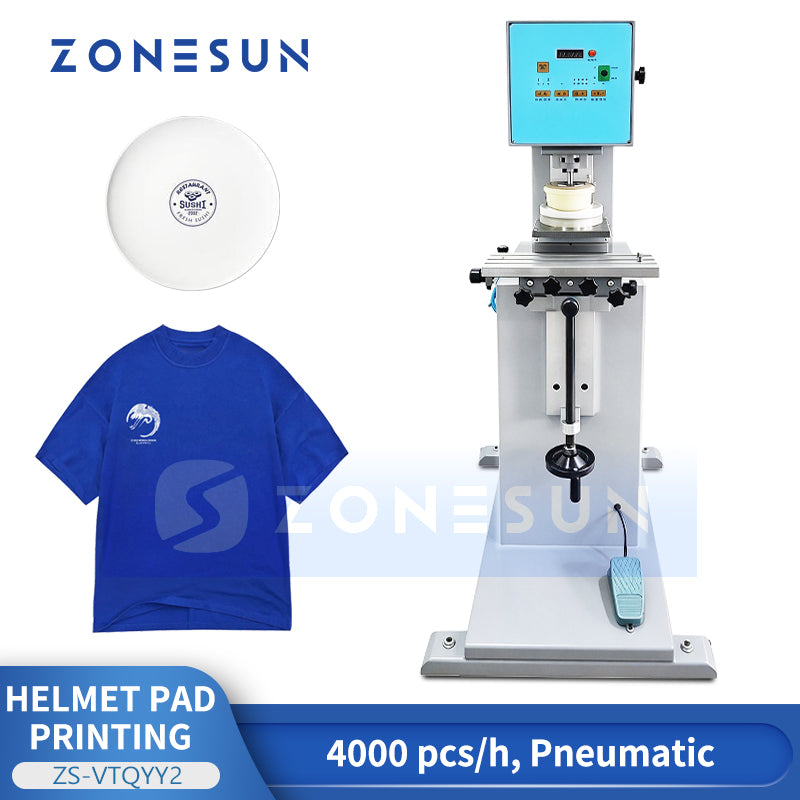

A flexible silicone pad transfers the inked image from the printing plate onto the workpiece, while the pneumatic drive system supports stable single-color printing at speeds of up to 4,000 pcs/hour.

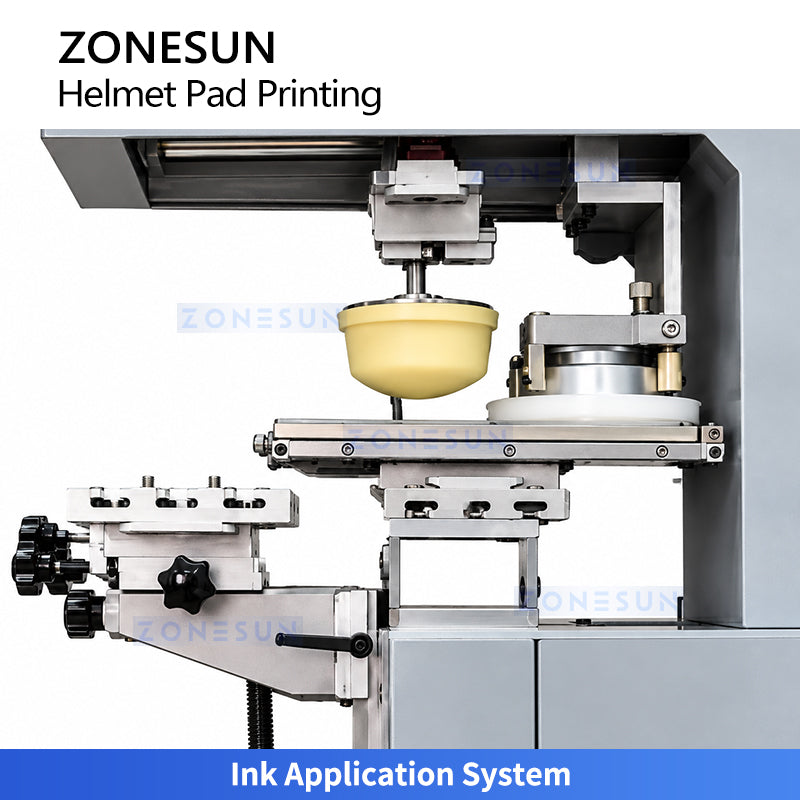

The machine features a digital control panel, adjustable printing position, ink application system and foot pedal control, making it suitable for products with different shapes and printing areas.

Technical Specifications

Model	ZS-VTQYY2
Power Supply	AC 220 V
Printing Speed	4,000 pcs/h
Max. Printing Diameter	Φ120 mm
Workpiece Thickness Range	0–50 mm
Machine Dimensions (L × W × H)	550 × 750 × 1255 mm
Machine Weight	65 kg
Drive Type	Pneumatic
Printing Specification	100 × 300 mm, 150 × 300 mm
Applications	Automotive, Stationery, Advertising, Daily Necessities, Gifts, Electronics, Toys, Instruments, Garments, Washing Products

Key Features

Single-color pad printing
Suitable for curved and irregular surfaces
Printing speed up to 4,000 pcs/hour
Pneumatic drive system
Flexible silicone printing pad

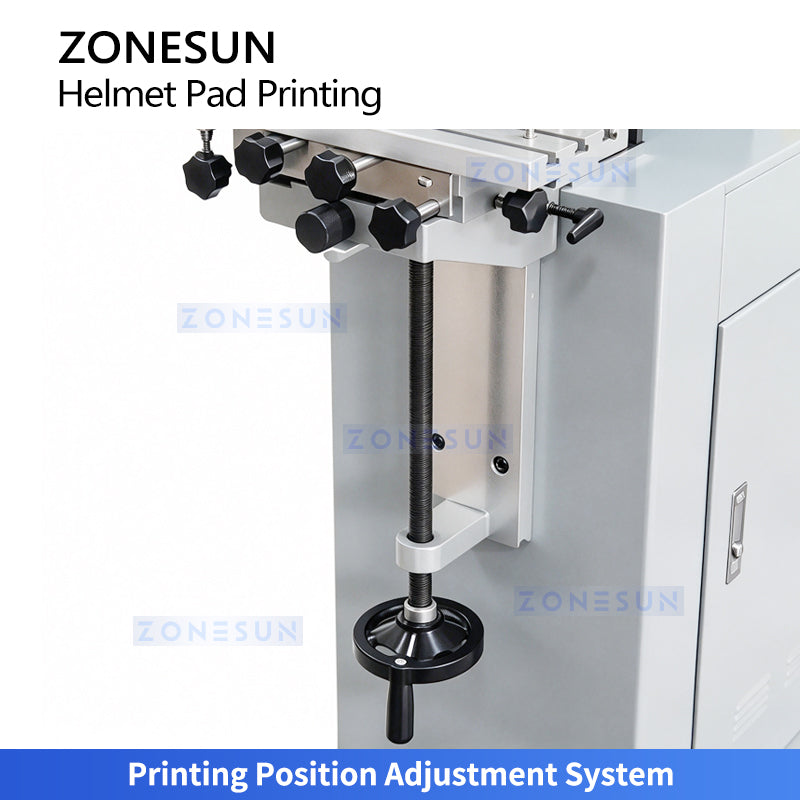

Adjustable printing position
Digital control panel

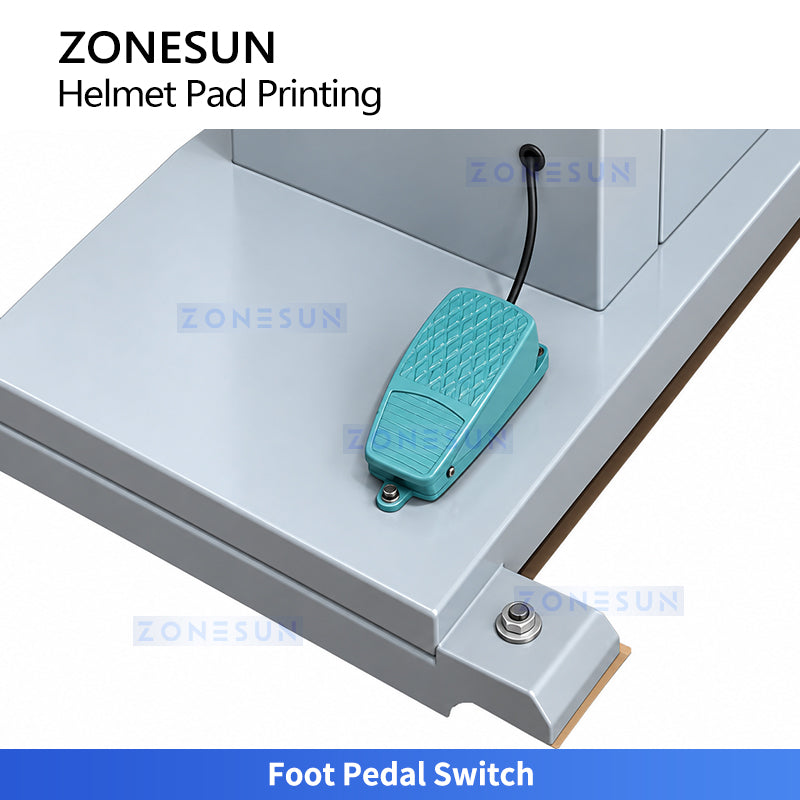

Foot pedal operation
Printing specifications: 100 × 300 mm / 150 × 300 mm
Suitable for helmets, plastic parts, hardware, toys, gifts and other compatible products

Product shape, material, printing area, ink type and printing requirements should be confirmed before machine selection.

Machine Details

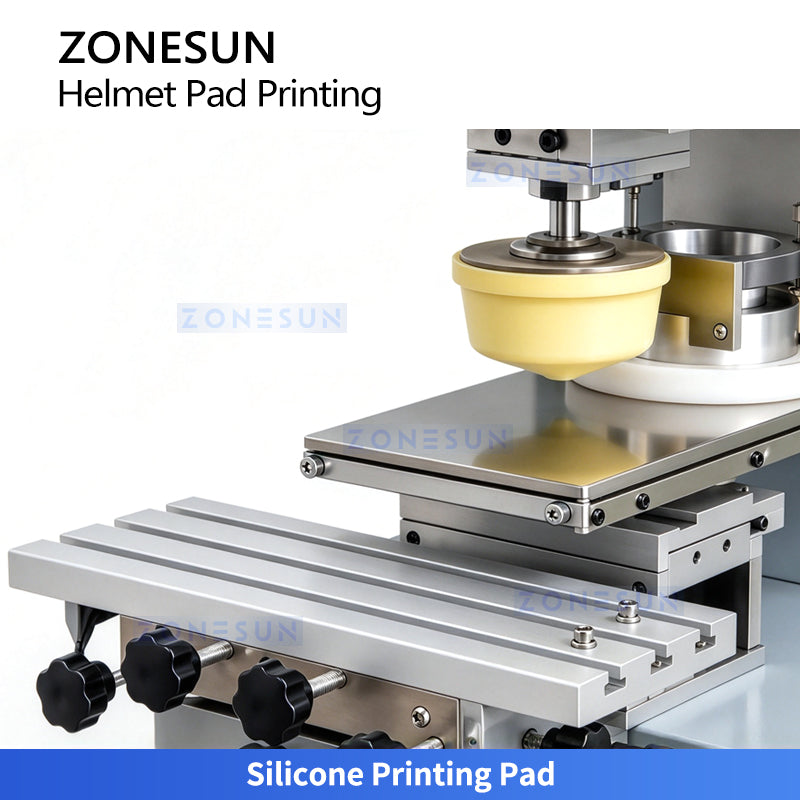

Silicone Printing Pad

Uses a flexible silicone pad to pick up the inked image from the printing plate and transfer it accurately onto curved, uneven, or irregular product surfaces.
