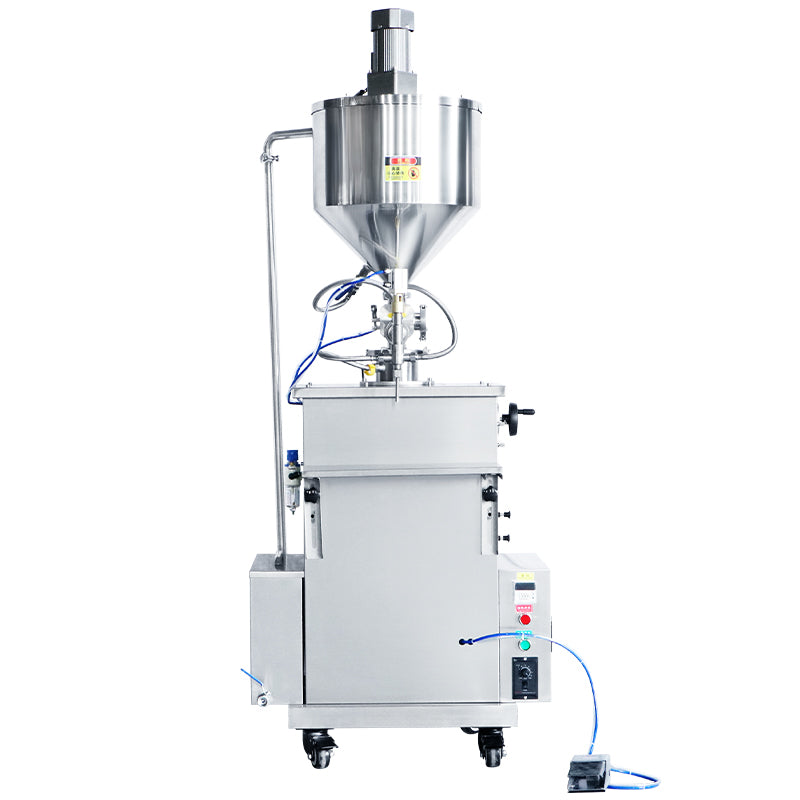

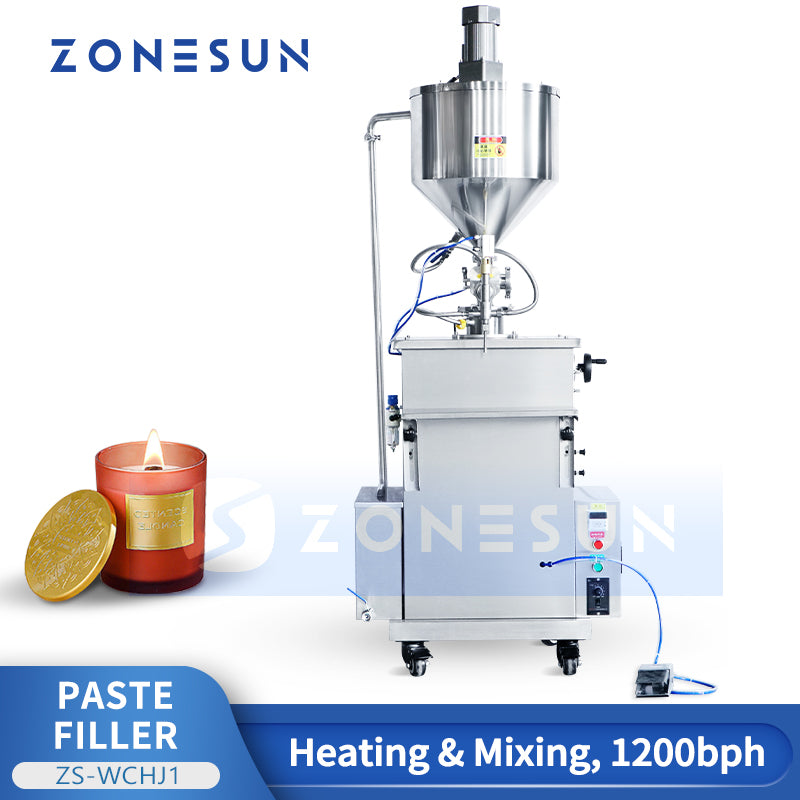

ZONESUN ZS-WCHJ1 Semi-automatic Wax Paste Heating Mixing Filling Machine
ZONESUN ZS-WCHJ1 Semi-automatic Wax Paste Heating Mixing Filling Machine
Regular price
$1,599.00 USD
Regular price
$0.00 USD
Sale price
$1,599.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DESCRIPTION

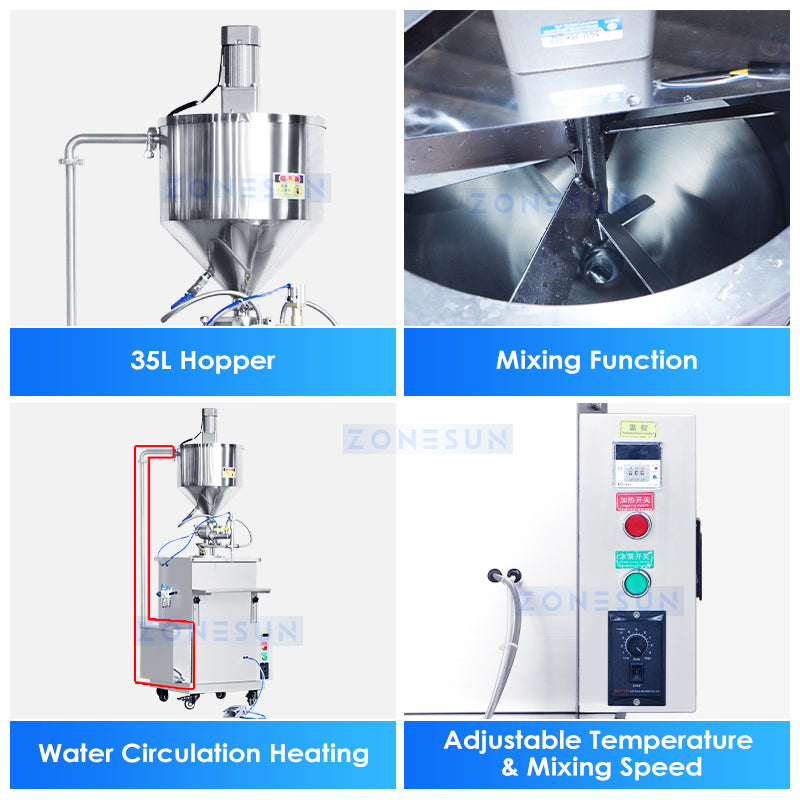

The paste filling machine adopts a double-layer structure design, and the hot water is circulated and heated to maintain a constant temperature. Equipped with a piston pump, it is suitable for liquids or pastes with high viscosity and easy to solidify, such as Vaseline, wax products, lipstick, etc. The machine has a stirring function, which can ensure that the material is mixed evenly before filling. The machine is widely used in cosmetics, daily chemicals, food and other industries
PARAMETER
|
Machine Model
|
ZS-WCHJ1
|
|||
|
Voltage
|
220V/50Hz
|
|||
|
Power
|
3.2kW
|
|||
|
Filling Speed
|
About 20-40 bottles/min
(depending on material and bottle size)
|
|||
|
Filling Range
|
30-300ml/50-500ml/100-1000ml/200-2000ml/300-3000ml/ 500-5000ml(Can be chosen)
|
|||
|
Filling Accuracy
|
±1%
|
|||
|
Hopper Capacity
|
35L
|
|||
|
Heating Temperature
|
0-100℃
|
|||
|
Mixing Speed
|
0-35r/min
|
|||
|

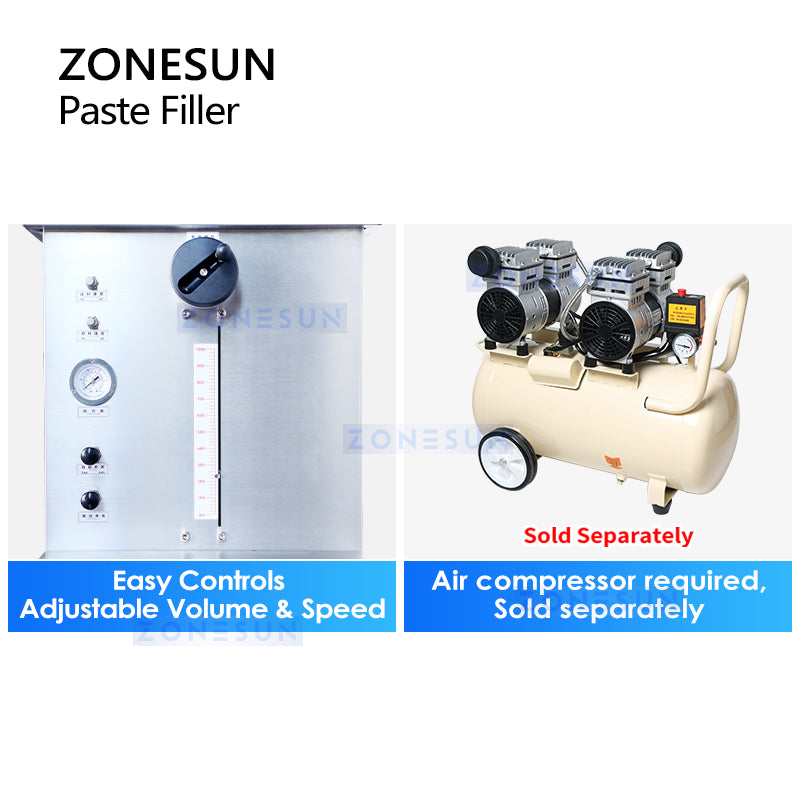

Air Consumption
|
0.05m³/min
|
|||
|
Machine Material
|
Stainless Steel
|
|||
|

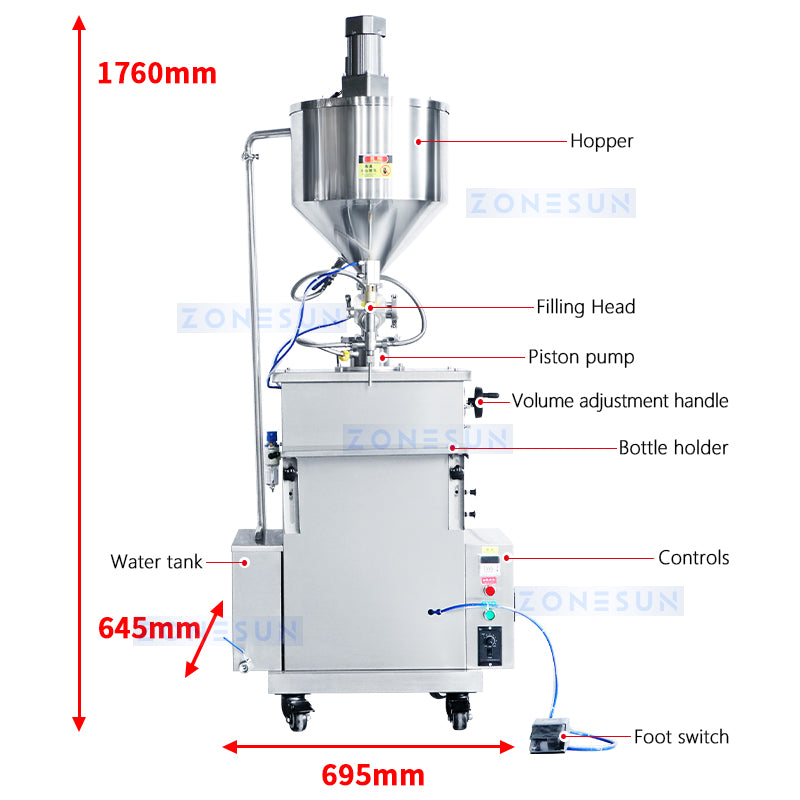

Machine Size
|
About 695*645*1760mm(L*W*H)
|
|||
|
Package Size
|
About 770*630*1930mm(L*W*H)
|
|||
|
Gross Weight
|
About 129kg
|
|||

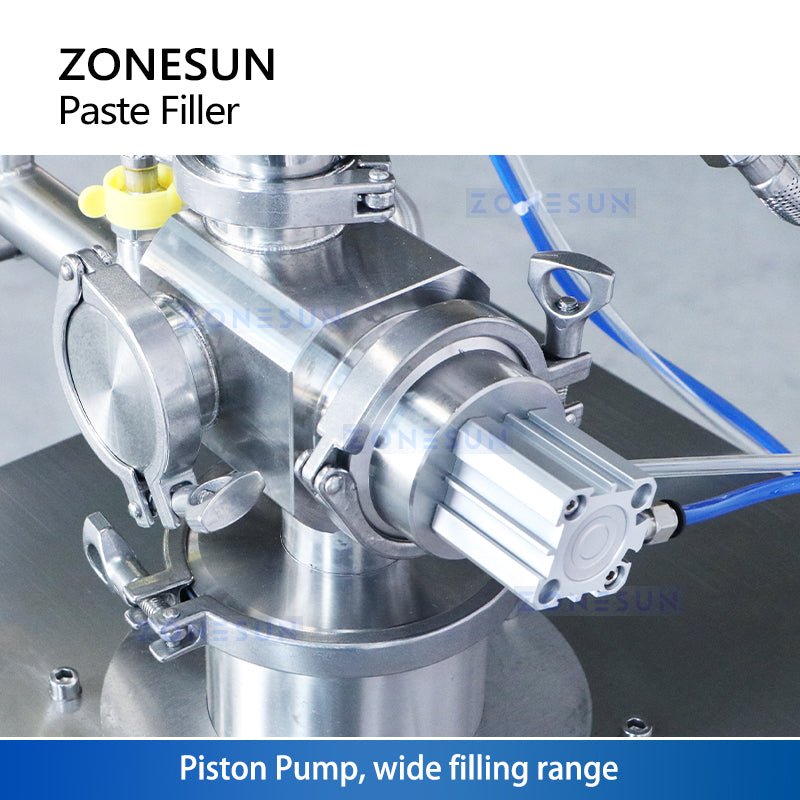

PUMP
The piston pump is a reliable and efficient mechanism that ensures precise and consistent filling. The piston pump is known for its durability, ease of maintenance, and suitability for a wide range of viscosities. With the piston pump technology, the vertical paste filling machine provides a reliable and efficient solution for your filling needs.
The piston pump is a reliable and efficient mechanism that ensures precise and consistent filling. The piston pump is known for its durability, ease of maintenance, and suitability for a wide range of viscosities. With the piston pump technology, the vertical paste filling machine provides a reliable and efficient solution for your filling needs.

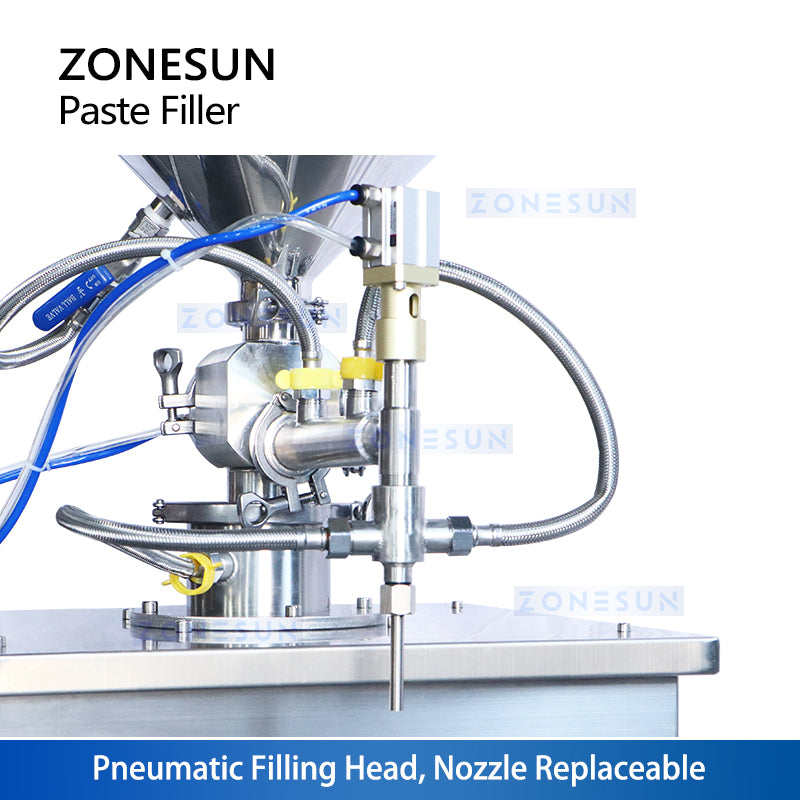

FILLING
The pneumatic filling head operates using compressed air, providing efficient and consistent filling performance. It ensures precise control over the filling process, allowing for accurate dosing and minimizing product waste.
The pneumatic filling head operates using compressed air, providing efficient and consistent filling performance. It ensures precise control over the filling process, allowing for accurate dosing and minimizing product waste.
