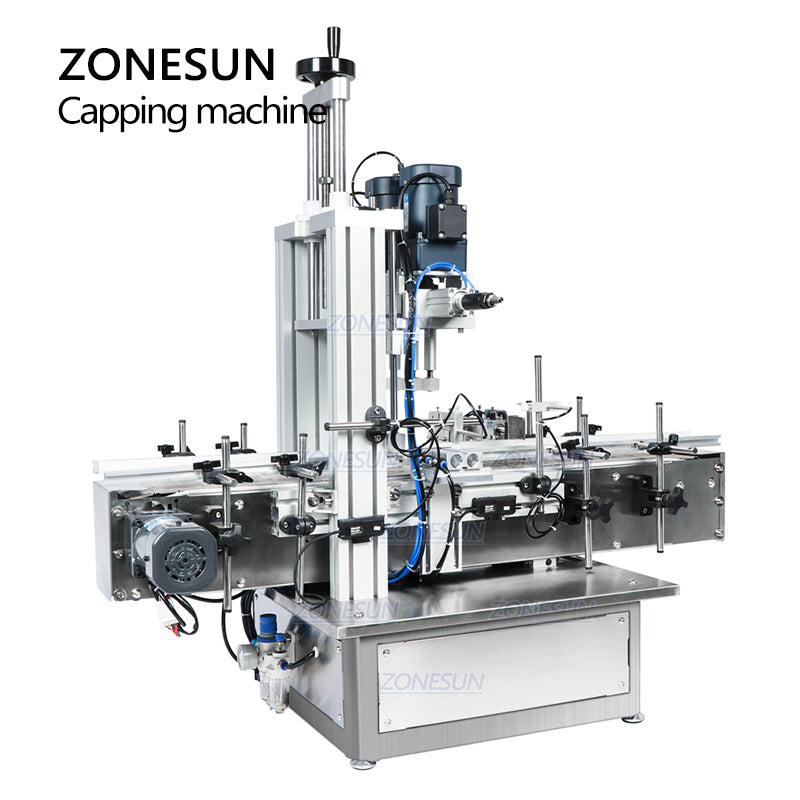

ZONESUN ZS-XG1870 18-70mm Pneumatic Desktop Automatic Capping Machine
ZONESUN ZS-XG1870 18-70mm Pneumatic Desktop Automatic Capping Machine
Couldn't load pickup availability
Description
This desktop automatic capping machine can work with our desktop filling machine,labeling machine and become the production line.Spent less money but get powerful machine like the full automatic machine,this one can cap about 40 bottles/min.Ensure the high working efficiency and save working space.
Parameter
|
Bottle height
|
60-270mm
|
|||
|
Bottle Caps Diameter
|
18-70mm
|
|||
|
Working speed
|
20-40 bottles/minute(depending on bottle and caps)
|
|||
|
Working voltage
|
AC220V/110V 50-60HZ
|
|||
|
Working pressure
|
0.4-0.6 MPa
|
|||
|
Dimension
|
1 120* 580* 1110mm
|
|||
|
Conveyor Length
|
1117mm
|
|||
Touchscreen Control Panel
Allows easy parameter setting and machine operation through an intuitive touchscreen interface.
Pneumatic Capping System
Automatically presses and tightens caps for consistent capping. Customizable for different cap shapes and sizes, including smoke oil, spray and beverage bottle caps.
Bottle Detection & Holding System
Detects incoming bottles and securely holds them in position during capping for stable and accurate operation.
Motor Drive System
Equipped with powerful motor,the main motors and the conveyor motor are separately,ensure that the machine can work stably and safely.
Adjustable Capping Height
The capping height can be adjusted by the rotary knob to accommodate bottles of different heights.
Barometer
Can be used to watch the air pressure in real time.This machine should work with air compressor,customers need to buy it separately. If you need it,please contact us.
