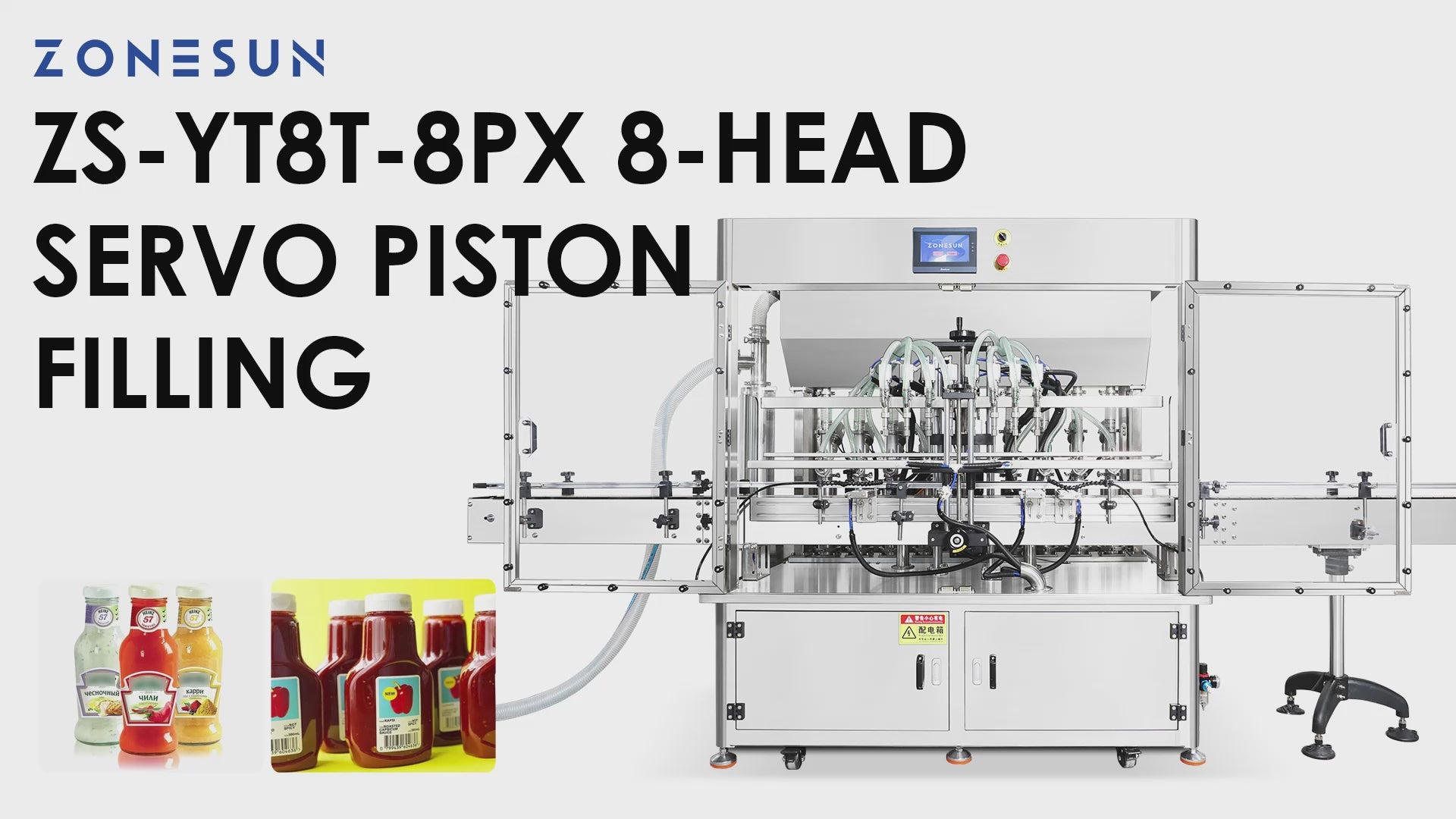

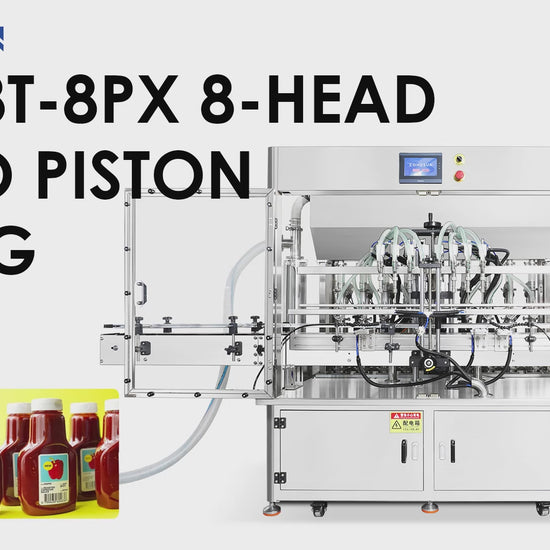

ZONESUN ZS-YT8T-8PX Automatic 8-Head Servo Piston Filling Machine for Ketchup & Shampoo

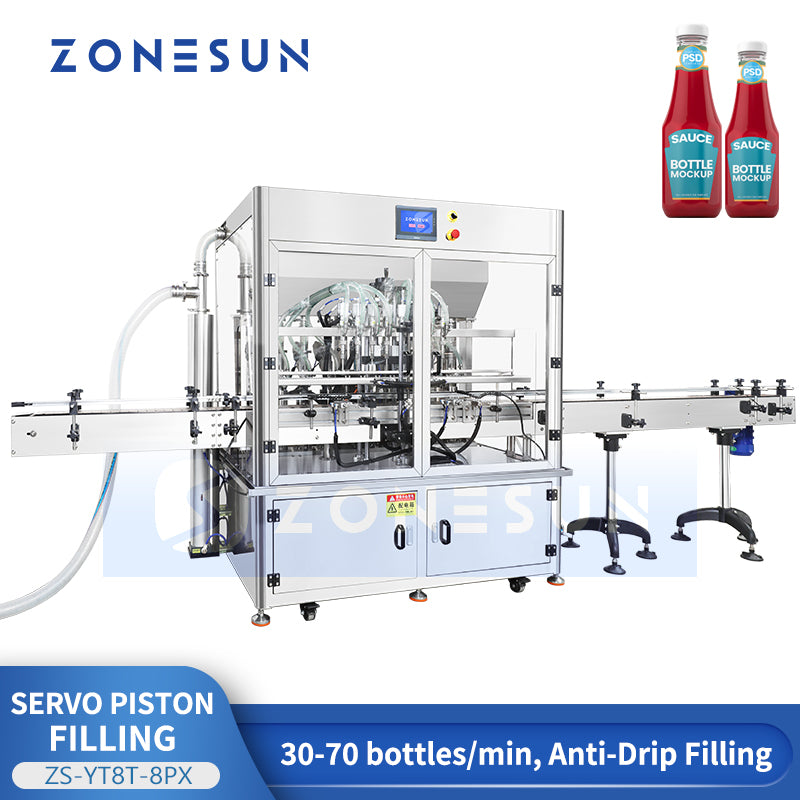

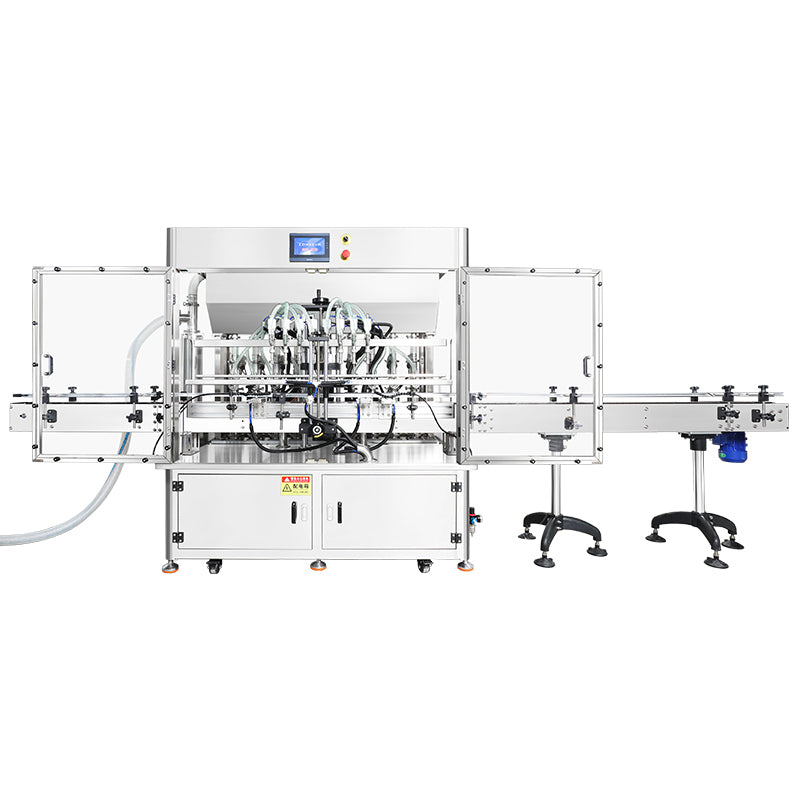

Automatic 8-Head Servo Piston Filling Machine

The ZONESUN ZS-YT8T-8PX Automatic 8-Head Servo Piston Filling Machine is designed for ketchup, shampoo, sauces, creams and other compatible viscous liquids.

Eight servo-controlled piston filling heads provide consistent volumetric filling, while the anti-drip design helps reduce product dripping after filling. The machine supports a filling range of 100–1000 ml with a production speed of approximately 30–70 bottles/min, depending on the product and bottle size.

A 250 L hopper, automatic feeding pump, PLC touchscreen control and drip collection tray support continuous production. The hopper can be heated up to 80°C for compatible products requiring temperature-controlled feeding.

Technical Specifications

Key Features

• 8 servo-controlled piston filling heads

• Filling range: 100–1000 ml

• Speed: approximately 30–70 bottles/min

• Suitable for ketchup, shampoo and viscous liquids

• Anti-drip filling design

• 250 L hopper

• Hopper heating up to 80°C

• Automatic material feeding pump

• PLC touchscreen control

• Customizable filling heads and hopper capacity

Product viscosity, temperature, bottle size and required production speed should be confirmed before machine configuration.

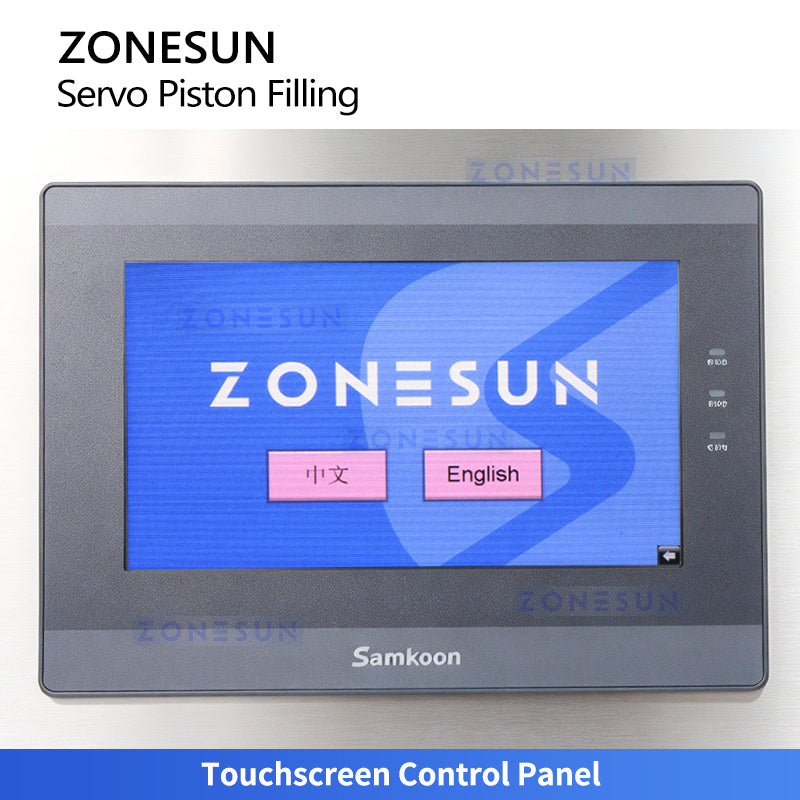

Touchscreen Control Panel

Allows operators to set filling volume, speed and other operating parameters while monitoring machine status.

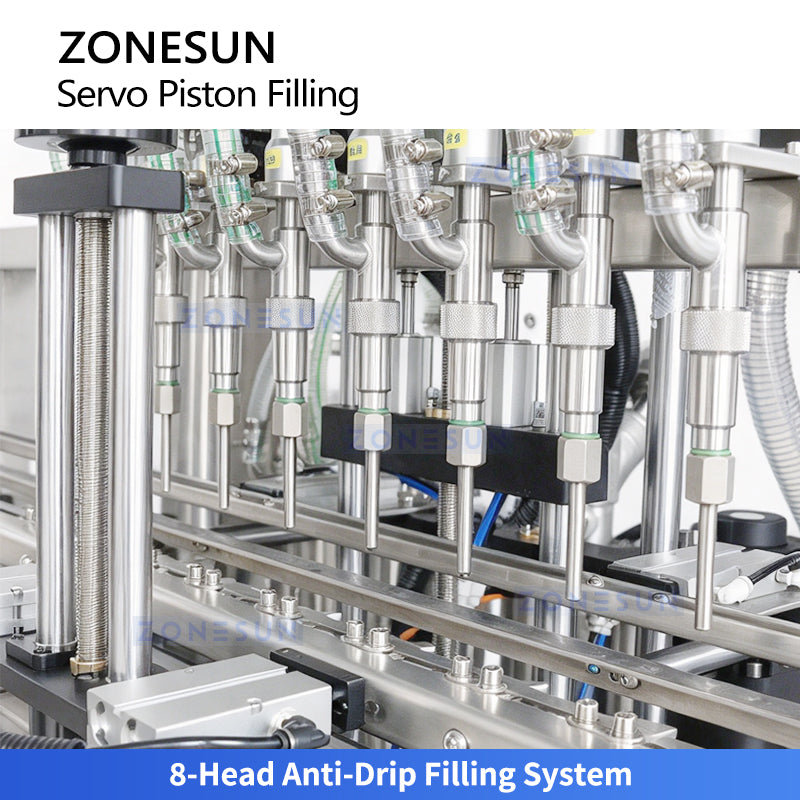

8-Head Anti-Drip Filling System

Eight filling nozzles operate simultaneously for efficient filling, with an anti-drip design to help reduce product dripping after each cycle.

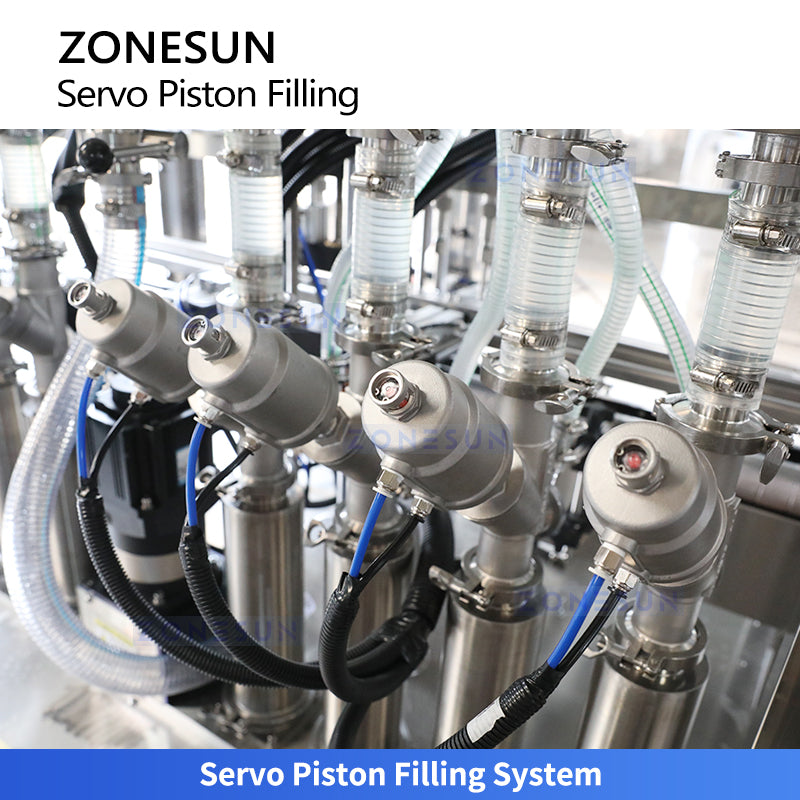

Servo Piston Filling System

Servo-controlled piston filling provides precise control of filling volume and speed for consistent filling of viscous products.

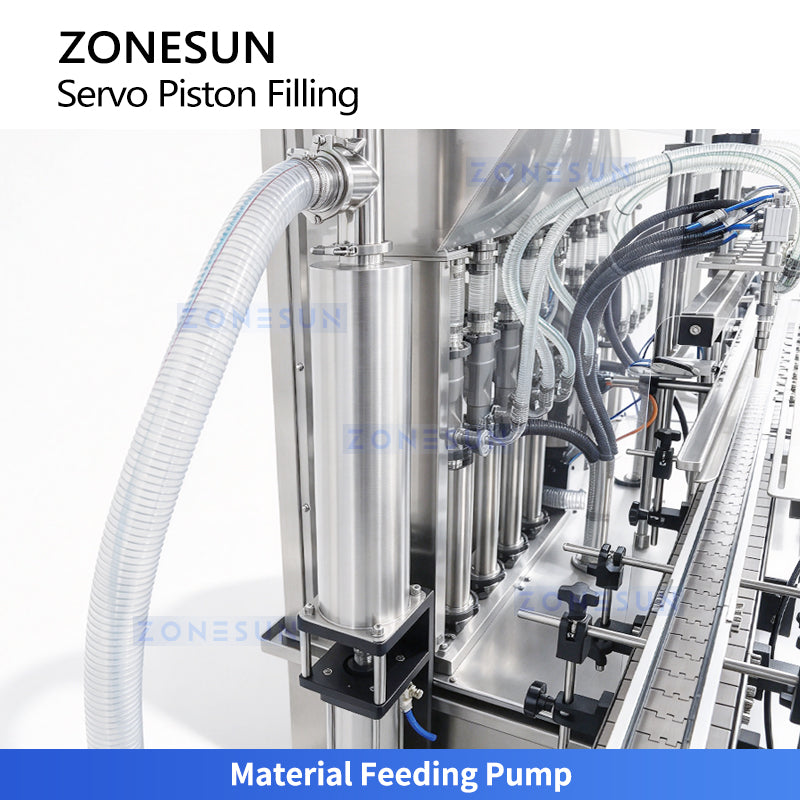

Material Feeding Pump

Automatically transfers paste from an external supply container to the hopper, reducing manual refilling during continuous production.

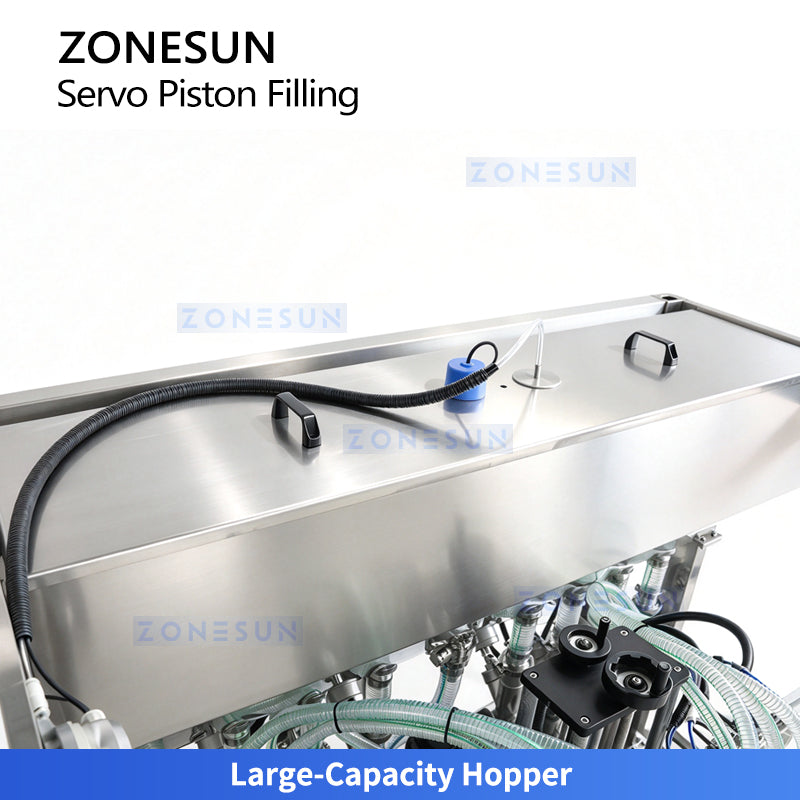

Large-Capacity Hopper

Stores and continuously supplies product to the filling system, reducing frequent material refilling during production.

Drip Collection Tray

Collects residual product beneath the filling nozzles to help keep the conveyor and working area clean.

Electrical Control System

Neatly integrates and protects the main electrical and control components for stable machine operation.

How the Filling Process Works

1. Confirm product and container compatibility, utilities and the required filling volume before setup.
2. Set the bottle guides and filling-nozzle positions to suit the containers, following the operating manual.
3. Supply material from the external container to the hopper using the feeding pump. Set hopper heating only as required for the product and confirmed configuration.
4. Set the filling volume, speed and other available parameters on the touchscreen.
5. Run a test batch and check fill volume, nozzle alignment and dripping; fine-tune the settings before continuous operation.
6. During production, monitor material supply and the drip tray, and follow the specified cleaning and maintenance procedures.

How to Choose the Right Filling Configuration

Provide your product name, viscosity or a sample, filling temperature, particle content if any, target fill volume, bottle dimensions and required output. Confirm nozzle quantity, hopper capacity, heating requirements and the available power and compressed-air supply. For a complete packaging line, also provide cap and label details so downstream equipment compatibility can be assessed.

Frequently Asked Questions

What products can the ZS-YT8T-8PX fill?

It is designed for pastes and viscous liquids, with ketchup and shampoo as example applications. Actual suitability depends on the product characteristics and filling configuration; sample testing is recommended.

What is the filling volume range?

The specified filling range is 100–1000 ml. Share the target volume and bottle dimensions to confirm the appropriate setup.

What is the production speed?

The specified speed is approximately 30–70 bottles per minute, depending on bottle size and filling material. Confirm output using your product, fill volume and container rather than assuming the maximum speed for every application.

Does the hopper support heating?

Yes. The listed maximum hopper heating temperature is 80°C, and the hopper capacity is 250 L. The operating temperature should be selected according to the product and confirmed machine configuration.

Can the filling heads and hopper capacity be customized?

Yes. The standard listed setup has eight filling nozzles and a 250 L hopper; both nozzle quantity and hopper capacity can be customized according to production requirements.

What power and air supply does it require?

The listed power supply is 220 V, 50 Hz, with 6 kW power. The specified air pressure is 5–6 kg/cm² and the air compressor connector size is Φ10 mm. Confirm site utilities and compressor requirements before installation.
