ZONESUN ZS-90 3 Size Hot Foil Stamping Machine

Parameter

• Model：ZS-90
• Power Supply：110V/220V, 300W
• Stamping Area：5*7cm/8*10cm/10*13cm
• Temperature：0-350℃
• Size：280*150*310mm
• Net Weight：8kg

Temperature / Stamping Time Reference

• Paper Bronzing: 100 °C / 1 s
• Paper Embossing: 300 °C / 3 s
• Leather Bronzing: 100 °C / 1 s
• Leather Embossing: 180 °C / 3 s
• PVC Bronzing: 100 °C / 1 s
• Food Embossing: 250 °C / 3 s
• Leaves Embossing: 320 °C / 1 s
• Wood Embossing: 350 °C / 3 s

Packing List

• Hot Foil Stamping Machine: 1
• Spanner: 1
• Allen Key: 1
• High-Temperature Tape: 1
• Foil for Testing: Gold ×1, Silver ×1
• Set of Positioning Slider: 1
• User Manual: 1

Application

It is used for bronzing, indentation and branding of leather products, rubber products, technical products, plastic products, paper and other surfaces. For leather with uneven surface, it can only be used for hot stamping, not for bronzing paper.

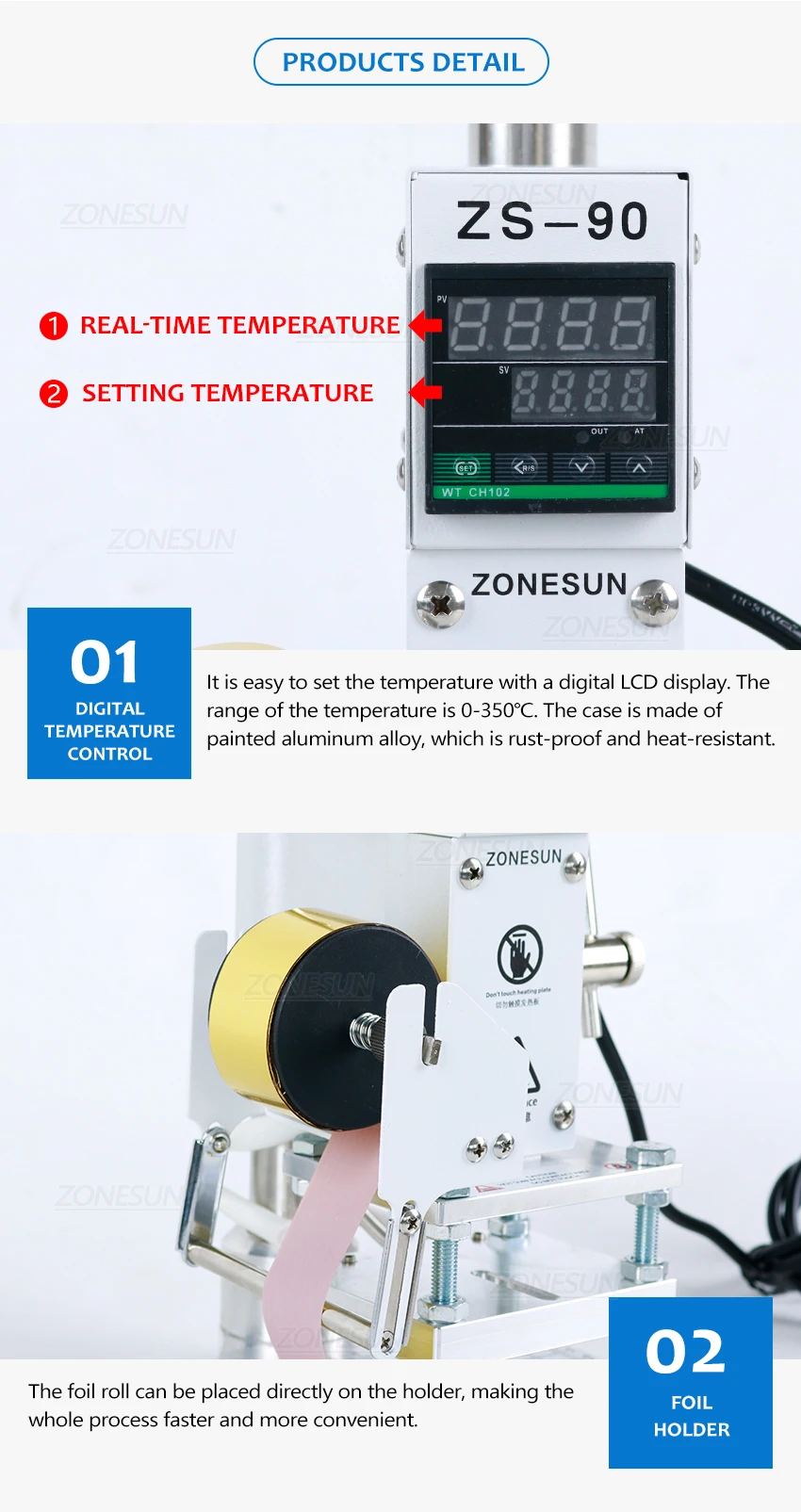

DIGITAL TEMPERATURE CONTROL
It is easy to set the temperature with a digital LCD display. The range of the temperature is 0-350°C. The case is made of painted aluminum alloy, which is rust-proof and heat-resistant.

FOIL HOLDER
The foil roll can be placed directly on the holder, making the whole process faster and more convenient.

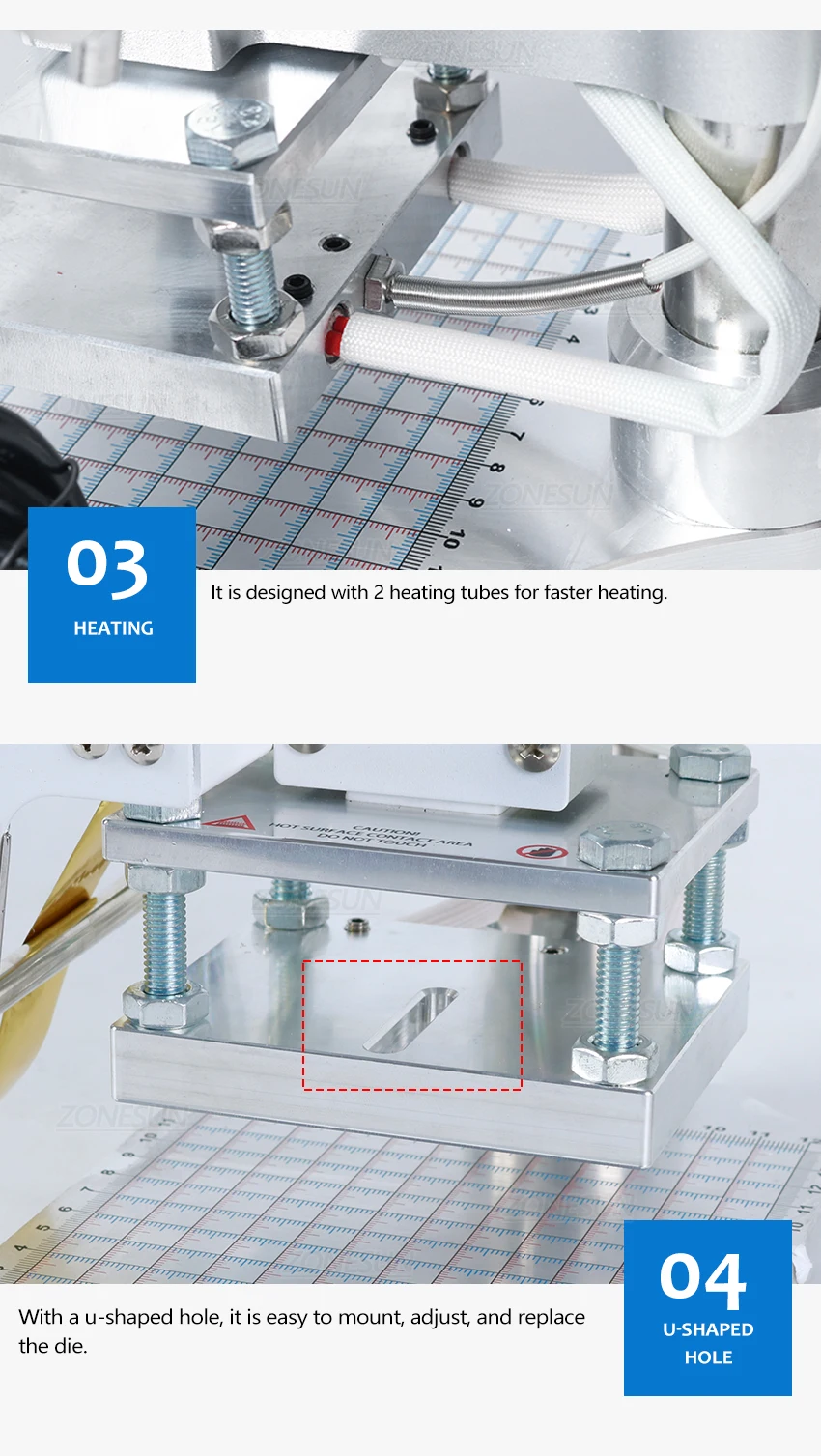

HEATING
It is designed with 2 heating tubes for faster heating.

U-SHAPED HOLE
With a U-shaped hole, it is easy to mount, adjust, and replace the die.

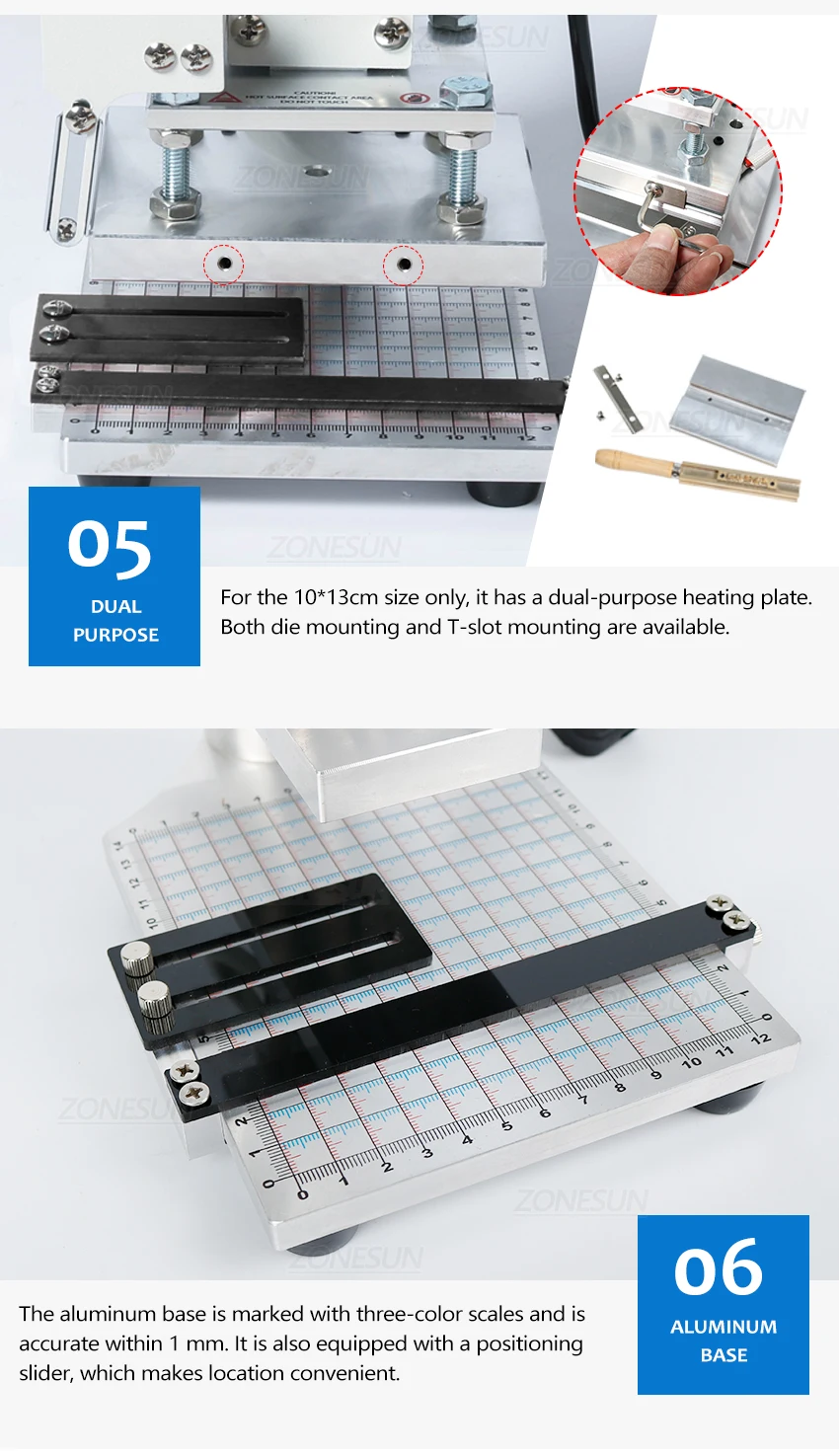

DUAL PURPOSE
For the 10*13cm size only, it has a dual-purpose heating plate. Both die mounting and T-slot mounting are available.

ALUMINUM BASE
The aluminum base is marked with three-color scales and is accurate within 1 mm. It is also equipped with a positioning slider, which makes location convenient.
