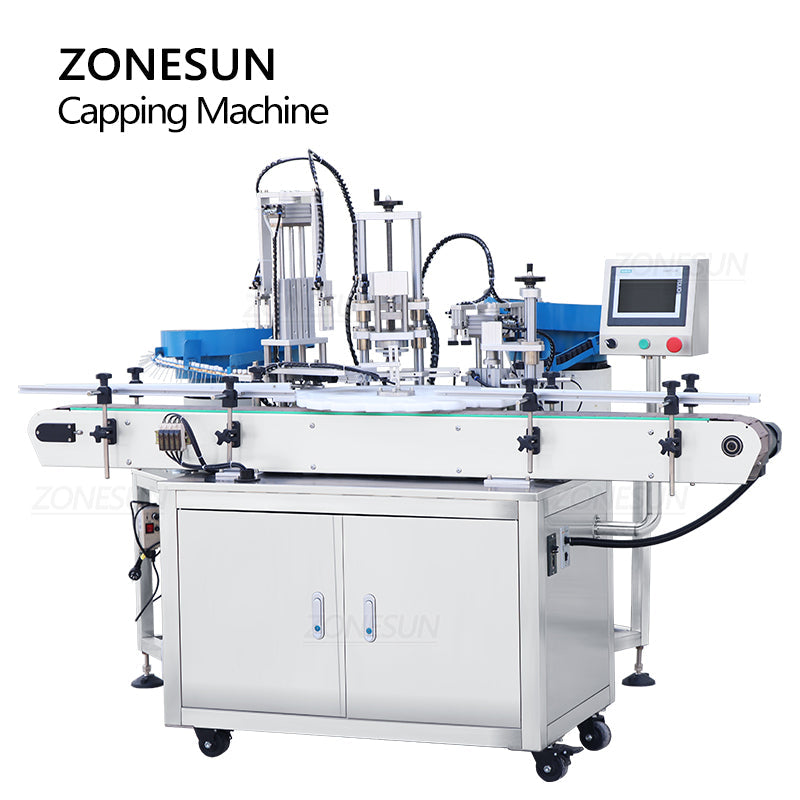

ZONESUN ZS-AFC8 Rotate Spray Head Round Bottle Capping Machine with Cap Feeder
ZONESUN ZS-AFC8 Rotate Spray Head Round Bottle Capping Machine with Cap Feeder
Couldn't load pickup availability
DESCRIPTION
This fully automatic integrated capping machine consists of a bottle loading structure, a sprayer feeding structure, a cap crimping structure, an overcap feeding structure, and a cap pressing structure, which is highly efficient and greatly saves labor. This machine also can work with a filling machine and a labeling machine.
PARAMETER
|
Model |
ZS-AFC8 |
|
Power supply |
AC220V/110V 50-60HZ |
|
Applicable bottle diameter |
Customized |
|
Applicable bottle height |
Customized |
|
Working speed |
20-30 bottles/min (depends on liquid,bottle and caps) |
|
Max power |
2.5KW |
|
Conveyor size |
About 2000*100mm (L*W) |
|
Machine size |
About 2000*900*1420mm |
|
Package size |
About 1100*540*600mm(Vibrating Feeder) About 2100*990*1620mm(Machine) |
|
Package weight |
About 83kg(Vibrating Feeder)+418kg(Machine) |
01 / CONTROL PANEL
It is more convenient to operate and debug the machine. The operating language can be customized as required.
02 / VIBRATORY BOWL
Equipped with two vibratory bowls, one for sprayers, and one for overcaps, which is labour-saving.
03 / ELECTRIC EYES
Accurately detect the objects, and send signals to the controller for bottle loading and all capping process.
04 / CRIMPING HEAD
For crimping the sprayer onto bottles, which is accurate and efficient, and it can be customized as your bottle.
05 / CAP PRESSING HEAD
For pressing the overcaps onto sprayers, which is equipped with a large air cylinder, ensuring the overcaps can be pressed well.
06 / ROTATE PLATE
For preventing bottles from falling during production and ensuring orderly production.
