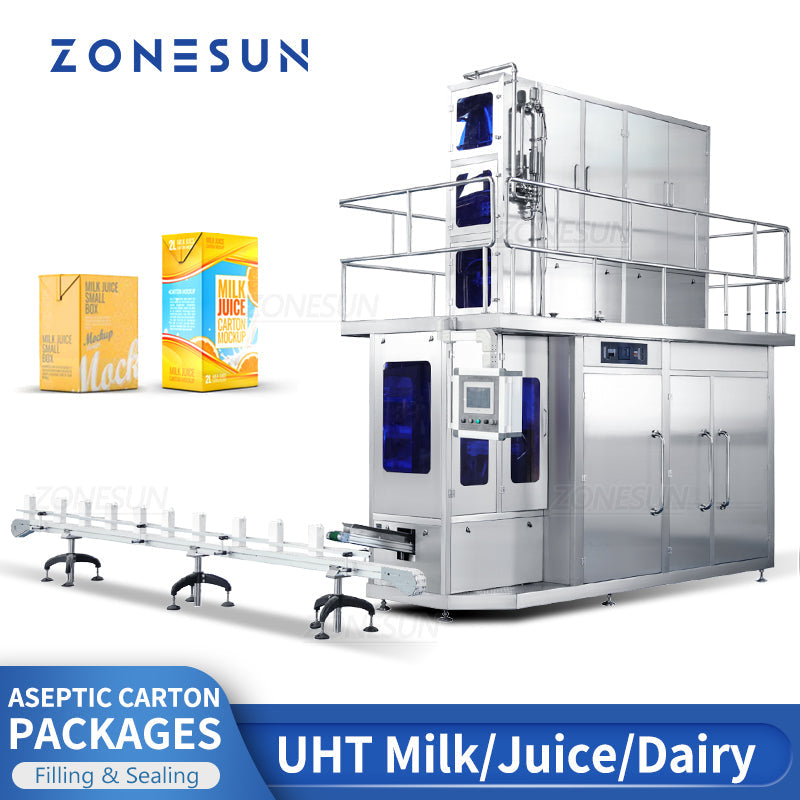

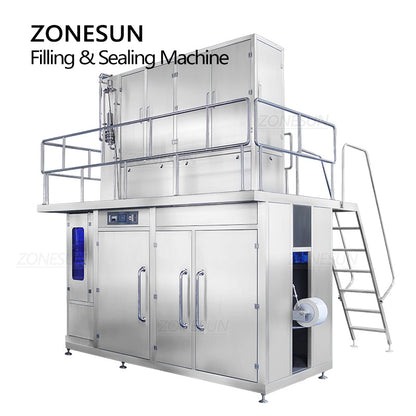

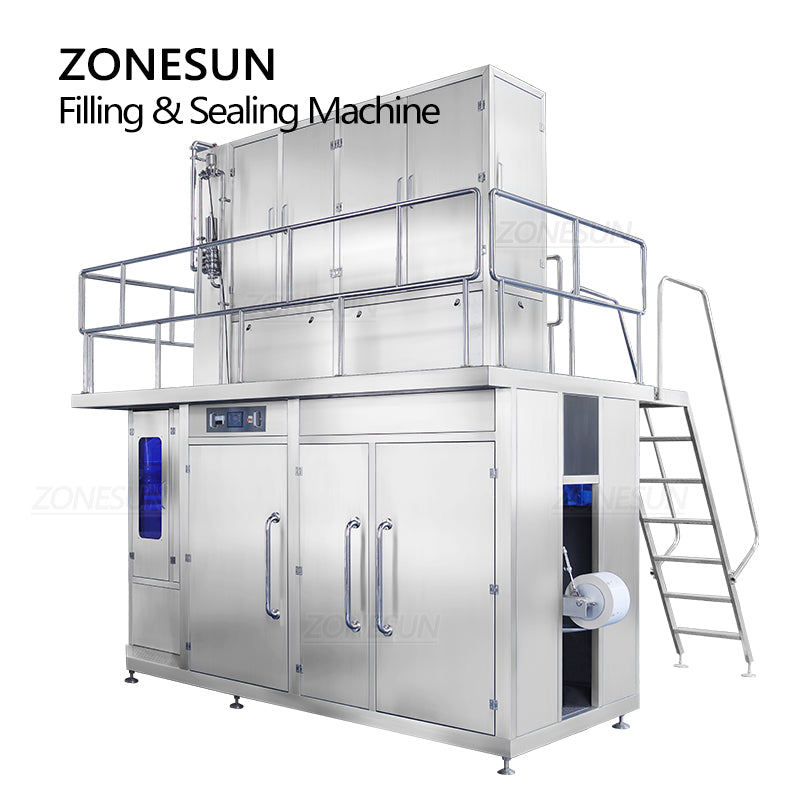

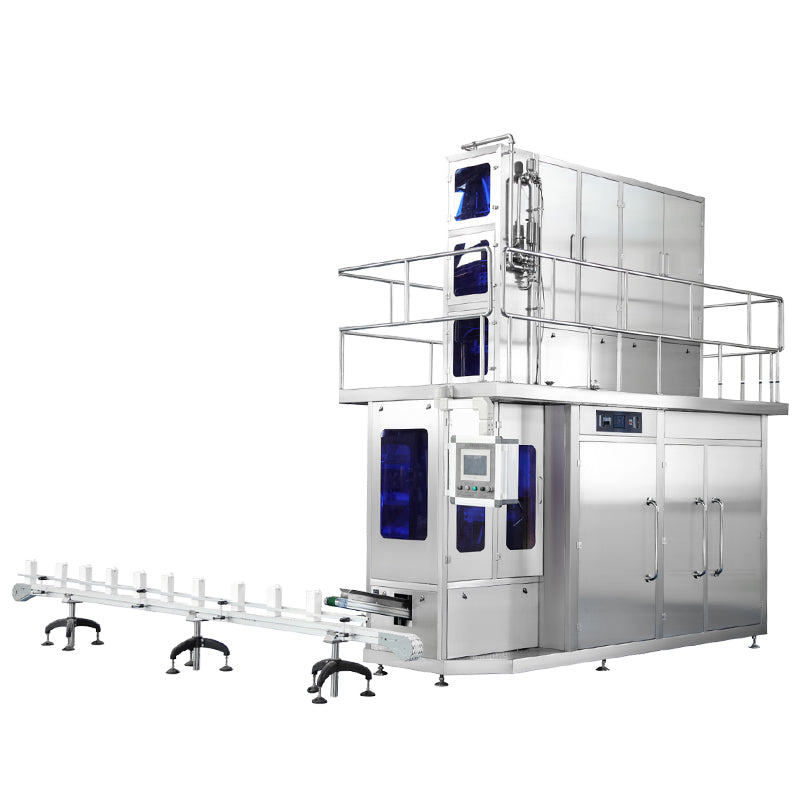

ZONESUN ZS-AUBP Automatic Liquid Filiing And Aseptic Packaging Machine
ZONESUN ZS-AUBP Automatic Liquid Filiing And Aseptic Packaging Machine
Couldn't load pickup availability
DESCRIPTION
This is a filling machine for aseptic packaging of liquid food. It provides a complete solution for mass production, including carton molding, sterilizing, filling, sealing, and transporting. It is cost-effective and labor-saving. It is widely used in the dairy and juice-making industries.
APPLICATION
This aseptic filling machine is used for UHT liquid drinks, including liquid milk, soy milk, fruit juice, yogurt, water, wine, and other beverage such as coffee drinks, soft drinks, plant protein drinks, tea drinks, etc.
FEATURES
- High-quality steel for food uses, ensuring the equipment's life.
- Stable packaging molding, adapt to various packaging materials.
- Low loss rate of packaging materials.
- Precise measurements, low power consumption, labor-saving.
- Large-screen interface, easy to operate.
- The components are from well-known brands.
- Advanced aseptic system, multiple protection.
- Perfect after-sales service.
PARAMETER
|
Type |
ZS-AUBP5000-200/ZS-AUBP5000-250/ZS-AUBP5000-500/ZS-AUBP5000-1000 |
|
Capacity |
200ml-1000ml |
|
Compressed Air Pressure |
>0.6mpa (6Bar) |
|
Packaging Speed |
5000 cartons/hour |
|
Power |
18KW |
|
Actual Power Consumption |
8KW |
|
Power Source |
50Hz 380/220V |
|
Size |
4200mm x1800mm x4000mm (L x W x H) |
|
Weight |
3000KG |
|
Package Form |
Brick-shaped carton packages made |

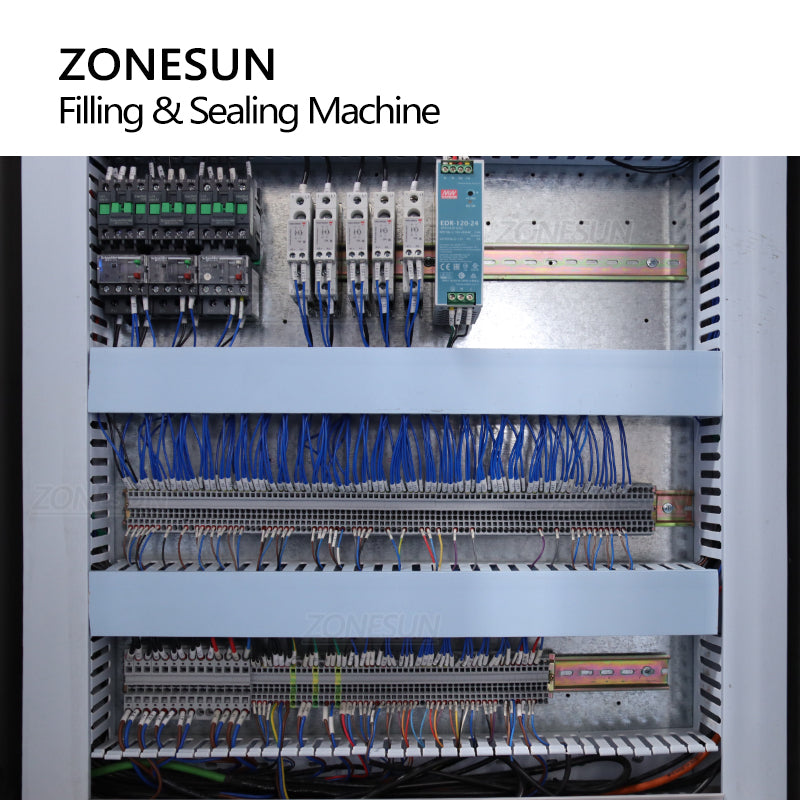

01 / CIRCUIT SYSTEM CONTROL BOX
All the components used in this control box are from famous brands, such as Yaskawa, SMC, Schneider, Carlo Gavazzi, etc., which ensures the filling machine runs well and has good performance during production.

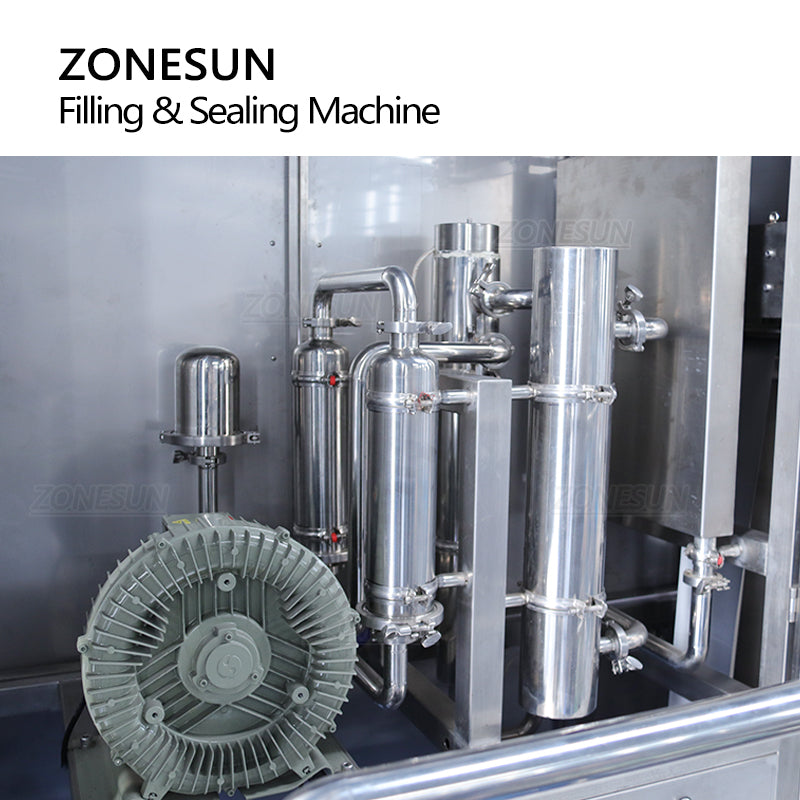

02 / AIR FILTRATION DISINFECTION SYSTEM
The high-temperature air heating and filtering system provides clean air and ozone for the pre-shaping room of an aseptic environment.

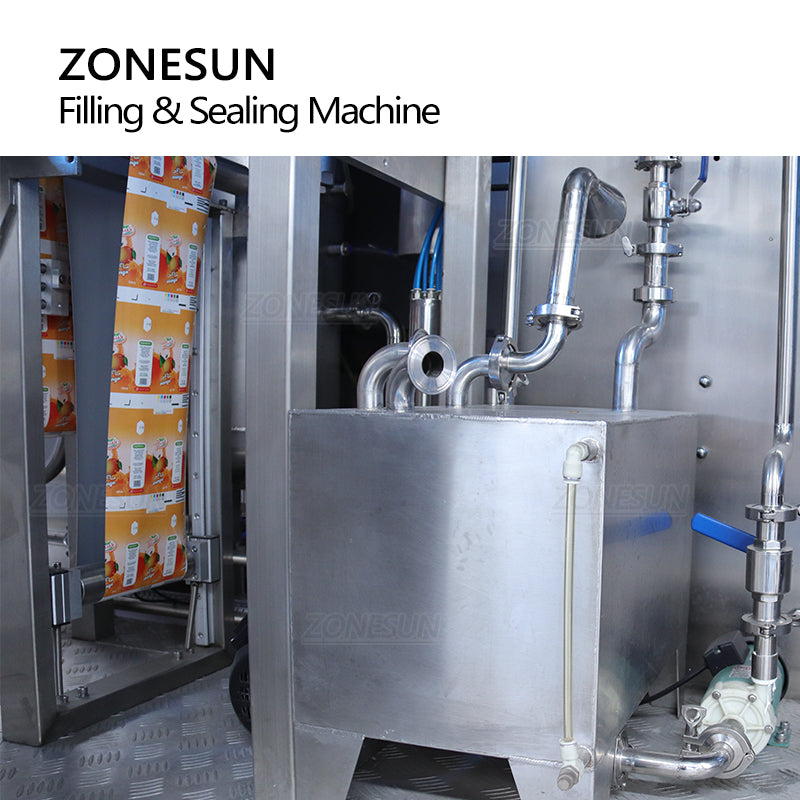

03 / HYDROGEN PEROXIDE & UV DISINFECTION SYSTEM
All packing materials must be sterilized through the hydrogen peroxide & UV disinfection system, which ensures a safe aseptic filling process.
04 / PRE-SHAPING SYSTEM
The cartons will be pre-shaped in this stage. The packaging materials are sterilized based on an aseptic environment with filtering air and ozone.

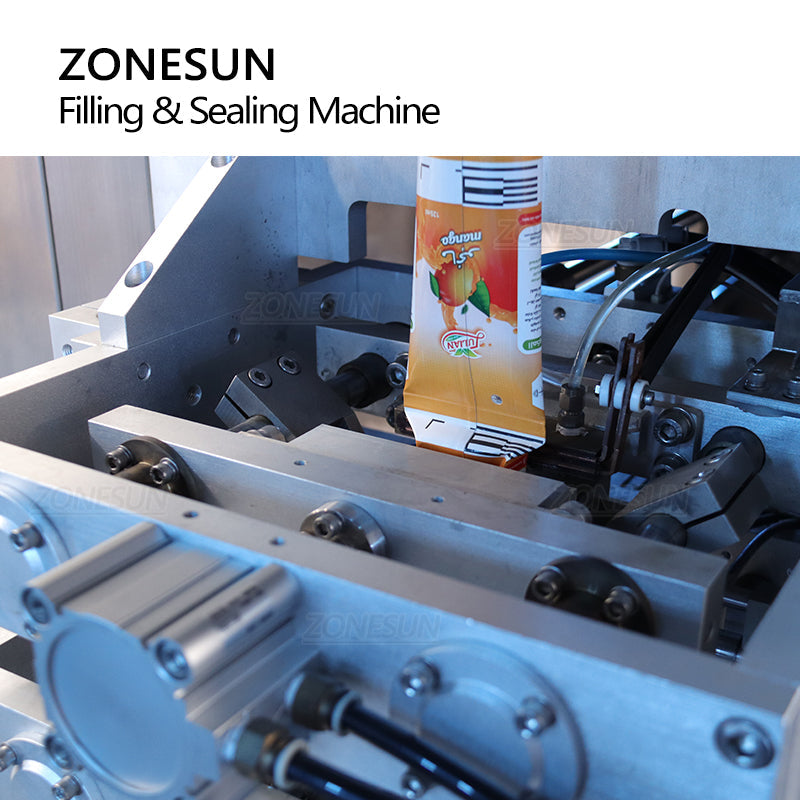

05 / SHAPING AND FILLING SYSTEM
The packaging material will be accurately filled with liquid and be formed into aseptic cartons, and then are transported to the conveyor.
06 / TOUCH SCREEN
The 10-inch touch screen (HMI) is connected to the PLC system. It is easy to operate and with high accuracy. It is available in multilingual versions.
