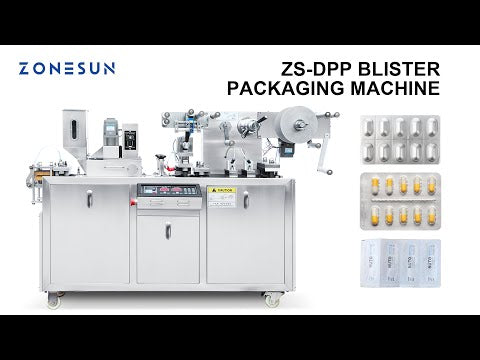

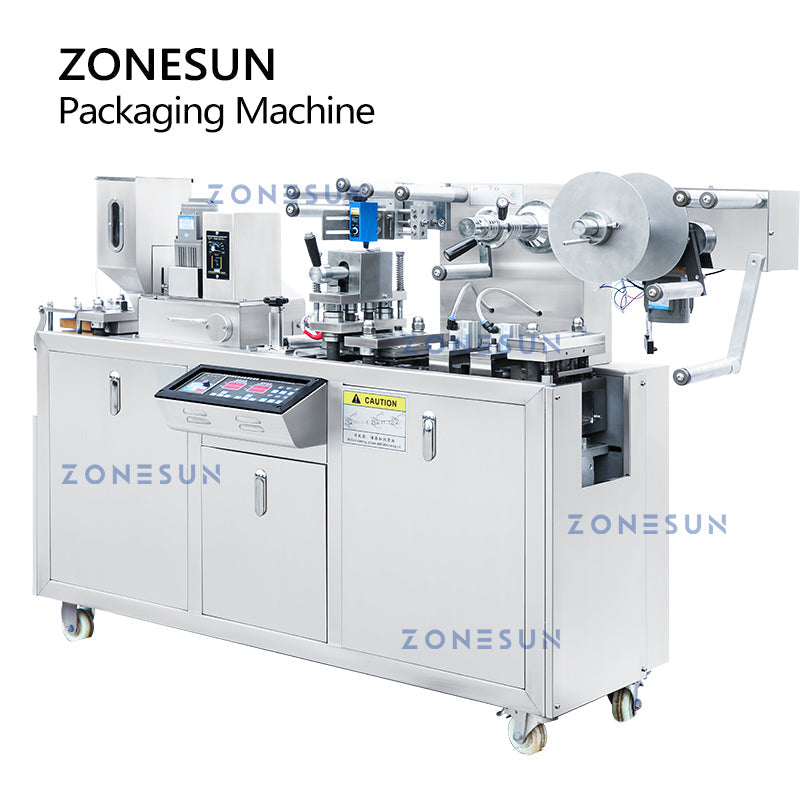

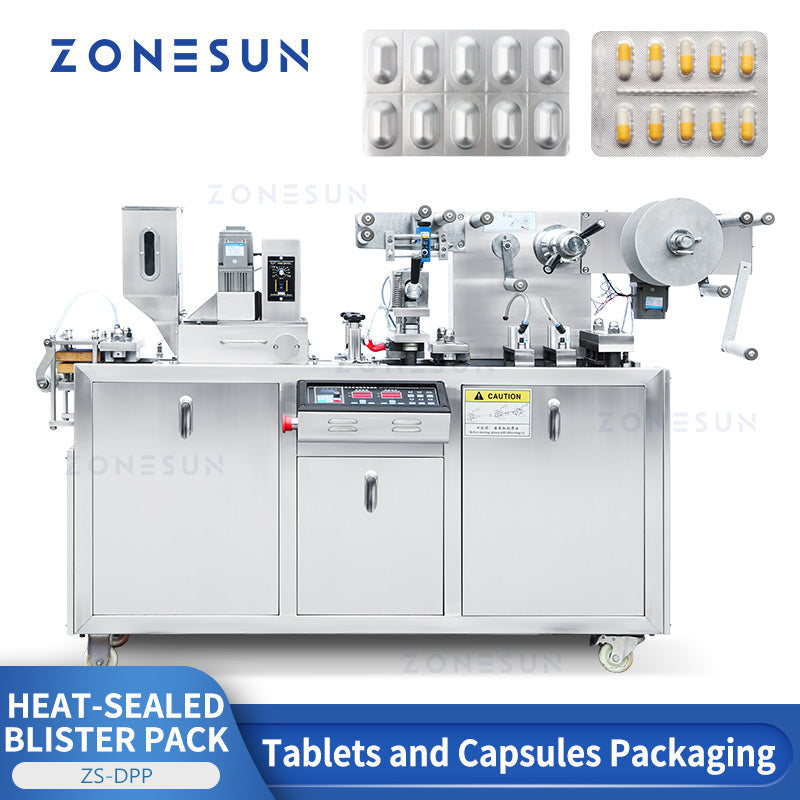

ZONESUN ZS-DPPA Automatic Liquid / Paste / Irregular Material Filling Blister Sealing Machine

DESCRIPTION

The blister packaging machine, with the functions of aluminum or plastic molding, forming, material filling, and sealing, has a high degree of automation and can reduce packaging costs. The machine occupies less space, with low noise and no pollution to the working environment.

PARAMETER

• Model: ZS-DPPA
• Punching Frequency: 10–40 cycles/min
• Production Capacity: 2,400 plates/hour
• Max. Forming Area & Depth: 80 × 110 × 26 mm
• Standard Stroke Range: 20–70 mm (customizable)
• Standard Plate Size: 80 × 57 mm (customizable)
• Air Pressure: 0.6–0.8 MPa
• Power Supply: 380V / 220V, 50Hz, 3.2 kW
• Main Motor Power: 0.75 kW

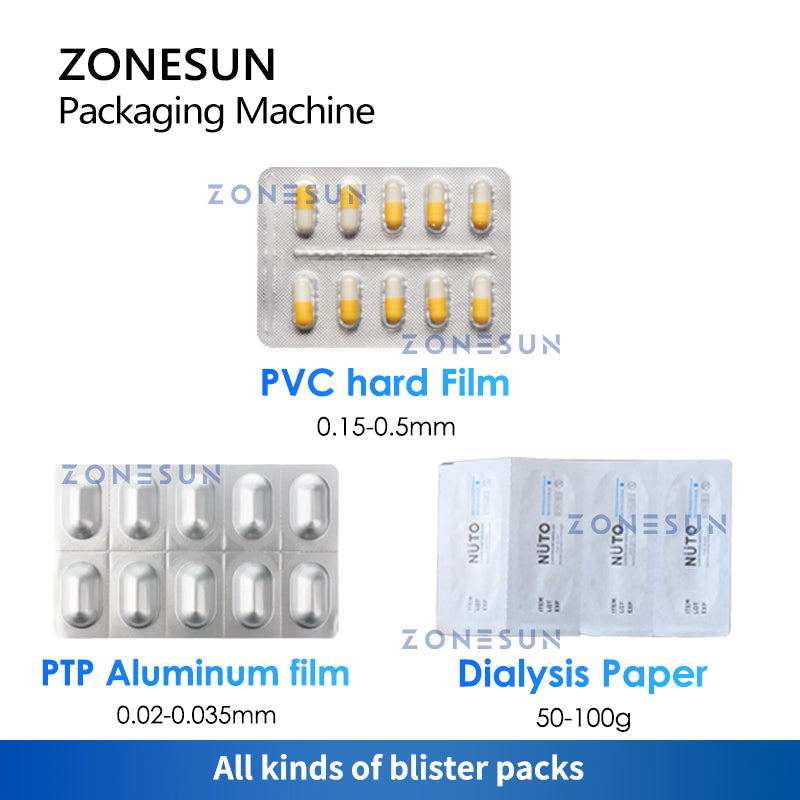

• PVC Sheet: 0.15–0.5 × 80 mm
• PTP Aluminum Foil: 0.02–0.035 × 80 mm
• Dialysis Paper: 50–100 g × 80 mm
• Mold Cooling: Tap water or circulating water
• Overall Dimensions: 1600 × 600 × 1100 mm
• Weight: 450 kg
• Noise Level: < 75 dBA
