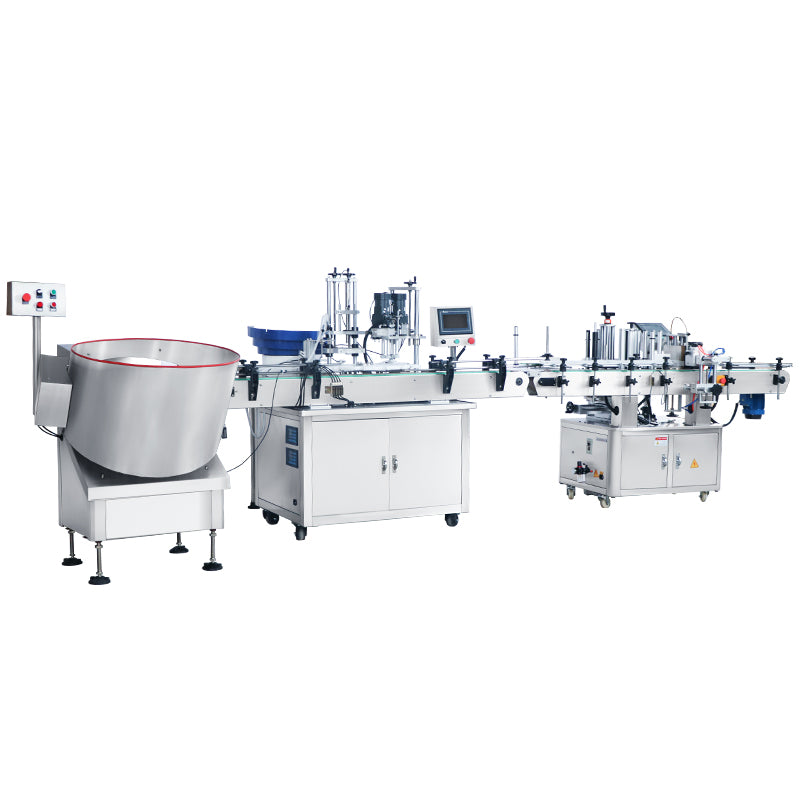

ZONESUN ZS-FAL180Z2 2 Nozzles Magnetic Pump Liquid Filling Capping Round Bottle Labeling Machine With Bottle Unscrambler

DESCRIPTION

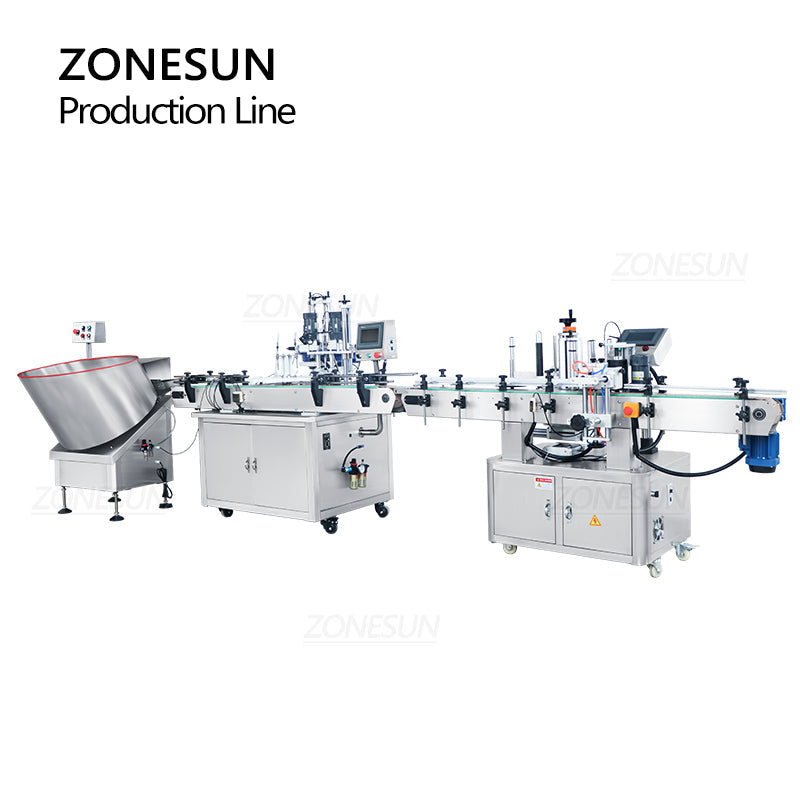

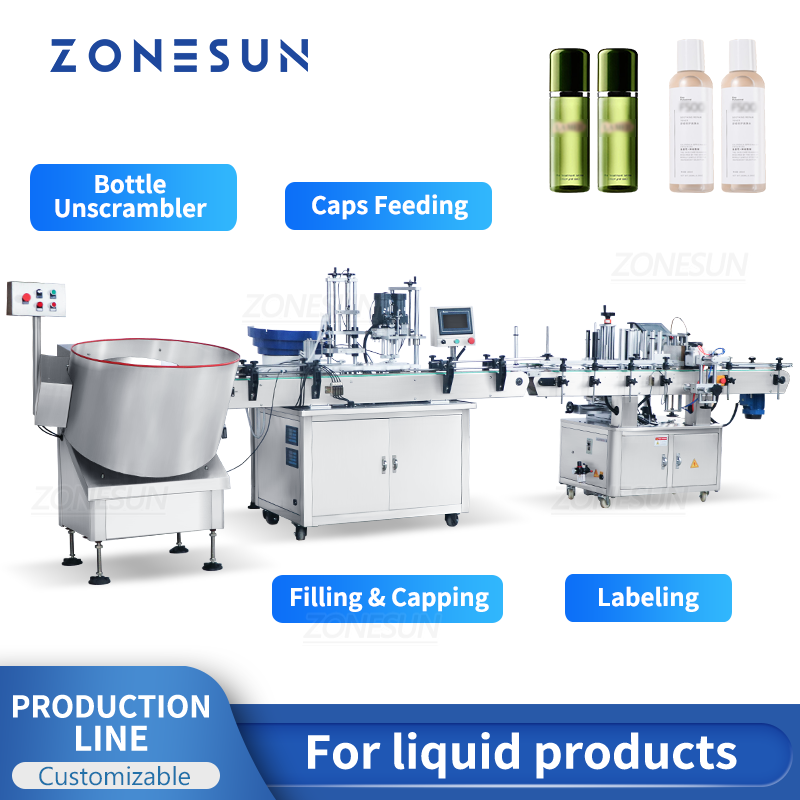

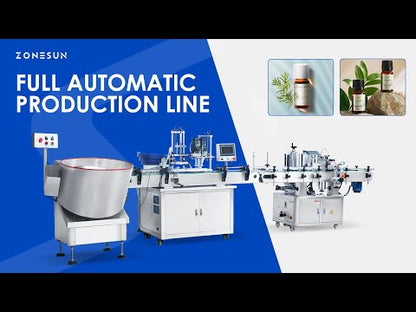

This automatic production line consists of a bottle unscrambler, a filling and capping machine, and a labeling machine, which greatly improves production efficiency and saves labor. It applies to daily chemical products, skin care products, liquid healthcare products, etc.

PARAMETER

BOTTLE TURNTABLE

• Model：ZS-LP750
• Machine Voltage & Power：110/220V 50-60HZ 500W
• Rotary Plate Diameter：755mm
• Suitable Bottle Diameter：Customized according to your bottles
• Working Speed：20-80 bottles/min
• Machine Size：About 570*685*1325mm
• Machine Weight：About 177kg
• Package Size：About 1110*1080*1490mm
• Package Weight：About 208kg

FILLING & CAPPING MACHINE

• Model：ZS-AFC1
• Machine Voltage & Power：AC220V 50Hz/60Hz300W
• Bottle Diameter：25-50mm (Customizable)
• Bottle Height：50-350mm
• Working Speed：30-40 bottles/min. (Depending on liquid, bottle, and caps)
• Air Air Pressure：0.4-0.6MPa
• Capping Torsion：4-9kgf/cm
• Conveyor Size：About 2000*100mm(L*W)
• Machine Size：About 1015*800*1560mm
• Machine Weight：About 341kg
• Packing Size：About 2210*980*1740mm
• Package Weight：About 411kg

LABELING MACHINE

• Model：ZS-TB260
• Power Supply：AC220V 50Hz/60Hz 1500W
• Labeling Capacity：25-50PCS /min (depends on bottle size)
• Labeling Accuracy：±1.0mm
• Suitable Bottle Diameter：φ30-100mm
• Label Size：(L)15-200mm (H)15-150mm
• Roll inside Diameter：φ76mm
• Roll outside Diameter：φ350mm
• Conveyor Size：1950(L)*100mm(W)
• Machine Size：About 2000*1400*1300mm
• Packing Size：About 2120*940*1500mm
• Net Weight/Gross Weight：About 226kg/290kg

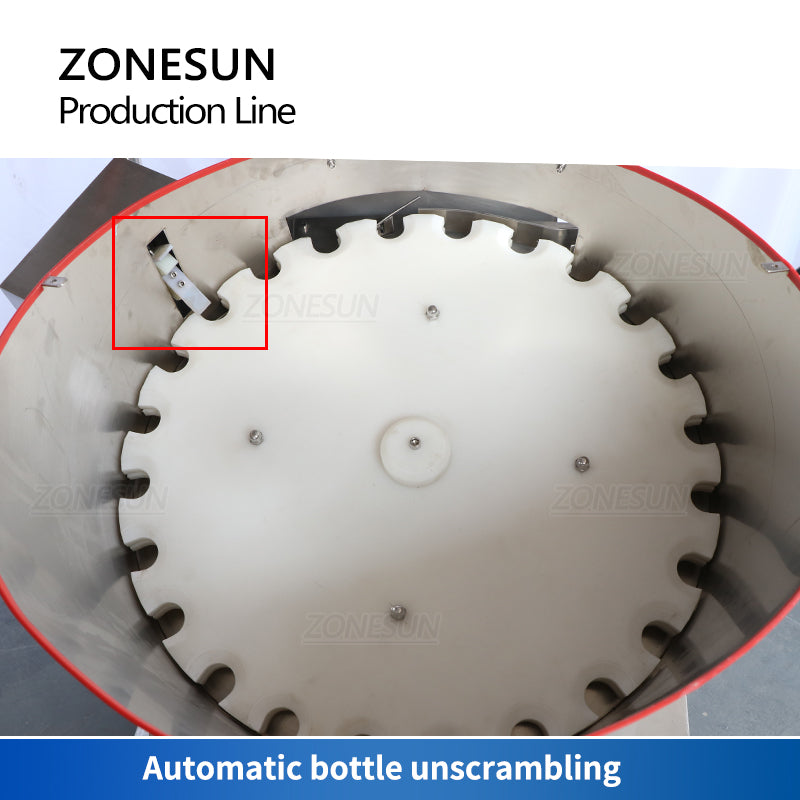

BOTTLE UNSCRAMBLE

Automatic bottle unscrambling

The white component makes bottles face up before the next process.

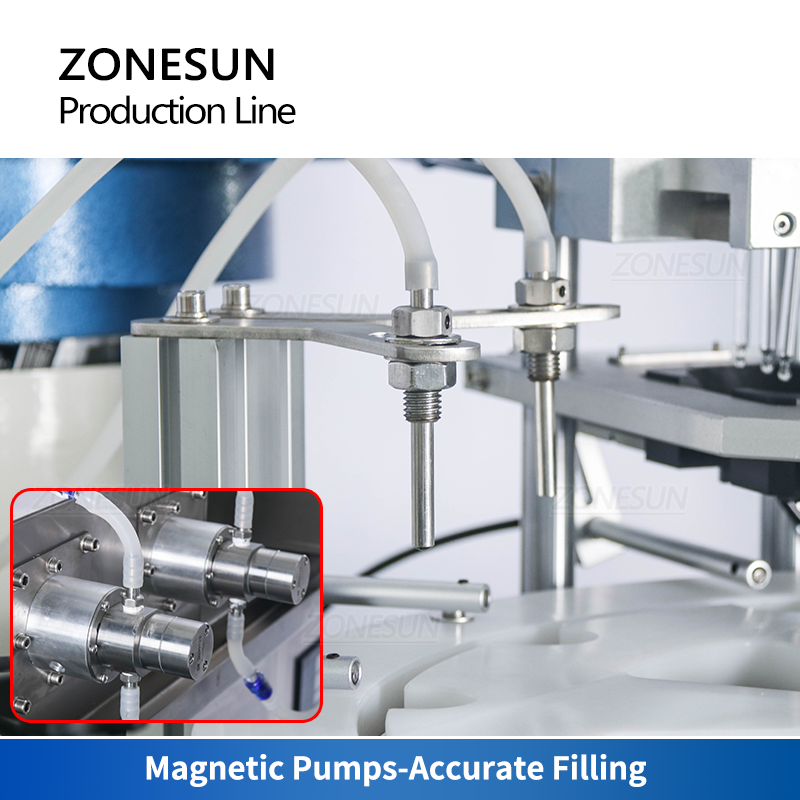

FILLING HEADS AND PUMPS

Double magnetic pumps and filling heads to achieve high-precision filling and high-efficiency production.

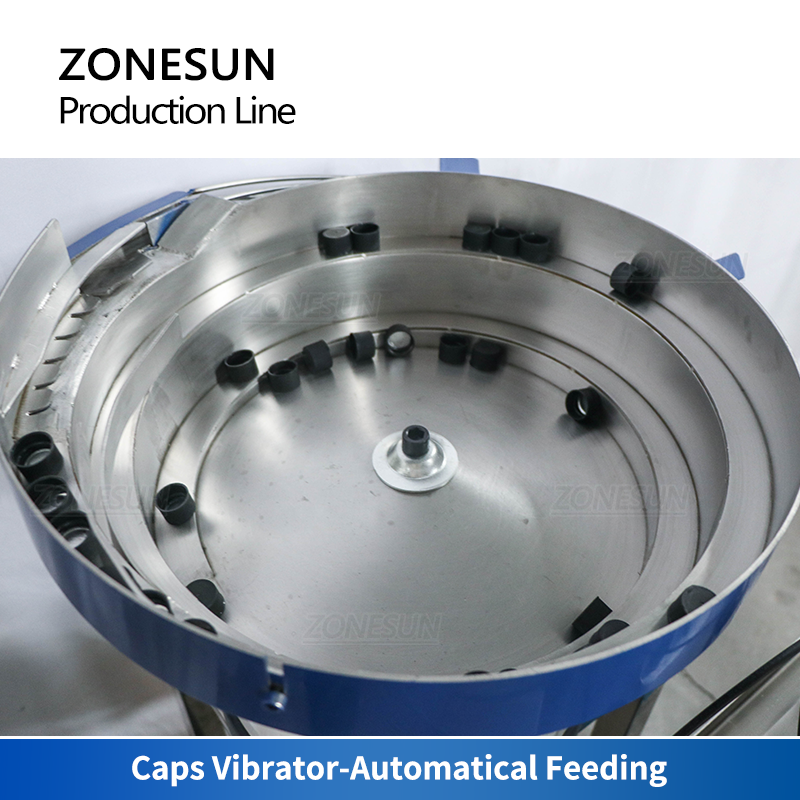

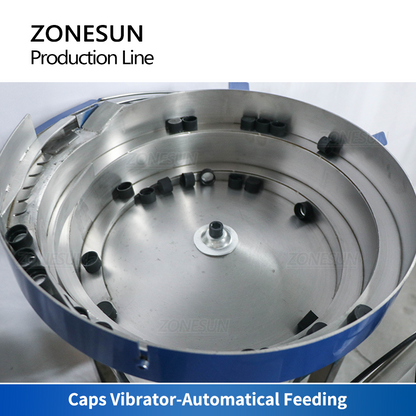

VIBRATORY BOWL

Feed caps and put on caps on bottles automatically, which is labor-saving.

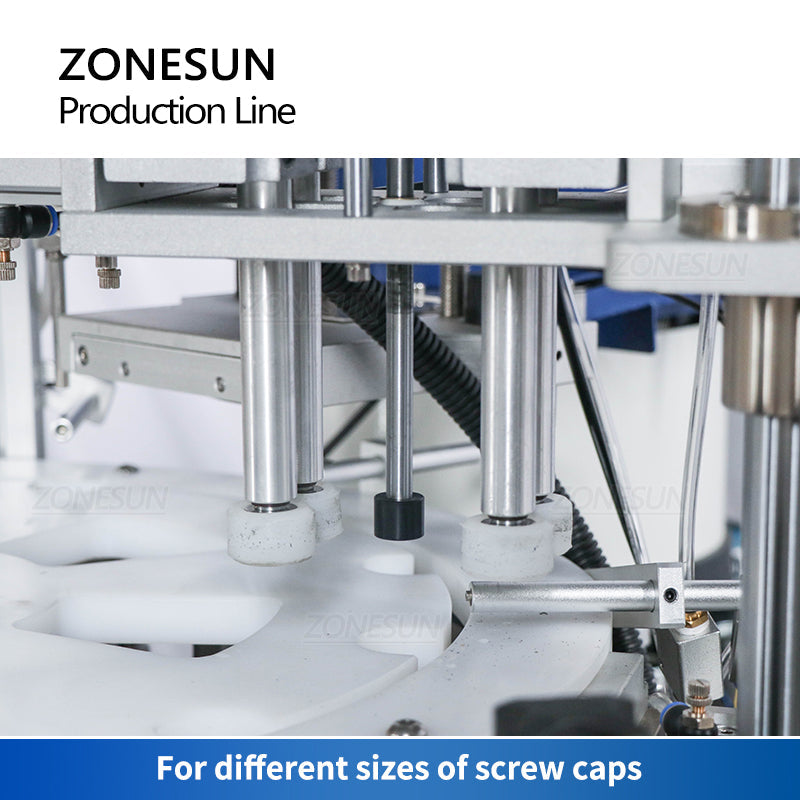

CAPPING STRUCTURE

Complete the capping process for different sizes of screw caps, including droppers and sprayers

 LABELING STRUCTURE

Apply to both single-sided and double-sided labeling for various round bottles
