DESCRIPTION

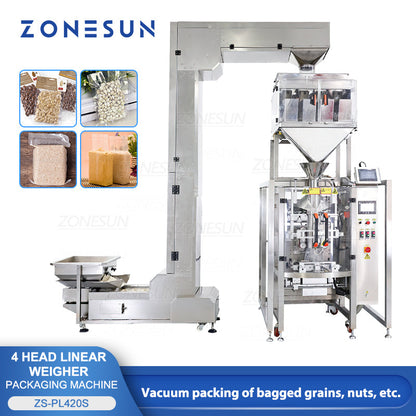

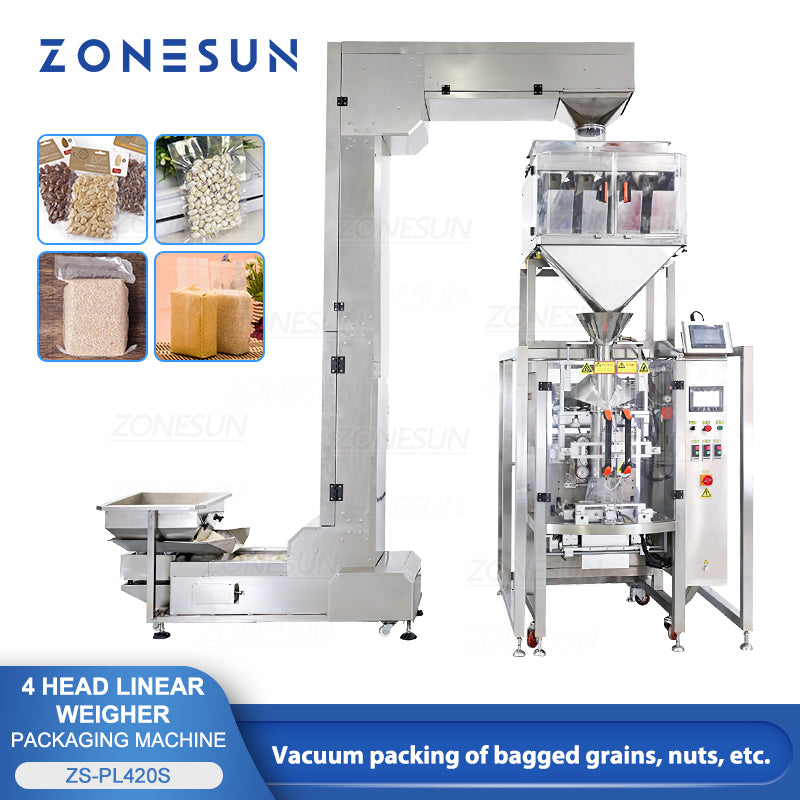

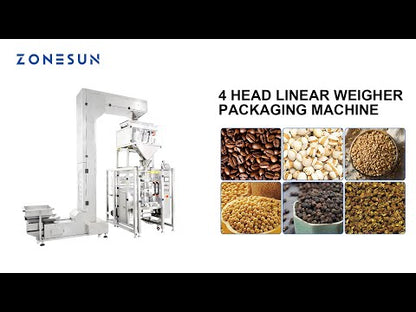

This machine uses a 4-head linear scale to measure, dispense, and vacuum-pack products with extreme precision and speed. It is capable of weighing a wide range of solid granular products such as rice, corn kernels, beans, cashews, peanuts, etc. It is efficient and durable. It greatly reduces time and production costs.

PARAMETER

• Model：ZS-PL420S

• Power Supply：3-phase 380V, 50Hz

• Rated Power：5.8 kW

• Machine Material Mainframe: 201 stainless steel<br>Contact parts: 304 stainless steel

• Filling Range：Customized according to user requirements

• Sealing Type：Back-sealing bags

• Bag Size Length: 80–400 mm<br>Width: 100–295 mm<br>Sealing edge: 15 mm

• Packing Speed：8–12 bags/min (depending on product flow)

• Vacuum Rate：76 m³/hour

• Vacuum Degree：0.1 hPa

• Machine Dimensions：3276 mm (L) × 1024 mm (W) × 3290 mm (H)

• Machine Weight：Approx. 1100 kg

PRODUCT DETAILS

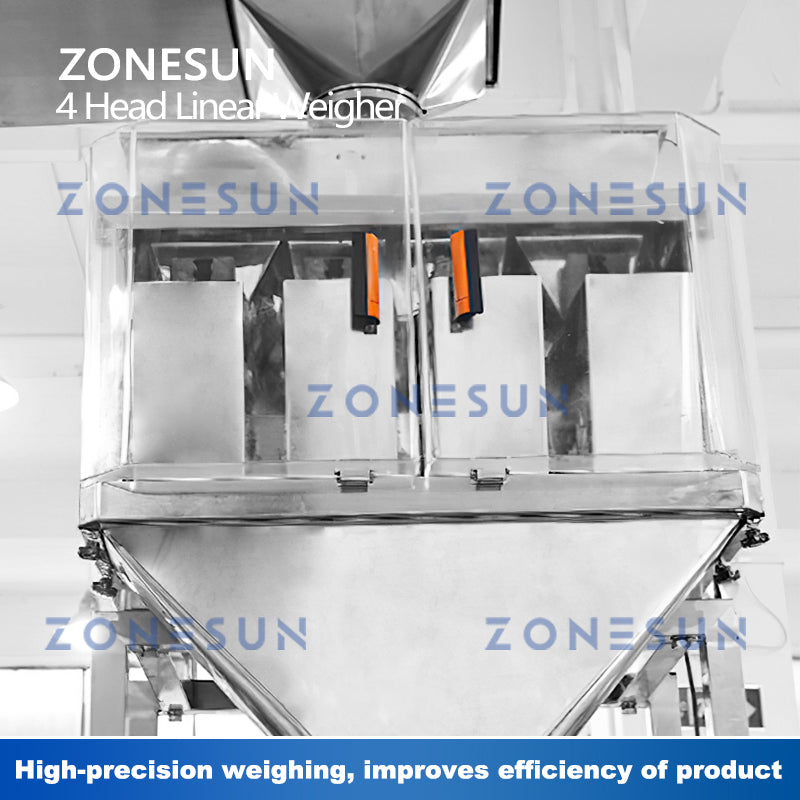

4-HEAD LINER WEIGHER

High-precision weighing, improves efficiency of product

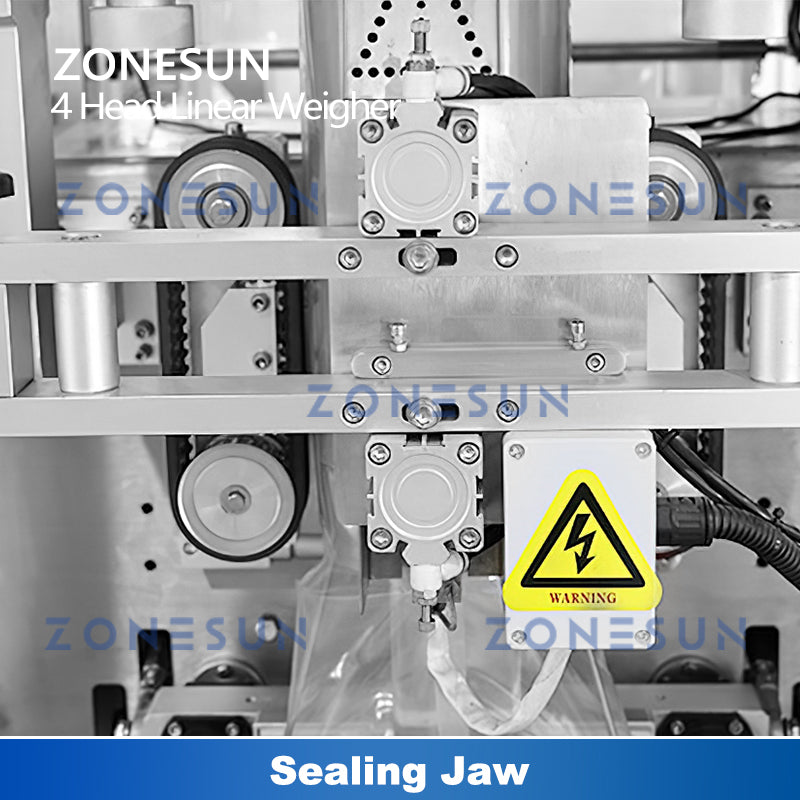

SEALING JAW

High-quality material, makes the seal fast and secure

CONTROL PANEL

Manual touch to operate and control the machine.

BAG FORMER

Make foil rolls into bags of the size you need.

Z-FEEDER

Automatically feed materials into the machine.
