DESCRIPTION

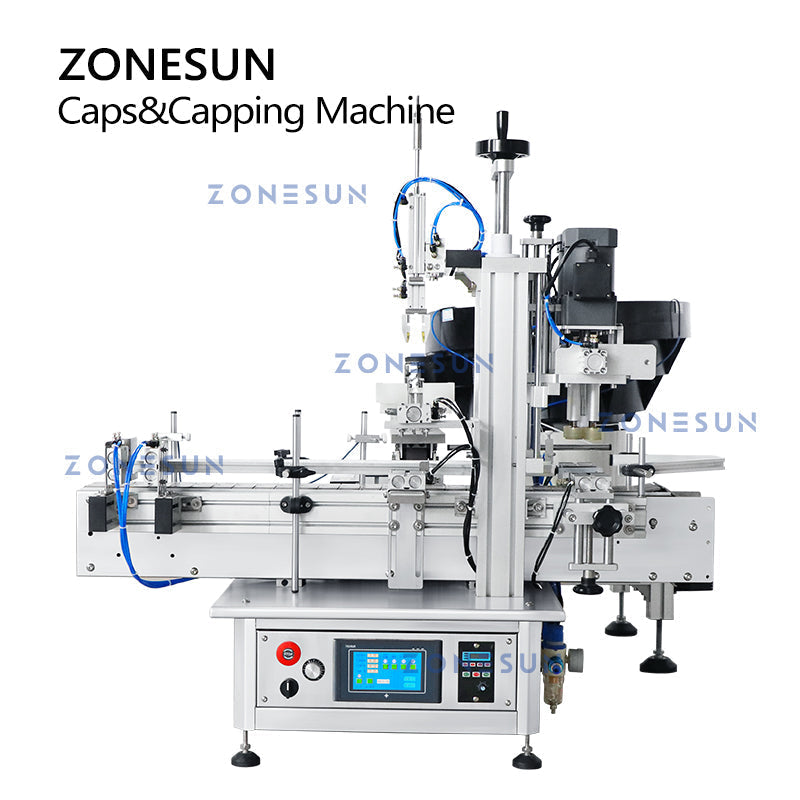

This is a desktop capping machine for dropper bottles. It comes with a vibratory bowl that needs customization. Whatever your packaging needs are, you can rely on ZONESUN.

PARAMETER

• Machine Type：Vibratory Bowl

• Power Supply：110V / 220V, 50–60Hz

• Material Stainless Steel：Suitable Cap Diameter Customized

• Working Speed：Customized

• Machine Size：Customized
  Capping Machine
• Model：ZS-XG1870R

• Working Voltage：AC 220V / 110V, 50–60Hz

• Bottle Height Range：60–270 mm

• Cap Diameter Range：18–70 mm

• Working Speed：20–40 bottles per minute (varies by bottle and cap)

• Working Pressure：0.4–0.6 MPa

• Conveyor Length：1117 mm

• Air Compressor Connector Size：Outer Diameter 8 mm

• Machine Dimensions Approx.：1120 × 580 × 1110 mm

• Package Dimensions Approx.：1160 × 610 × 1140 mm

• Package Weight Approx.：97.5 kg

APPLICATION

The ZONESUN ZS-XG1870R is engineered for a wide range of industries that require precise, high-speed dropper bottle capping. It is widely used in:

• Cosmetics & Personal Care：Essential oils, serums, eye drops, facial toners, and perfume bottles
• Pharmaceutical & Healthcare：Eye drop bottles, tinctures, liquid medicine, and reagent vials
• Food & Beverage：Flavor extracts, liquid supplements, and specialty condiment dropper bottles
• Daily Chemical：Nail polish, adhesive, and other precision-dispensing dropper containers
• Industrial & Laboratory：Chemical reagents, lubricants, and lab-grade dropper packaging

Whether you are running a small-batch production line or scaling up to full automation, the ZS-XG1870R adapts to your output requirements with customizable speed, cap size, and conveyor width settings.

PRODUCT DETAILS

Touch Screen Control Panel

Through the touch screen panel, it's easy to set working parameters. The language of panel can be customized according to customers' need.

Cap Grabbing Feeder

The cap grabbing structure can imitate human hand to grab bottle caps and put it on bottles,this can prevent from scratching bottle caps and improves working accuracy.

Capping Head

Made of four rubber wheels, it is suitable for various shapes of caps, such as dropper bottle caps, sprayer bottle caps. The working height of machine can be adjusted as needed.

Vibratory Bowl Feeder

Equipped with vibratory bowl feeder,it can help to arrange and feed bottle caps before capping work, reducing production labor and error. It should be customized according to cap size.

Conveyor Belt

With chain conveyor belt, it has large loading capacity, which can transport bottles stably. The width and conveying speed of it can be adjusted as needed.

MACHINE FEATURES

• Vibratory Bowl Cap Sorting：Automatically sorts and orients dropper caps before feeding, eliminating manual cap placement and reducing operator intervention
• Robotic Cap Grabbing Mechanism：Servo-driven gripper mimics human hand motion to pick and place caps precisely onto bottles without scratching or deforming cap surfaces
• Four-Wheel Capping Head：Four rubber-wheel capping head applies consistent torque to a wide range of cap shapes — round, dropper, sprayer — ensuring leak-free sealing every time
• Touch Screen HMI Control：7-inch color touch screen allows operators to set speed, torque, and conveyor parameters in seconds; multi-language support available on request
• Adjustable Chain Conveyor：Heavy-duty chain conveyor with adjustable width (to fit various bottle diameters) and variable speed ensures smooth, jam-free bottle transport
• Wide Compatibility：Handles bottles from 60–270 mm in height and caps from 18–70 mm in diameter, covering the majority of dropper bottle formats on the market
• Stainless Steel Construction：Food-grade stainless steel contact parts meet GMP and pharmaceutical-grade hygiene standards, easy to clean and corrosion-resistant

MACHINE ADVANTAGES & BENEFITS

• Boost Production Efficiency：Achieves 20–40 bottles per minute — up to 5× faster than manual capping — dramatically cutting labor costs and increasing throughput on your packaging line
• Reduce Cap Damage & Waste：The gentle robotic grabbing action and precision torque control minimize cap deformation, surface scratches, and cross-threading, reducing material waste and rework
• Consistent Sealing Quality：Uniform capping torque on every bottle eliminates under-tightened or over-tightened caps, ensuring product integrity and reducing leakage complaints
• Easy Changeover & Flexibility：Tool-free adjustments for bottle height, cap diameter, and conveyor width allow rapid format changeovers, making the machine ideal for multi-SKU production environments
• Low Maintenance & Long Service Life：Robust mechanical design with wear-resistant rubber wheels and sealed bearings keeps downtime minimal and extends machine service life beyond industry average
• Compact Footprint, High Output：At just 1120 × 580 × 1110 mm, the ZS-XG1870R delivers industrial-grade capping performance in a desktop-scale footprint — perfect for small factories, contract packagers, and growing brands
• Compliance-Ready Design：Stainless steel construction and pneumatic capping system meet GMP, FDA, and CE standards, supporting regulatory compliance for pharmaceutical and cosmetic manufacturers
