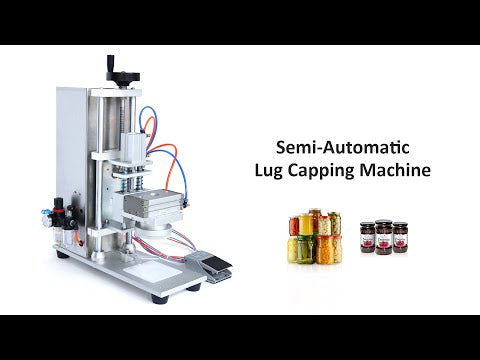

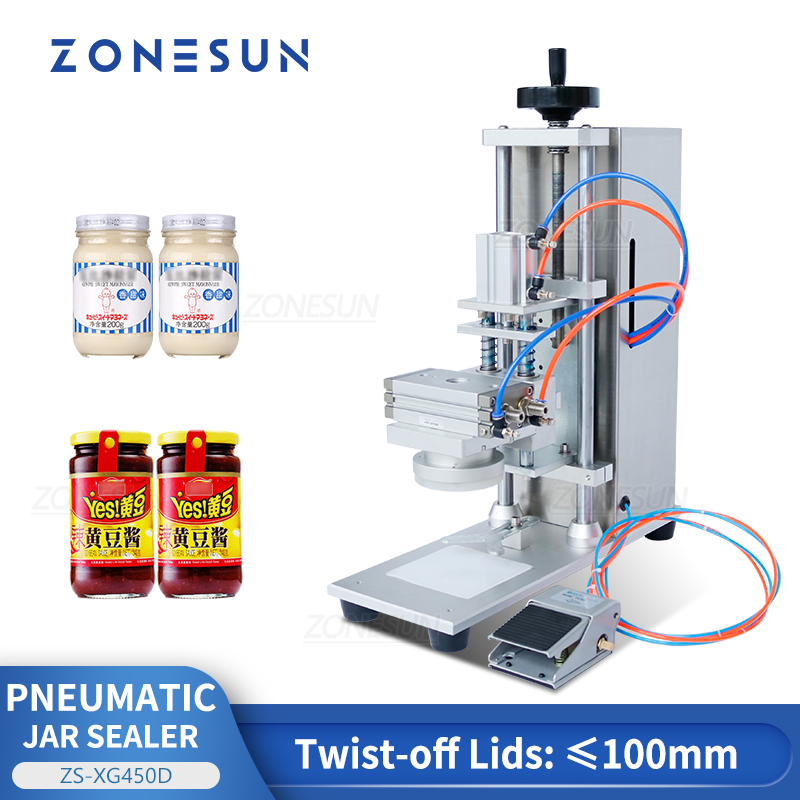

ZONESUN ZS-XG450D Semi Automatic Desktop Glass Bottle Twist Off Can Capping Machine
ZONESUN ZS-XG450D Semi Automatic Desktop Glass Bottle Twist Off Can Capping Machine
Couldn't load pickup availability
DESCRIPTION
This machine is used for tightening bottle caps with screws threads like twist-off caps, regular screw-on bottle caps. It is widely used in food, daily chemical and cosmetics industries.
Parameter
Bottle Height ≤ 200 mm
Bottle Cap Diameter Standard: ≤ 90 mm，Custom: ≤ 100 mm
Working Speed 20 – 40 bottles/min (depending on bottle & cap)
Machine Size Approx. 180 × 480 × 535 mm
Machine Weight Approx. 18.5 kg
Package Size Approx. 600 × 340 × 710 mm
Package Weight Approx. 26.5 kg
APPLICATION
This machine is suitable for screwing lids, such as continuous lid and twist-off lid.
NOTE
This equipment requires an air supply with a working pressure of 0.4 MPa. It is recommended to use an air compressor rated at 750 W or above with an air tank capacity of 30 L or larger.

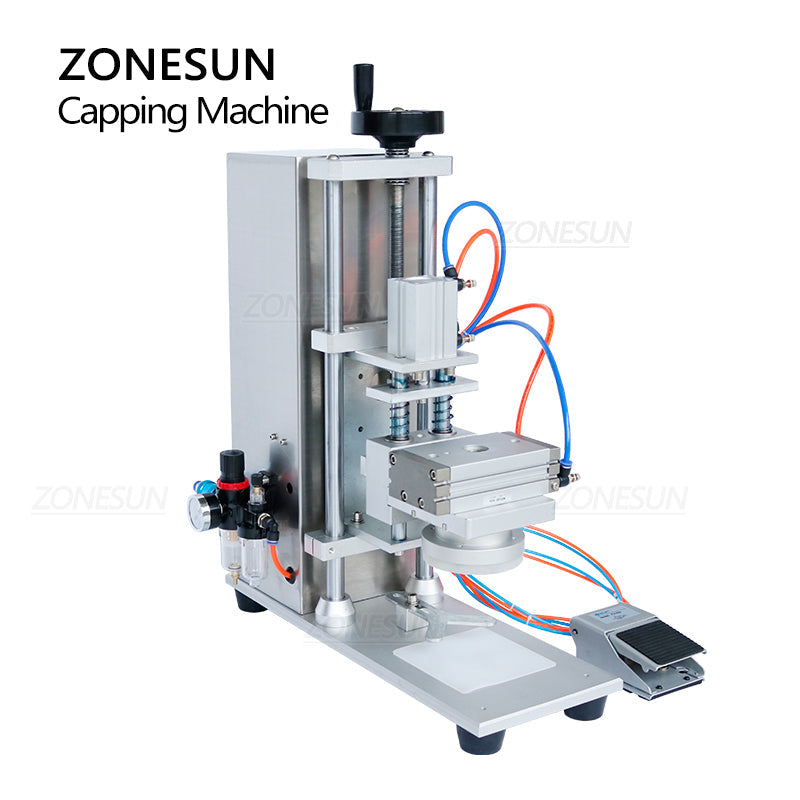

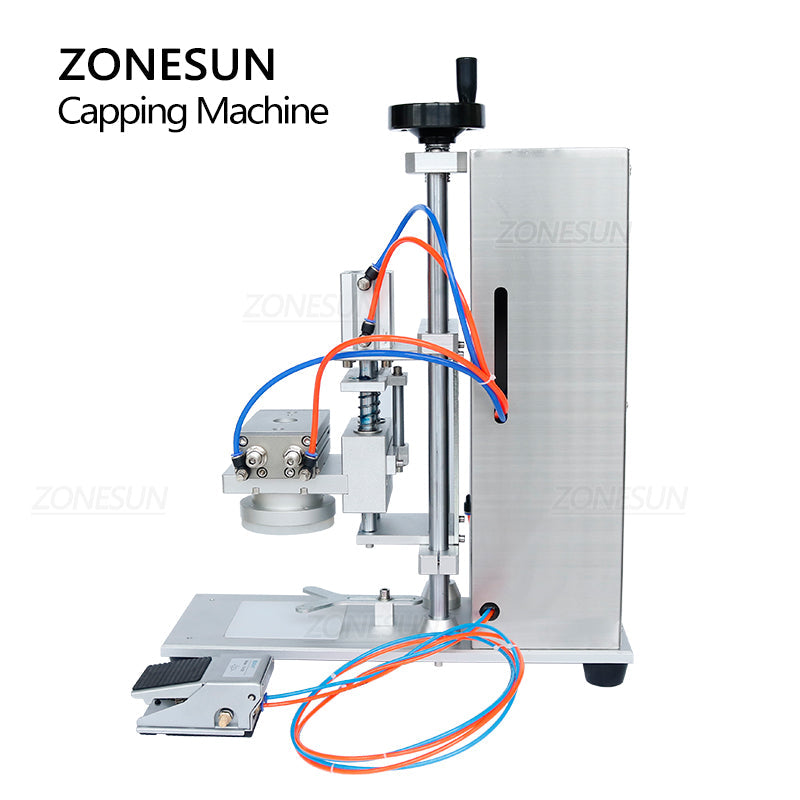

Rotary Handle:
The height of the capping head can be easily adjusted using this rotary handle, making the machine adaptable for bottles of different heights.

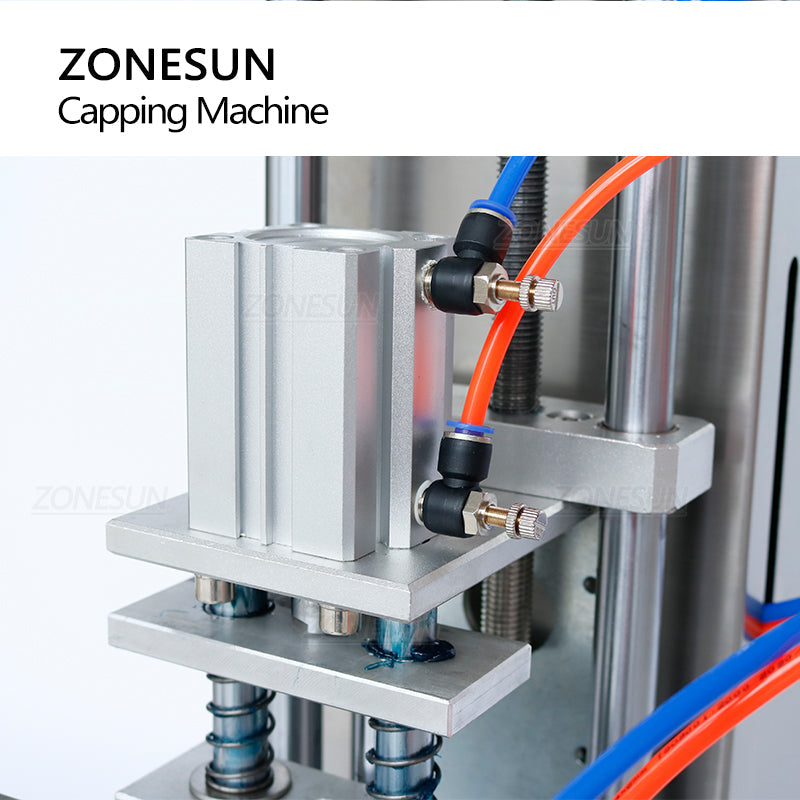

Air Cylinder
Driven by pneumatic power, it works at high speed.

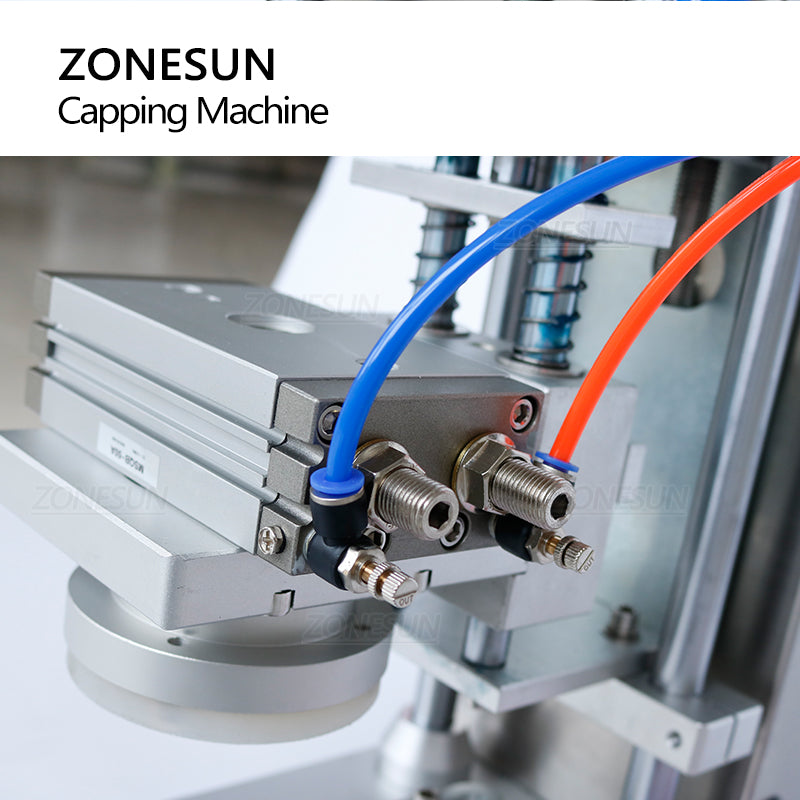

CAPPING HEAD
The capping head works steadily and smoothly. It can be customized for caps in different sizes.
