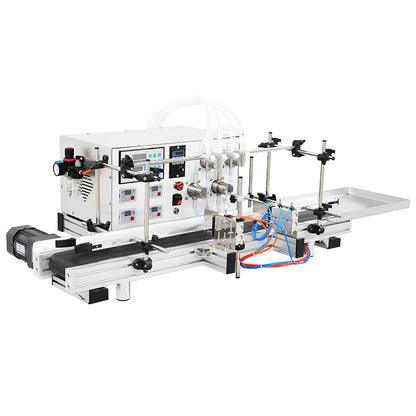

ZONESUN ZS-DTMP4 4-Nozzle Automatic Magnetic Pump Liquid Filling Machine
ZONESUN ZS-DTMP4 4-Nozzle Automatic Magnetic Pump Liquid Filling Machine
Não foi possível carregar a disponibilidade de recolha

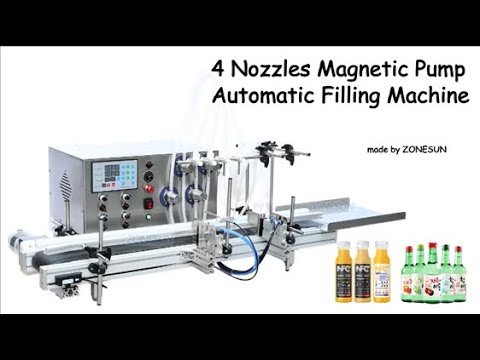

4-Nozzle Automatic Magnetic Pump Liquid Filling Machine
The ZONESUN ZS-DTMP4 4-Nozzle Automatic Magnetic Pump Filling Machine is designed for filling compatible low-viscosity liquids such as juice, milk, soy sauce, essential oil, lotion and other free-flowing liquids.
Four filling nozzles support efficient multi-head filling for small and medium production requirements. The compact machine can be used independently or connected with desktop capping and labeling machines to create a simple automatic packaging line.
Parameter
|
Machine model |
ZS-DTMP4A |
ZS-DTMP4B |
|
Power supply |
110/220V 50-60HZ |
|
|
Maximum flow velocity |
5500ml/min (Each nozzle and base on water) |
9000ml/min (Each nozzle and base on water） |
|
Working speed |
20-30 bottles/min (based on 50-1000ml filing volume) |
20-40 bottles/min (based on 50-1000ml filling volume) |
|
Air pressure |
0.3-0.4MPa |
|
|
Filling accuracy |
≤±1% (For water) |
|
|
Diameter of Filling Nozzle |
6/8mm |
|
|
Delay Range |
0.01-999.9s |
|
|
Count Range |
1-99999 Times |
|
|
Filling Volume |
3-1000ml(220V)3- 500ml(110V) |
|
|
Size of air compressor connector |
OD8mm |
|
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
|
Package Size |
About 1110*650*420mm |
About 1110*650*420mm |
|
Gross weight |
About 50.5kg |
About 51.5kg |
Key Features
-
4-nozzle magnetic pump filling
-
Suitable for low-viscosity liquids
-
Automatic liquid filling operation
-
Compact desktop design
-
Suitable for juice, milk, soy sauce and essential oil
-
Can connect with capping and labeling machines
-
Suitable for small production lines
Liquid viscosity, filling volume, bottle size and required production speed should be confirmed before machine selection.

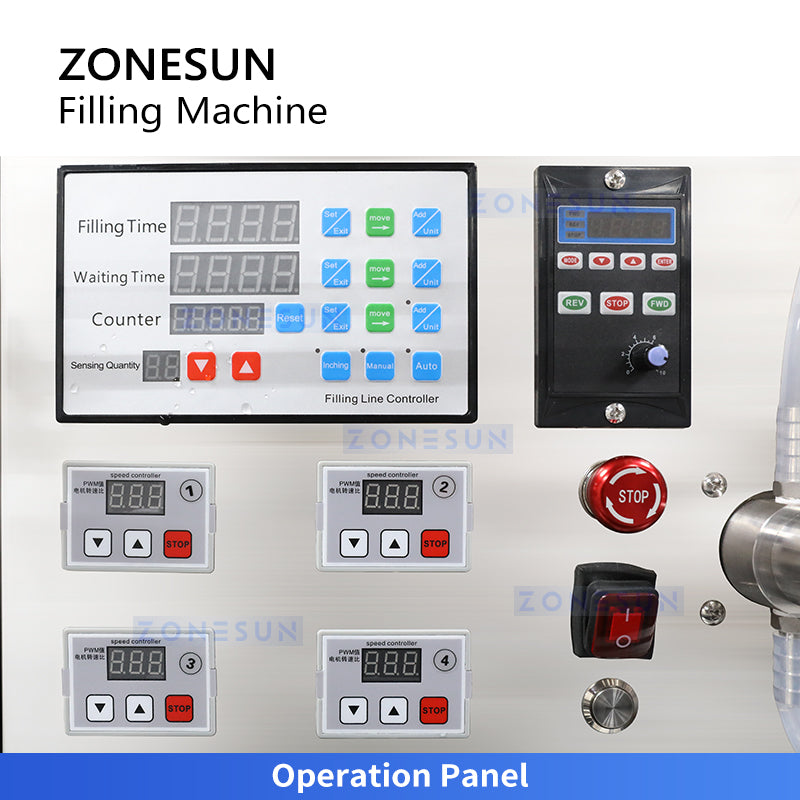

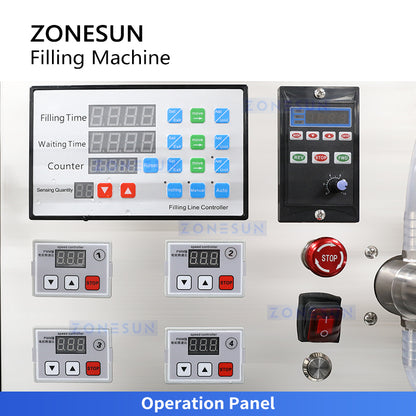

Operation Control Panel
Allows easy setting of filling time, waiting time, conveyor speed and other operating parameters for convenient machine control.

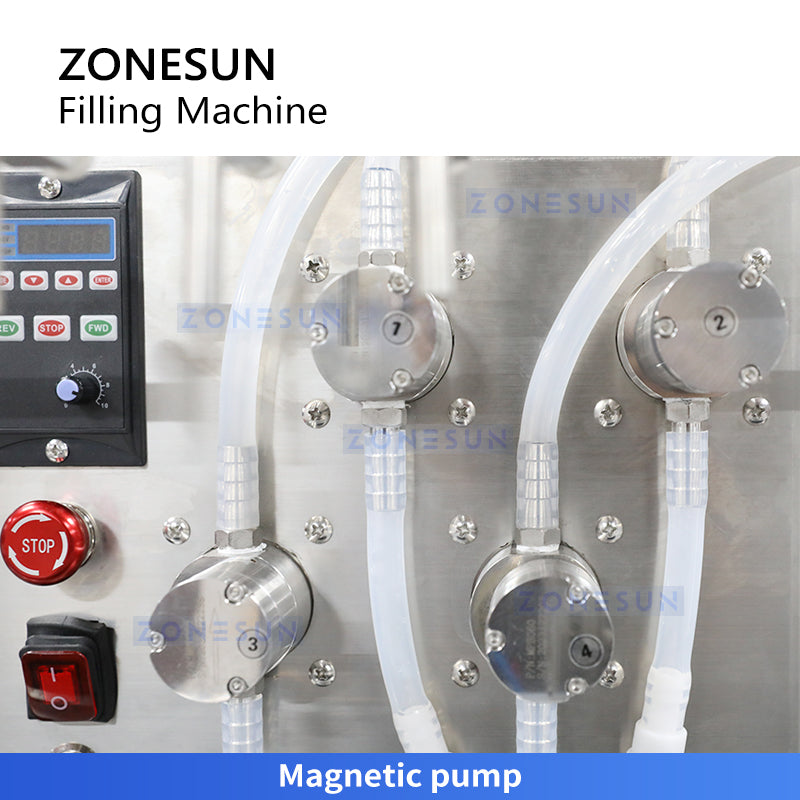

Independent Magnetic Pump System
Four corrosion-resistant magnetic pumps provide stable liquid filling, with each pump independently adjustable for different filling requirements.

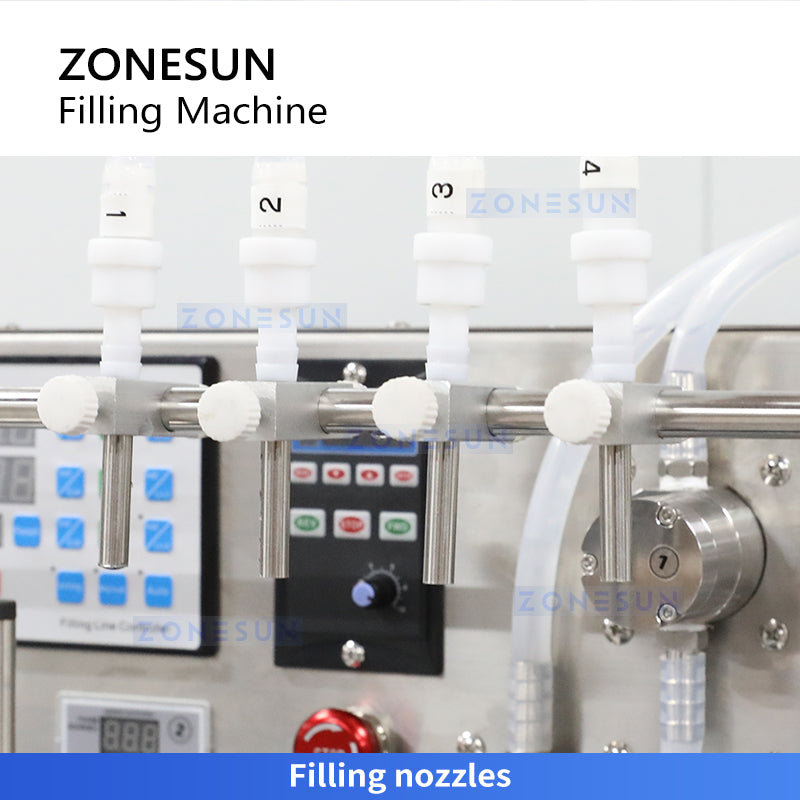

Anti-Drip Filling Nozzles
With anti-dripping function,can control each nozzle separately, We customize multiple nozzles filling machine.please send us message if you need it.

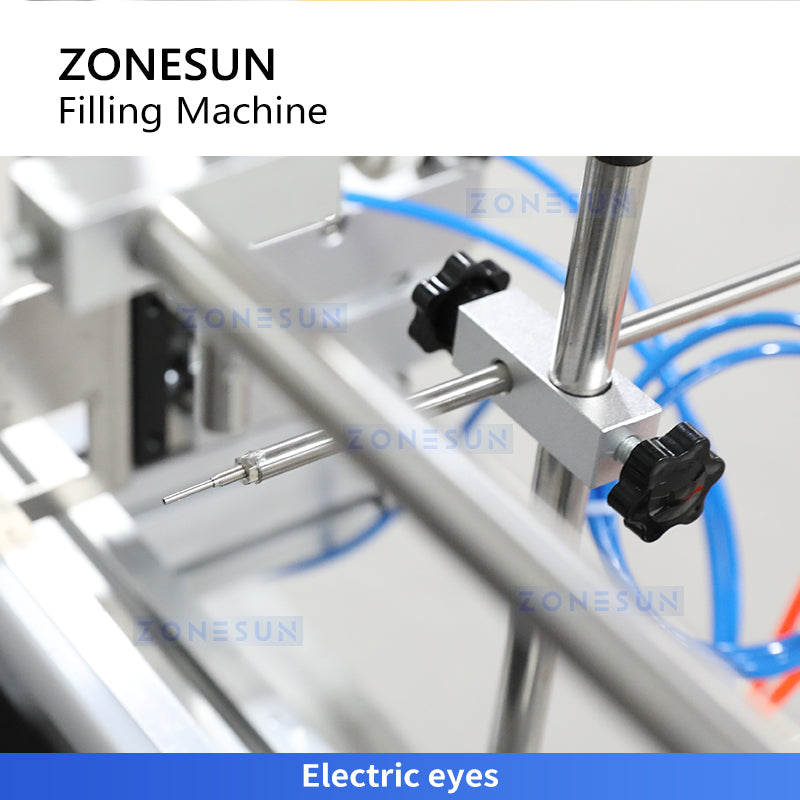

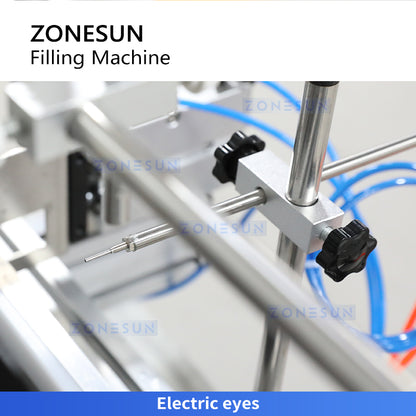

Photoelectric Bottle Detection
Detects incoming bottles and triggers filling at the correct position, helping prevent missed or incorrect filling.

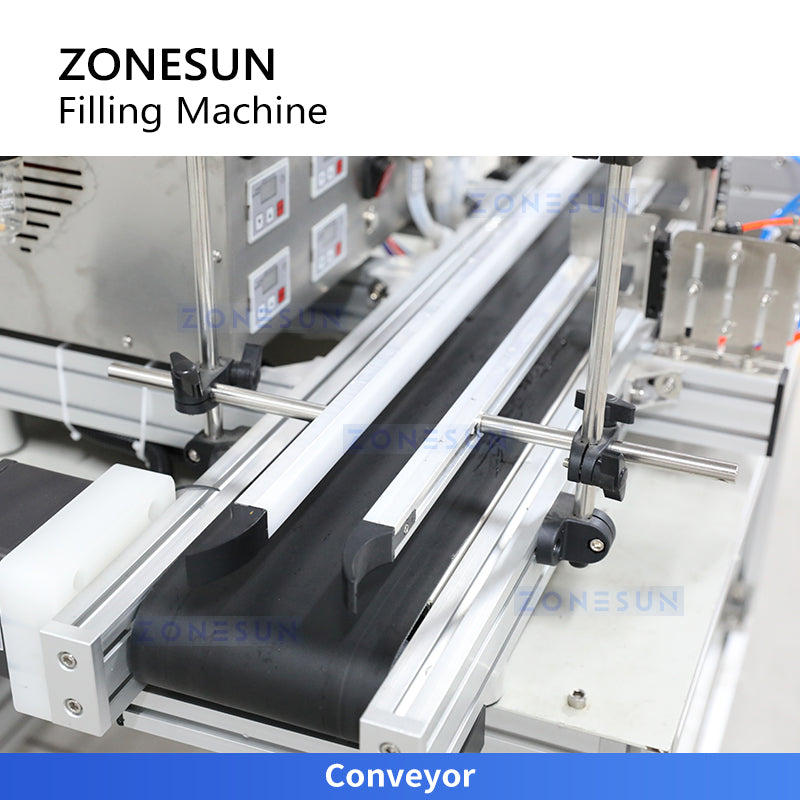

Adjustable Conveyor System
Continuously conveys bottles through the filling station, with adjustable speed for stable and efficient production.
Air Pressure Regulator & Gauge
Allows convenient adjustment and real-time monitoring of air pressure. An external air compressor is required and sold separately. If you need it, please contact us.
