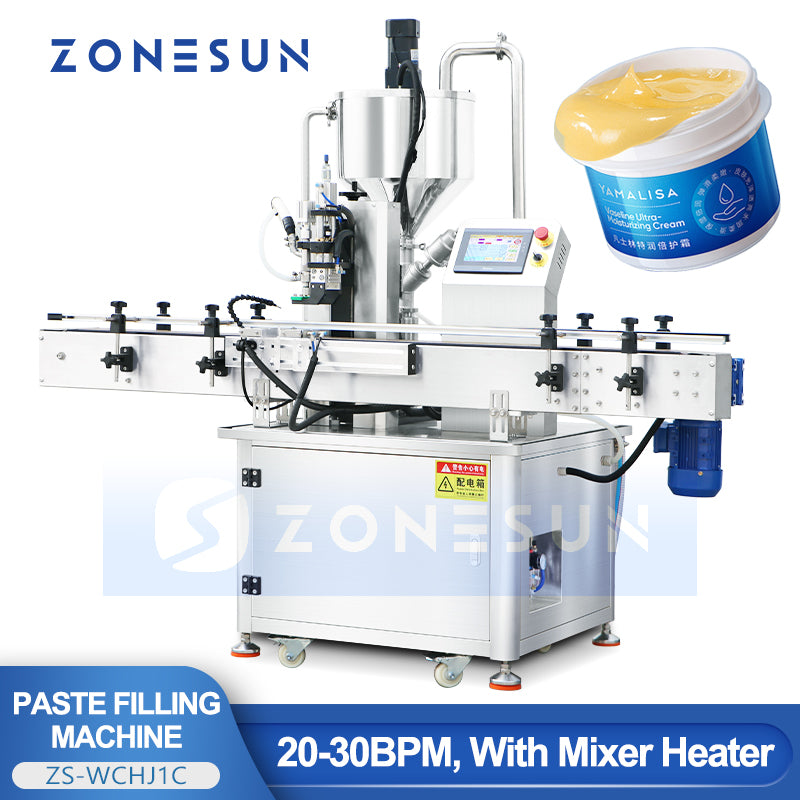

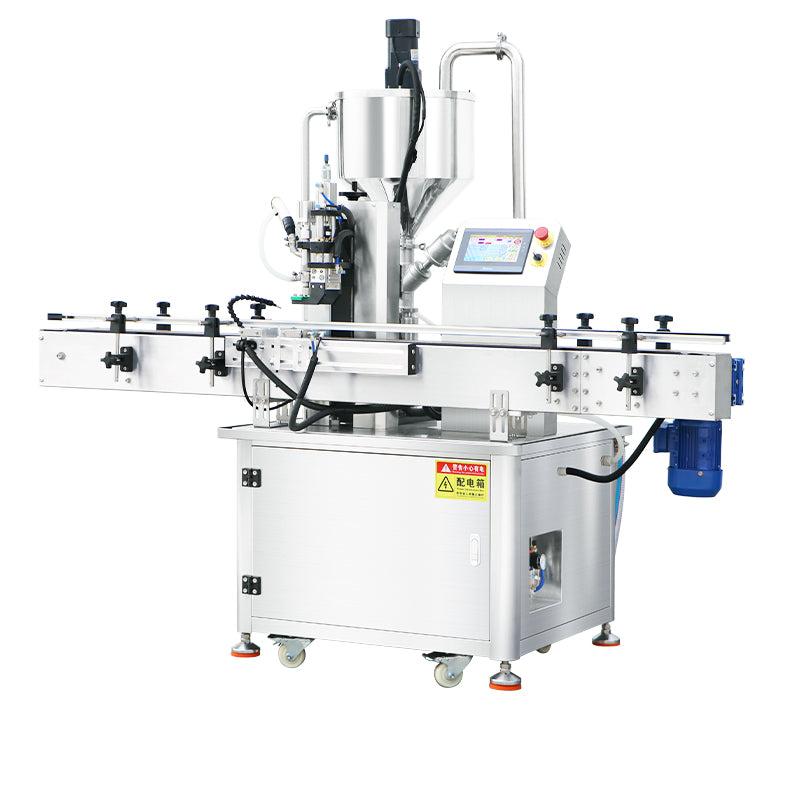

ZONESUN Cosmetic Paste Filler Consistent Heating Mixing Filling Machine ZS-WCHJ1C

DESCRIPTION

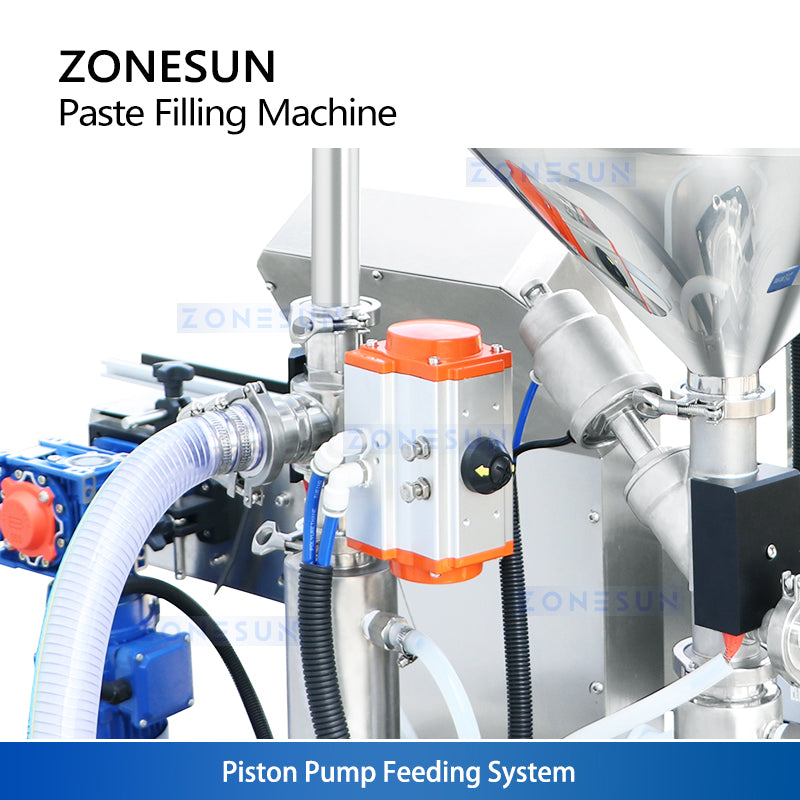

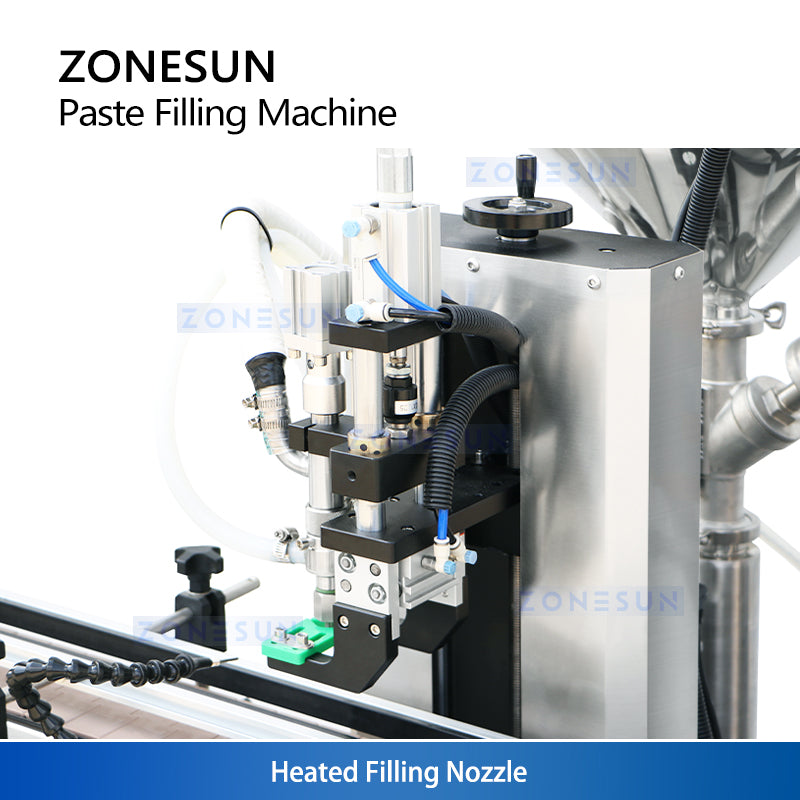

The ZONESUN ZS-WCHJ1C Automatic Piston Pump Wax and Paste Filling Machine is designed for accurate filling of high-viscosity and temperature-sensitive products such as lip balm, hair wax, shoe wax, and solid perfume. Featuring water circulation heating, a jacketed material hopper, a heated filling nozzle, and a piston pump feeding system, it helps maintain material temperature and prevent wax solidification during filling. With a filling range of 5–150 mL, accuracy of ≤0.5%, and production speed of approximately 20–30 bottles/min, the machine supports continuous automated filling. Optional mixing, customizable filling heads, and a one-button cleaning function provide additional flexibility for different production requirements, and can be connected with capping machines, labeling machines and other packaging equipment.

Specifications

• Model                                      ZS-WCHJ1C
  Power Supply                          110/220 V,50-60 Hz
  Power                                      4KW
  Filling Speed                           Approx.20-30 bottles/min(depending on filling volume and material)
  Applicable Bottle Diameter    4-150 mm
• Applicable Bottle Height       10-200 mm
• Filling Range                          5-150 mL (Customizable)
  Filling Accuracy                     ≤0.5%
  Filling Pump                          Piston Pump
  Air Pressure                           5-8kg/cm²
  Material Contact Parts          SUS 304 Stainless Steel
• Machine Dimensions(L X W X H)    Approx. 2050 X 875 X 2060 mm
• Package Dimensions (L X W X H)   Approx. 1730 x 940 X 1970 mm
• Package Weight                    Approx. 327 kg

MACHINE FEATURE

1. It is equipped with a water tank and heating tube, allowing you to heat the cosmetic paste materials to achieve the desired viscosity.

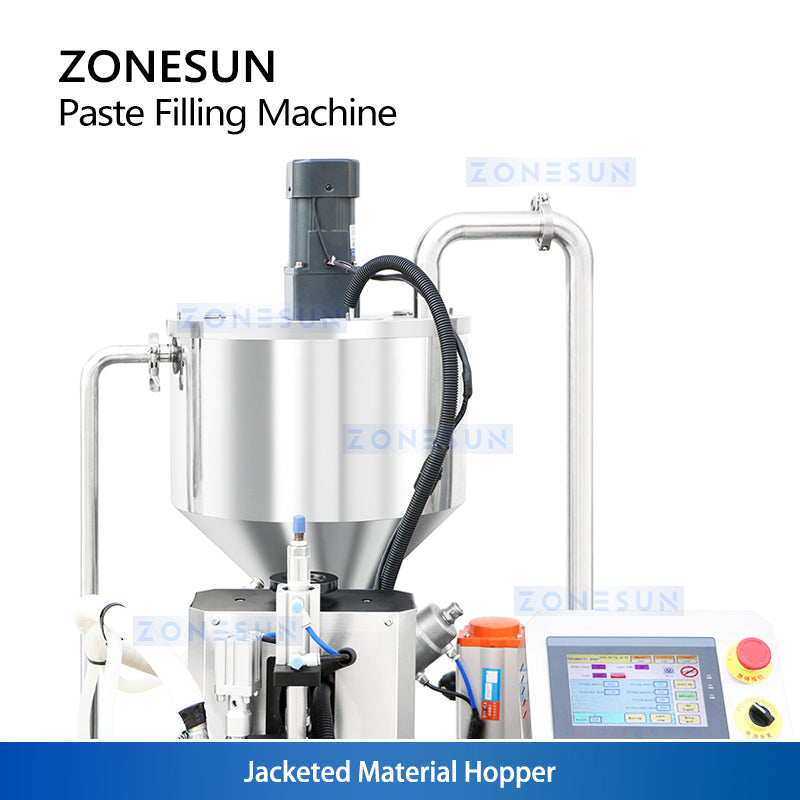

2. With an integrated agitator in the hopper, it ensures continuous and thorough mixing of the cosmetic paste materials.

3. User-friendly：The control panel allows easy setting of the heating temperature, allowing you to achieve the desired viscosity for different cosmetic paste formulations.

HEATING

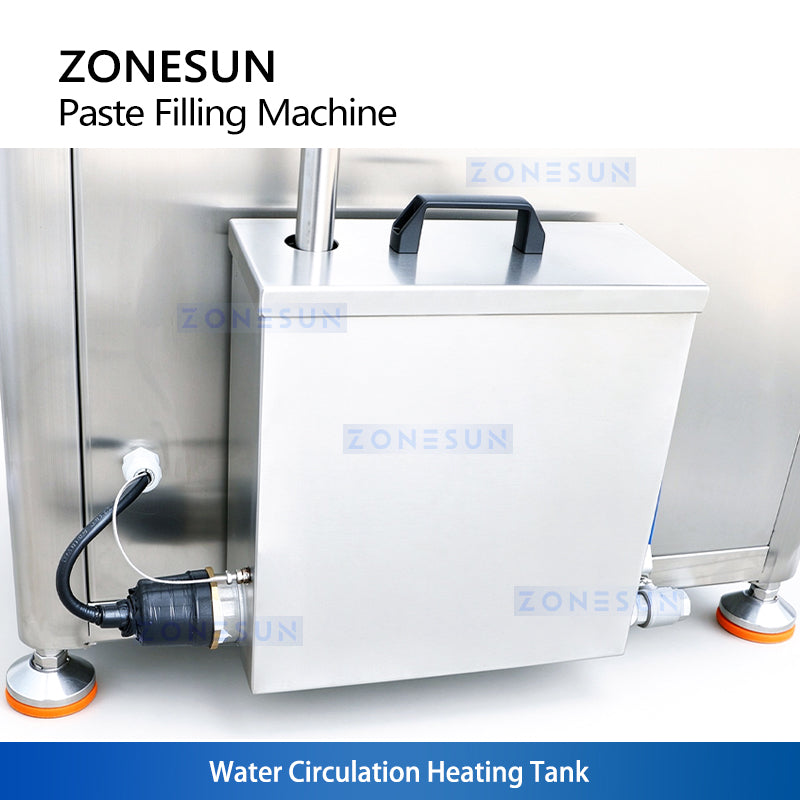

It is equipped with a water tank with a heating tube inside, allowing you to heat the materials for optimal viscosity. The heating capability ensures that your materials are at the ideal temperature for filling, improving the quality and consistency of your products.

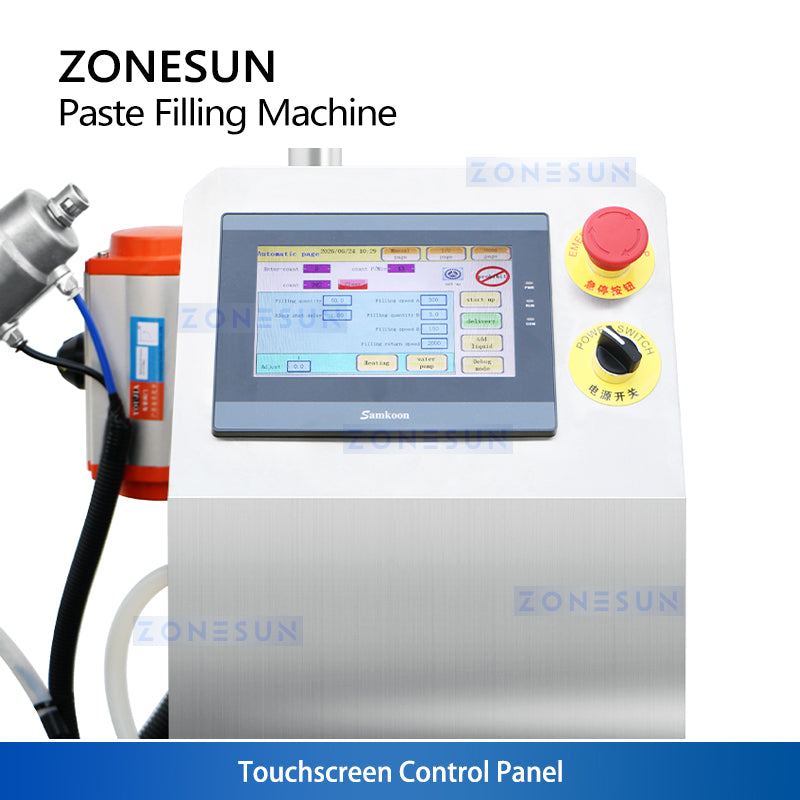

Touchscreen Control Panel

Allows operators to set filling parameters, adjust operating settings, and monitor machine operation. Multiple interface languages are available upon request.
