ZONESUN ZS-AFC32B Peristaltic Pump Cam Filling and Capping Machine Small Volume Liquid Solution

Description

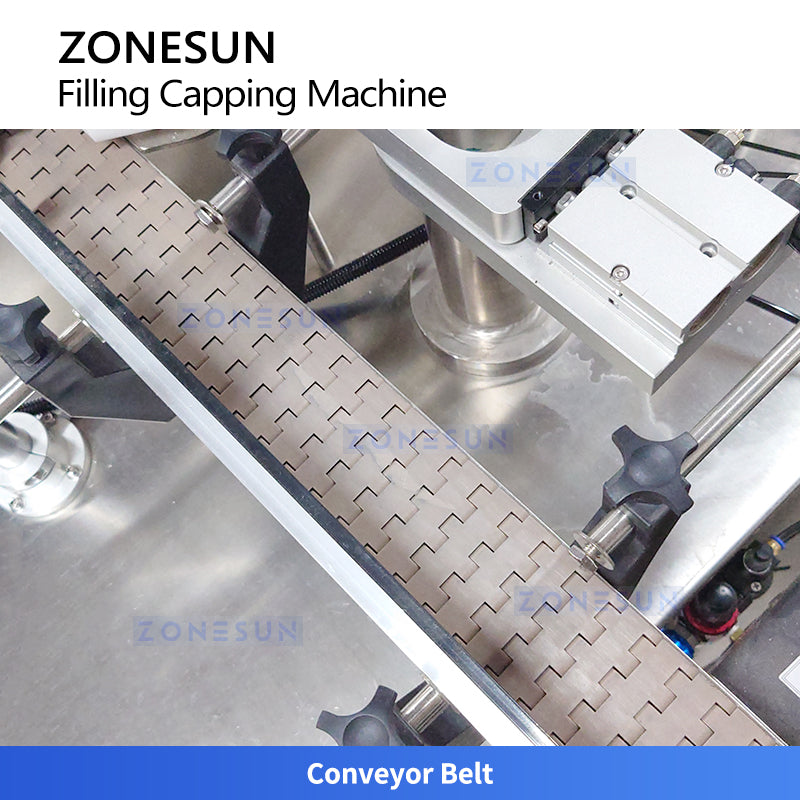

The ZONESUN ZS-AFC32B is an automatic liquid filling and capping machine that integrates peristaltic pump filling with cam-driven motion control. Equipped with dual peristaltic pumps, servo motors, and a rotary starwheel, it ensures precise, contamination-free filling and stable cap placement. The machine features a vibratory bowl for automatic cap feeding, a press-capping and screw-capping assembly for consistent torque control, and a conveyor system for smooth bottle transfer. Built with SUS304 stainless steel and customizable components, it is ideal for essential oils, eye drops, solvents, and other small-volume liquid products.

Parameter

• Model: ZS‑AFC32B
• Voltage: 110/220 V, 50–60 Hz
• Filling Pump: Peristaltic pump
• Hose Size: #17
• Nozzles: 2
• Filling Range: 10–60 ml (customizable)
• Filling Accuracy: ±1%
• Working Capacity: About 30 BPM
• Nozzle Material: SUS304
• Vibratory Bowl Material: SUS304
• Machine Size: About 1800 × 1670 × 1450 mm
• Package Size: About 2490 × 960 × 1670 mm
• Package Weight: About 632 kg
