Description
The ZONESUN ZS-AFCL9 is a high-speed automatic vial packaging line for pharmaceutical and cosmetic applications. It integrates filling, stoppering, capping, and labeling in a compact cam-driven rotary system, processing up to 3,000 bottles per hour. Equipped with a laminar flow hood and dust-proof enclosure, it ensures sterile and hygienic operation. With modular design and touchscreen control, the ZS-AFCL9 delivers precise, efficient, and reliable vial handling for sterile liquid and small-volume bottle packaging.
Filling Capping Machine
- Machine Model: ZS-AFC39
- Voltage: 110/220 V, 50–60 Hz
- Power Consumption: 3 kW
- Working Capacity: About 30–60 BPM (based on filling volume)
- Filling Pump: Peristaltic pump
- Filling Nozzle Quantity: 2
- Filling Range: Customized
- Filling Accuracy: ±3%
- Machine Dimensions (L×W×H): About 2330 × 1400 × 2100 mm
- Machine Weight: About 900 kg
-
Package Size:
- Main Machine: About 2530 × 1700 × 1930 mm
- Laminar Flow Hood: About 2200 × 1270 × 1680 mm
-
Package Weight:
- Main Machine: About 1407 kg
- Laminar Flow Hood: About 418 kg
- Total: About 1825 kg
Labeling Machine
- Machine Model: ZS-TB821
- Voltage: 220 V / 110 V, 50–60 Hz
- Power Consumption: 570 W
- Labeling Accuracy: ±1.0 mm
- Labeling Speed: About 40–120 bottles/min (depending on label size)
- Applicable Product Size: Round bottles, diameter φ25–φ120 mm
- Label Size: Width 20–300 mm × Height 20–95 mm
- Label Roll Inner Diameter (ID): φ76 mm
- Label Roll Outer Diameter (OD): φ300 mm
- Machine Dimensions (L×W×H): About 2040 × 1180 × 1370 mm
Touchscreen Control Panel
Provides intuitive touchscreen interface for real-time control, monitoring, and parameter adjustment across the production line.
Integrated Filling Capping Module
Integrates dosing, stoppering, and capping in a compact rotary system for efficient, space-saving bottle handling.
Vibratory Bowl Feeding System
Automatically orients and delivers stoppers and caps for uninterrupted, high-speed bottle processing.
Laminar Flow Hood
Provides clean, directed airflow over sterile zones to safeguard product quality during filling and capping.
Glove Port
Allows safe, contact-free handling of vials within sealed zones to maintain sterile processing conditions.
Side-belt Labeling Station
Applies precise wrap-around labels to small vials at high speed using synchronized side-belt alignment.

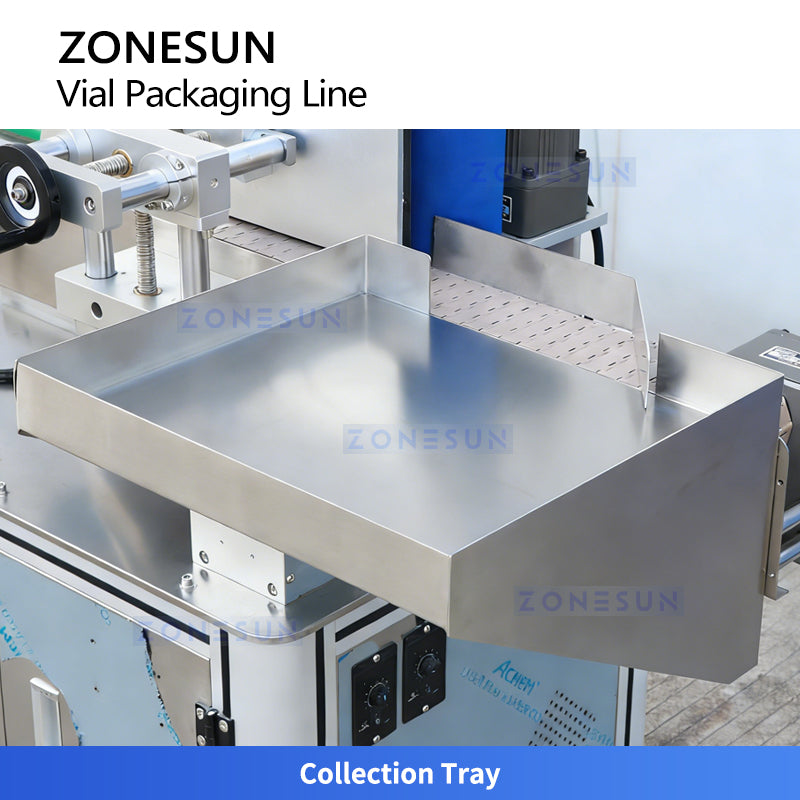

Collection Tray
Collects finished vials for packing and smooth transfer to downstream processes.
